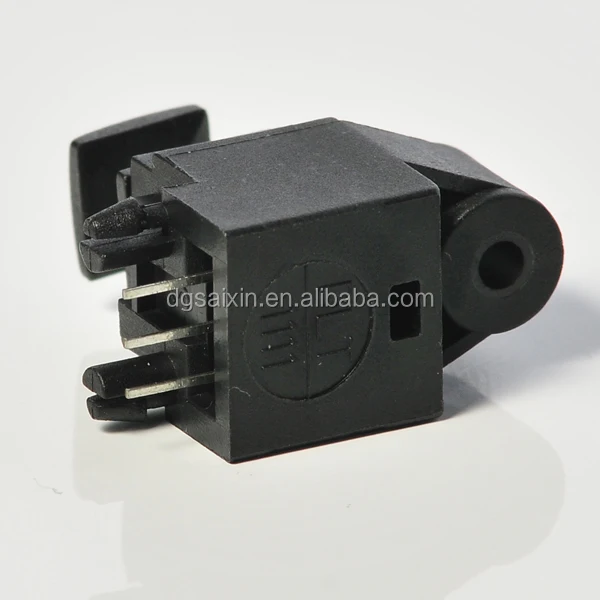

Dongguan Factory Price AIXIN optical fiber toslink connector AX DLR1111

Product Overview

Description

Features

· High PD sensitivity for red light

· High speed up to 16 Mbps

· Low power consumption and current dissipation

· +2.7-5.5V power source

Descriptions

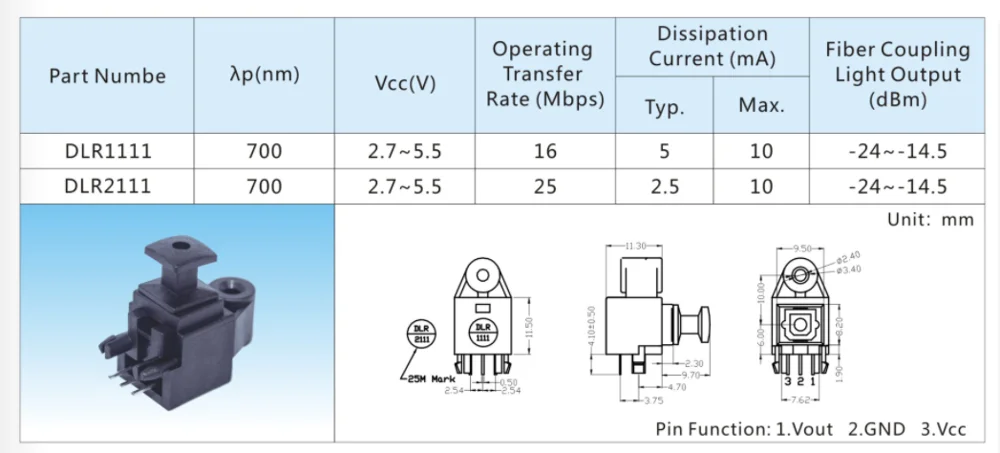

The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.

The unit is operated at +2.7-5.5V and the input signal is TTL compatible. The DLR1111 has a maximum operating speed of 16 Mbps.

Applications

· Audio equipment

· Digital optical data link

· MD

· Sound card

Optical Fiber Connector Receiver
