Product Overview
Description
wuxi shngda 315mm hdpe pipe butt fusion welding machine
Product Description
USES and features:
1. Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.

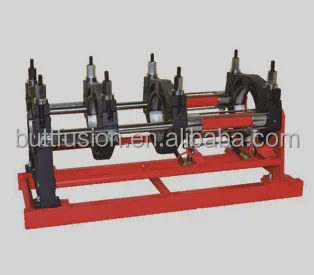

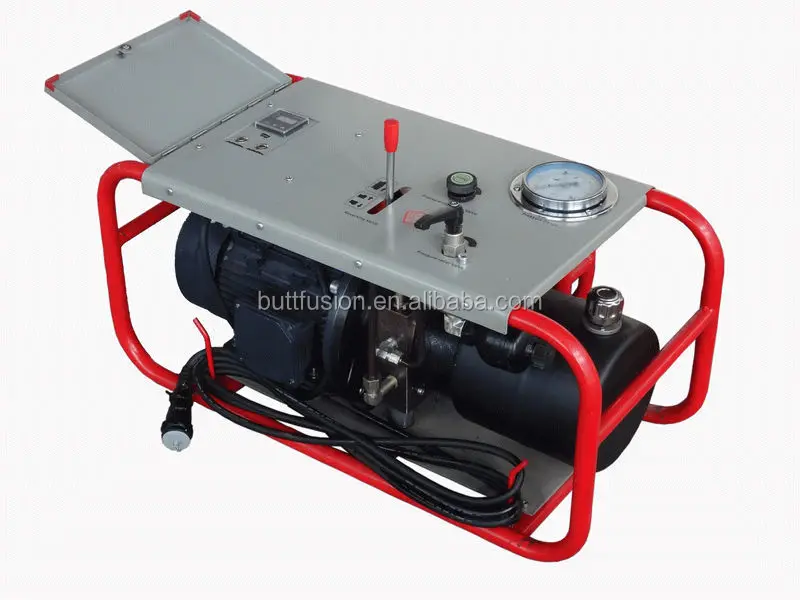

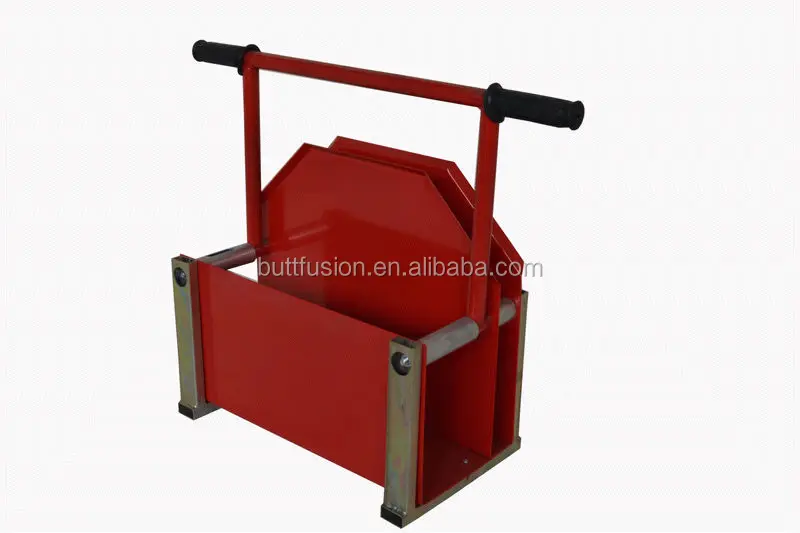

2. Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.

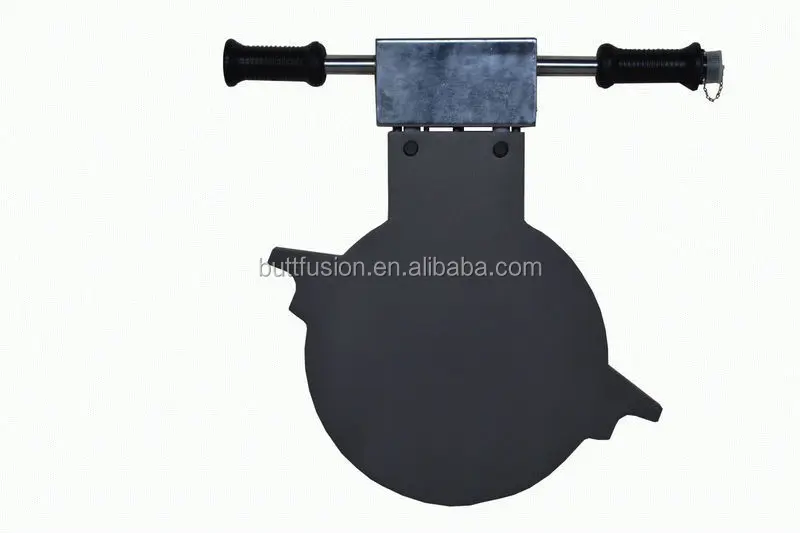

3. Removable PTFE coated heating plate with high accurate temperature control system;

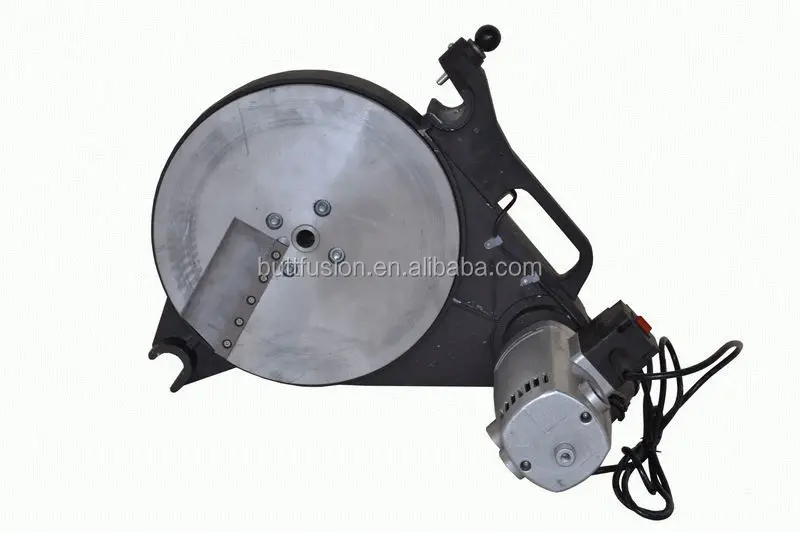

4. Electrical planing tool.
5. Simple structure, small and delicate, user friendly.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter.
9. Separate two-channel timer records time in soaking and cooling phases.
| SHD 315 | ||
|---|---|---|
| Welding scope (mm) | 90,110,125,140,160,180,200,225,250,280,315 | |
| The highest temperature heating plate (℃) | 270 | |
| Temperature of 170 ~ 250 ℃ heating plate surface (℃) | ≤±5 | |
| Pressure regulating range (Mpa) | 0 - 6.3 | |
| Working voltage (V) | 220 | |
| The heating plate power (kW) | 3 | |
| Milling power (kW) | 1.1 | |
| Hydraulic power station (kW) | 0.75 | |
| The lifting power (kW) | none | |
| The total power (kW) | 4.85 | |
Company Information

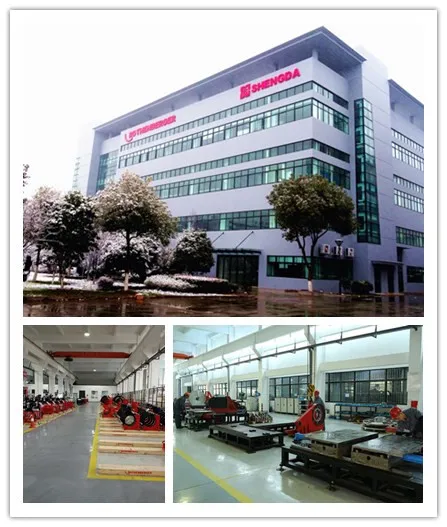

Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
Our business scope includes as below,
1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine
