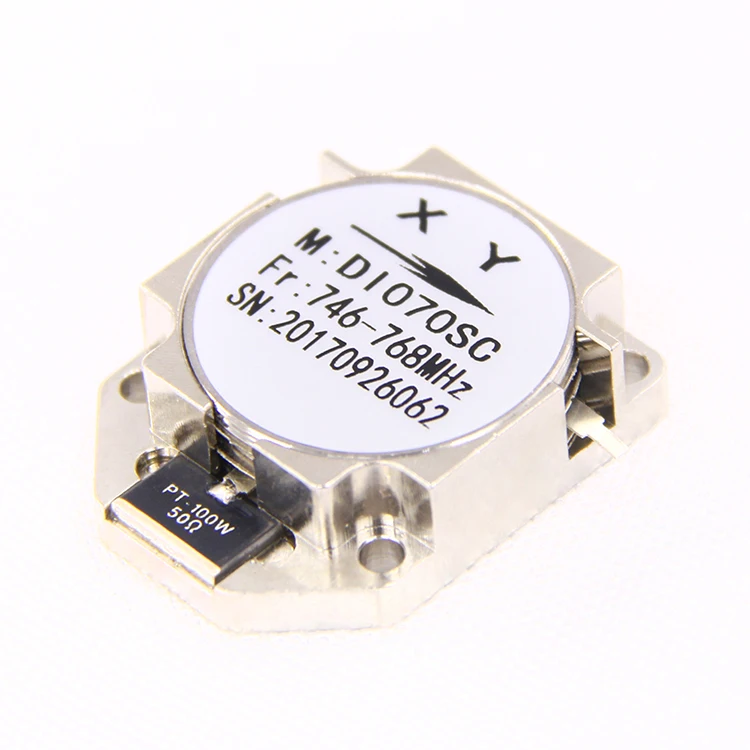

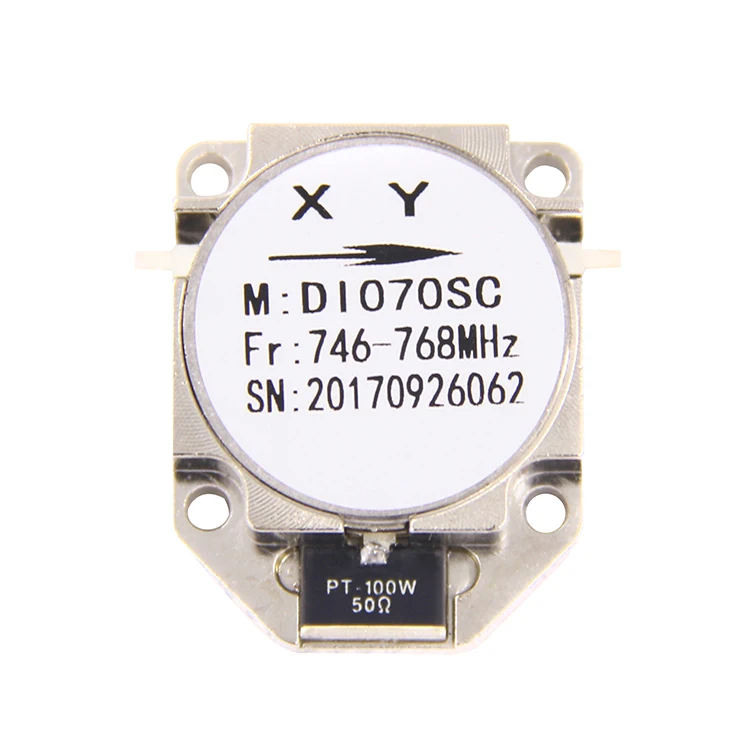

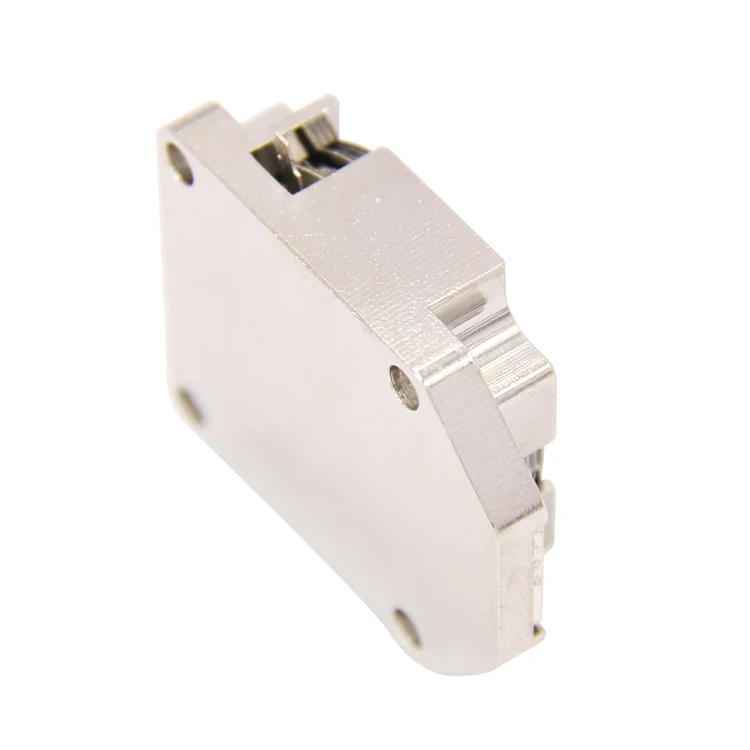

Promotional High Isolation 746 768 Mhz Coaxial Rf Circulator Drop In Isolator
- Category: >>>
- Supplier: Xiangyu Communication Technology Co. Ltd.
Share on (60714112547):
Product Overview
Description
Product Description
| Part No. | DI070SC-746-768-100-1 |
| Frequency Range | 746-768 MHz |
| Insertion Loss(dB) | ≤0.25dB |
| Isolation | ≥23 dB |
| VSWR | ≤1.18:1 |
| Temperature Range | -40℃~+90℃ |
| Storage Temperature | -45℃~+95℃ |
| Connector Type | TAB |
| Direction | Clockwise |
| Power(Forward) | 100W |
| Power(Reverse) | 100W |

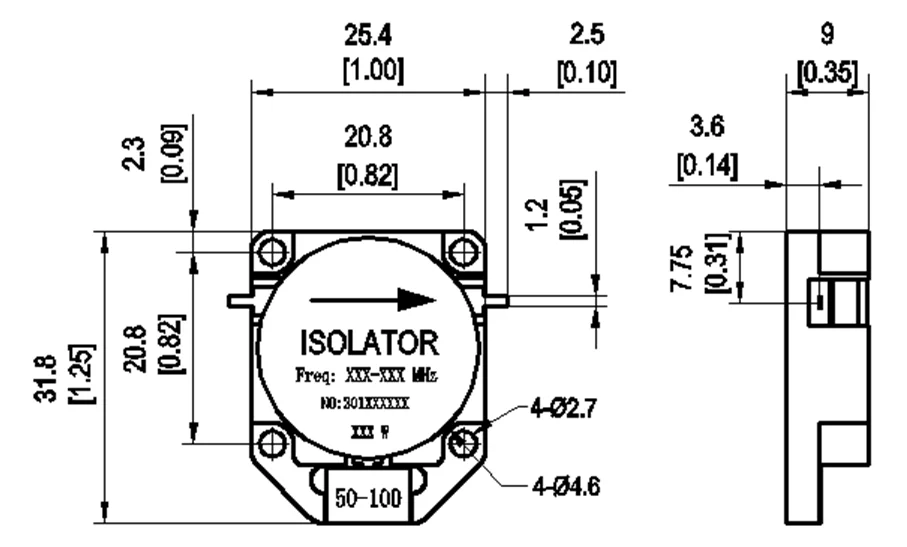

| Outline Drawing | 25.4*31.7*9(mm) |
