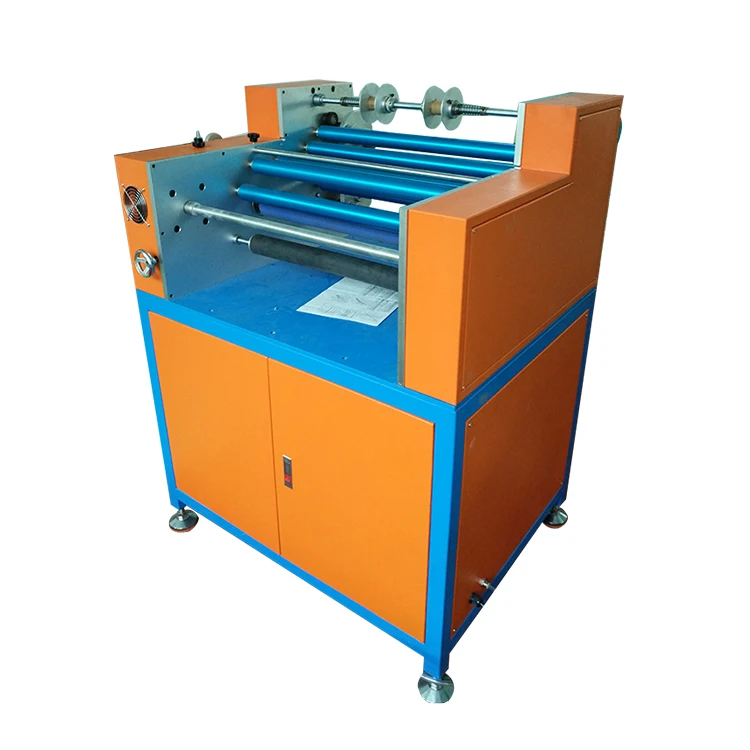

After sales Service Hot Stamping Foil Slitting Cutter Slitter Ribbon Tape Cutting Machine

Machine Name

Hot Stamping Foil Slitting Cutter Slitter Ribbon Tape Cutting Machine

Machine Size

870mm×720mm×1000mm

Weight

250kg

Power

1kw

Power supply

Three-phase five-wire system(380v ×3+center zero line+ ground line),50HZ

Wiring

2.5mm2 ×3 + 1.5mm2×2 20A single-phasewith leakage circuit breaker

Jumbo Roll size

The inner diameter is 1" & 3", The max diameter is D240mm

; Width is 470mm

Finished roll size

The inner diameter is 1" & 1/2", minimum width 20mm, maximum diameter D80mm

Ribbon thickness

0.0045~0.035mm

The max cutting speed

120m/min

Tension System

Mitsubishi

Tension Control

manual

Electronic Control System
