TY02 LCD Capacity Tester

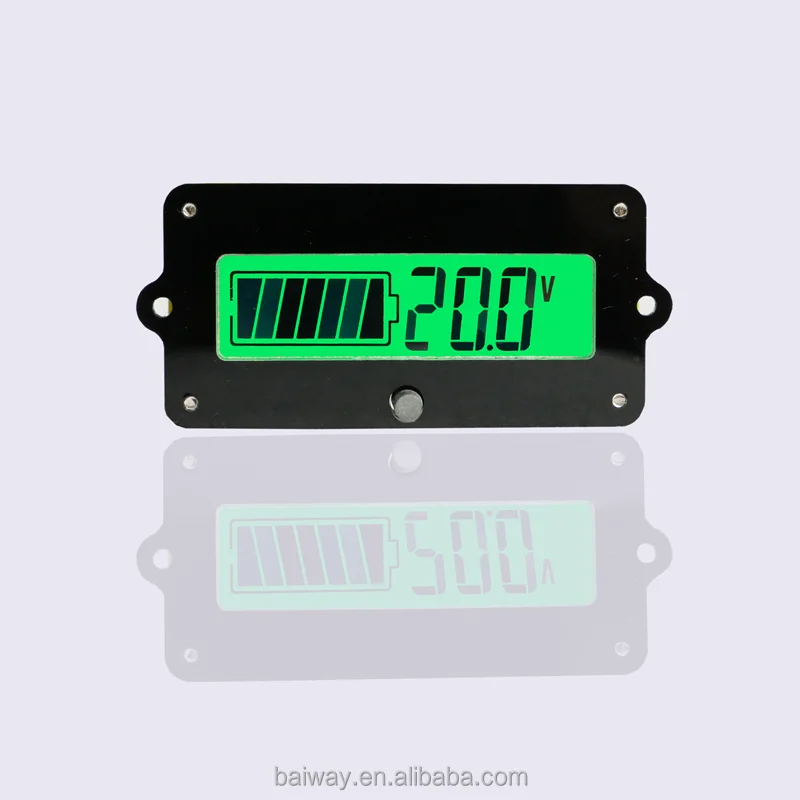

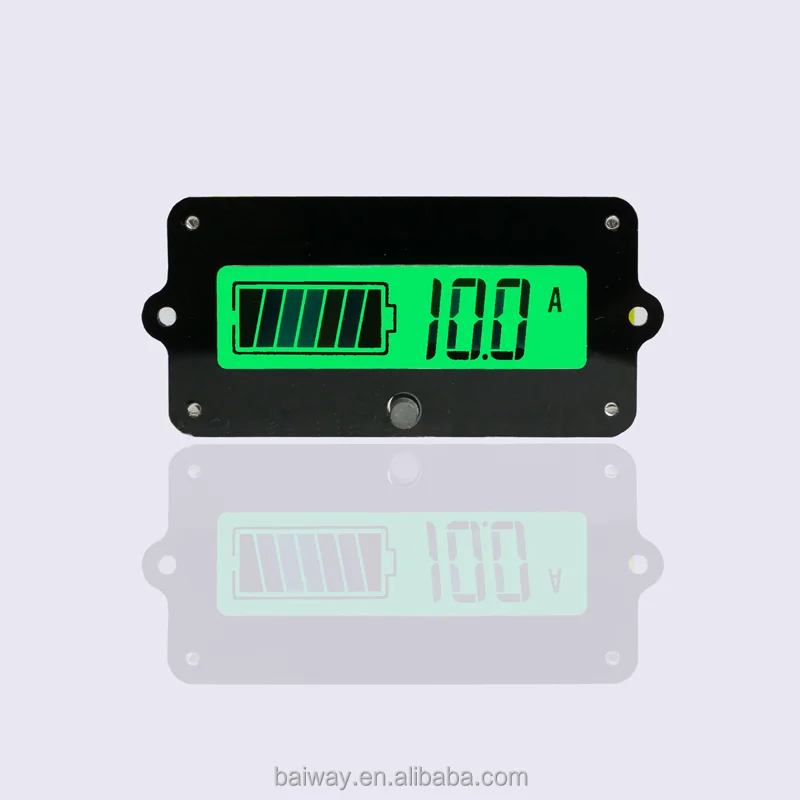

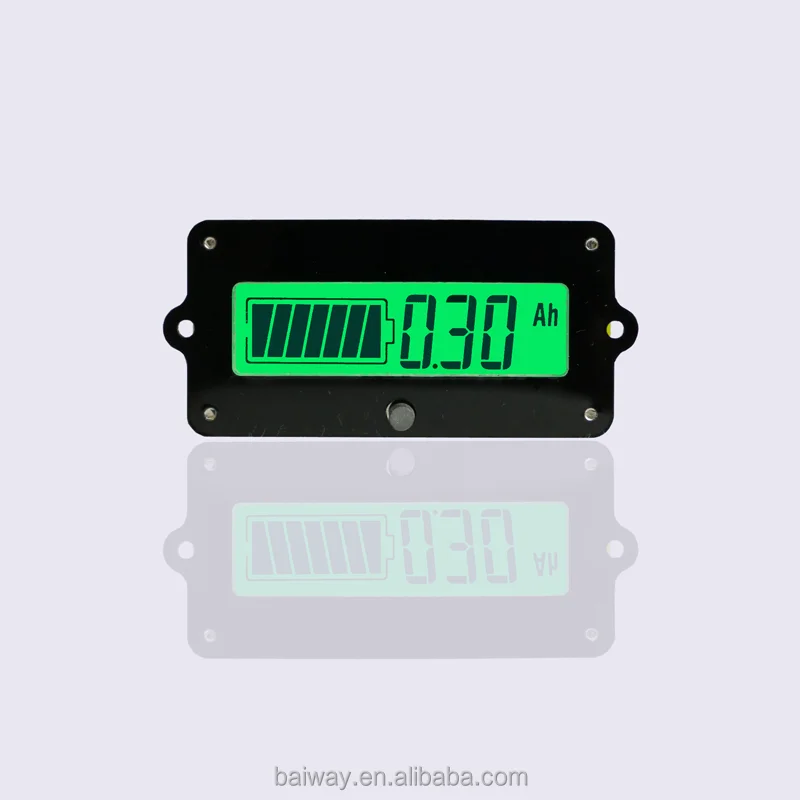

 TY02 is a kind of current type battery capacity tester(coulometer). It is designed to test the voltage, current andcapacity of battery, and help users know the state of battery in time. It is suitable for instruments, measuring equipments,cleaning machines, balance cars, battery cars , e-bike and so on.

This product is suitable for lithium batteries, lithium iron phosphate batteries, lead-acid batteries and nickel-metalhydride batteries which voltage is from 8V to 63V.

Basic parameters:

Connect:

We need a shielded wire and a ordinary wire (0.3-0.75mm²).One end of the ordinary wire connects to positive, the other end connects to B+ of sampler (any one is ok). The B- of sampler connects to B- of battery. P- of sampler connect to P- of output. Finally connect sampler to coulometer by the shielded wire.

Connection diagram of 100A sampler

Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.

This the length of the shielded wire is 0.5m. And 1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance. The price is according to the length.

Install:

First, open one rectangular orifice, one circular hole and two screw holes on the panel of the equipment. Then install the
coulometer from the back of the panel, and put the prominent LCD in the rectangular orifice. Finally, fix the coulometer with
tapping screws from the front. As shown below:

Packing

Each packed in sealing bag or box, weight: 220g.

Delivery

We can send goods by sea, air and express according to you need.
