Hot selling 1602 1626MHZ iridium satellite antenna antena satelital with all kinds of connectors
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory [Guangdong China]Guangzhou
Share on (60714200061):
Product Overview
Description
Product Description

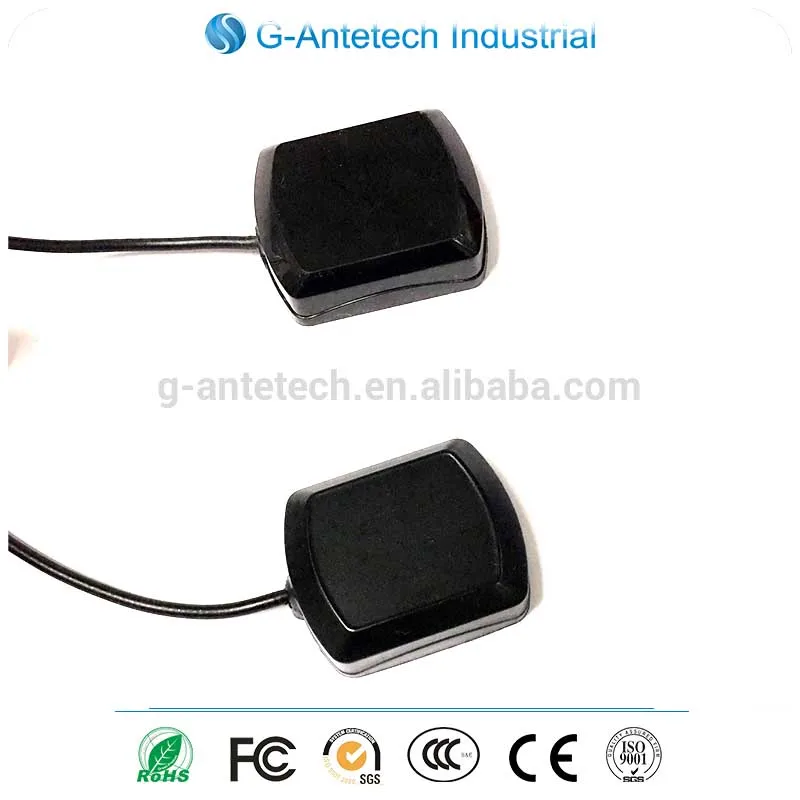

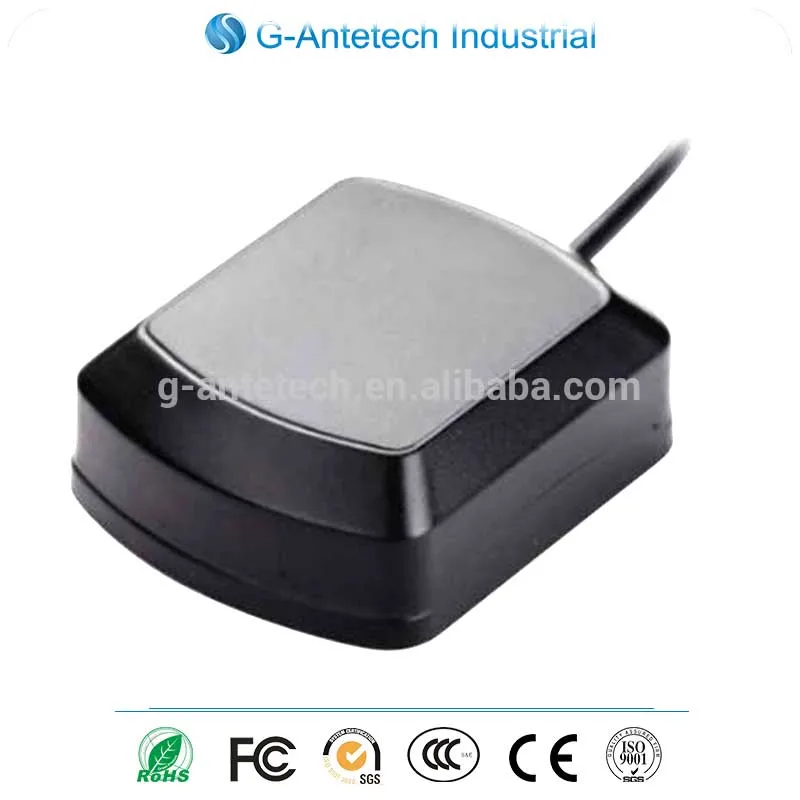

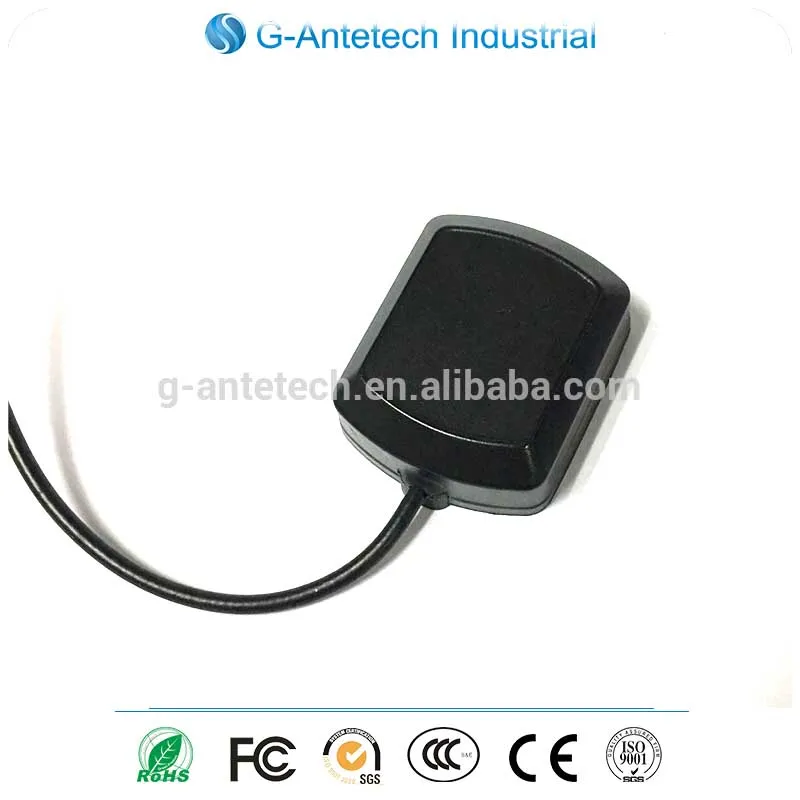

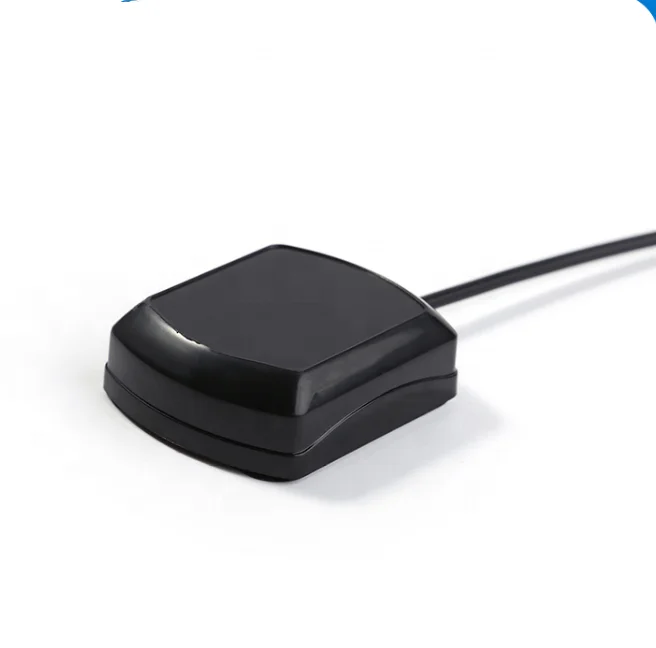

Hot selling 1602-1626MHZ iridium satellite antenna with all kinds of connectors
| Dielectric antenna specification | Mechanical specification | ||
| Patch antenna chip | 35*35*2mm | Weight | <150gram |
| Frequency range | 1602-1626MHZ | Size | 49*39*14MM |
| V. S. W. R | 1.5:1 | Cable | LMR200/U 3m or 5m cable |
| Band width | 30 MHZ | Connector | SMA male straight Others |
| Attenuation fo | +/-100mhz>30db | Mounting base | Magnitec |
| Impendence | 50 ohm | Housing | black |
| Peak gain | >3dbic based on 7*7cm ground plane | Environmental specification | |
| Gain coverage | >-4dbic at -90<0<+90(over 75% volume) | Working temp | -40~+85 |
| Polarization | rhcp | Storage temp | -40~+100 |
used in military, sea and air transport, emergency services, the transport and energy industry as well as by mining, oil and gas companies – in short: it is used by everyone who requires reliable communication without any delays in remote areas. | Vibration sine sweep | 1g(0-p)10~50~10hz each axis | |
| Humidity | 95%~100%rh | ||
| Weatherproof | 100% | ||
| Mtbf | 1*10-6/pc. Hr 40+/-5 dc=5.0v+/-0.5v 2000pcs for 480 | ||
