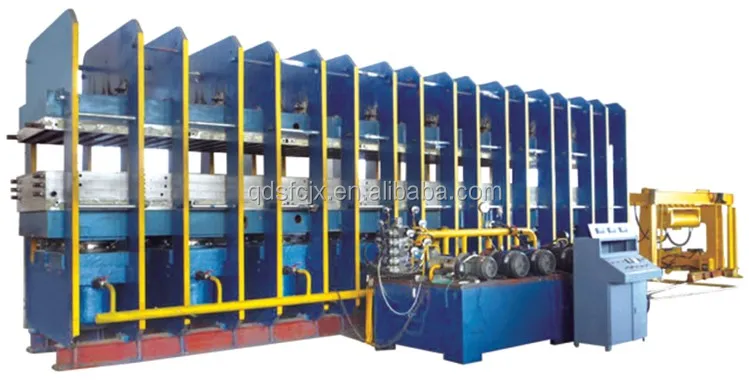

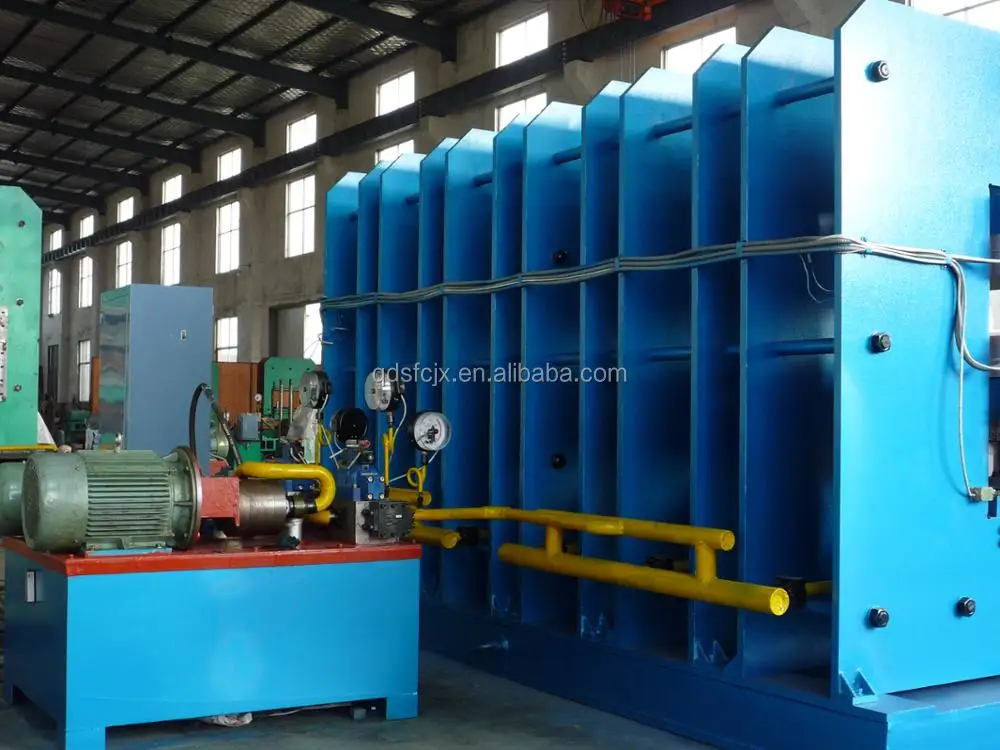

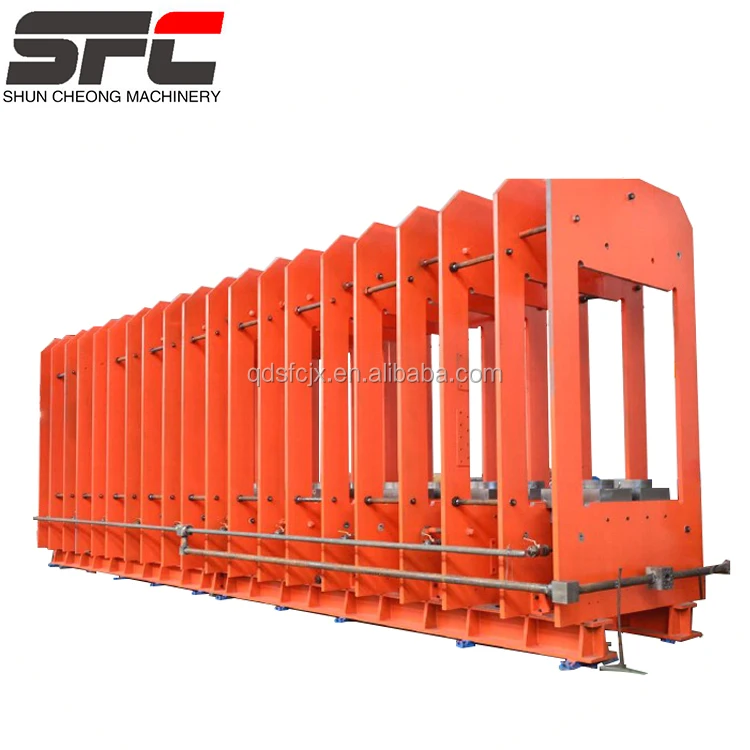

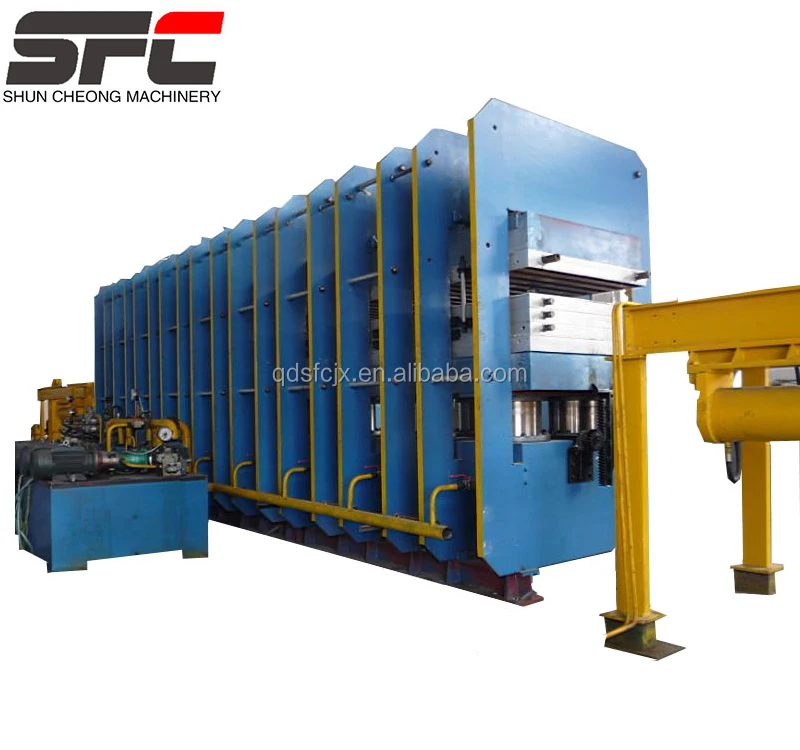

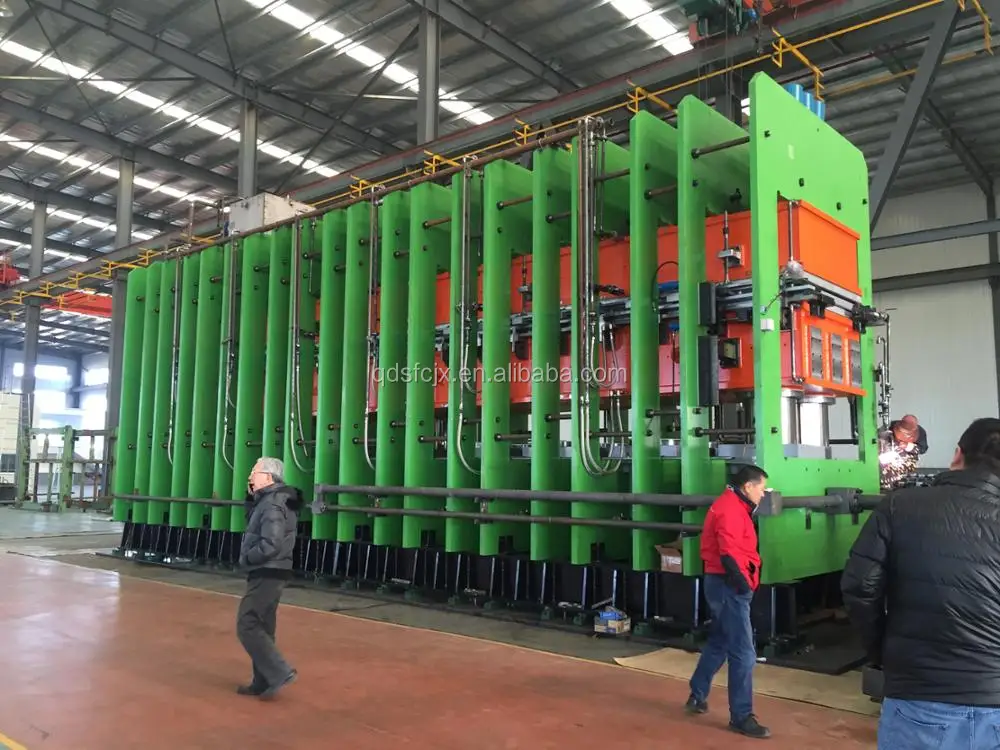

Top quality rubber conveyor belt track vulcanizing press production line for curing fabric/steel cord

Product Overview

Description

High quality rubber conveyor belt vulcanizing press machine with virous of heating plate size with CE ISO SGS certificate

1. Production Description:









Parameter	unit	XLB-1800x12000x2	XLB-1800x10000x2	XLB-1600x10000x2	XLB-1600x10000x1
Hot-plate size	mm	1800x12000	1800x1000	1600x10000	1600x10000
Total pressure	mn	74.00	72.00	56.00	64.00
Hot-plate unit pressure	mpa	3.4	4.0	3.5	4.0
Plunger diameter	mm	500	500	450	500
Plunger No		18	18	18	18
Max plunger stroke	mm	400	300	400	300
Gripping strenth	mn	1.20	1.50	1.20	1.20
Tension force	mn	1.101.2	1.10	1.0	0.5
Steam pressure	mpa	0.63	0.6-0.8	0.63	0.6-0.8
Cooling water pressure	mpa	0.3	0.3	0.3	0.3
controlling method		PLC	PLC	PLC	PLC
Dimension(L)	mm	12000	1000	10000	10000
Dimension(W)	mm	2900	2740	2660	2560
Dimension(H)	mm	3930	3660	4120	3520



Model: XLB-1400*10000
Application: Rubber Conveyor Belt Vulcanizing Press with Frame Construction applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.



 2.Frame vulcanizing pree lightspots display:

•  Salient Features:
  1. High quality plate press
  2. Beautiful modeling, Compact structure
  3. Competitive price
  4. High speed open/close mold, high production efficiency, protect mold.
  5. Its structure is simpleand application is wide. It is easy to be operated                       6.We can provide hand control and electric control



• Construction:
  1)Four Pillar Type
  2)Frame type
  3)C-frame type



• Control:
  1)Manual
  2)Semi-automatic
  3)Fully automatic PLC controlled with touch screen user interface.



•  Operation:
  1)Hydraulic Up-Stroke
  2)Hydraulic Down-Stroke
  3)Hydro-Pneumatic Operation
  4)Vacuum Molding Hydraulic Press

•  Heating:
  1)Electrical heaters
  2)Platens with thermic fluid heating suitability
  3)Platens with steam heating suitability.





 3.Delivery &payment:

• Delivery lead time:  35-40 days since receiving the deposit

• Packing way:


•  1) wrapped with stretch film, avoid rubbing the paint off thesurface


•  2)  wooden packaging can be  customized


•  3) key parts, such as electronic control box, will be wrapped by shockproof  packaging materials, and then packed in wooden cases.

• Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C







4.Our service:

• Overseas service and technical support can be supplied


• We will get the machines dispatched within the stipulated time


• 24 hours online service, immediate response to your request


• Testing machine is available, make sure customer satisfied with machine's quality


• Help customer to design, make drawing,accept OEM rubber machine


• Arrange shipment and inform customer in advance 7 days before finishing the   order







5.Related rubber vulcanizing press display:



Two -way sliding mold curing press:                   Solid tyre curing frame type vulcanizing  press:







6.About us:



•  Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer  with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.

• our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...

• Market:  our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions

• Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available
