Alu Pvc Alu Alu Tropical Automatic Blister Packing Machine

Product Overview

Description

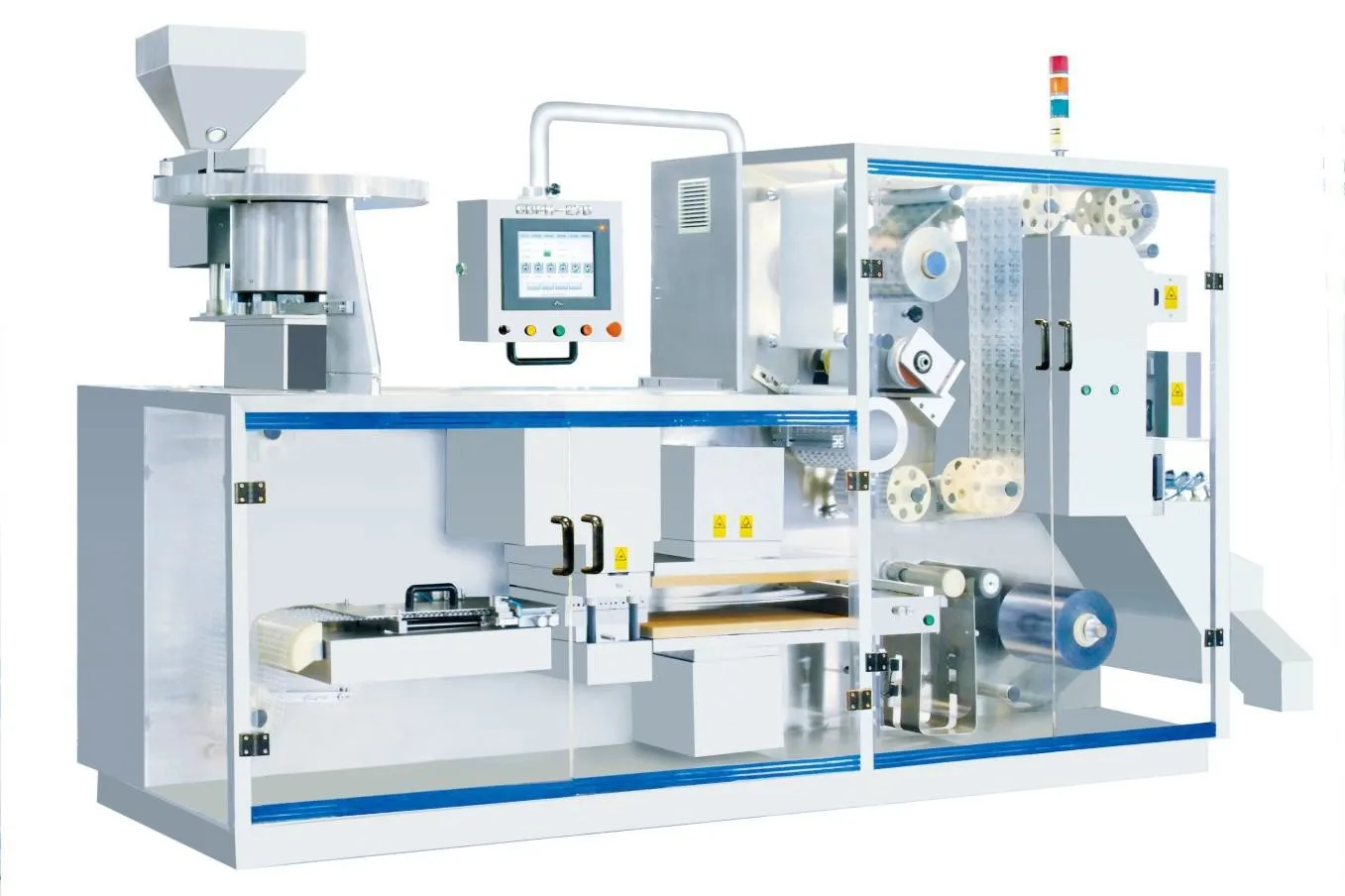

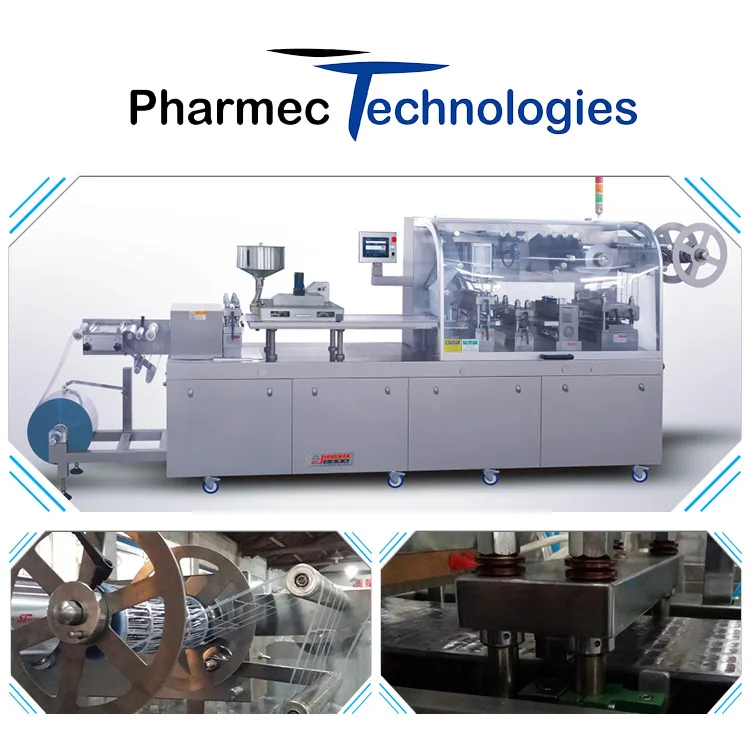

Alu-Pvc Alu-Alu Automatic Blister Packing Machine

Introduction

Aluminum Plastic/duralumin Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.



Technical Parameters



Punch frequency	AL/PVC	20-60 (times/min)
	AL/AL	15-30 (times/min)
Capacity	AL/PVC	140 thousand grains/hour
	AL/AL	75 thousand grains/hour
Max. Forming depth	AL/PVC	22mm
	AL/AL	18mm
Adjustable range of travel		30-140mm
Clean compressed air		0.6-0.8Mpa
Air compressor		≥0.25m3/min
Total power		380V/50Hz/8.5KW
Weight		1800kg
Overall dimensions		4500 x 760x 1620mm







Features

Ø Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.

Ø With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.

Ø The machine station module type design of level frame, good sight, safe and convenient operation.

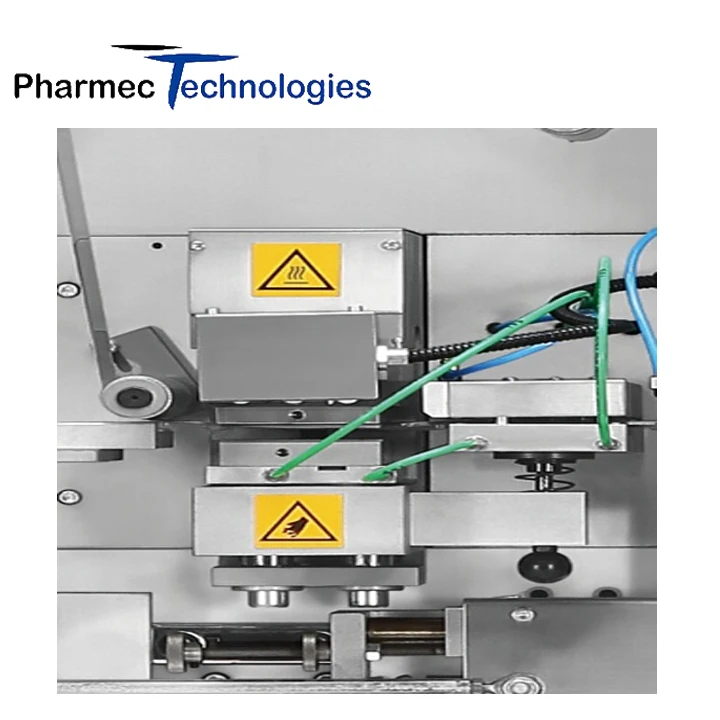

Ø Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.

Ø PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.

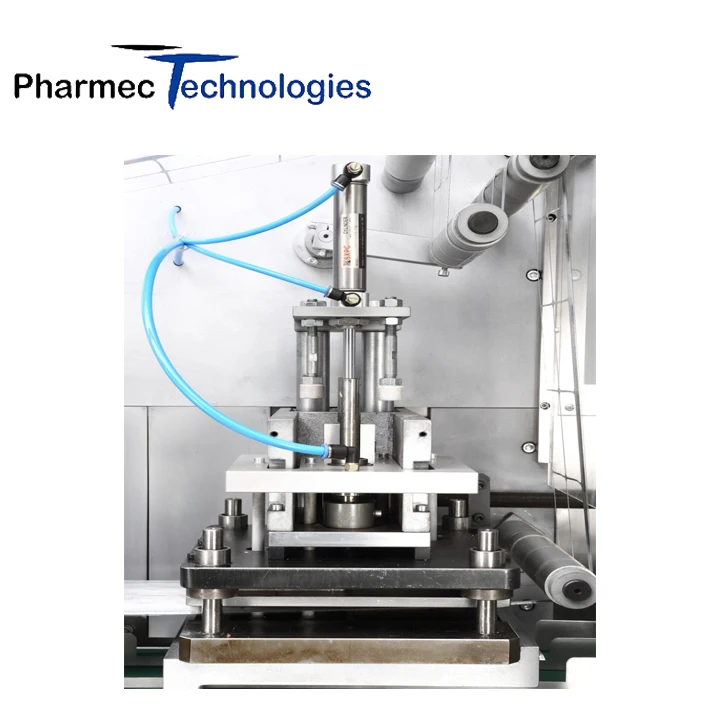

Ø The special design of mould in rectangle shape, ladder type fixing, provide much convenience and easy to mould replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.

Ø Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

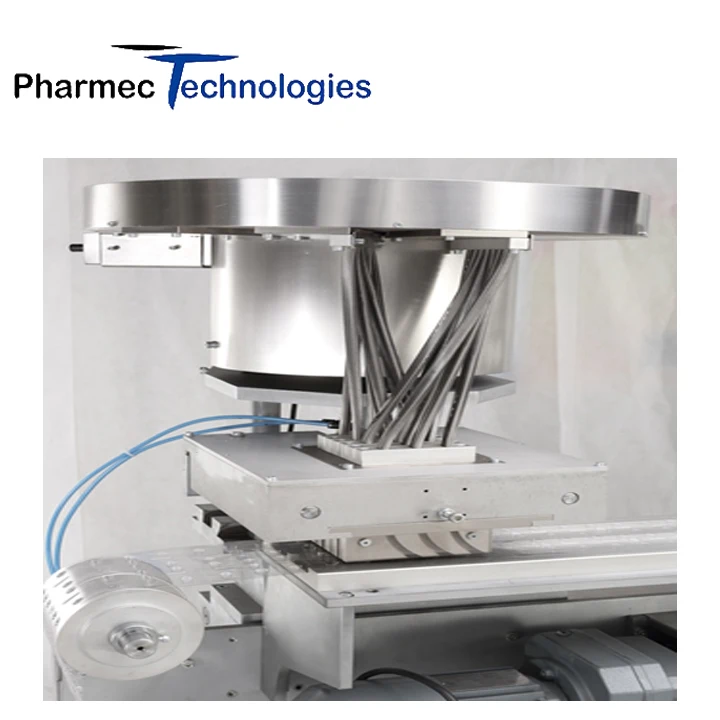

Ø Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)

Ø The machine has been designed into separated body, which is easily move into lifts or workshops.

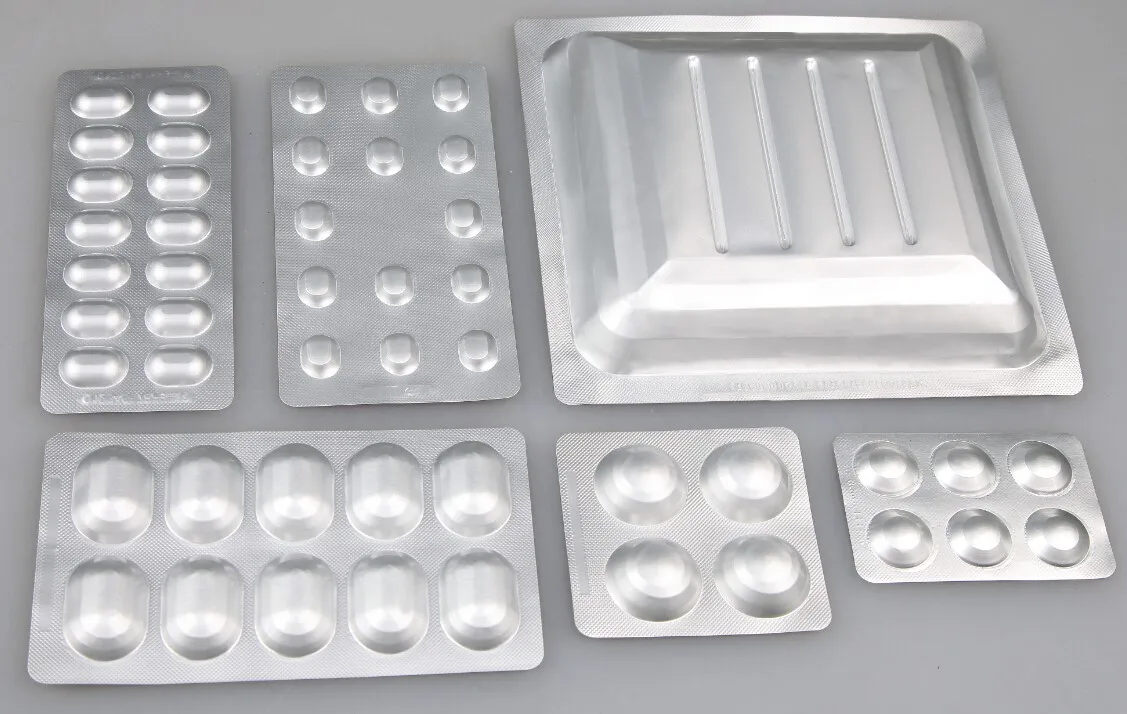

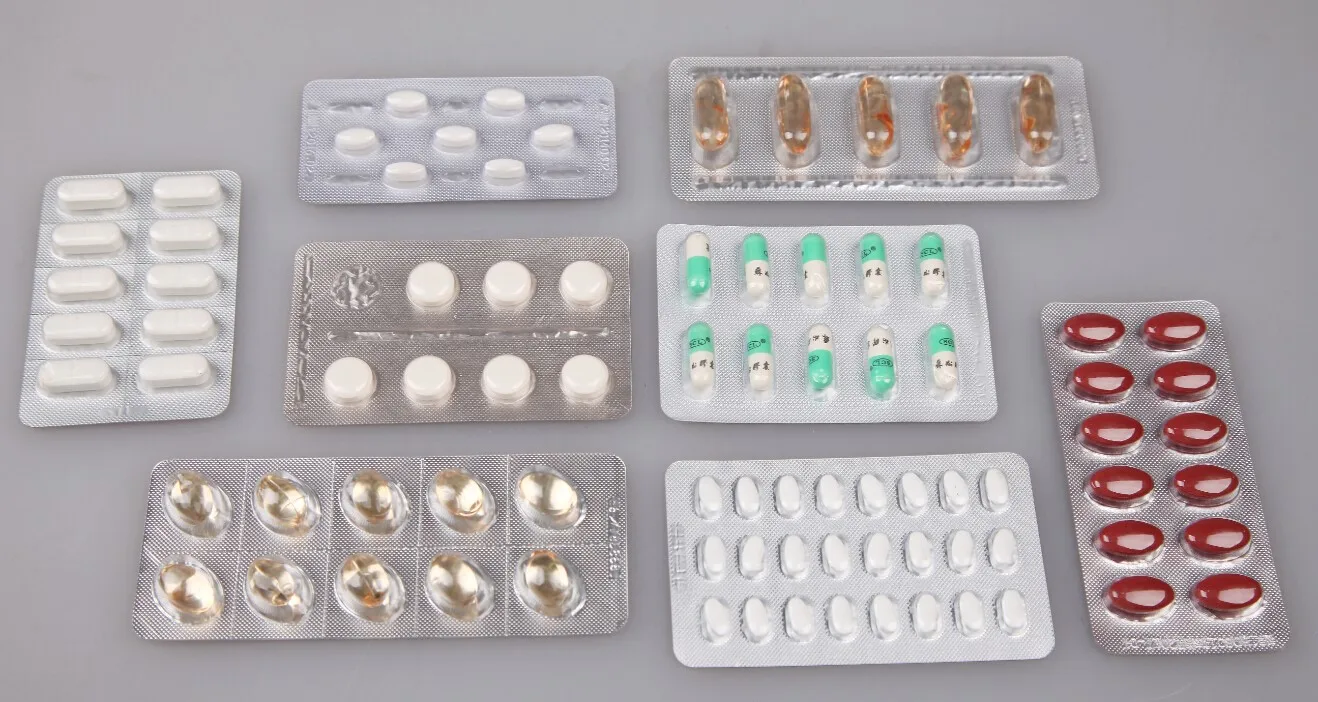

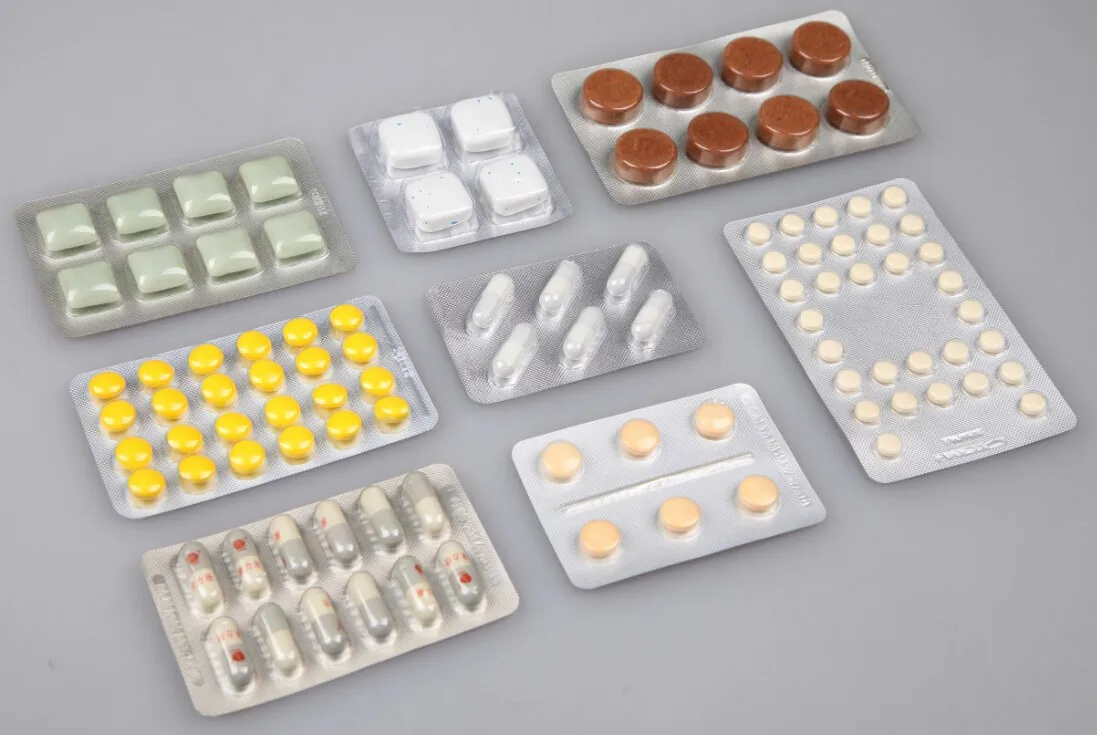

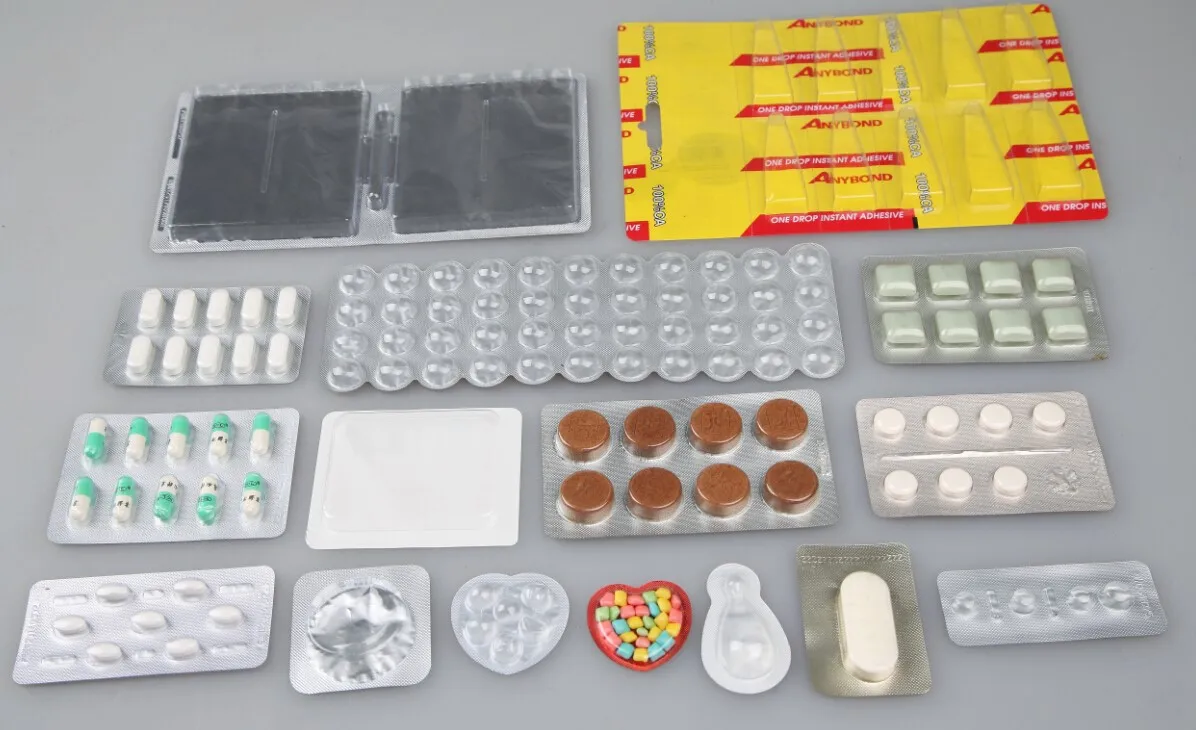

Samples
