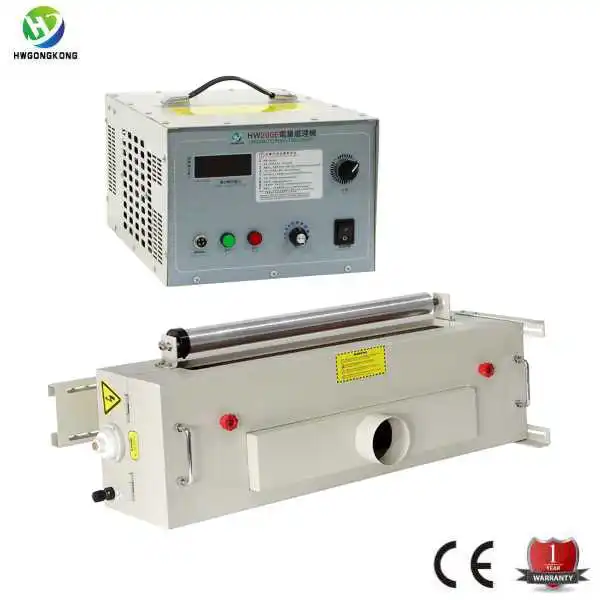

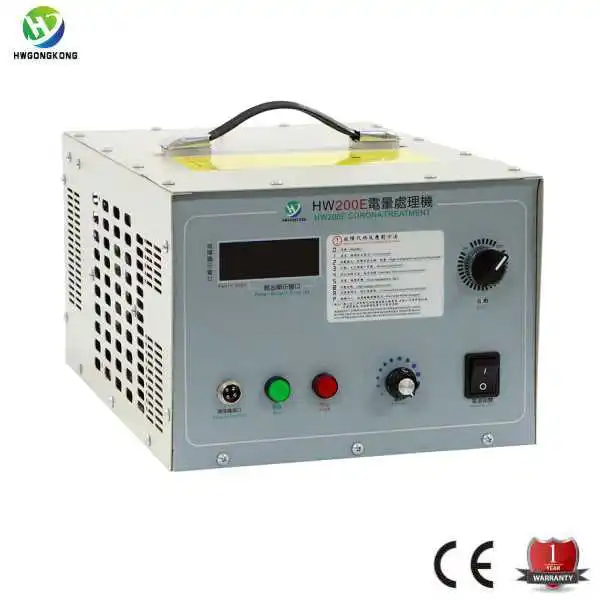

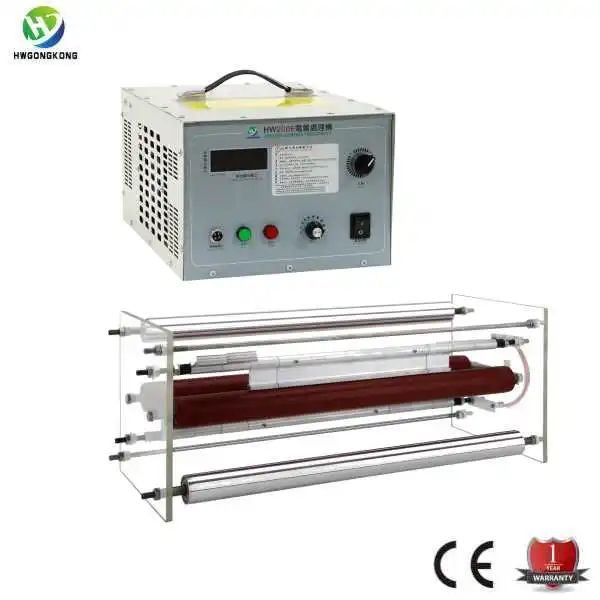

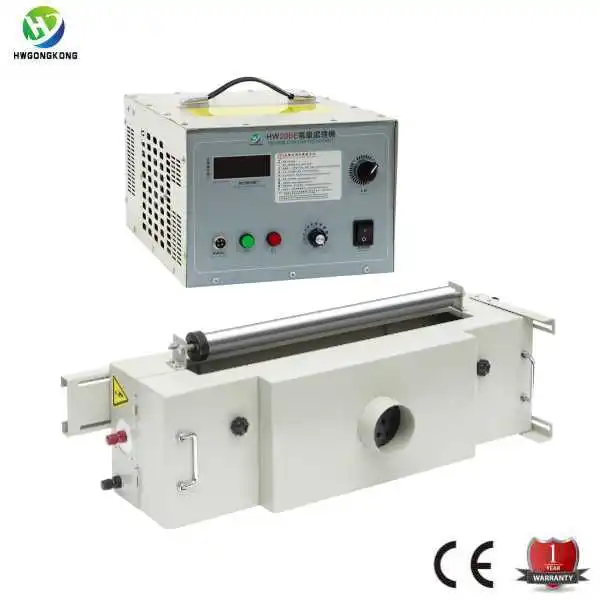

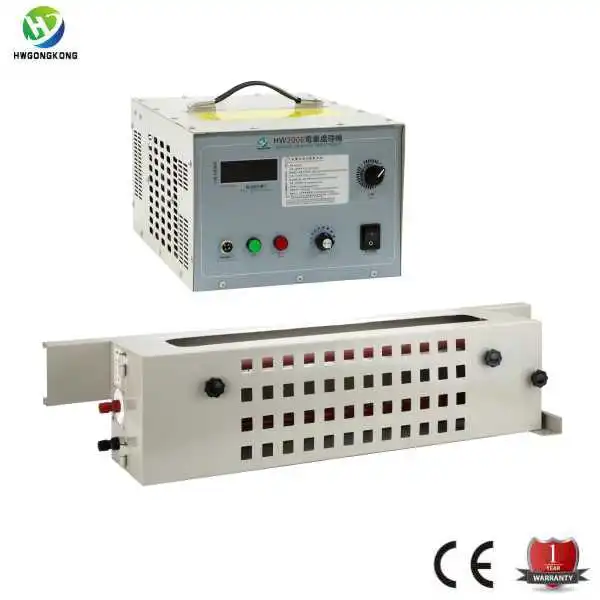

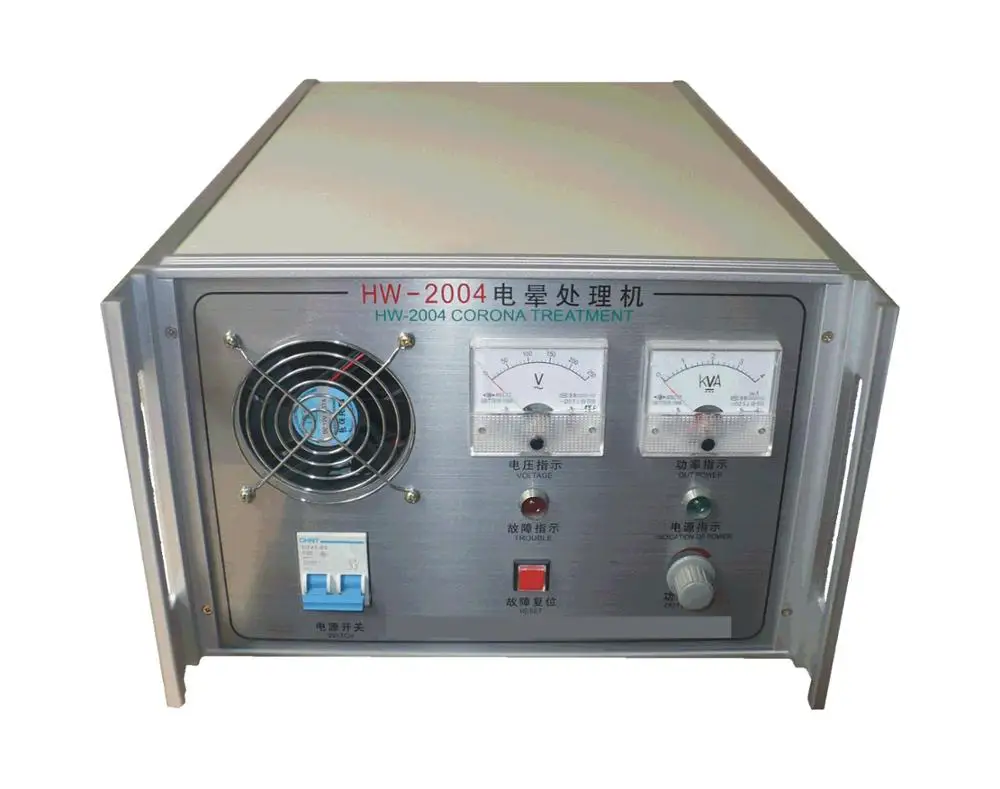

HW 2004 Portable Corona Treater for Printing Machine max width 1500mm

Product Overview

Description

HW-2003 Portable  Corona Treater  for   Printing Machine max width 1200 mm



Main Characteristics:

 1.It adopts high voltages fast-switching power transistor for invent circuit.

     2.High efficiency,high operating frequency.(8-25KHz)

     3.Power output is continuous adjustable.

     4.Electronic protection and low speed automatic off.

     5.Server  in the film production, printing,gelatinize,and complex unit.

     6.Uniform treatment through out the web width.

Technical Specification:

Item	HW2004
Power supply	AC220V±10%/-15%
Mains frequency	50 Hz ± 5 %
Line speed	100-150m/min
Output frequency	8-25 Khz
Max.output power	4Kw
Corona output	a. Constant at same speed b. No influence of supply voltage
Dynes level	38-46Dynes/cm
Treated side	Singel side or Double side
The max treated width	1500mm
Treated material	PP,PE,PS etc plastic film,Metal film
Packing size(Carton)	63*38*36CM   19KG
Environment temperature	-10°C ~ +40°C
Environment humidity	20%~93% no condensation
Application	Film blowing machine,printing machine ,laminating machine etc
Corona treatment station	Avalible as customer's requirements



Benifits:



   1.Easy to install



   2.Accurate output power



   3.Small, compact and economical design



   4.Low maintenance



   5.User friendly



   6.Maximum operator saftey



 Optional value added features:



   1.Pneumatic operated treater station.



   2.Zero speed switch to protect silicoan sleeve.



   3.Ozone extraction system efficiently remove ozone and cool the electrode.



   4.Steel corona station frame with painting anti-rust.



 Please contact us for more machine technical datails and proposal.

 We can send you machine video for clear understanding.
