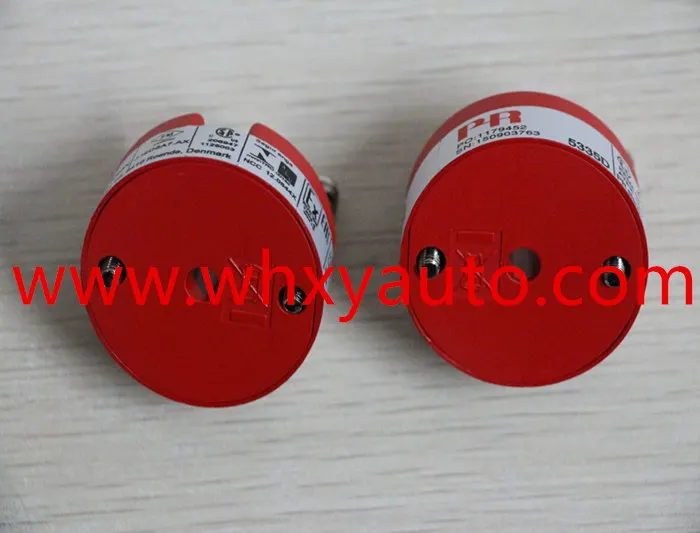

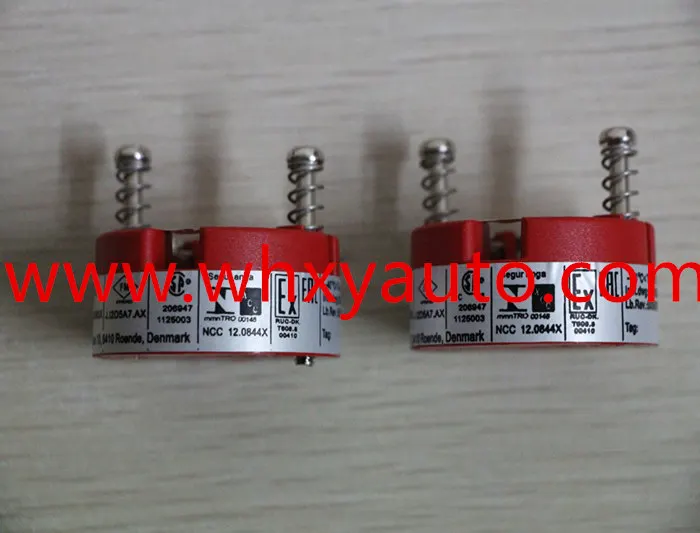

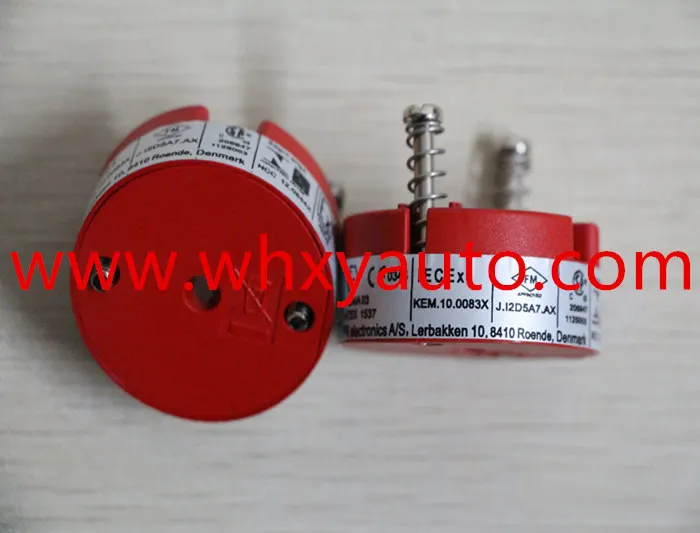

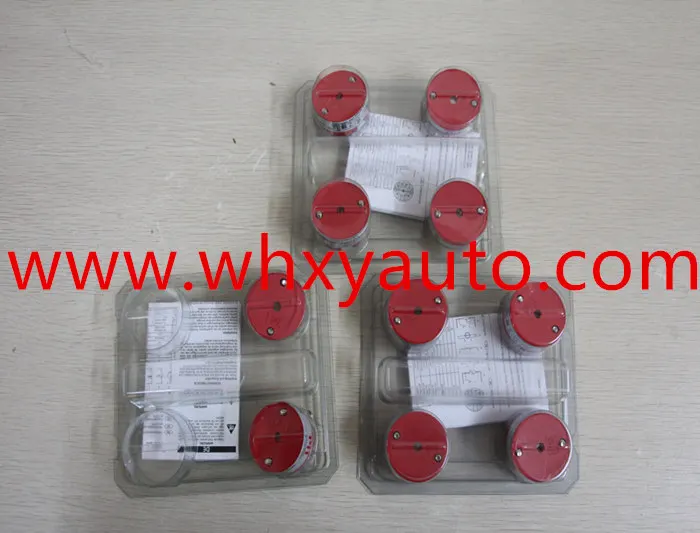

PR 5335D temperature transmitter origin in Denmark with competitive price

Product Overview

Description

                                     PR 5335D temperature transmitter

pplication

• Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
• Difference or average temperature measurement of 2 resistance or TC sensors.
• Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
• Amplification of a bipolar mV signal to a standard 4...20 mA current signal.
• Connection of up to 15 transmitters to a digital 2-wire signal with HART communication.

PR 5335D temperature transmitter

Technical characteristics

• Within a few seconds the user can program PR5335D to measure temperatures within all ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
• The 5335D has been designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
• Continuous check of vital stored data for safety reasons.
• Sensor error detection according to the guidelines in NAMUR NE89.

PR 5335D temperature transmitter

Mounting / installation

• For DIN form B sensor head mounting.

Environmental Conditions

PR 5335D temperature transmitter

Operating temperature	-40°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-cond.)
Protection degree (encl./terminal)	IP68 / IP00

Mechanical specifications

Dimensions	Ø 44 x 20.2 mm
Weight approx.	50 g
Wire size	1 x 1.5 mm2 stranded wire
Screw terminal torque	0.4 Nm
Vibration	IEC 60068-2-6
2...25 Hz	±1.6 mm
25...100 Hz	±4 g

Common specifications

PR 5335D temperature transmitter

Supply
Supply voltage	8.0...30 VDC
Isolation voltage
Isolation voltage, test / working	1.5 kVAC / 50 VAC
Response time
Response time (programmable)	1...60 s
Warm-up time	30 s
Programming	Loop Link & HART
Signal / noise ratio	Min. 60 dB
Accuracy	Better than 0.05% of selected range
Signal dynamics, input	22 bit
Signal dynamics, output	16 bit
Effect of supply voltage change	< 0.005% of span / VDC
EMC immunity influence	< ±0.1% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst	< ±1% of span

Input specifications

Common input specifications
Max. offset	50% of selected max. value
RTD input
RTD type	Pt100, Ni100, lin. R
Cable resistance per wire (max.)	5 Ω (up to 50 Ω per wire is possible with reduced measurement accuracy)
Sensor current	Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire)	< 0.002 Ω / Ω
Sensor error detection	Yes
TC input
Thermocouple type	B, E, J, K, L, N, R, S, T, U, W3, W5
Cold junction compensation (CJC)	< ±1.0°C
Sensor error detection	Yes
Sensor error current: When detecting / else	Nom. 33 μA / 0 μA
Voltage input
Measurement range	-800...+800 mV
Min. measurement range (span)	2.5 mV
Input resistance	10 MΩ
