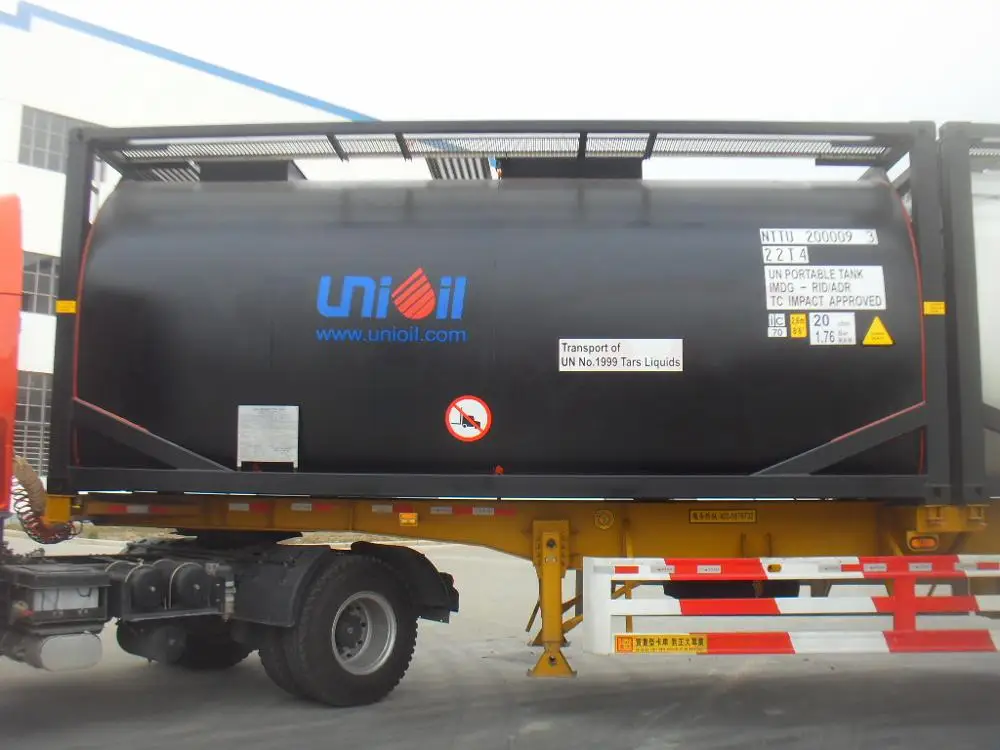

Vertical stainless steel bitumen 20 foot container for sale

Tank Type

20’ ISO full frame collar tank, Type UN T3 portable, insulated Bitumen tank, top side rails fitted

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

20000 Litres +/- 2%

M.G.W.

c

Tare (est.)

6700 kgs

Max Payload

23,780 kgs

Working Pressure

1.76 Bar

Test Pressure

2.65 Bar

Allowable Vacuum

0.21 Bar

Design Temp

-20°C to +170°C

Vessel Material

16MnDR

Shell Thickness

6 mm

Ends Thickness

6 mm after forming

Corrosion Allowance

1 mm (Max.)

Frame Material

GB/T 1591-94-Q345D

Frame to Shell

Q345D

Corner castings

ISO 1161 - 8 off

Vessel Design Code:

ASME VIII Div 1

Radiography

Shell

Dished ends

ASME Spot

ASME Full

Inspection Agency

LR, BV or CCS

Cargo carried

Bitumen

Design Approvals

IMDG T3, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT
