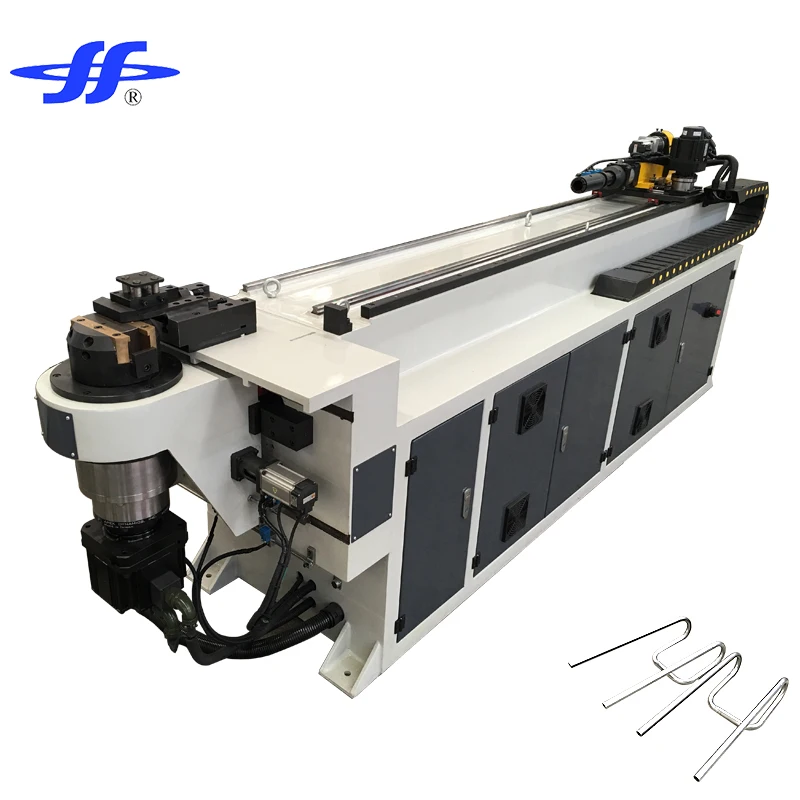

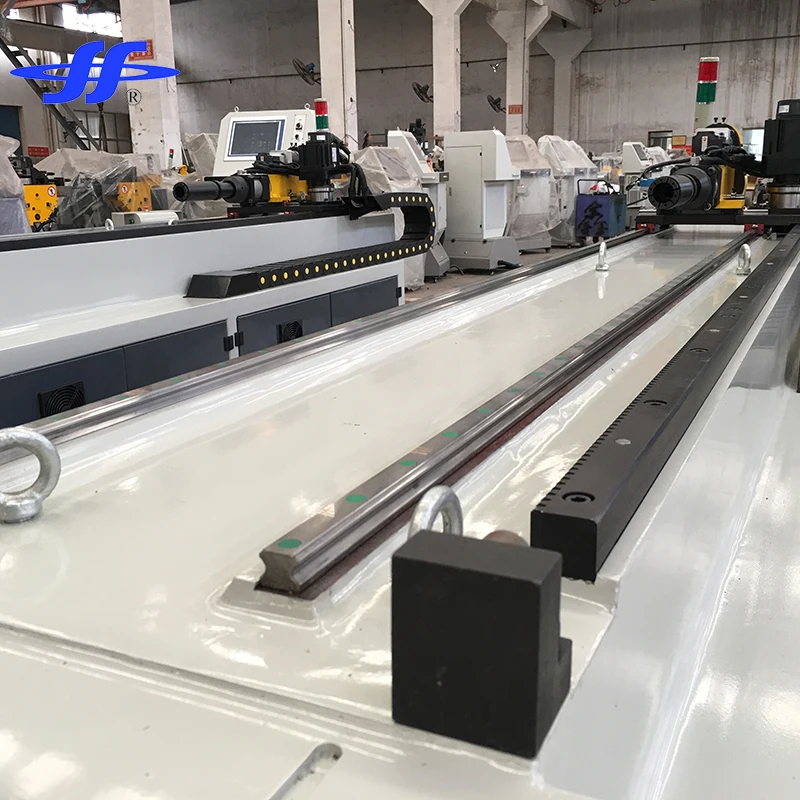

CNC Pipe Bending Machine Used For Processing Metal Pipe With CE SGS ISO Certified
- Category: >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd. [Jiangsu China]Jiangsu
Share on (60714388034):
Product Overview
Description

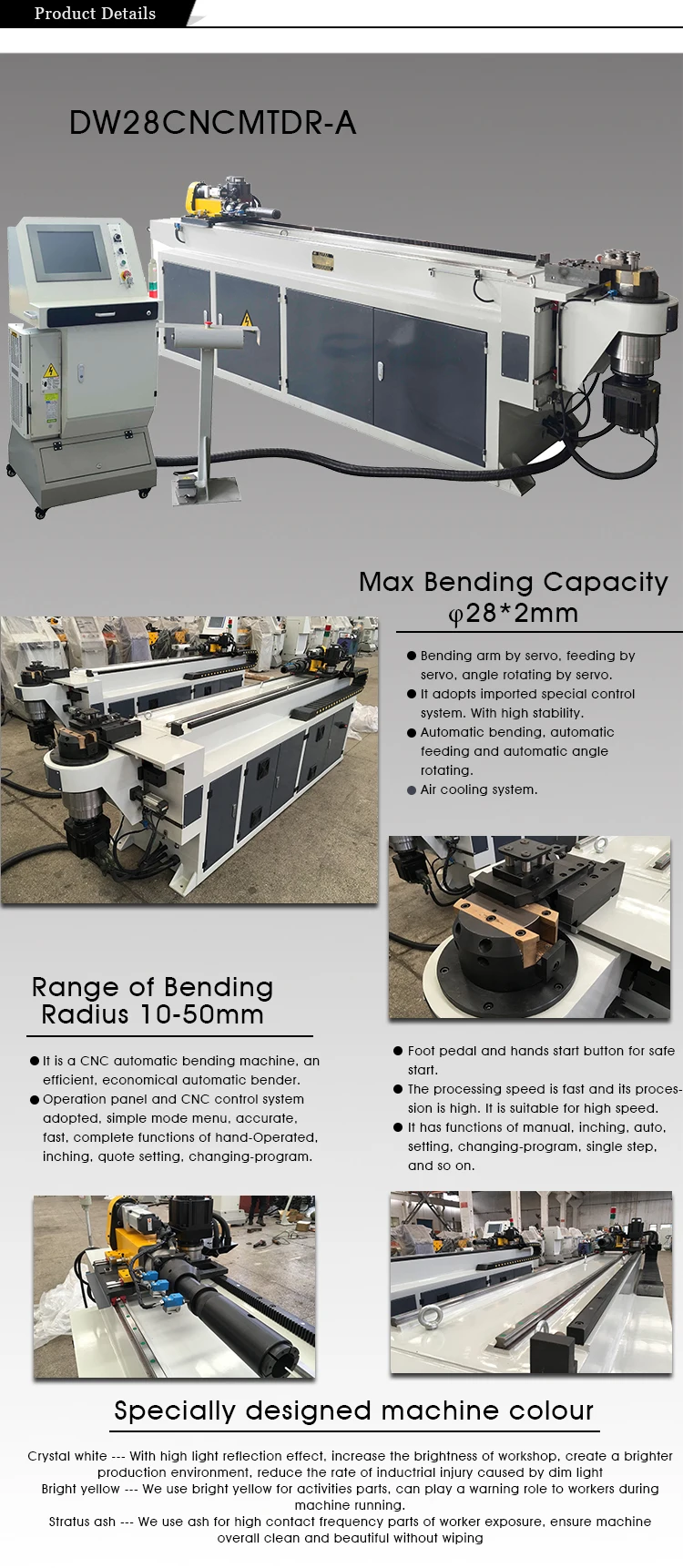

Product Detail

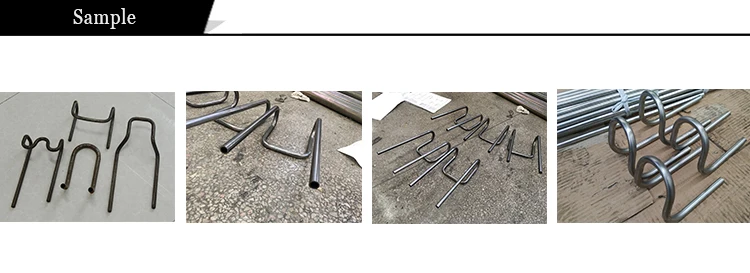

Suggestion&Sample
No. | Item | Data |
1 | Max Bending Capacity | Φ28 mm |
2 | Rang of Bending Radius | 10-50 mm |
3 | Max Bend Angle | 190 Deg |
4 | Max Length Over Mandrel | 2000 mm |
5 | Working Height | 1024 mm |
6 | Bending Speed | 600 Deg/Sec |
7 | Bending Precision | +/-0.02 Deg |
8 | Feeding Speed | 942 mm/Ses |
9 | Feeding Precision | +/-0.05 mm |
10 | Rotate Speed | 375 Deg/Sec |
11 | Rotate Precision | +/-0.05 Deg |
12 | Total Power | 5.5 Kw |
13 | Machine Size | 3400x1400x720 mm |
14 | Machine Weight | 900 Kg |
Related Product
Company Profile
Certificate&Logistic
Contact Us
FAQ
Q: Are you a manufacturer or trading company? |
| A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
Q: How to choose the pipe/tube bending machines? |
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR), The pipe material,The drawings if possible |
Q: What is the biggest bending capacity you could offer? |
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
Q: Where is your factory located? How can I visit there? |
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
Q: How does your factory do regarding quality control? |
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
