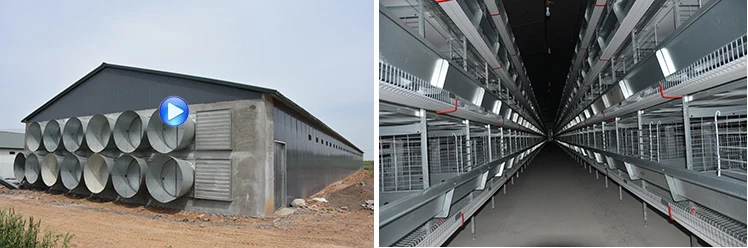

1. Chicken Capacity: 80,000 chickens( and customer now design to expand another chicken house-also 50,000 chicken, new order has been placed in Ocotober, 16th)

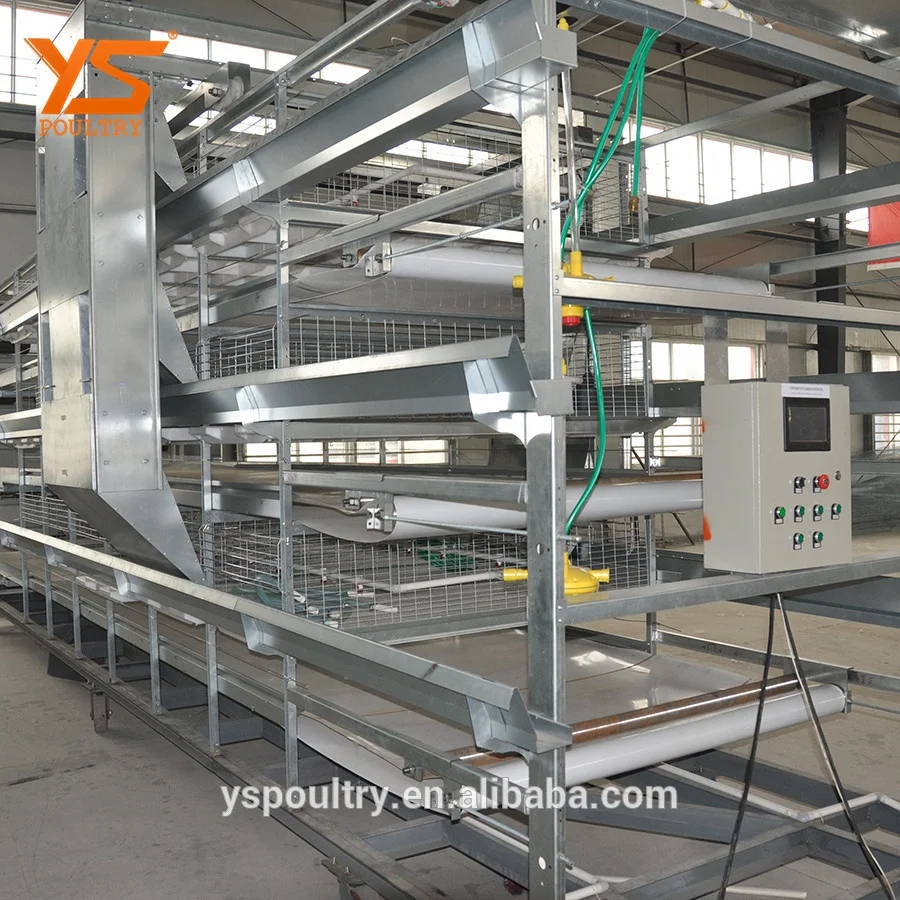

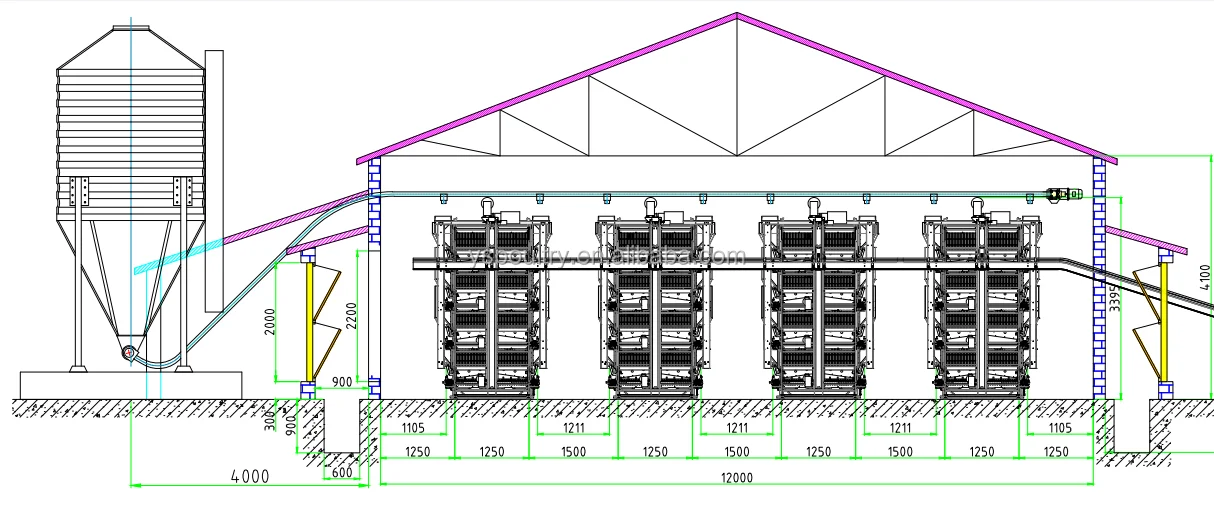

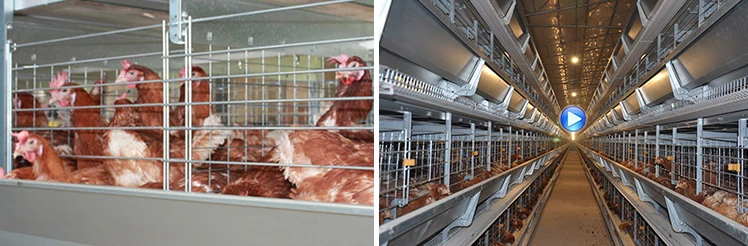

2. Equipment: 4 row 4 tiers H Type Egg Chicken Laying Coop , with automatic drinking, feeding, egg collecting, manure cleaning as well as ventilaton and temperature controling system.
3. If customer don't have experience on highers profit and large scale chicken farm, we can supply turnkey service. You just need offer the size of your chicken farm or chicken quantity you want to raise. We can design the most resonablle plan base on our 28 y-year experience. Meanwhile, we can also provide you the installation after ervice, and farming guidance.

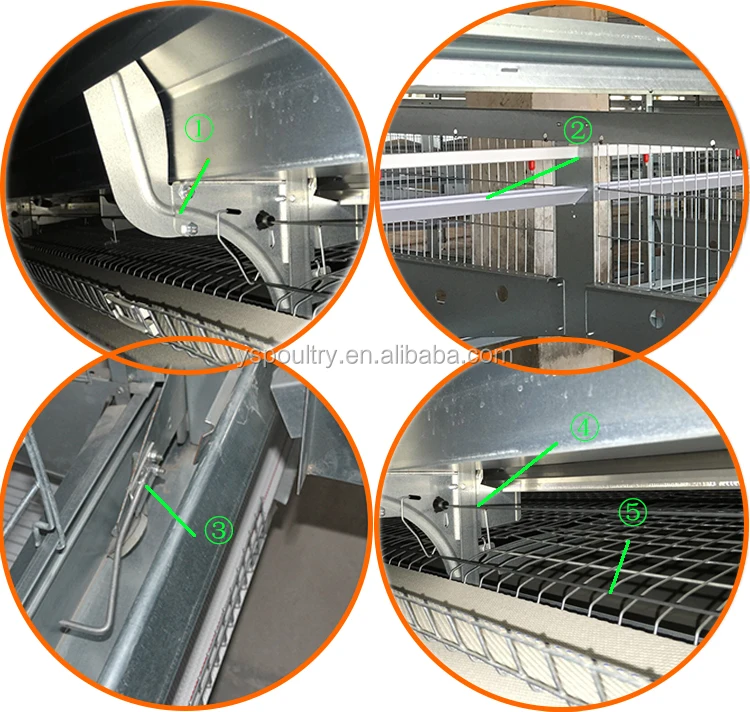

Technical Details of Egg Chicken Laying Coop:
1. Feed trough Bracket
Feed trough Bracket is assembled with two parts together. It is adjustable, and convenient for installation.
2. V Type Water Channel
V type water channel collect splash water from the drinker, keep the dry of the cage and also the manure, avoid the chicken disease effectively.
3. Feed Adjustable Device
The feed adjustable device keep the uniformity of the feeds in the trough, prevent some chickens go hungry, thus keeping all chickens have high efficient egg laying rate

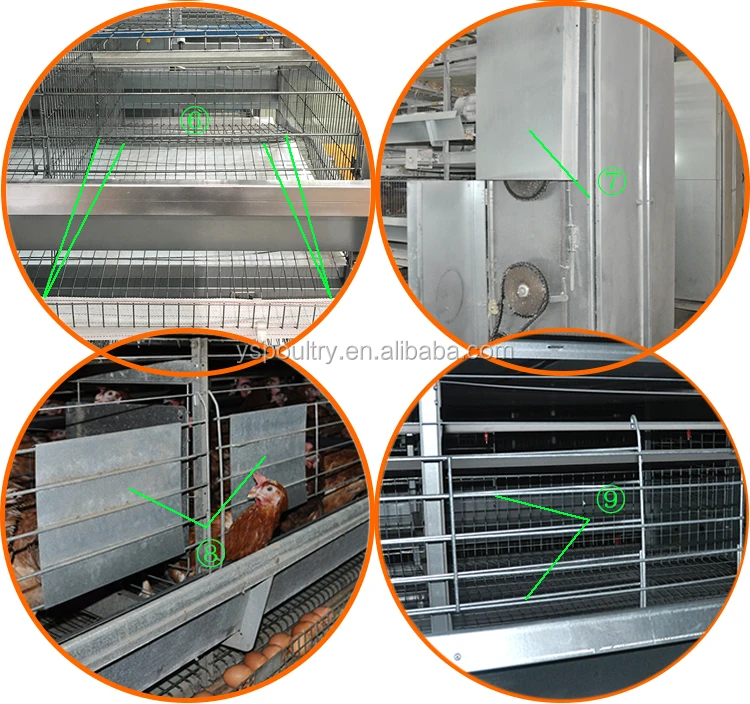

4. Static Wire
This static wire deliver a slight current.When the chicken wants to peck eggs, give an electric shock to avoid such incidents.
5. EggSaver
The EggSaver ensure that eggs roll off safety onto the longitudinal belt. This wire is raised and lower at certain intervals during the laying period. An additional advantage of the Egg Saver is that the freshly laid, still moist egg can dry off before they roll onto the egg belt, thus minimizing the amount of dust and feathers sticking to the eggs.
6. 7°Slop Bottom Mesh
This is the most suitable slop. it can make sure eggs sliding smoothly, and zero egg breaking rate. Meanwhile chickens won’t feel tired when they stand at this slope, so that increasing the egg laying rate indirectly.
7. Manure Removal Host Protection
This could prevent the host from rusting, avoid chicken feathers into the host when the fan's runing , and reduce the ammonia load of the house air.
8. Lay Eggs Plate
This could avoid the shy of chicken when laying eggs, so could increase the laying rate.
9. Transverse Sliding Door
This transverse Sliding Door could control chickens’ habit of raising, throwing heads, and dig feed. So this could avoid the feed losses greatly.
The Specification of Egg Chicken Laying Coop:
Long(mm)
Width (mm)
Height(mm)
Cell/ Cage
Capacity( Birds)/Cell
Floor Area/Bird
840
625
650
1
11
477cm²
1000
625
650
2
7
446cm²
Related products
Except our main products-Egg Chicken Laying Coop, we also sell the related products as following:
Company Information
Animal husbandry industry chain as a whole works are in full upgrade, production operations in the future will be more safety and health,
more environmental protection and energy saving, more intelligent and efficient.
YISHUN are committed to provide one stop services including consultation, design, planning, manufacture, installation, commissioning, and follow-up upgrade to our customers in the fields of animal farming.
Integrated Solutions: We are always exploring solutions and deliver the most value to the customer. The combination of the project is
not a single product and should pay attention to the system as a whole match.Like a car, the engine matching with body is better, to be more energy-saving, cost saving, high efficiency. We from the perspective of the customer's actual demand, complete the consulting design to the production operation of the whole delivery.
YISHUN Establish
1989
Website
//www.yspoultry.com/
Business Scope
All types chicken cages
Certification
ISO9001:2008 SGS SONCAP
Motto
the relentless pursue of perfection
Tenet
”reasonable price, on time delivery and good after-sale service

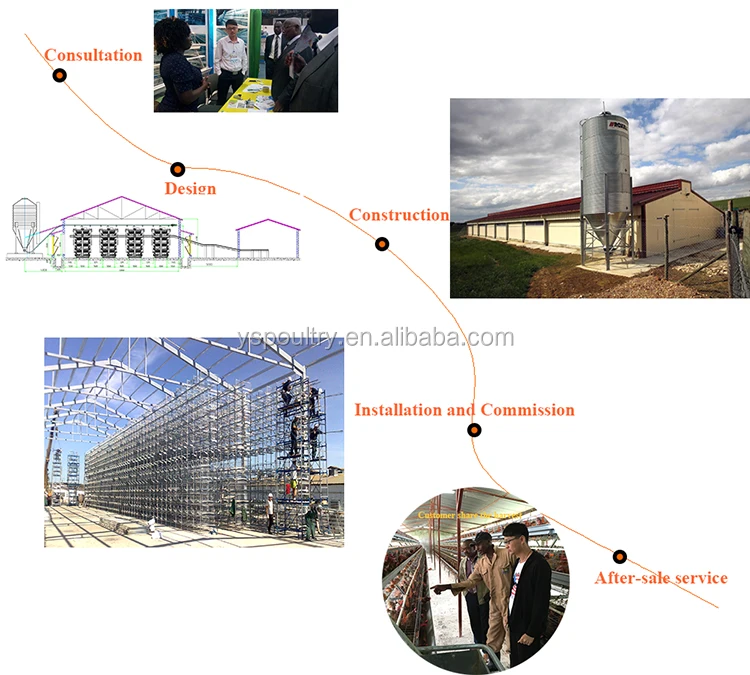

Our Services
Our Goal is to provide excellent customer service
We are committed to provide one stop services including consultation, design, civil constrution, manufacture, installation, commissioning, and follow-up upgrade to our customers in the fields of animal farming.
Customer Visit
Customers Come from All Over the Word
Contact us
If any question or more details, please contact us as following methods:
