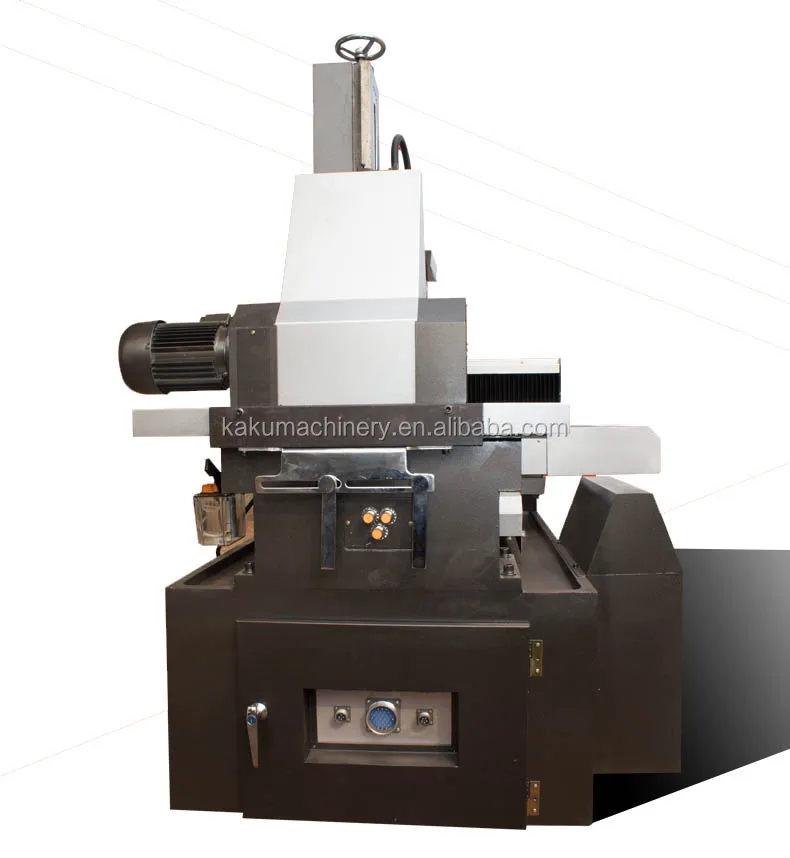

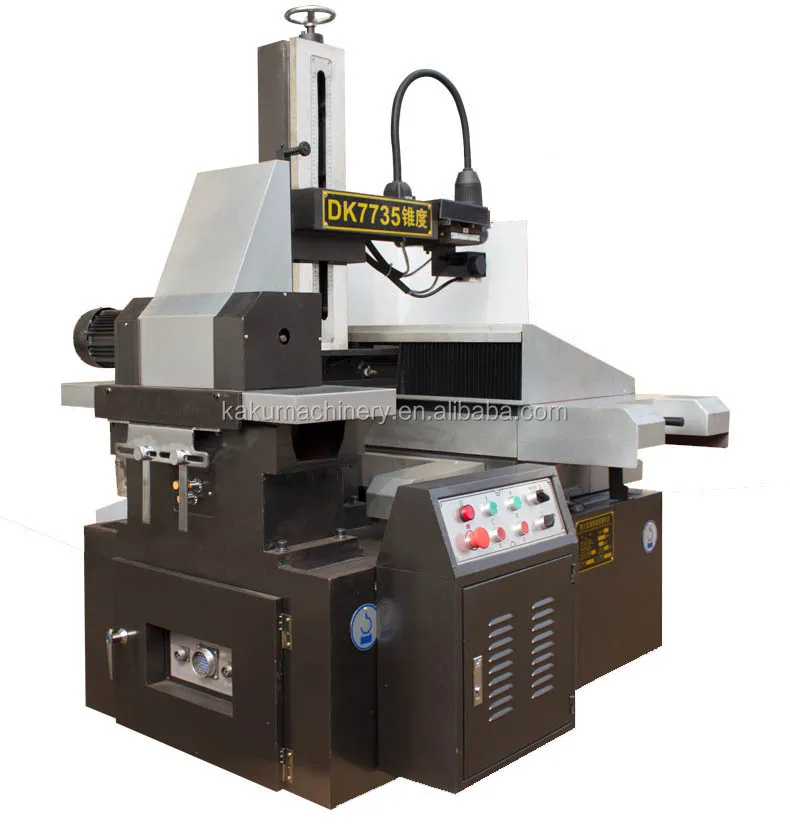

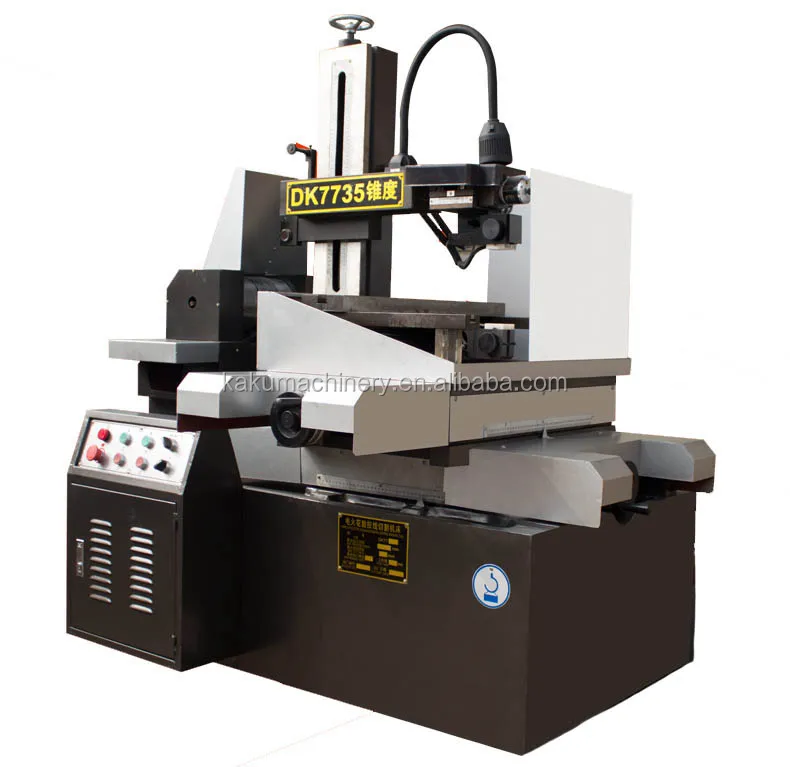

DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine
DK77 CNC EDM Wire Cutting Machine

DK77 CNC EDM Wire Cutting Machine

Share on (60714445817):


Price:

Quantity:


Product Overview

Description


Product Description

DK77 series CNC EDM wire cutting machine features:

DK series of fast-cutting wire cutting is mainly used for all kinds of molds, electrodes, precision parts and components manufacturing, carbide, hardened steel, graphite, aluminum, structural steel, stainless steel, titanium, diamond and other complex electrical conductor cavity And the surface shape processing. With high precision, high finish, cutting speed, molybdenum wire loss and other characteristics. Machine appearance design generous, reasonable structure design compact, solid mechanical structure. Machine tool in the structural characteristics, with extremely practical function. All machine tool components and all kinds of instruments of the unit of measurement using the International Unit (SI) standards. Equipment protection device is complete and reliable, in line with the relevant state departments of Machine Tool Safety General provisions of the provisions and requirements.

Parameter
\t
Type
\t
DK7725
\t
DK7732
\t
DK7740
\t
DK7750
\t
Worktable size
\t
520×336(mm)
\t
576×386(mm)
\t
720×460(mm)
\t
820×556(mm)
\t
Table travel
\t
320×250(mm)
\t
400×320(mm)
\t
500×400(mm)
\t
630×500(mm)
\t
Max.workpiece thickness
\t
400(330) (mm)
\t
400(330) (mm)
\t
400(330) (mm)
\t
500(400) (mm)
\t
Total weight
\t
1100(kg)
\t
1300(kg)
\t
1700(kg)
\t
2500(kg)
\t
Overall dimensions
\t
1.4×1.06×1.5(m)
\t
1.52×1.14×1.5(m)
\t
1.68×1.39×1.54(m)
\t
1.87×1.59×1.66(m)
\t
Wire traveling speed
\t
11.5(m/s)
\t
Wire diameter
\t
0.13-0.18(mm)
\t
Max.cutting speed
\t
100(mm²/min)
\t
Taper
\t
6º/100(º/mm)
\t
Power input
\t
3N-50Hz 380V(Monophase 50Hz 220V)
\t
Total power
\t
≤1.2(kw)
Configurations

Standard accessories:

\t
Stepper motor                                                                           Changzhou

Precision steel guide                                                              Taizhou

Main bearing                                                                             NSK

Major electrical appliances original                                  Germany Siemens

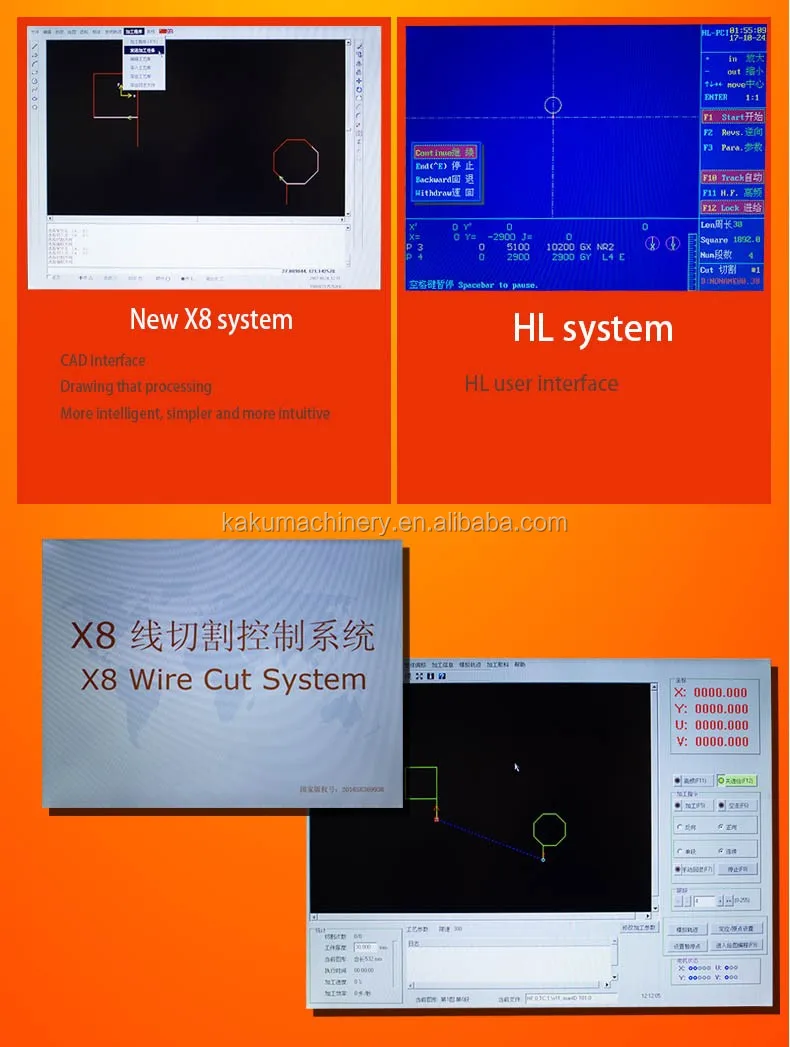

Control system software                                                      Guangzhou South Wind Technology Electronics Co., Ltd

Packaging List:

\t
Item
\t
Quantity
\t
DK77-series
\t
1 set
\t

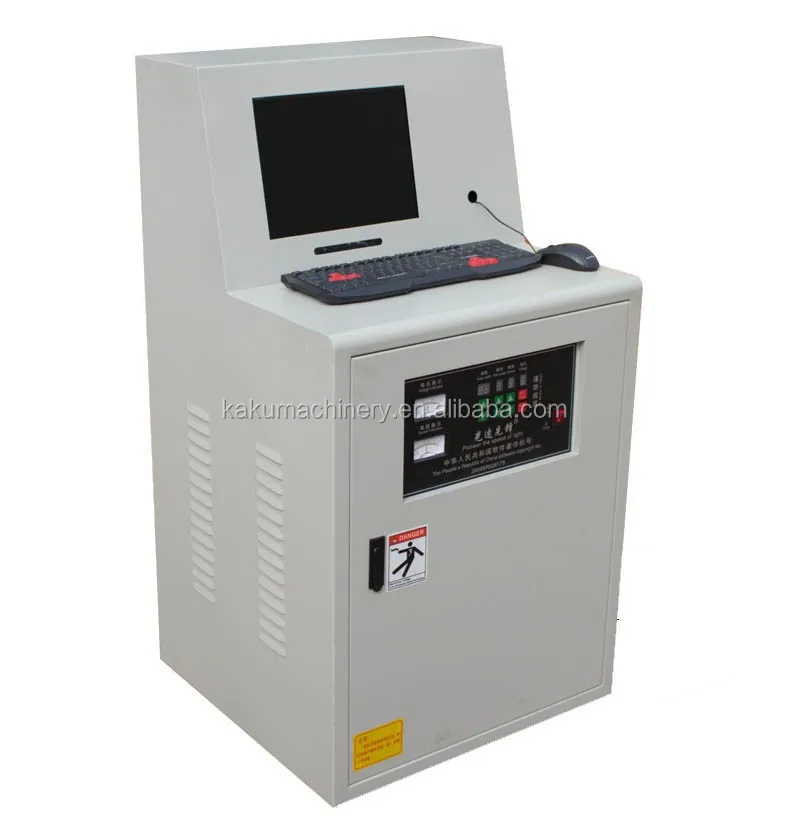

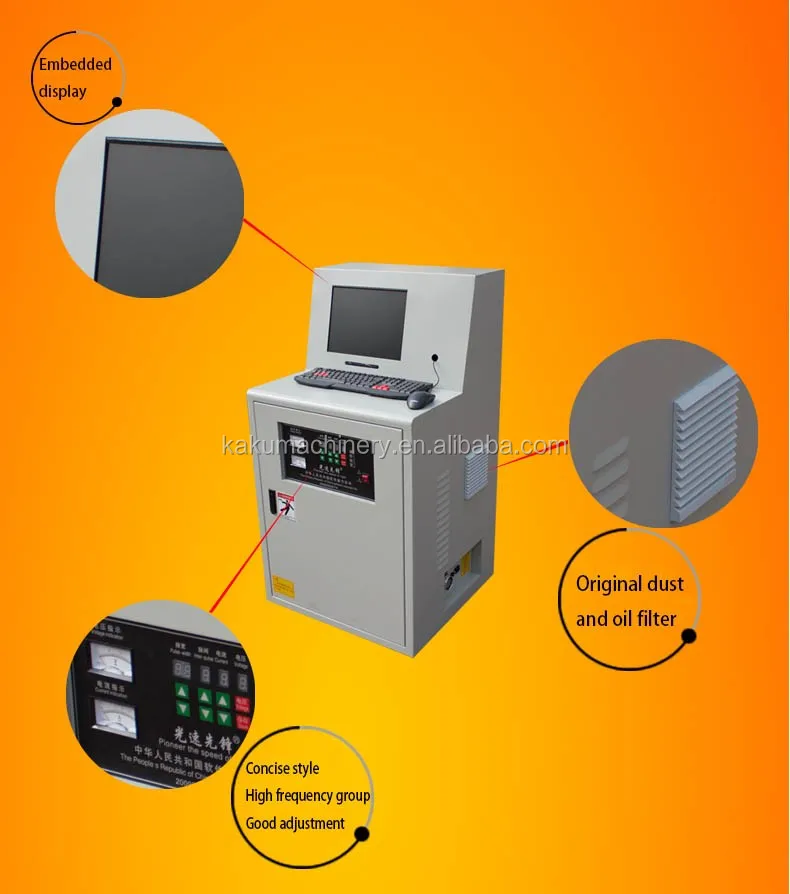

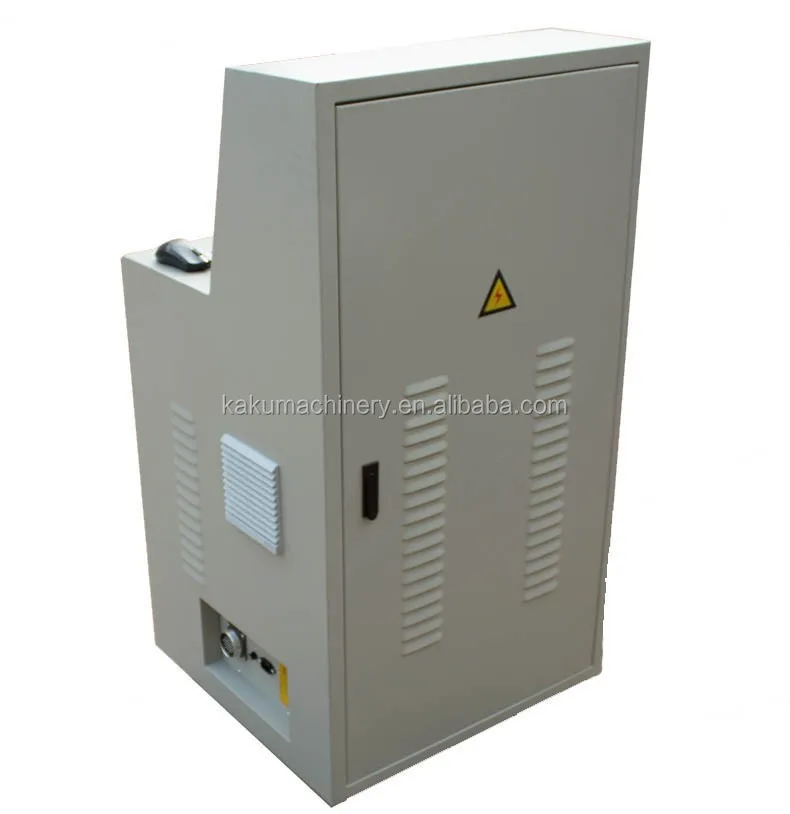

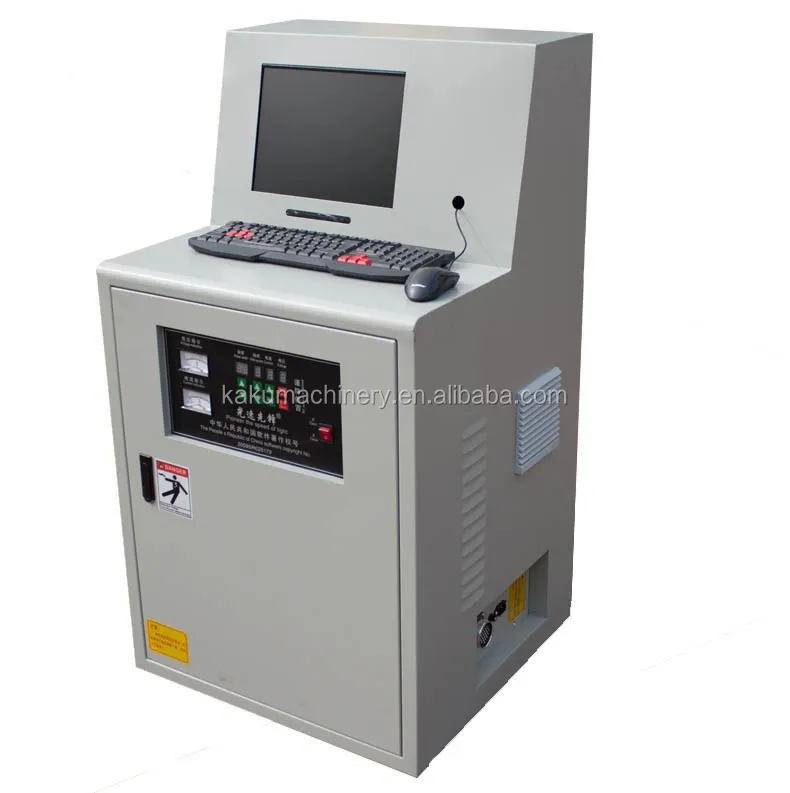

CNC control cabinet (Desktop/ Vertical control cabinet)
\t
1 set
\t
PC, monitor, keyboard, mouse, HL card
\t
1 set
\t

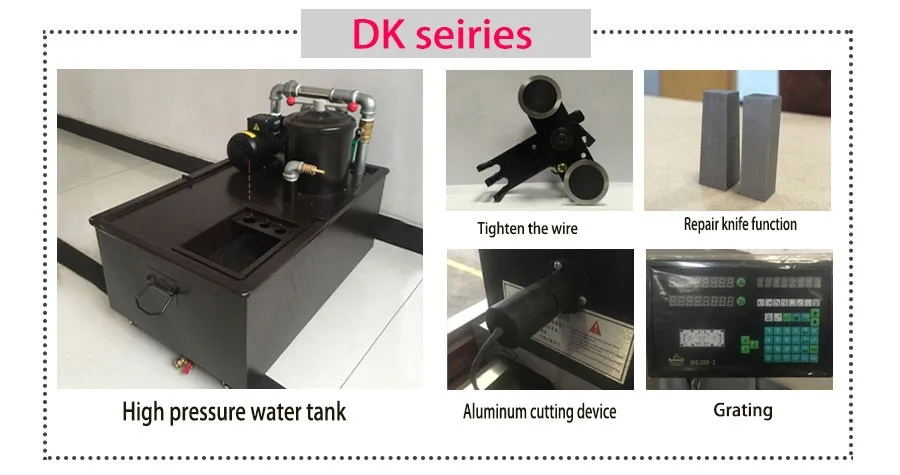

Water tank
\t
1 set
\t
Water pump
\t
1 set
\t
Access to water pipes
\t
3 root
\t
Plug the control panel with the key
\t
1 root
\t
Shake handle
\t
1
\t
Screw
\t
2 root
\t
Factory data
\t
1 part
\t
Emulsion cream
\t
1 set
\t
Tight wire
\t
1
\t
Foot adjustment screw
\t
6
\t
Adjust the nut at the foot
\t
6
\t
Fixture
\t
1 set
\t
Waterproof cover
\t
1 set

OPTIONAL ACCESSORIES:
