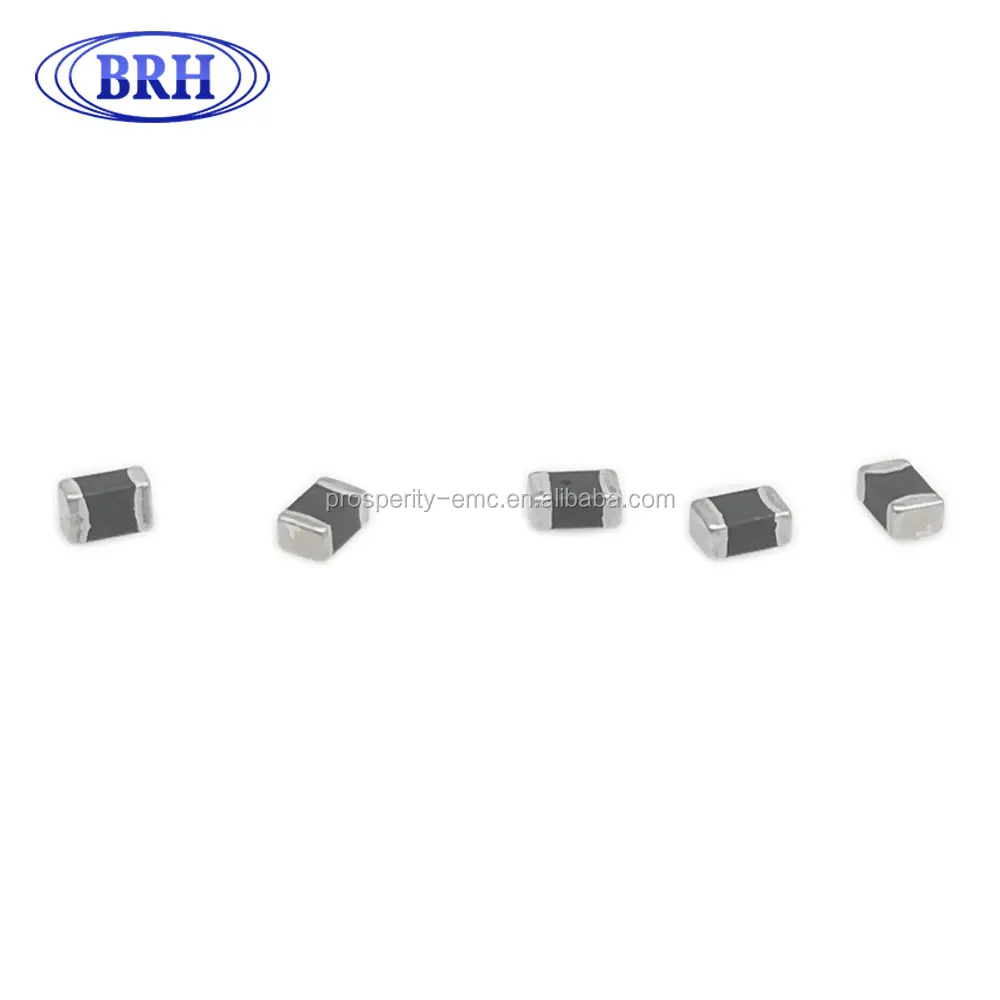

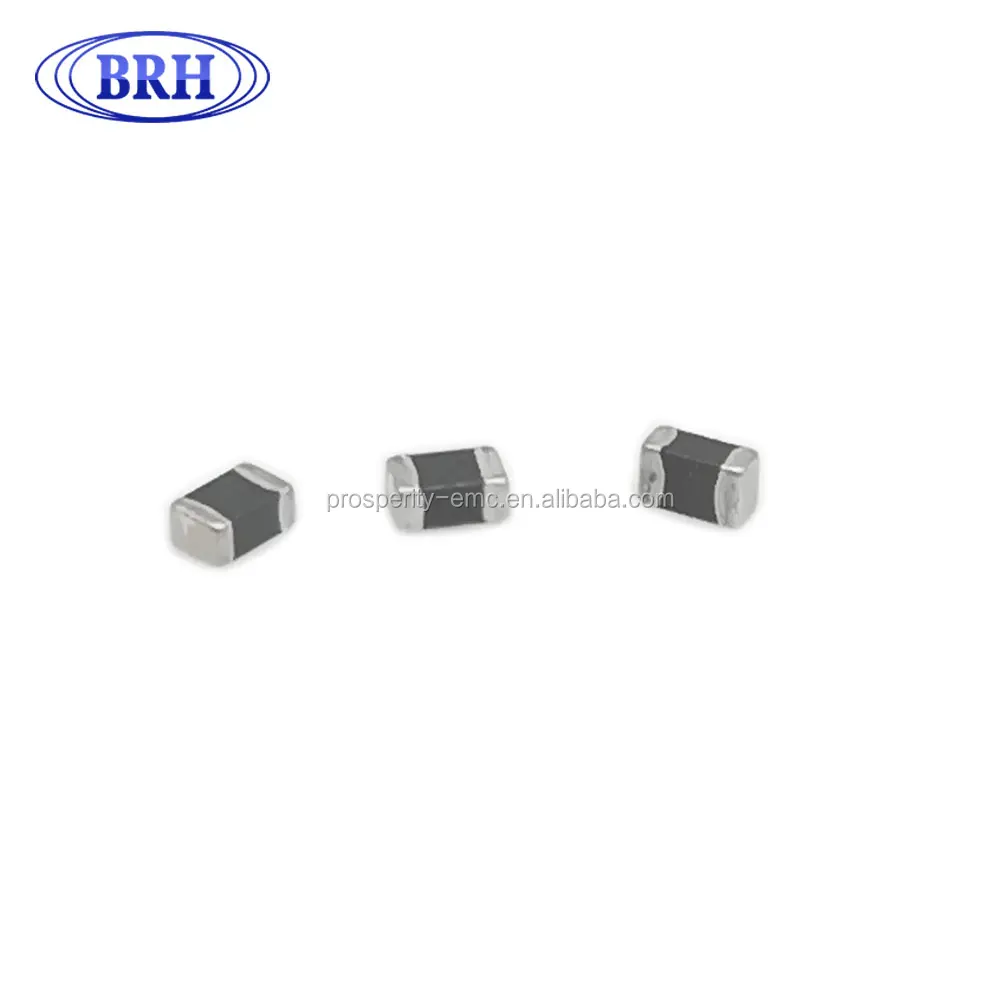

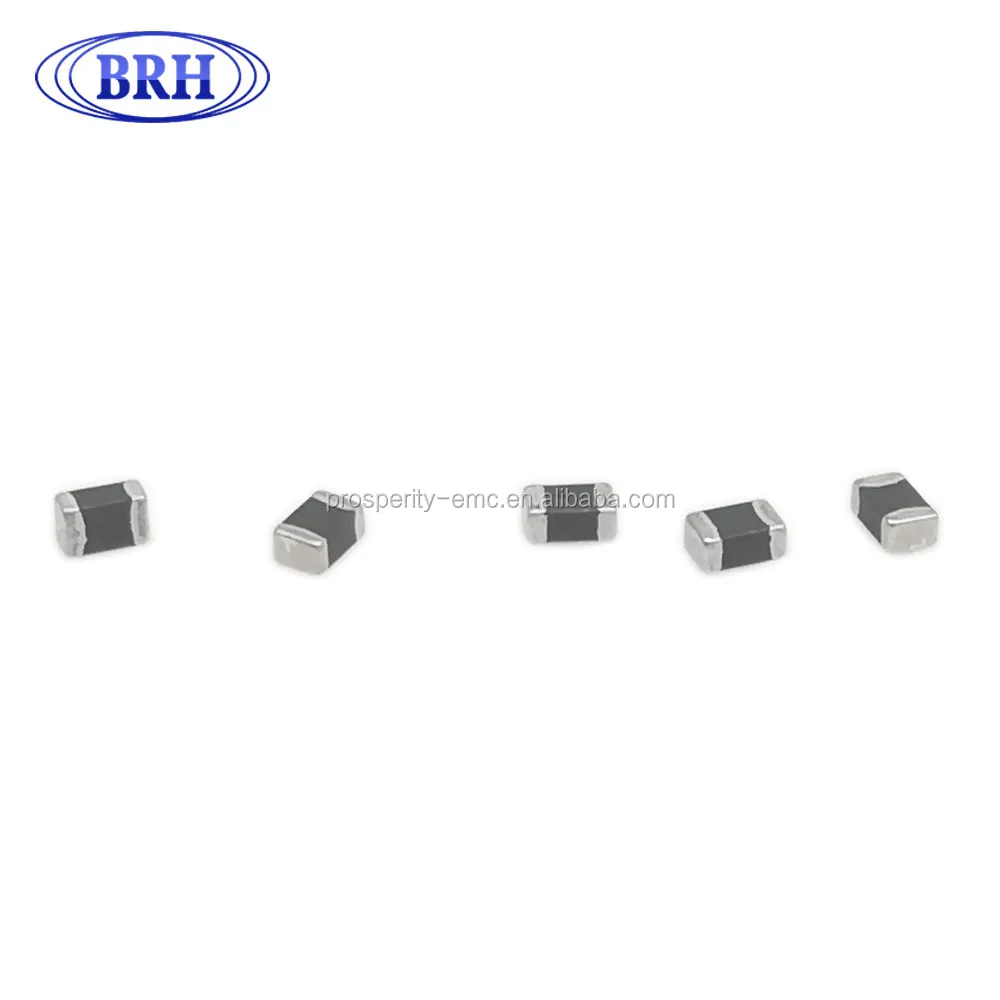

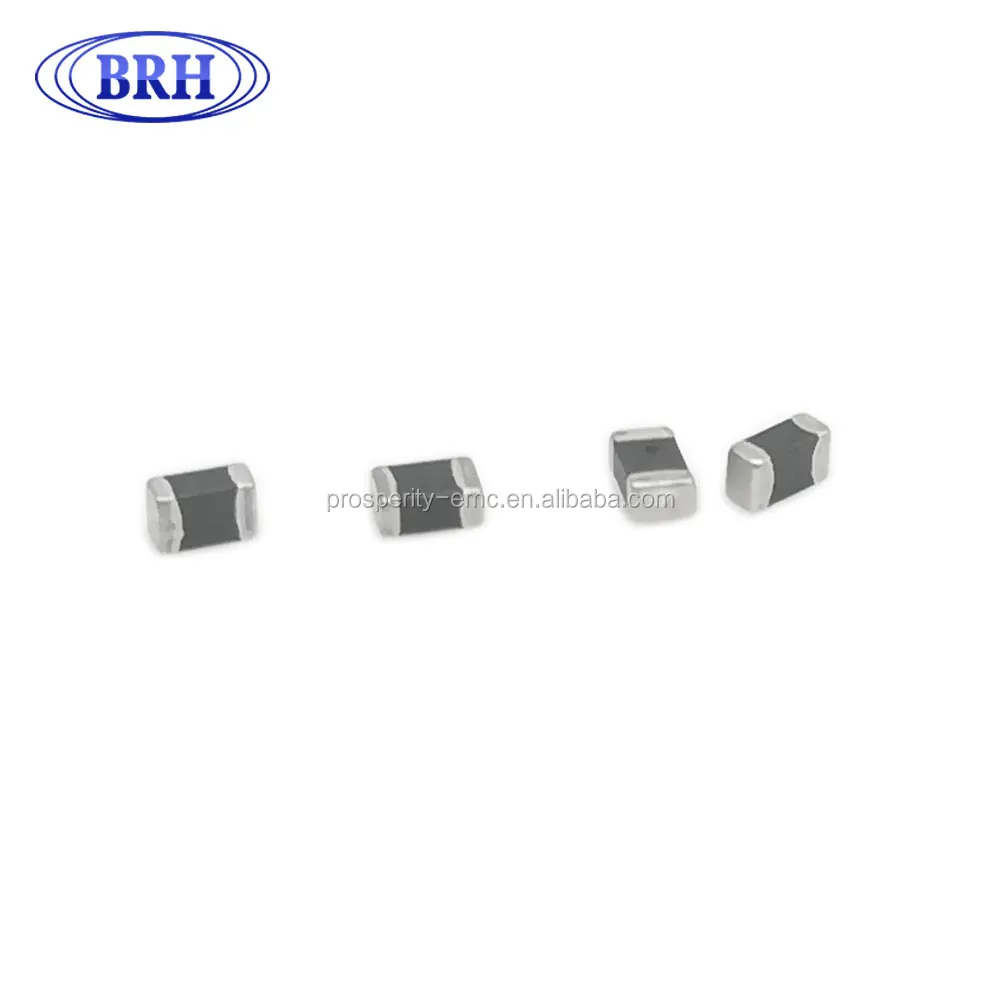

High impedence multilayer smd ferrite bead inductor for emi 0805 size 1500ohm 0.3A
- Category: >>>
- Supplier: Shenzhen Yan Bai Technology Co. Ltd.
Share on (60714491395):
Product Overview
Description
Description
MODEL | PRODUCT DIMENSIONS | ||||||
A | B | C | D | ||||
0402 | 1.0±0.1 | 0.5±0.1 | 0.5±0.1 | 0.25±0.1 | |||
0603 | 1.6±0.2 | 0.8±0.2 | 0.8±0.2 | 0.3±0.2 | |||

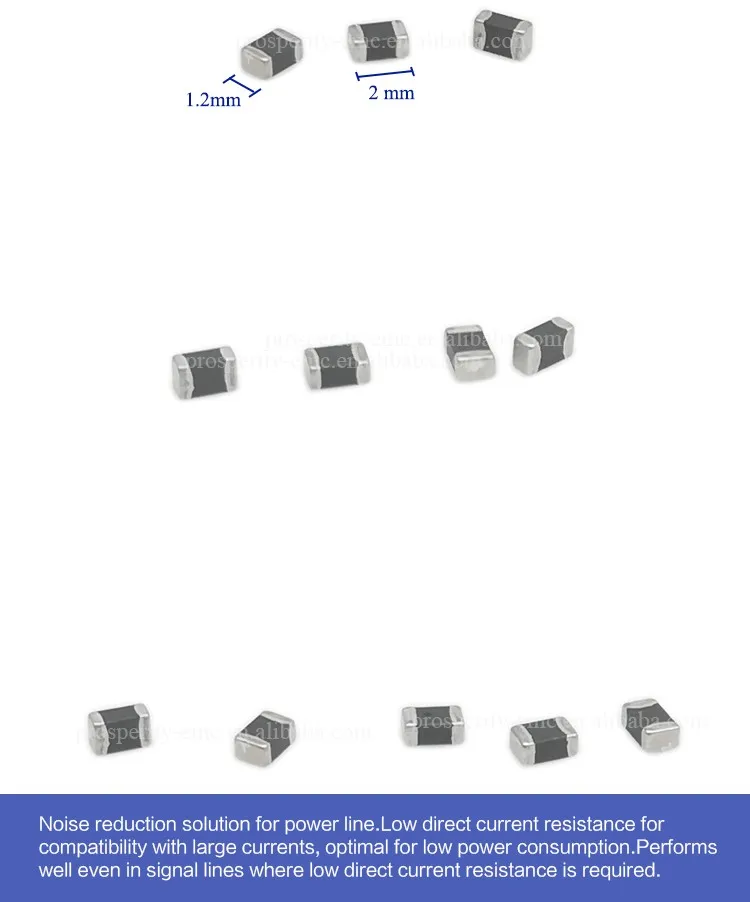

0805 | 2.0±0.2 | 1.2±0.2 | 0.9±0.2 | 0.5±0.3 | |||
SIZE CODE (inch) | RECOMMENDED PATTERN (mm) | ||||
A | B | C | |||
0402 | 0.4 | 1.2-1.4 | 0.6-0.8 | ||
0603 | 0.7-0.8 | 1.8-2.0 | 0.6-0.8 | ||
0805 | 1.0-1.2 | 2.6-4.0 | 1.0-1.2 | ||
Parameter
Detailed specifications and parameters are introduced | ||||||
ORDERING CORE | Impedance | DC Resistance | Rated Current | |||
(Ω) | (Ω)MAX | (mA)MAX | ||||
BEAD0805S220A60T | 22 | 0.01 | 6000 | |||
BEAD0805S420A40T | 42 | 0.035 | 4000 | |||
BEAD0805S800A50T | 80 | 0.02 | 5000 | |||
BEAD0805S101A30T | 100 | 0.04 | 3000 | |||
BEAD0805S121A50T | 120 | 0.02 | 5000 | |||
BEAD0805S221A30T | 220 | 0.04 | 3000 | |||
BEAD0805S401A30T | 400 | 0.04 | 3000 | |||
BEAD0805S601A20T | 600 | 0.10 | 2000 | |||
BEAD0805S102A10T | 1000 | 0.20 | 1000 | |||
BEAD0805S152A03T | 1500 | 0.50 | 300 | |||
Test Frequency:100MHz Tolerance:±25% | ||||||

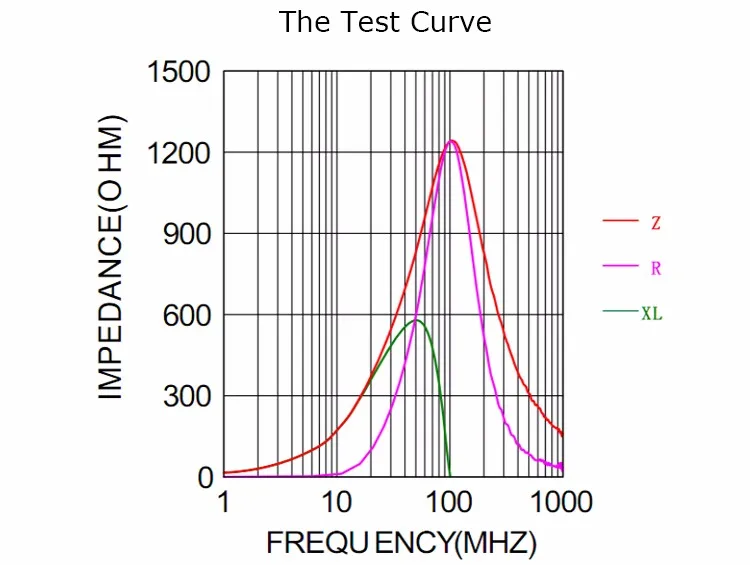

Test Data For Pre Production Samples | ||||||||||||
MEAS. Item | Z (Ω) | RDC (Ω) | A m/m | B m/m | C m/m | D m/m | ||||||
Suggest | 1500±25% | 0.5+0 | 2.0±0.2 | 1.20±0.2 | 0.9±0.2 | 0.5±0.3 | ||||||
1 | 1294.00 | 0.18 | 1.93 | 1.25 | 0.87 | 0.51 | ||||||
2 | 1218.00 | 0.18 | 1.99 | 1.20 | 0.89 | 0.48 | ||||||
3 | 1238.00 | 0.22 | 1.94 | 1.24 | 0.89 | 0.48 | ||||||
4 | 1235.00 | 0.19 | 1.96 | 1.20 | 0.87 | 0.49 | ||||||
5 | 1290.00 | 0.19 | 1.99 | 1.23 | 0.87 | 0.47 | ||||||
X-bar | 1255.00 | 0.19 | 1.96 | 1.22 | 0.88 | 0.49 | ||||||
R | 76.00 | 0.04 | 0.06 | 0.05 | 0.02 | 0.04 | ||||||
The above test data for reference,Actual results may differ due to different production batches | ||||||||||||
