930 model front end wheel loader with ripper
- Category: >>>
- Supplier: Qingzhou Century Haoxin Machinery Co. Ltd.
Share on (60714502181):
Product Overview
Description
930 model front end wheel loader with ripper
* With pilot lock
* Electricity controlled gearbox
* Electricity controlled quick hitch device
* With brake pattern switch
* With quick hitch device safe lock
* Can with many different attachments
Specification:
overall weight(kg) | 5000 | |
L×W×H(mm) | 5970×2080×2850 | |
rated bucket capacity(m3) | 1.1 | |
Rated load(kg) | 2000 | |
Maximum dump height (mm) | 3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 60 | |
Engine | Model | YUNNEI with turbo |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) | 65kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ265 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | VHP2050,CBGy1025 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc type four wheel brake |
Tyres | Standard tire | 16/70-20 |
Pilot control | Yes with pilot lock | |
Gear box type | Electricity controlled gearbox | |
Quick hitch device | Electricity controlled | |
Brake | With brake pattern switch | |
Quick hitch | With quick hitch device safe lock | |

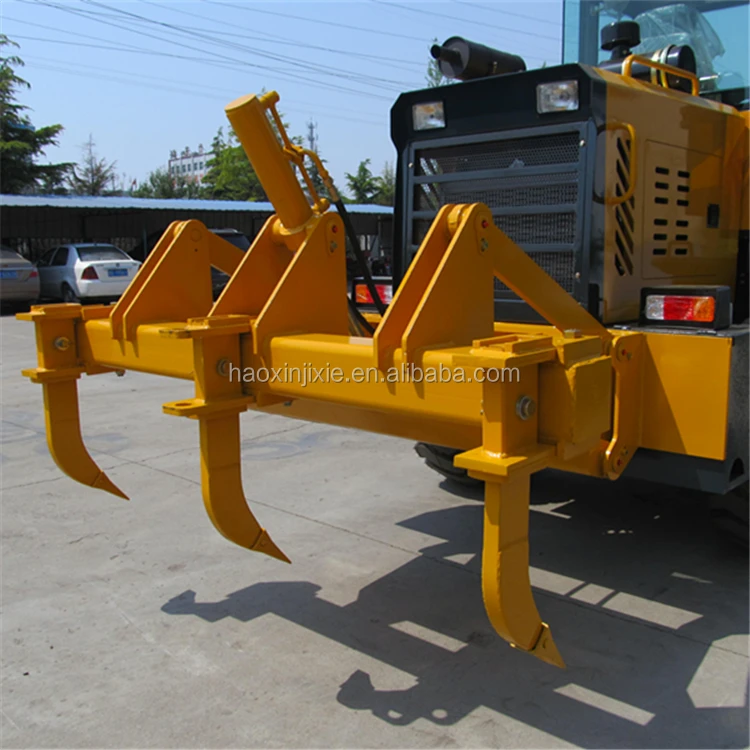

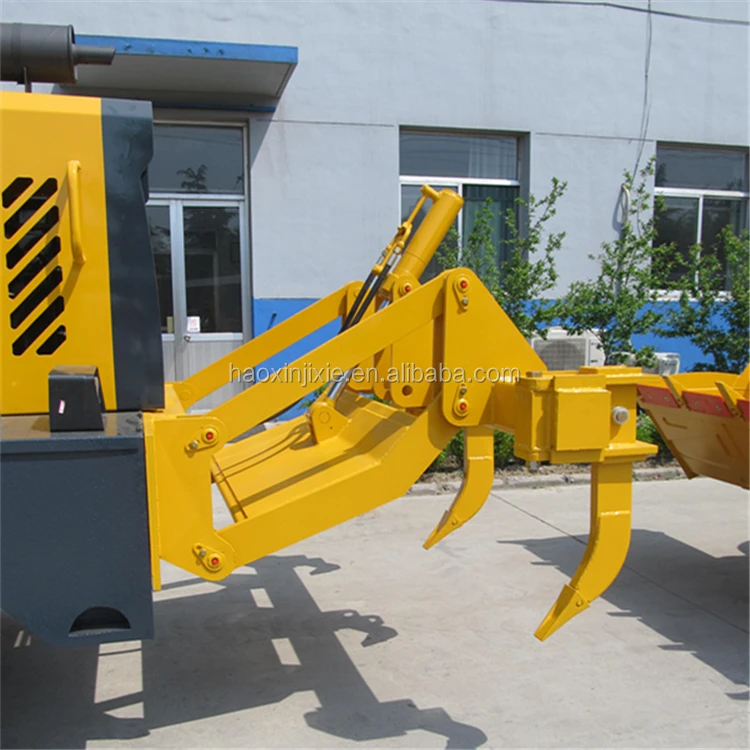

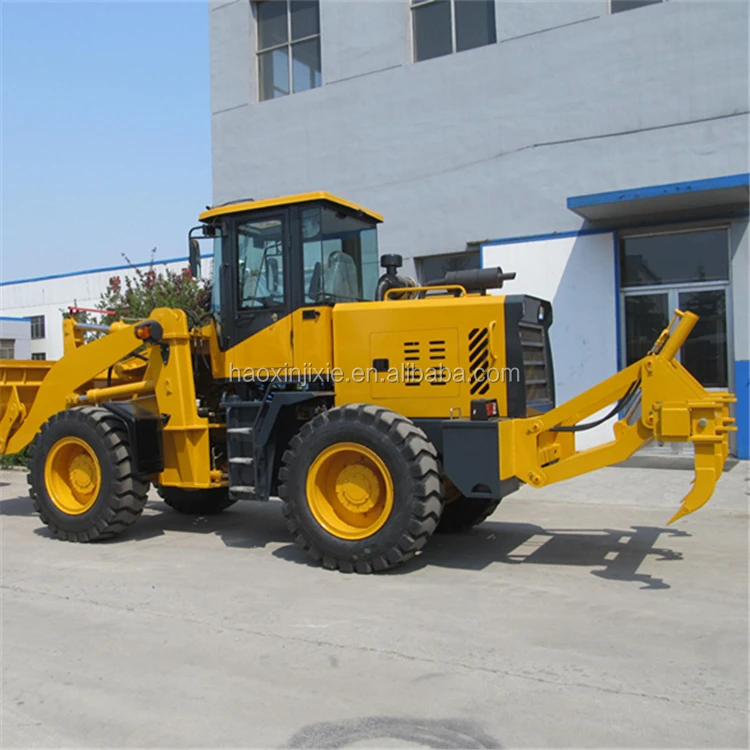

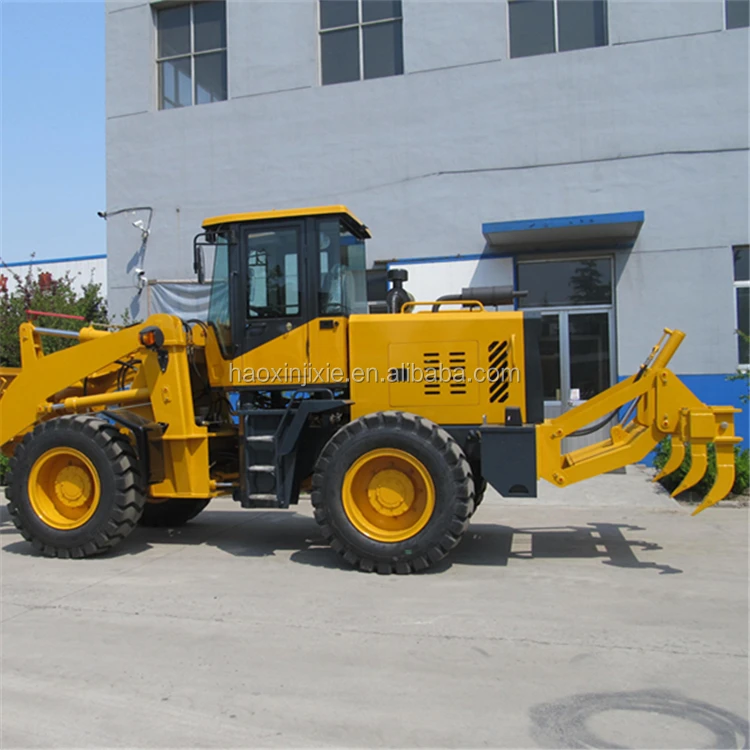

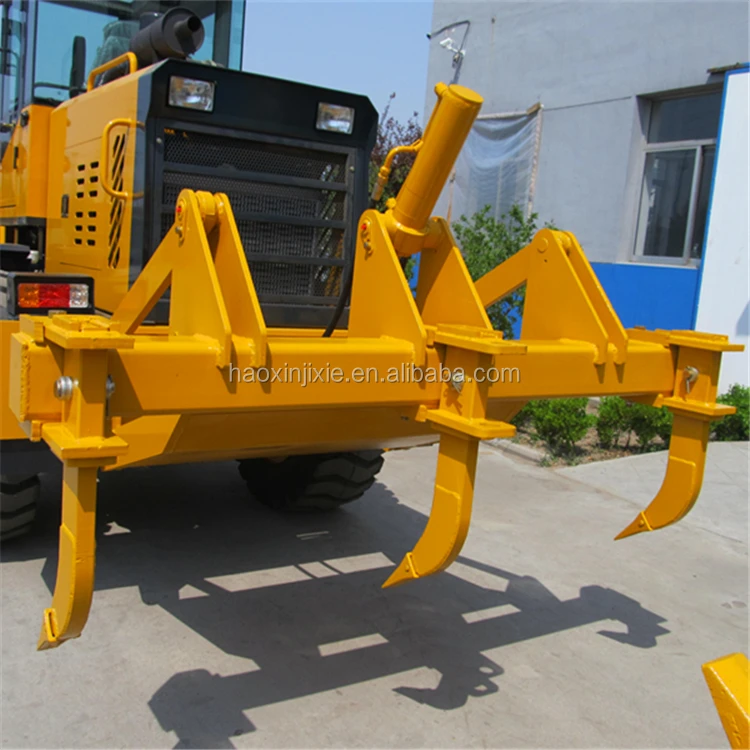

Haoxin 930 model wheel loader with ripper real picture show:
