long distance night vision dual sensor 360 outdoor ptz thermal imaging ir camera with thermal imager and optical lens
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (60714503781):
Product Overview
Description

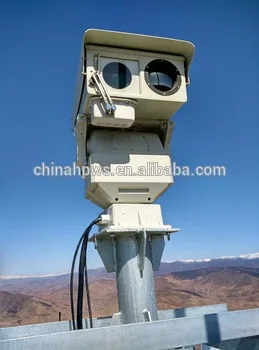

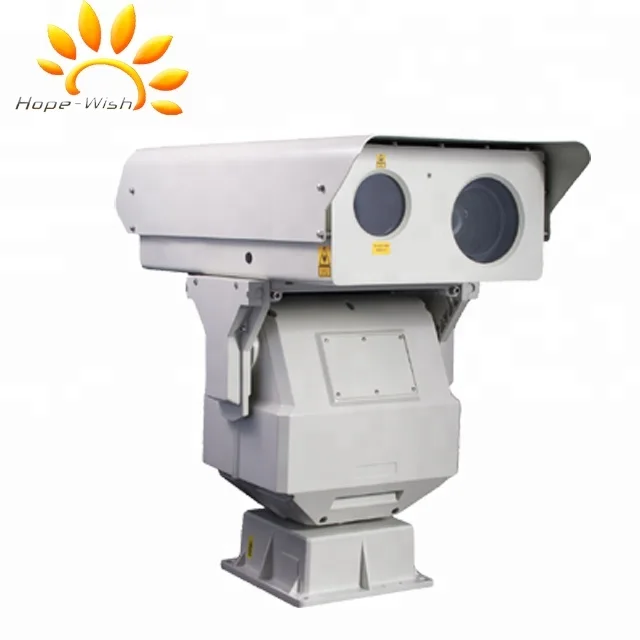

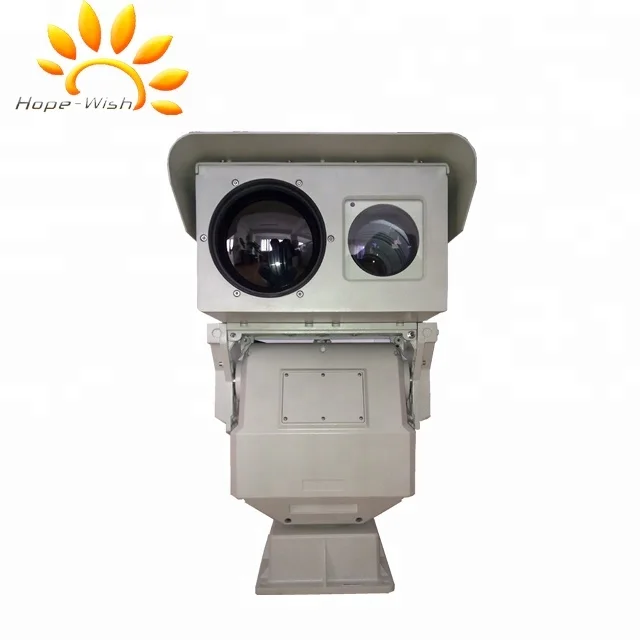

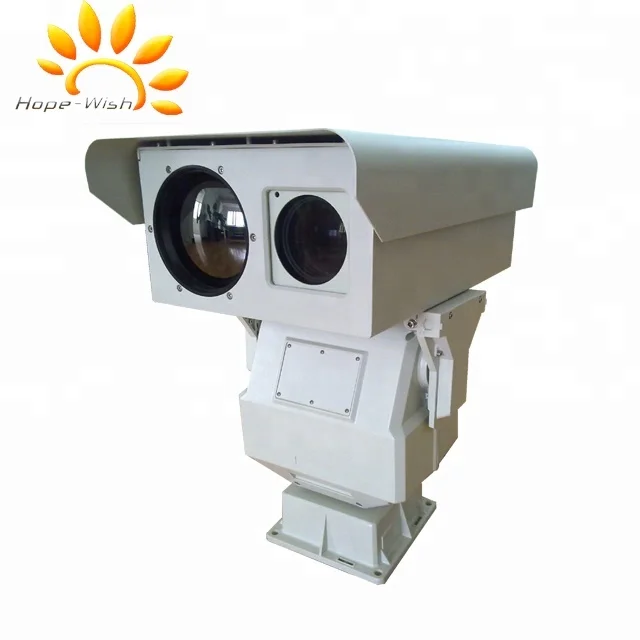

TVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 336*256/640*512 uncooled thermal camera with large caliber. In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.
With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions.
Technical specification
| TVC4307A-2132-IP | TVC4516A-1930-IP | TVC4511A-2050-IP | TVC4519A-2050-IP | TVC4516A-2075K-IP | ||
Detection | Vehicle: 6300m | Vehicle: 13000m | Vehicle: 8600m | Vehicle: 16400m | Vehicle: 13000m | ||
Human: 2500m | Human: 4800m | Human: 3400m | Human: 5800m | Human: 4800m | |||
Identification | Vehicle:1800m | Vehicle: 3400m | Vehicle: 2400m | Vehicle: 4200m | Vehicle: 3400m | ||
Human: 700m | Human: 1300m | Human: 900m | Human: 1600m | Human: 1300m | |||
Thermal sensor | VOx uncooled detector, 336*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement; | ||||||
Thermal lens | 25mm~75mm | 31mm~155mm | 21mm~105mm | 38mm~190mm | 31mm~155mm | ||
3CAM precision mechanizing(auto focus optional) | |||||||
FOV | 13°×10°~4.3°×3.2° | 11.2°×8.5°~2.2°×1.7° | 18°×13.5°~3.4°×2.7° | 9.5°×7.2°~1.9°×1.4° | 11.2°×8.5°~2.2°×1.7° | ||
Visible camera |
| 1/2.8'' CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264 | |||||
Visible Lens | 12~320mm, mega pixels, motorized zoom and focus, auto iris | 4.3mm~129mm, mega pixels, auto focus | 15~528mm,mega pixels, motorized zoom and focus, auto iris | 15~528mm,mega pixels, motorized zoom and focus, auto iris | 20-750mm, megapixels, motorized zoom and focus, auto iris | ||
Housing | Aluminum alloy housing, double window, water-tight, IP66 rated | ||||||
Load duty | 30kg | 50kg | |||||
PT | Pan: 360°continuous; tilt:+40°~-45° | Pan: 360° continuous; Tilt: +40°~-45° | |||||
Rotation speed | Pan:0.01~30°/S; tilt: 0.01~15°/S | Pan: 0.01~30°/S; tilt: 0.01~15°/S | |||||
Extended function | Real time display of orientation and angle; zero correction; angle back sending; 80 presets, patrol and scanning | ||||||
Video | H.264, 2 video output | ||||||
Interface | Intelligent IP box, 1*RJ45 for all video outputs and control; 1*AC24V/DC24V adapter | ||||||
1*AC24V power | |||||||
Protocol | Pelco-D/P; 2400/4800/9600/19200(selectable baud rates) | ||||||
Anti-lighting | 4000V(power supply); 2000V(communication) | ||||||
Power supply | AC24V/DC24V±10%,50Hz,5A | ||||||
Ingress Protection | IP66 | ||||||
Working temp. | -25℃~+55℃(-40℃ optional) | ||||||
* The detection distance is related to the object and environment etc. Please contact with us for further information.
Company Information

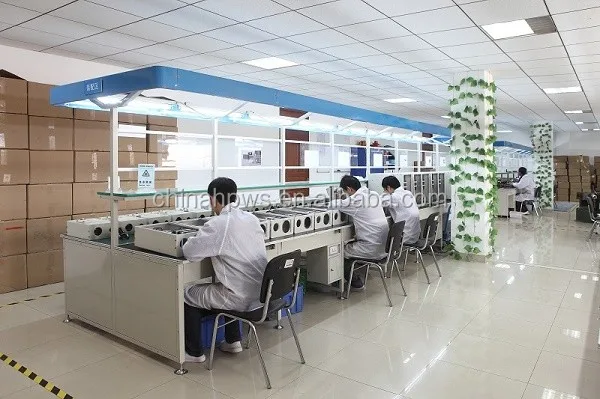

Hope-Wish Photoelectronics Co., Ltd. locates in Jinan Shandong province. With our own R&D team, production team, Q&C group, Hope Wish has been in the field of developing and manufacturing thermal imaging and laser infrared camera for more than 13 years. For the good quality product with favorable price and satisficatory service, we have won the trust of our customers all over the world.
Hope Wish, your nightvision expert, bring you into another vision.
Packaging & Shipping
Exhibition&Customer
FAQ
Q1: Are you manufacturer or not?
A1: Yes, we are MANUFACTURER which have devoted developing and manufacturing thermal imaging camera and IR laser camera for more than 13 years, with our independent R&D group, factories, Department of Quality Assurance and After-sale service team ect. We are confident in providing you the high performance product with reasonable price and satisfied service.
Q2: Do you accept OEM/ODM?
A2: we accept OEM and ODM. If you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and pretty competitive prices.
Q3: Do you provide demo camera?
A3: Yes, we can provide you with demo cameras only if you pay some deposit. If you are not satisfied with the demo camera and want to send it back, we will refund your deposit.
Q4. What is your terms of packing?
A: Generally, we pack our products in carton or wooden boxes. If you have specific requirement for the packing,
we can pack the goods according to your requirement.
Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q6. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
