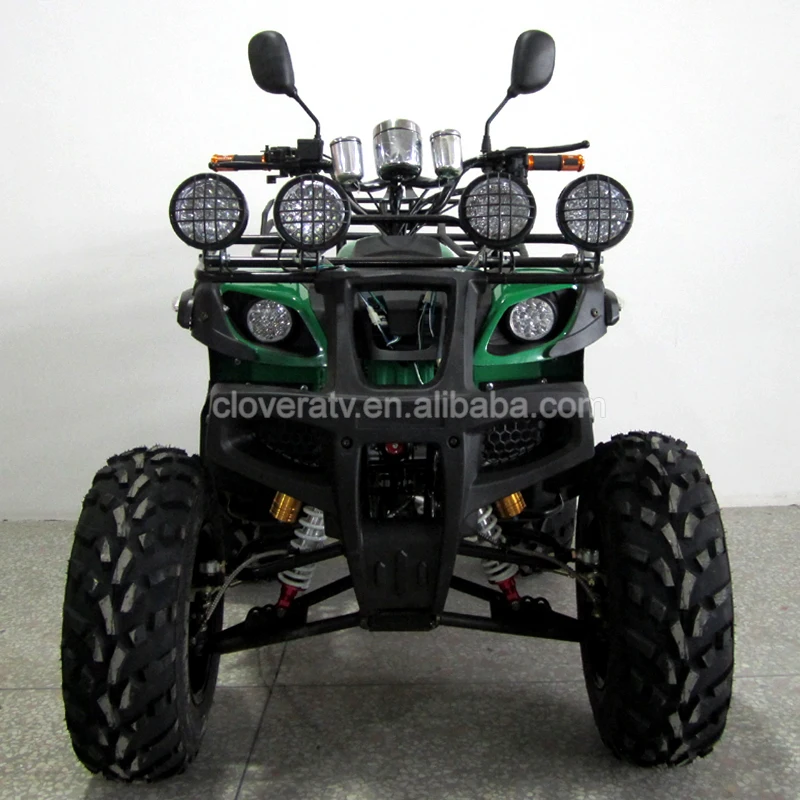

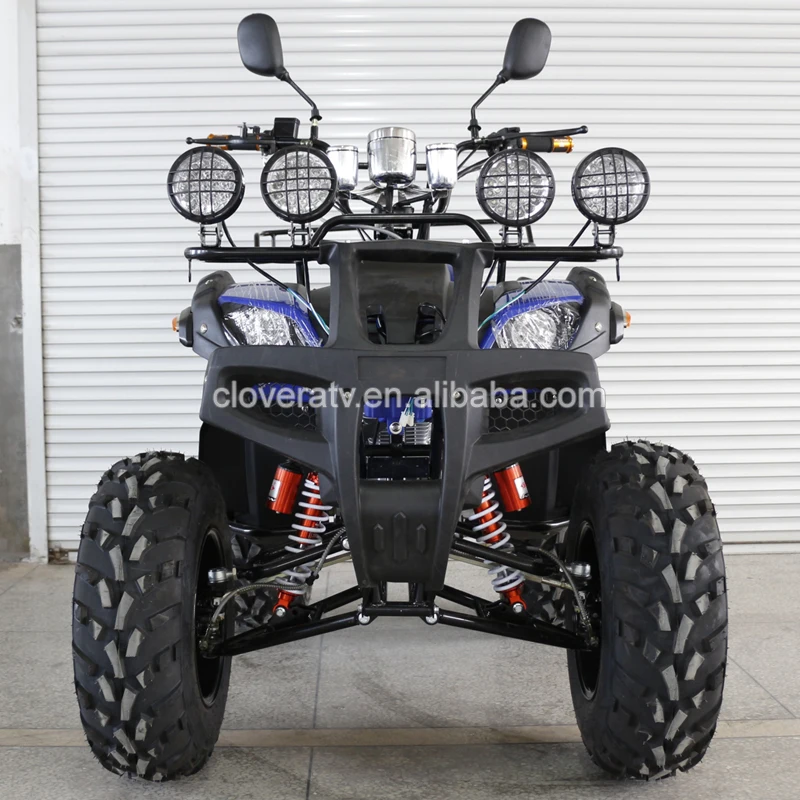

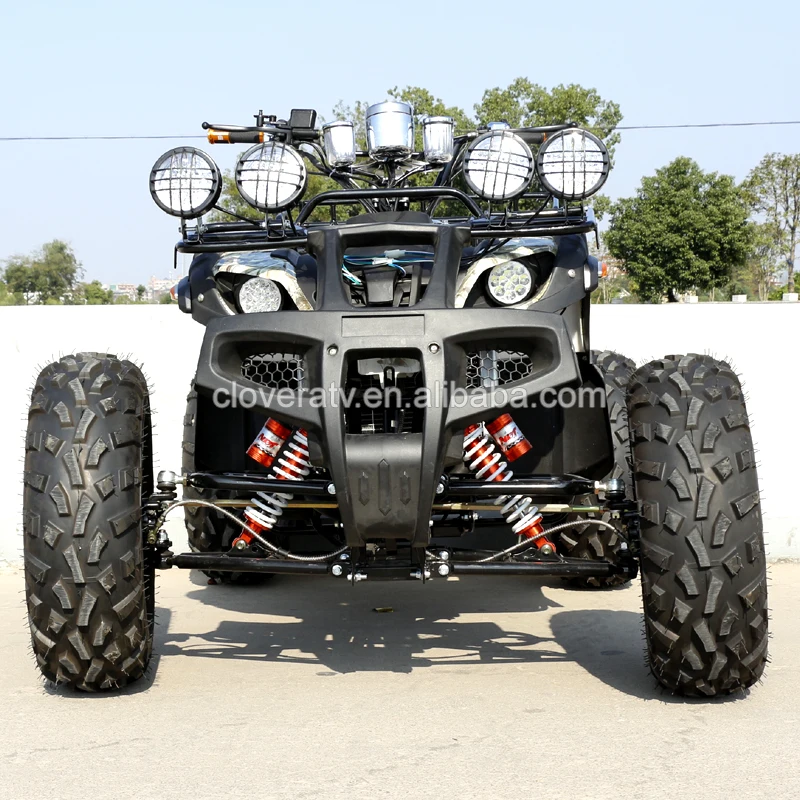

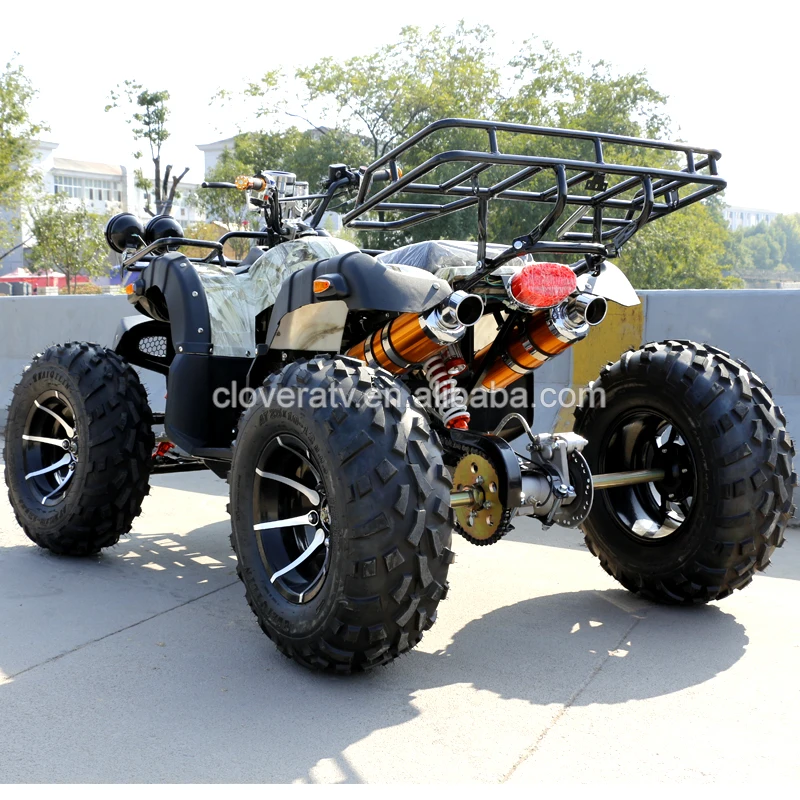

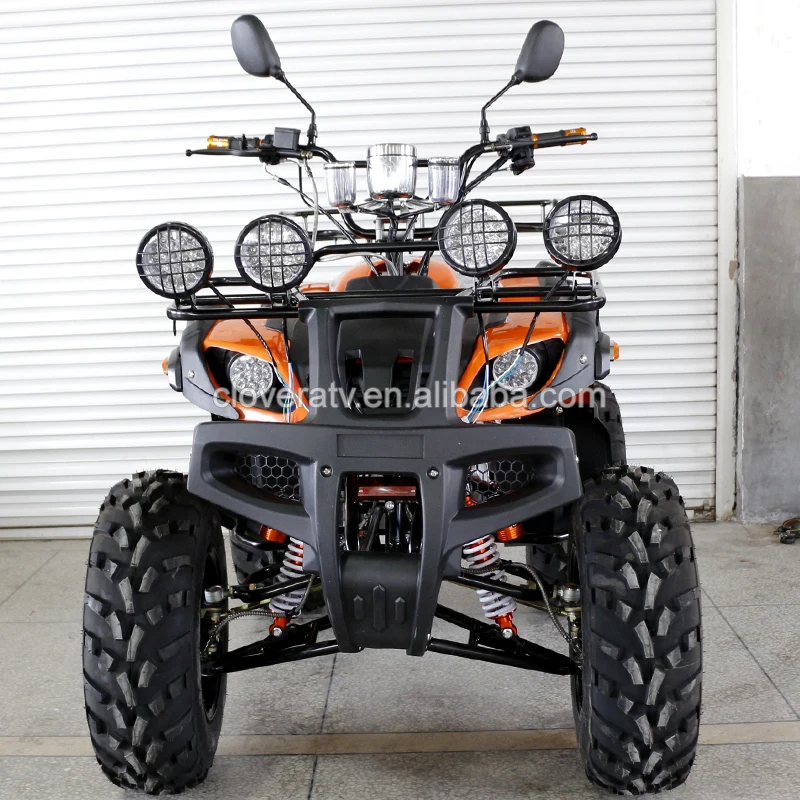

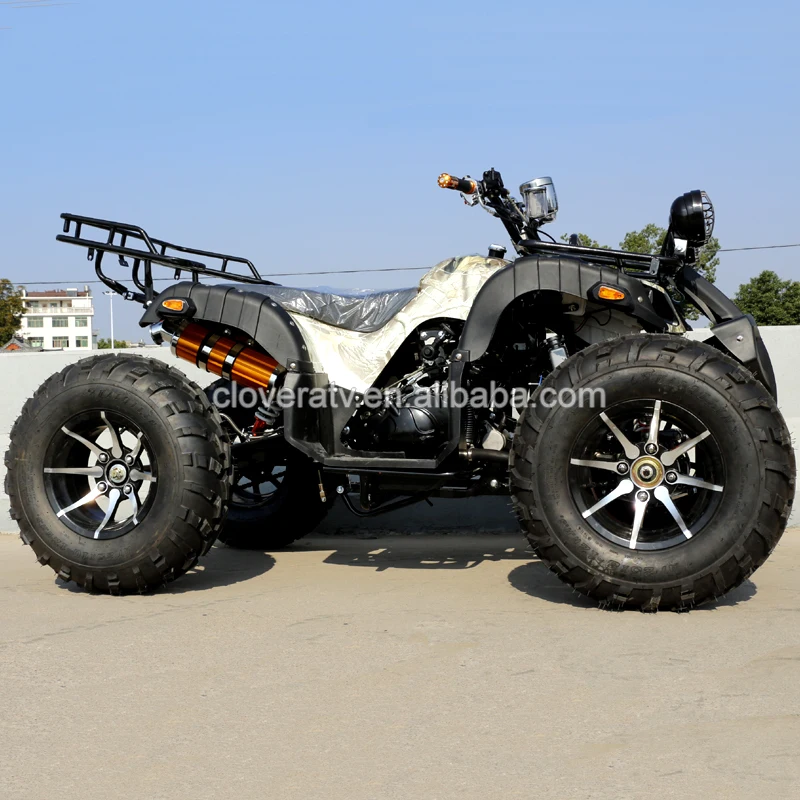

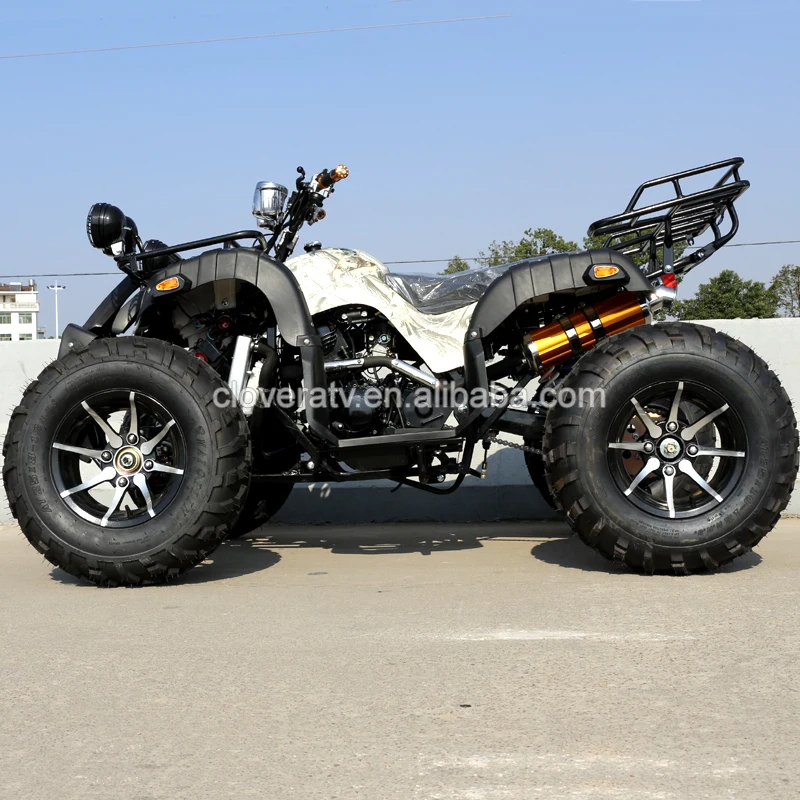

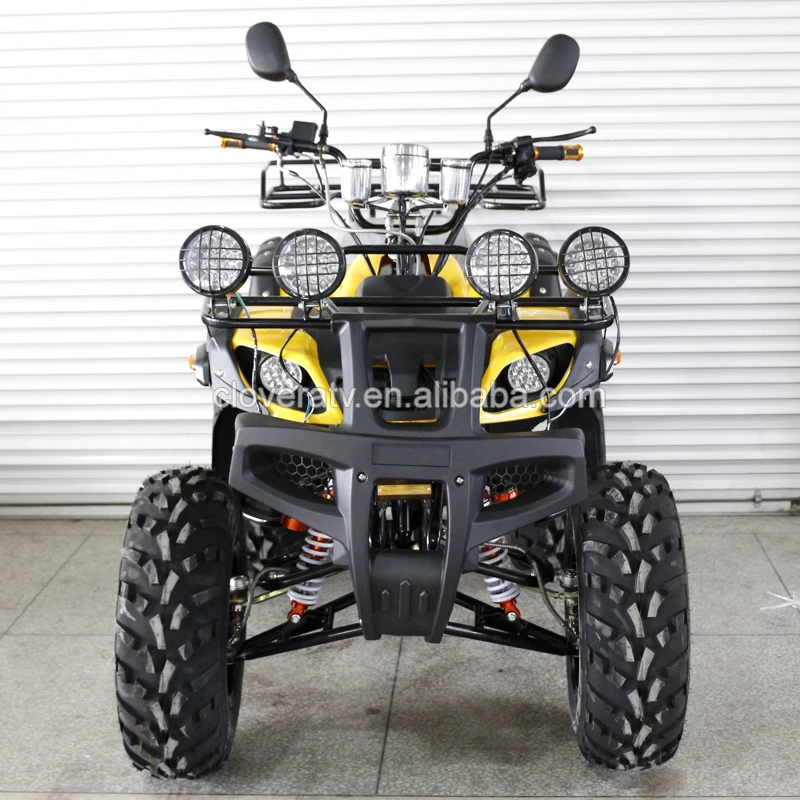

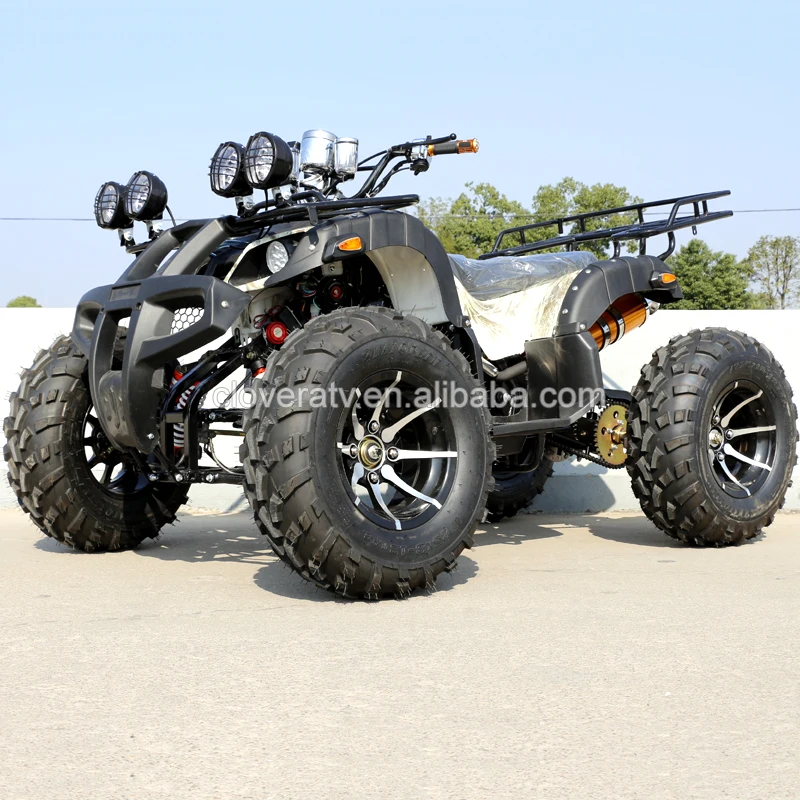

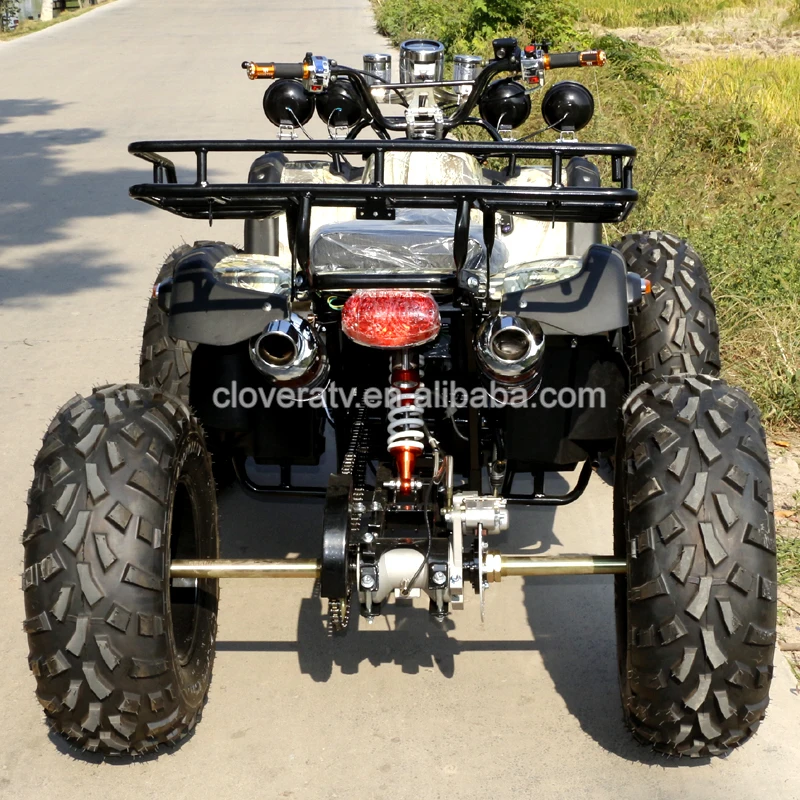

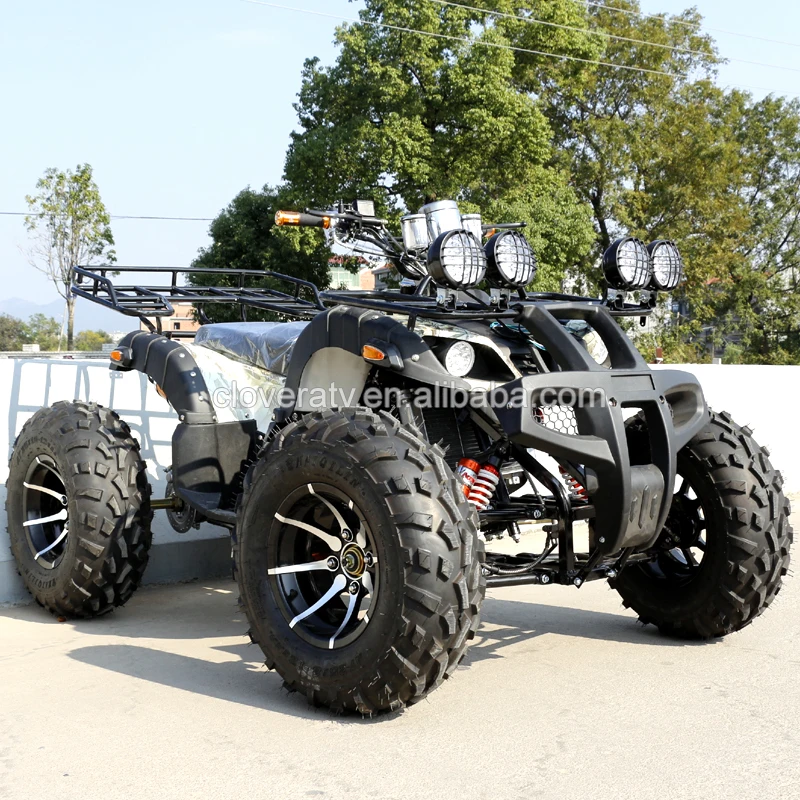

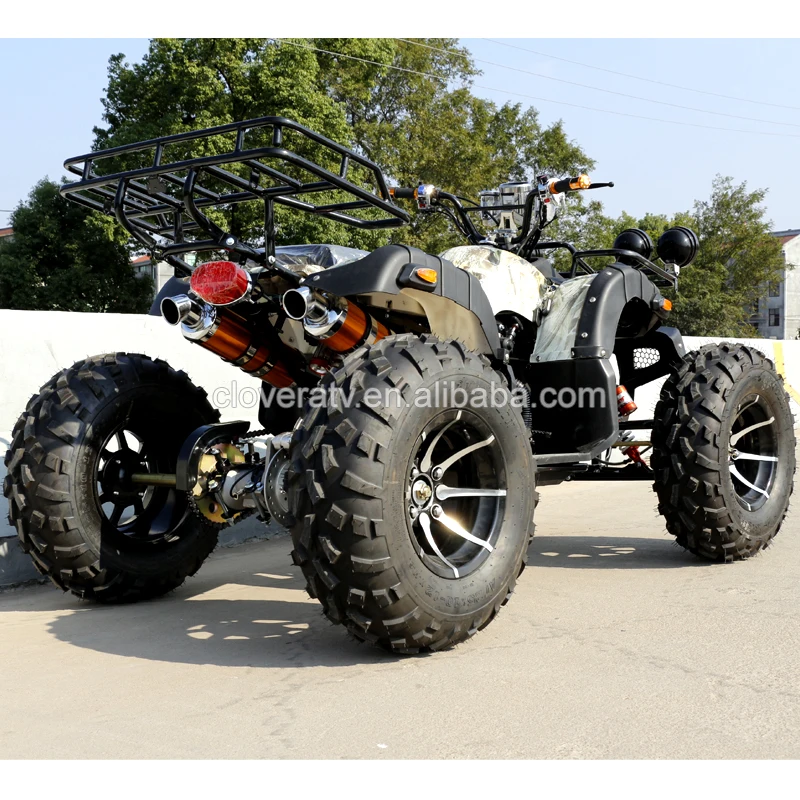

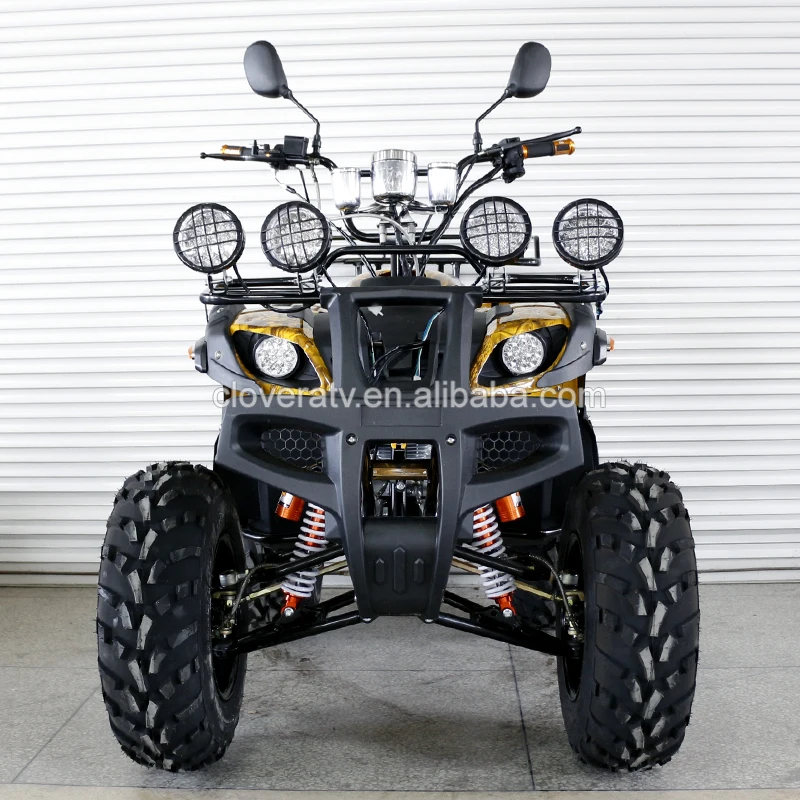

Petrol Powerful 4 Stroke Water Cooled 350CC Quad ATV with 12inch Alloy Wheel

Engine

Engine Type

Single cylinder, water-cooled, 4-stroke,

Engine Displacement

350cc

Bore & Stroke

67x65mm

Compression Ratio

10:1

Carburetor

Carburetor

Max. Power Output

12kW/(6500r/min)

Max. Torque

17.5N.m/(5500r/min)

Ignition

CDI

Starter

Electric start

Drive Train

Clutch

Manual

Gearbox

5-speed(four forward gears and one   reverse gear, plus neutral gear)

Final Drive

Chain / Shaft

Dimensions and Weight

Length x Width x Height

1,9500x1,280x1,100mm

Wheelbase

1,340mm

Ground Clearance

250mm

Seat Height

800mm

Fuel Capacity

7.8L, metal tank

Dry Weight

260kg

Wheels, Suspension and Brakes

Wheels Front

12 inch alloy rim

Wheels Rear

12 inch alloy rim

Tyres Front

AT25X8-12

Tyres Rear

AT25X8-12

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Double hydraulic disc brakes

Brakes Rear

Double hydraulic disc brakes

Packing

Carton Size

1,800x1,000x900mm (12’ wheel are packed separately. 65x65x95cm)

Container Load

14pcs/30pcs/45pcs
