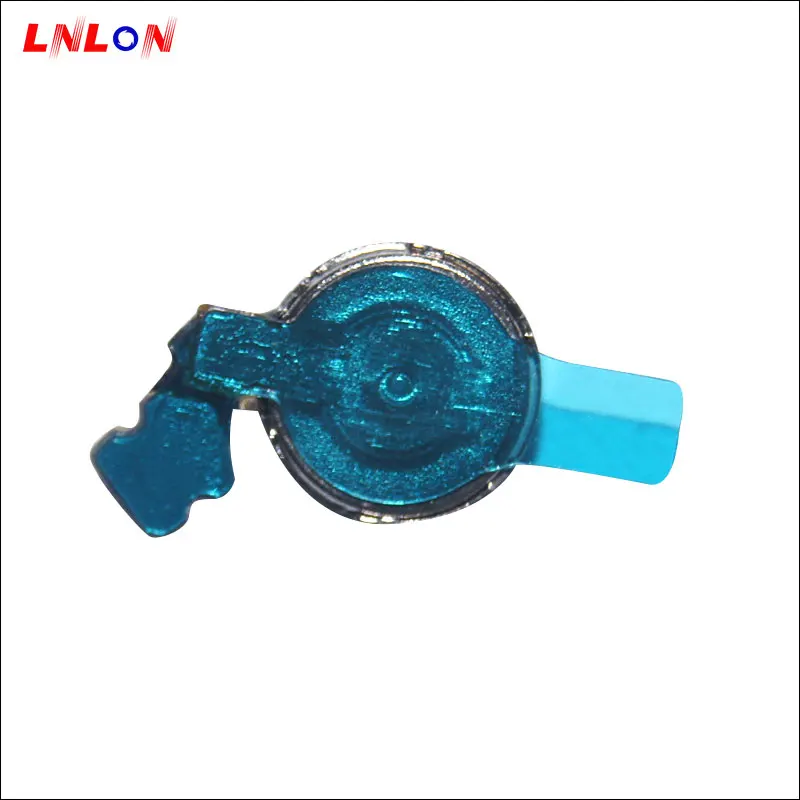

Permanent Magnetic 12000rpm electric DC coin small vibration motor for smart glasses

Product Overview

Description

Permanent Magnetic 12000rpm electric DC coin small vibration motor for smart glasses

Basic parameter:

size	Φ8*3mm
rated voltage	3.0V DC
operating voltage	2.7~3.3V DC
speed	13000±3000 rpm
rated current	85 mA Max
G force	1G Min
response time	about 80mS
life	3.0V,2S on, 2S off,96H

Outline drawing:

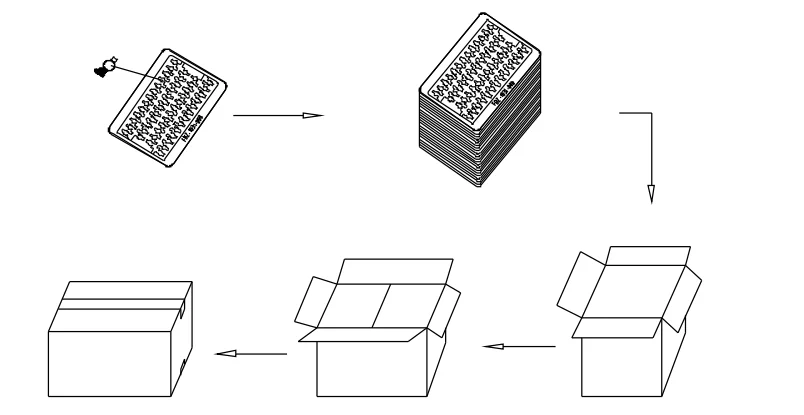

Package:

1	50pcs/pallet, pallet size 229*160*12 mm
2	21 pallets/bundle, 1000pcs
3	1 bundle/inner box, 1000pcs,box size:240*170*145 mm
4	2 inner boxs in one outer box, outer box size:360*260*170 mm
5	to seal the outer box and label







Feature:

Ultra thin and small size

Factory price

Fast delivery

mature product with high quality and stable performance



Application:







Certification:

ISO9001, ISO14001, GBT 28001,QC080000,RoHS

About US:

Industy-leading manufacturer for mini vibration motor in China

Incorporated in 2003

Gross investment of 150 million RMB

>1000 workers, 35000 square meters

Above 0.18 billion annual output

ISO&ROHS certificated

Mian Customer:Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...



Why choose us?

1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.

2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.

3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.

4. Service: Professional service window for business, technology and quality.



Packaging & Shipping
1.  Packaging: Carton
2.  Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.



FAQ:
1. What is your main products?

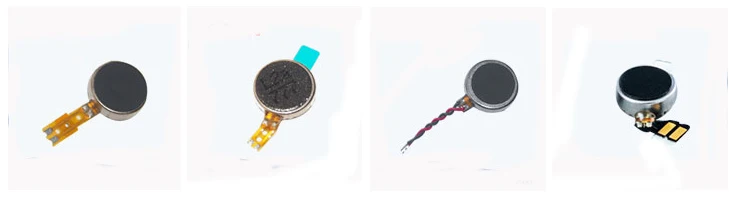

We mainly specialize in small vibration motor, including dc coin motor, dc SMD motor, dc gear motor, dc stepper
motor and ac linear motor.

2. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order if sample without problem. You can contact us by anyway, email, skype, wechat, or phone.

3. Do you have MOQ?
We do not have MOQ limit, and accept small quanity order.

4. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.



Any question or need, please contact us.
