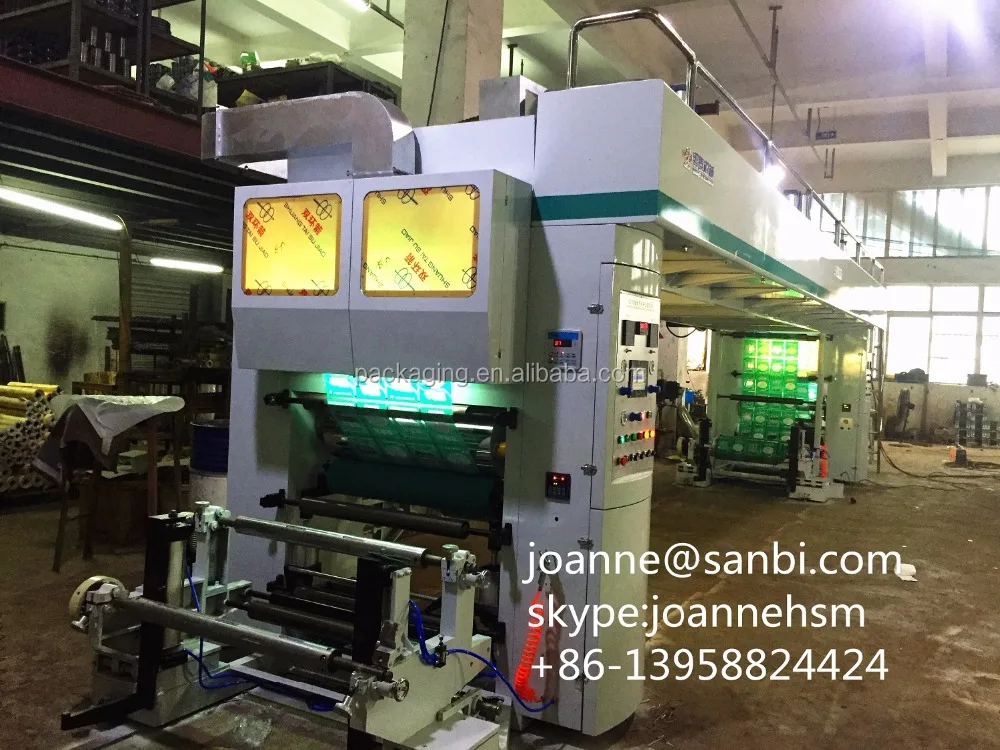

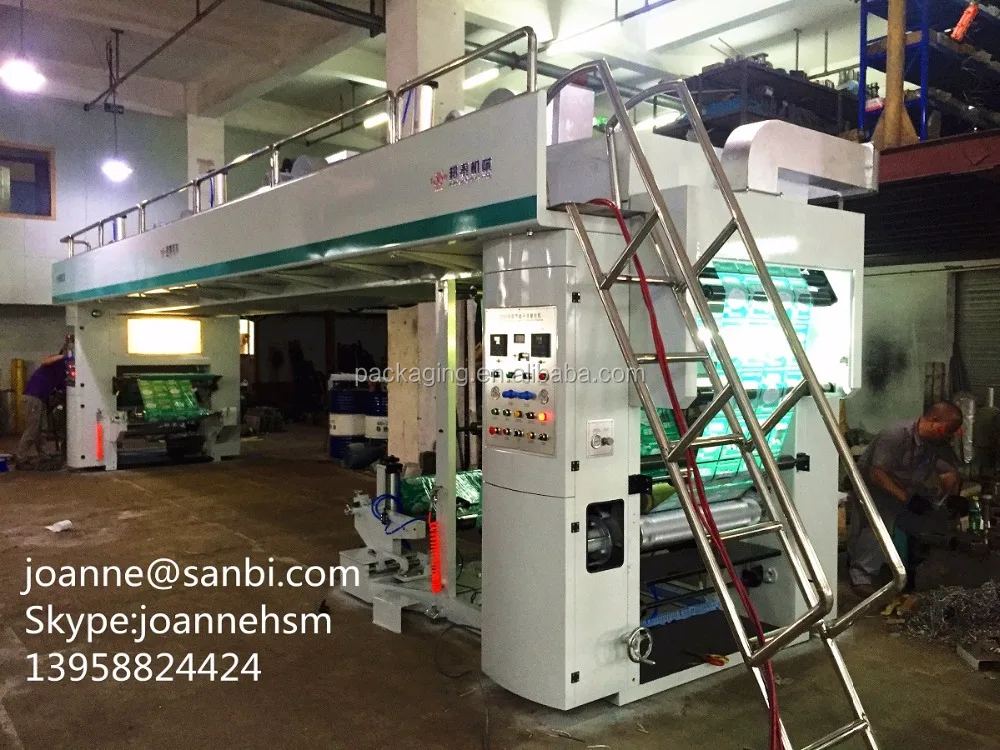

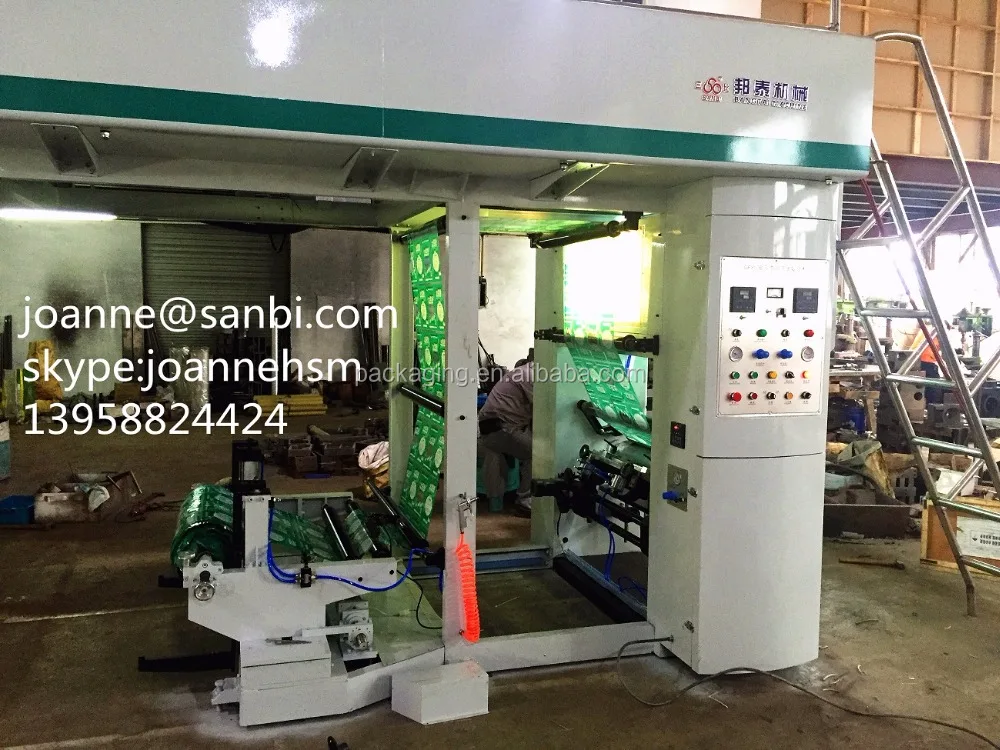

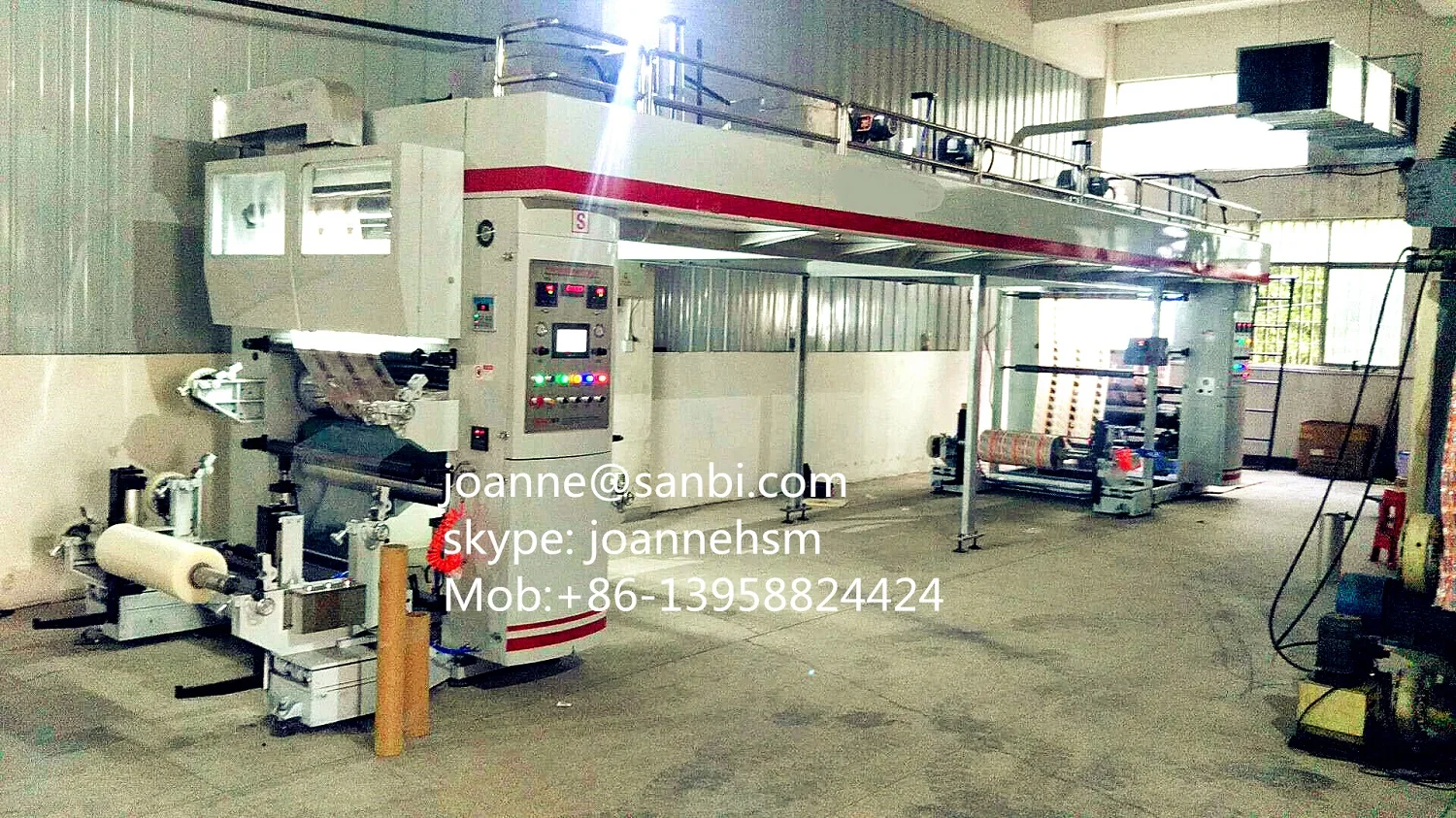

Power saving Dry Laminating Machine

BGF 800-1100B Moderate-speed Power-saving Dry Laminating Machine (120M/MIN speed)

1.Main parameter:
1).Laminating layer:2 layers
2).Suitable material
BOPP 18-100μm
CPP 20-100μm
PET 12-100μm
Alu foil

Metalized film
Paper 18-60μm
PC
3).Laminating width: 800mm (800 model),1100mm (1100 model)
4).Material diameter: 600mm
5).Laminating speed: 5-140m/min
6).Max oven temperature: 80℃
7).Max heat drum:70-90℃.
8).Power: 50/70KW
9).Max laminating pressure: 10MPA
10).Tension draw ratio: <<1/1000
11).Dimension:
800 model: 10300×2470×3200mm
\t 1100 model: 10300×2770×3200mm
12).Weight: 6000kg(800 model),6500kg(1100 model)

Main Features
