Product Overview
Description
Product Description
Material :60#,70#,65Mn,high-carbon steel wire
Direction of twist : levorotation and dextrorotation
Scope of application :vibrating machine ,automobile ,motorbike ,counter electric tools,gardening machinery mower ,and various mechanical flexible rotations, etc
Characteristic :smooth ,flexible ,highly-elastic,,and wear resistant

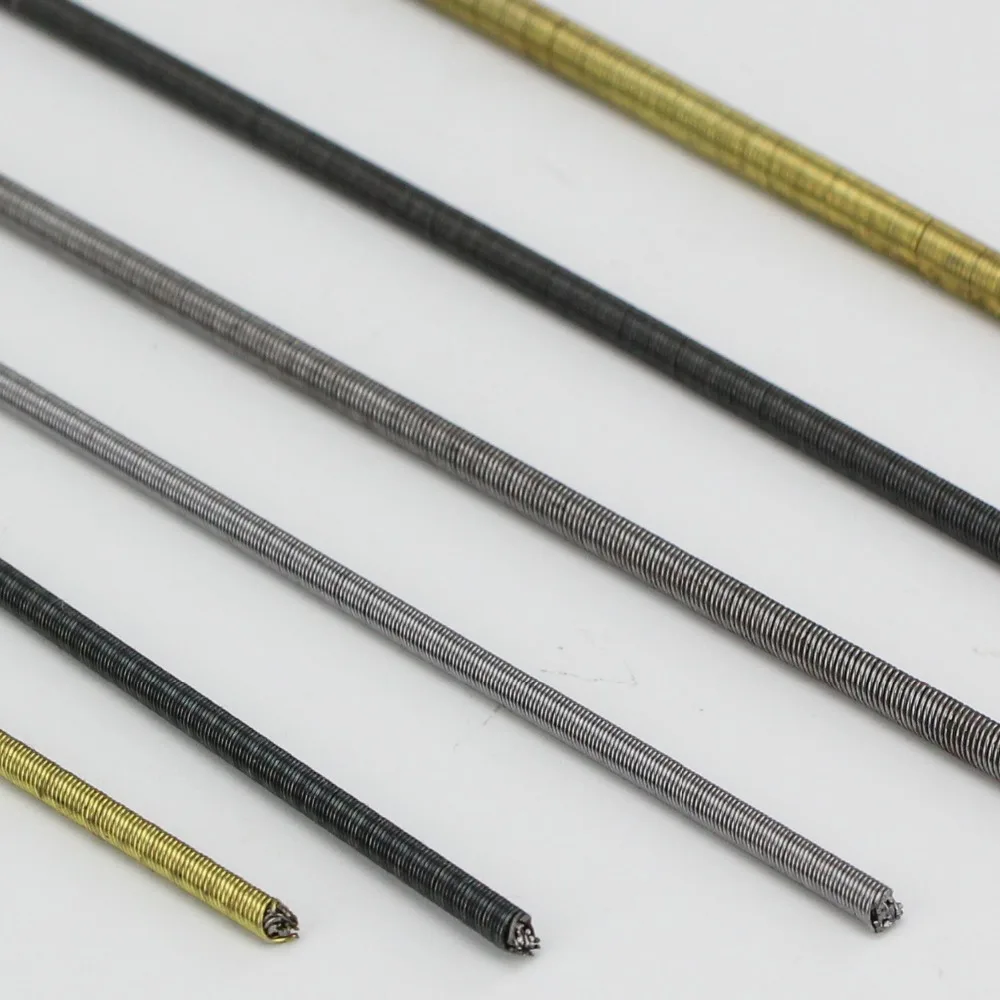

Technical specifications:flexible shafts is composed of multilayer long spring ,interlayer close by, and that by two layers of coil in the opposite direction .the center for steel wire core .
Diameter 3-20mm
Wire 70 high spring steel wire
Five layer structure
Diameter (mm) |
|
| Torque Moment | Weight |
2.0 | +0.02 | 3/5 | 0.8 | 1.8 |
2.5 | 3/5 | 1.0 | 2.8 | |
3.2 | 3/5 | 1.3 | 4.6 | |
3.8 | 3/5 | 1.5 | 6.5 | |
5.0 | +0.00 | 3/4/5 | 1.8 | 11.3 |
6.0 | 3/4/5 | 2.4 | 16.2 | |
6.5 | 4/5/7 | 2.9 | 18.7 | |
8.0 |
| 5/7 | 7.5 | 28.8 |
10 | 4/5/6 | 22.5 | 45.5 | |
12 | 5/7 | 39.0 | 66.5 | |
13 | 5/7 | 50.5 | 77.5 | |
16 | 5/7 | 115.0 | 114 | |
18 | 5/7 | 160 | 145 | |
The flexible shafts not listed in the chart can be customized | ||||
