big nut RG58 / RG59 /RG6 F connector
- Category: >>>
- Supplier: Zhenjiang Xinhuafeng Electronics Co. Ltd.
Share on (60714661772):
Product Overview
Description

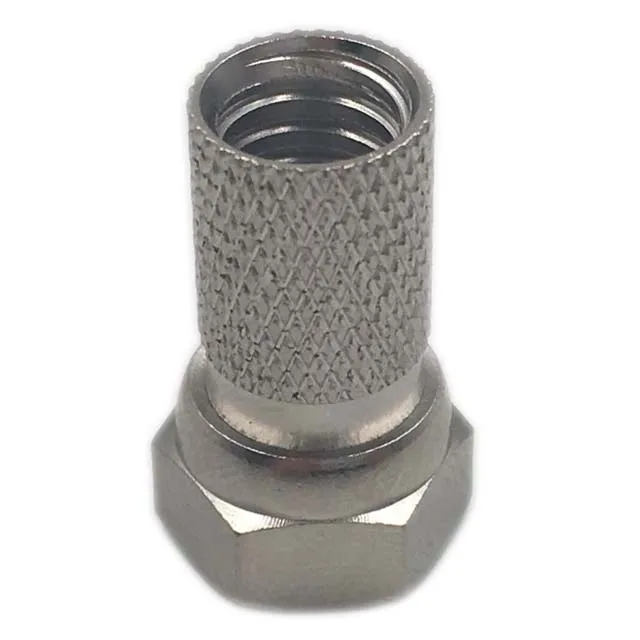

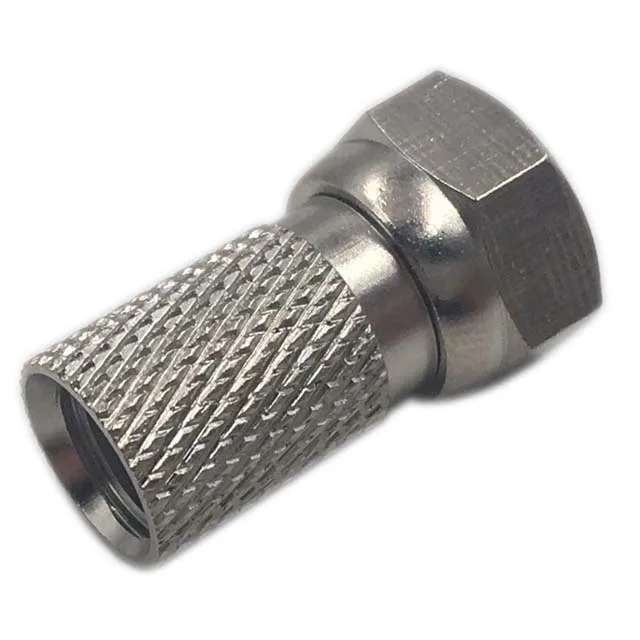

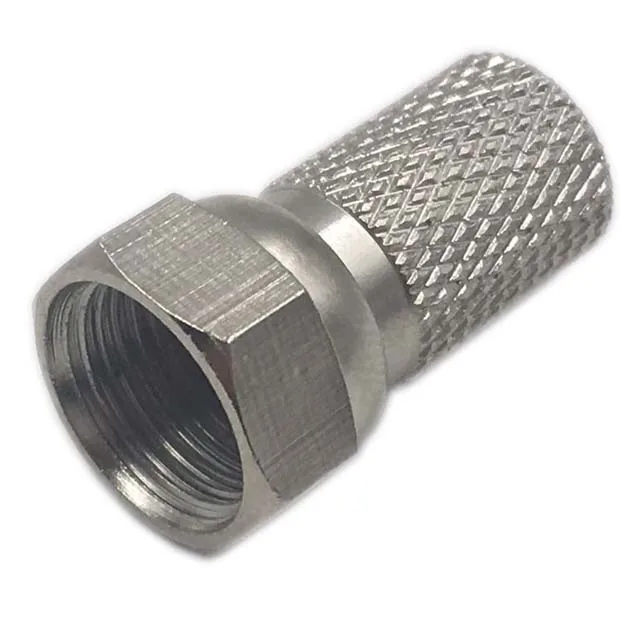

big head RG6 f twist on connector copper material with nickel plating
1) Material: Brass or Zinc
2) Use For: COAXIAL CABLE
3) Plating:Gold/Nickel plated
| Temp.range: | -40~+60°C | Insulation resistance: | ≥ 1000 MΩ |
| Impedance : | 75Ω | Withstand voltage at sea level : | 750V |
| Frequency range: | 0~1GHz | Working voltage : | 170V max |
| Center conductor withdrawal force: | ≥0.49N | VSWR : | Straight ≤1.2 Angle≤1.3 |
| Contact resistance: | center conductor ≤6mΩ , outer conductor ≤1mΩ | Durability : | 500 cycles |
Specifications:
Temp.range : -40~+60°C
Impedance : 75Ω
Frequency range: 0~1GHz
Center conductor withdrawal force ≥0.49N
Contact resistance: center conductor ≤6mΩ , outer conductor ≤1mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage at sea level : 750V
Working voltage : 170V max
VSWR : Straight ≤1.2 Angle≤1.3
Durability : 500 cycles
Packaging & Shipping
Shipping way : by sea , by air , by Express.
FAQ
1. How about your lead time?
A: it depends on order quantity. Usually 15-30 days.
2.How can we get a sample.
A: Free sample, Freight collected by your side.
3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.
Company Information
We're professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
