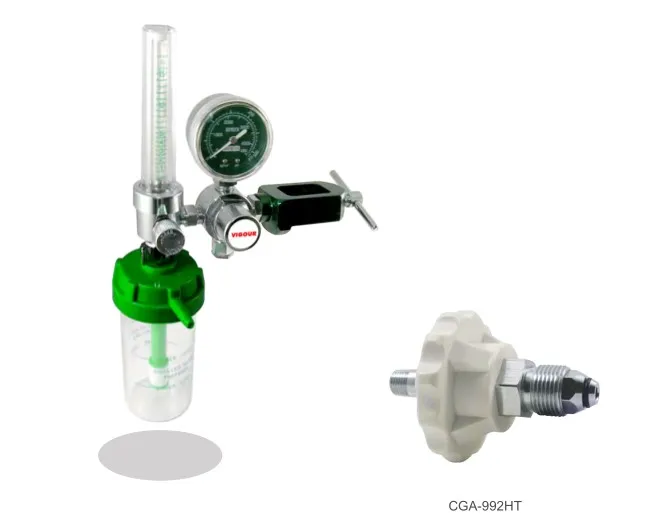

VIGOUR brand Medical Oxygen Flowmeter With Humidifier
- Category: >>>
- Supplier: Shanghai Haogu Industrial Co. Ltd.
Share on (60714667944):
Product Overview
Description
Product Description
VIGOUR brand Medical Oxygen Flowmeter With Humidifier
1.Product Features
• Maximum inlet pressure 3000psi.
• Chromed plated brass body with all brass high pressure chamber for durability & safety.
Chromed Forged brass flow meter body for durability.
• Neoprene diaphragm type.
• Reliable external safety relief valve.
• Sintered filter inlet for additional safety and longer life.
• Various gauge plate design: 2” diameter Inlet pressure gauges 0~4000psi.
• Polycarbonate inner and outer tubes provide greater accuracy, durability & safety.
• Outlet flow control valve 90 O or 180 O are available.(90 O standard)
• The standard preset outlet pressure is 50psi for stabilizing and accuracy flowing.
• International standard Inlet and outlet thread sizes are available.

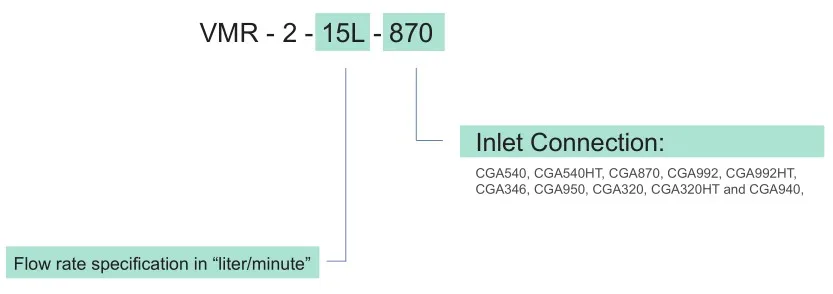

2.How to order:
3.Ordering Information
| Model | Gas | Flow Range (LPM) | Inlet Connection: |
| VMR-2-5L-540 | OXYGEN | 1/2~5 | CGA-540 Nut and Nipple |
| VMR-2-5L-540HT | OXYGEN | 1/2~5 | CGA-540 Handtight Nut and Nipple |
| VMR-2-5L-870 | OXYGEN | 1/2~5 | CGA-870 Yoke |
| VMR-2-8L-540 | OXYGEN | 1/2~8 | CGA-540 Nut and Nipple |
| VMR-2-8L-540HT | OXYGEN | 1/2~8 | CGA-540 Handtight Nut and Nipple |
| VMR-2-8L-870 | OXYGEN | 1/2~8 | CGA-870 Yoke |
| VMR-2-15L-992 | OXYGEN | 1~15 | CGA-992 Nut and Nipple |
| VMR-2-15L-992HT | OXYGEN | 1~15 | CGA-992 Bull Nose and Handtight |
| VMR-2-15L-540 | OXYGEN | 1~15 | CGA-540 Nut and Nipple |
| VMR-2-15L-540HT | OXYGEN | 1~15 | CGA-540 Handtight Nut and Nipple |
| VMR-2-15L-870 | OXYGEN | 1~15 | CGA-870 Yoke |
| VMR-2-15L-346 | MEDICAL AIR | 1~15 | CGA-346 Nut and Nipple |
| VMR-2-15L-346HT | MEDICAL AIR | 1~15 | CGA-346 Handtight Nut and Nipple |
| VMR-2-15L-950 | MEDICAL AIR | 1~15 | CGA-950 Yoke |
| VMR-2-15L-320 | CO2 | 1/2~15 | CGA-320 Nut and Nipple |
| VMR-2-15L-320HT | CO2 | 1/2~15 | CGA-320 Handtight Nut and Nipple |
| VMR-2-15L-940 | CO2 | 1/2~15 | CGA-940 Yoke |
