carbon fiber water tank 10 bar pressure water tank filter composite vessel
- Category: >>>
- Supplier: Hebei Umek Environment Machine Co. Ltd.
Share on (60714692709):
Product Overview
Description

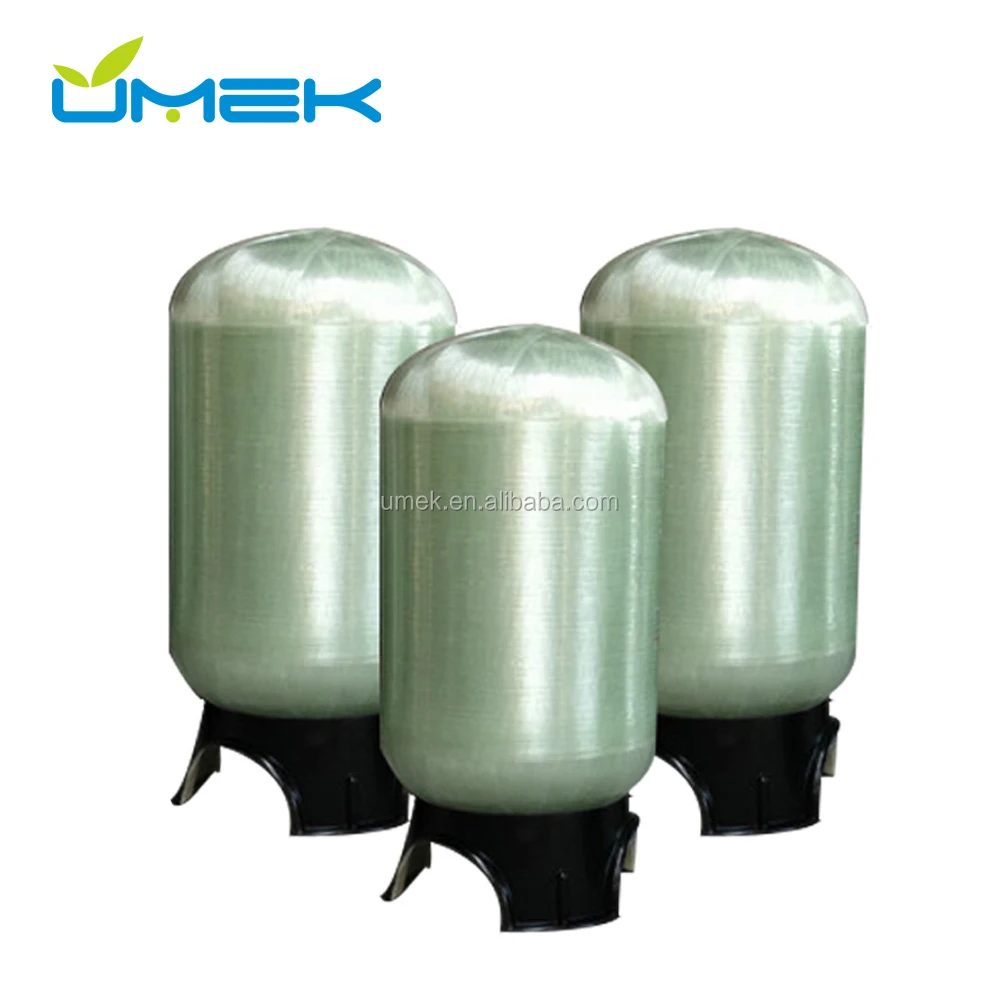

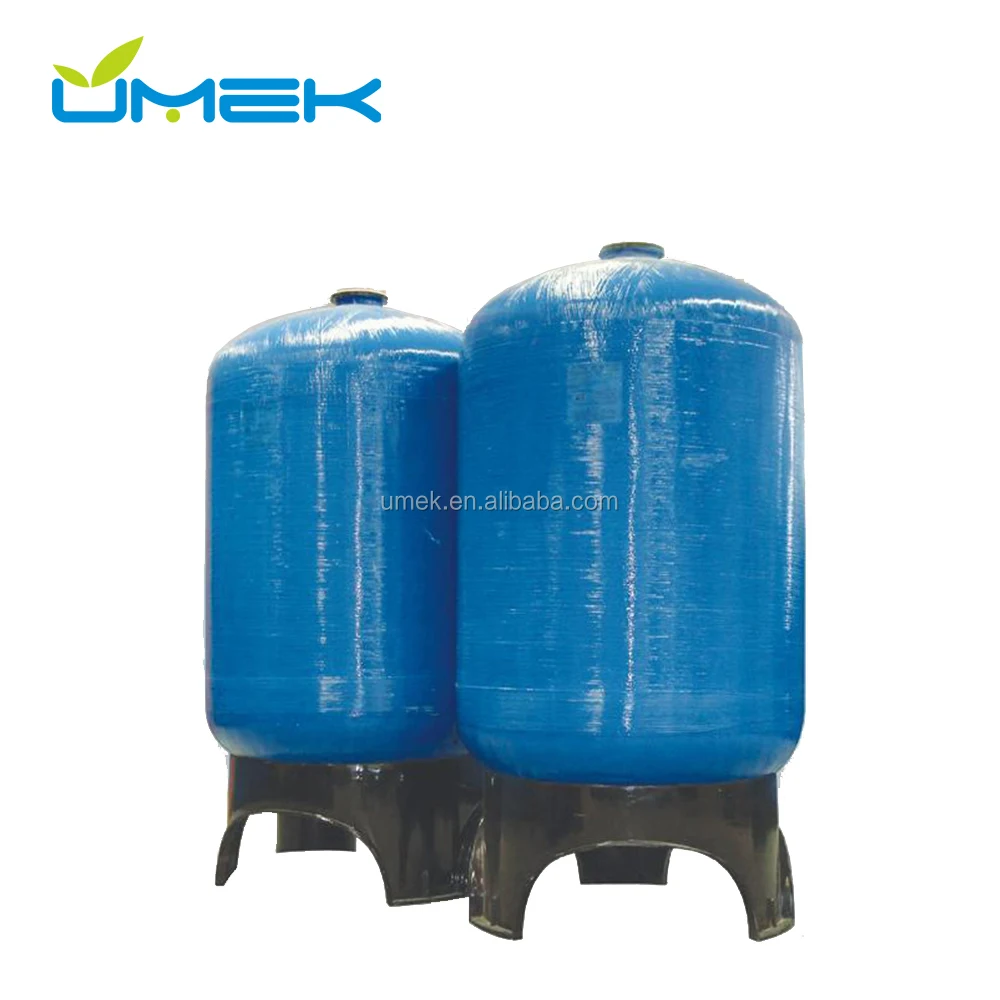

carbon fiber 10 bar pressure water tank filter composite vessel
Umek FRP Tanks meet and comply PED(EN13923) & NSF & ISO 9001 requirements.
We focus on FRP tanks, We provide the most relaiable products for you

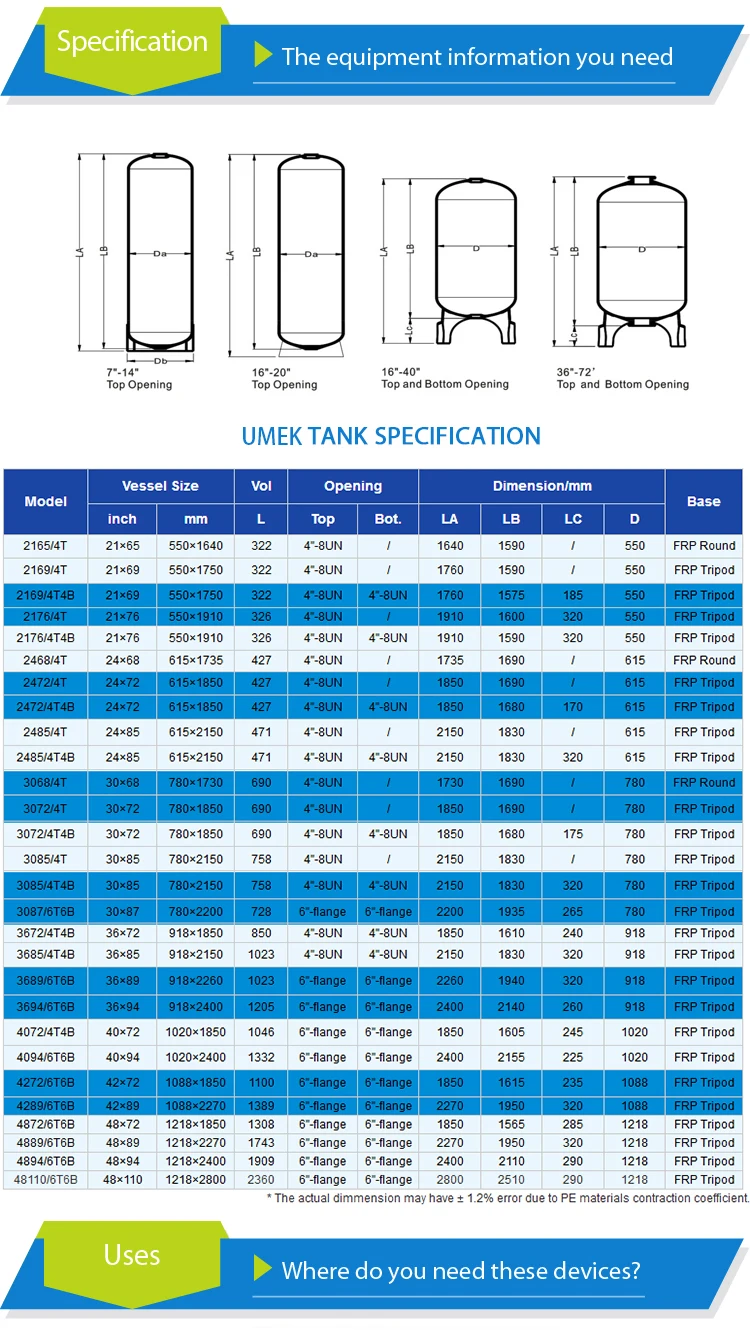

| Product Name: | carbon fiber 10 bar pressure water tank filter composite vessel |
| • Inner shell : | Polyethylene (PE) |
| • Outer shell: | Premium fiberglass embedded in epoxy resin |
| • Certificate: | NSF, ISO |

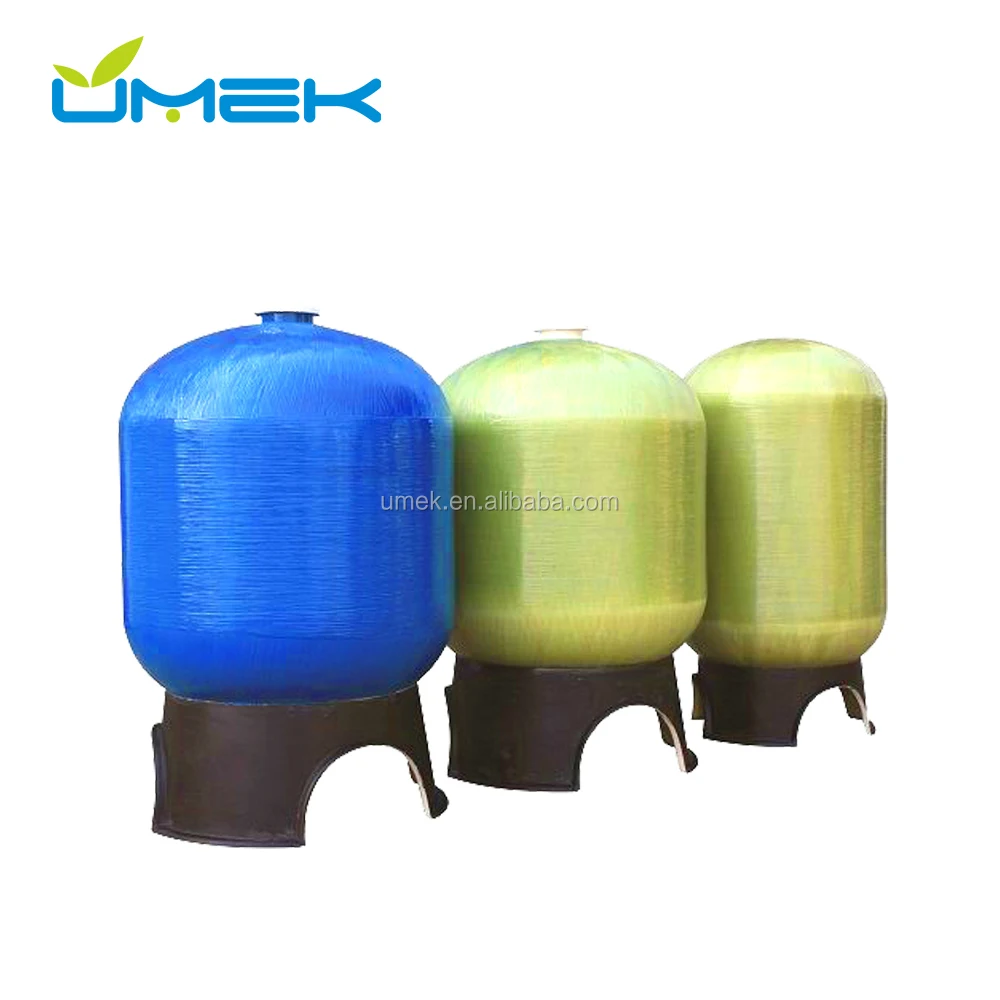

| • Color: | Blue/natural/gray/black/yellow |
| • Outer shell: | Premium fiberglass embedded in epoxy resin |
| • Operating pressure: | 6bar/100psi and 10bar/150psi |
| • operating temperature range: | 1-50 degree |

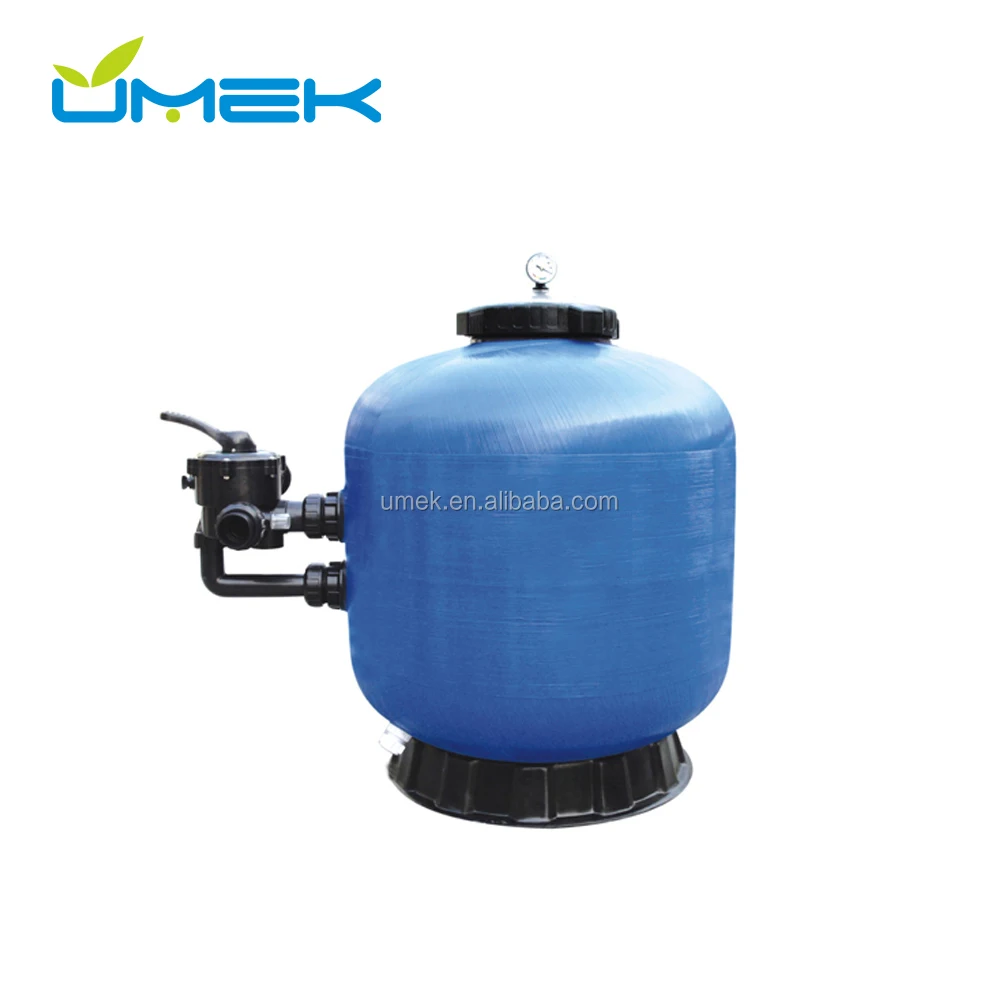

| • Application: | Filtration,softening,sand filter,carbon filter, ion exchange ,RO system. |
| Characters | Fully Rustproof and corrosion resistant |
| Hight strength Light weight | |
| Easy transport and installation | |
| Nice appearance |
| Structure & Materials | Liner material:Rotation molding or Blowing One-piece seamless PE inner liner |
| Outer Winding:Hight Performance resin with Fiber glass three-dimensional winding | |

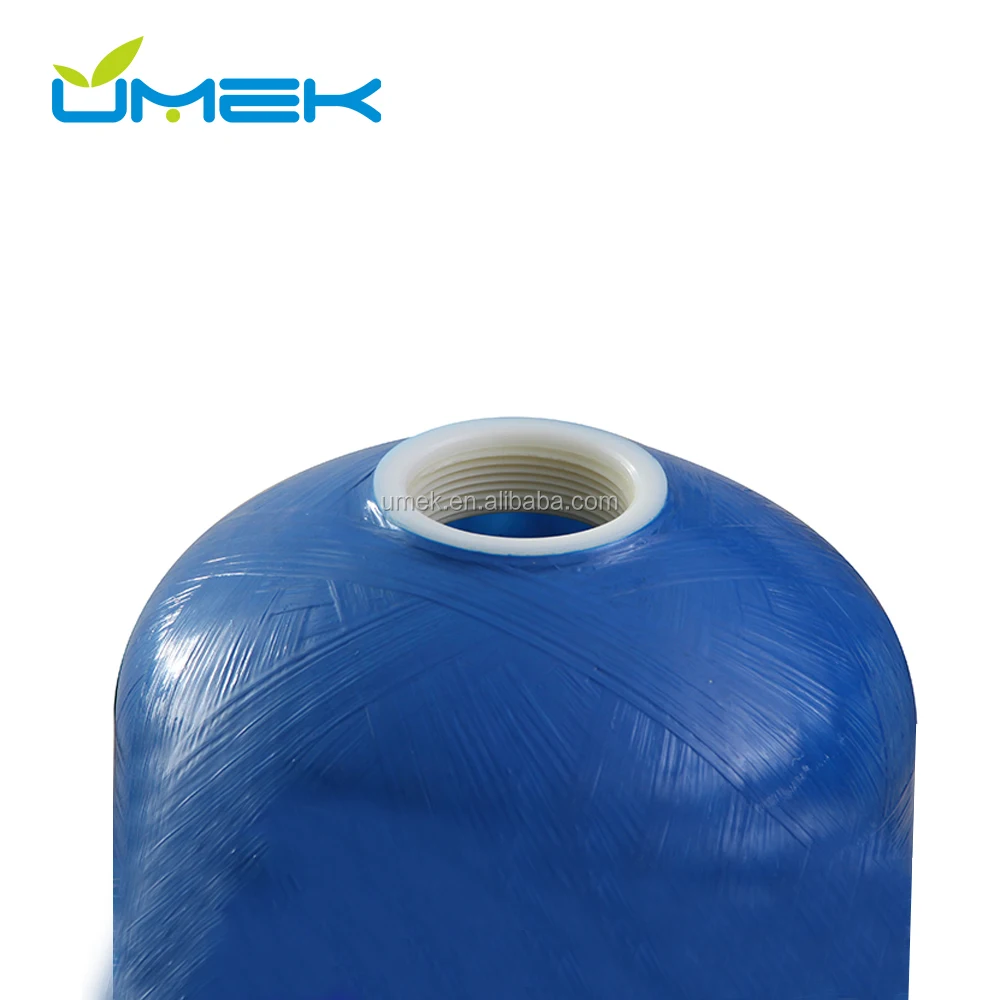

| Opening:2.5" and 4" reinforced plastic thread,6" alloy flange | |
| Bass Materials:FRP or reinforced PP |
| Application Conditions | Working Pressure:150psi(10.5bar) |
| Working Temperature:1-4℃(34-121℉) | |
| Max.Vacuum:127mm Hg | |
| Lowest Environment Temperature:-27℃(-17℉) |
| Design Parameter | Burst Pressure:42bar(4 times) |
| Fatigue Cycle:100,000 |
 |  |  |
 |  |  |
 |  |  |
1,Q:How long have you been in business?
A:Re:More than 12 years
2,Q:Working pressure is only 150psi?
A:Re:100psi and 150psi
3,What colour we can choose?
A:Blue/natural/gray/black/yellow
4,Do you have others parts of FRP tank?
A:Yes,auto control valve/ brine tank/ water distibutor/ softener resin/ Activated carbon/quartz sand/pipe fitting.
5,Do have water treatment system or solution?

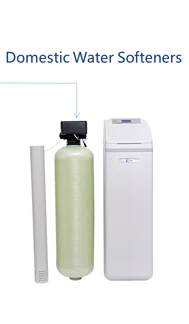

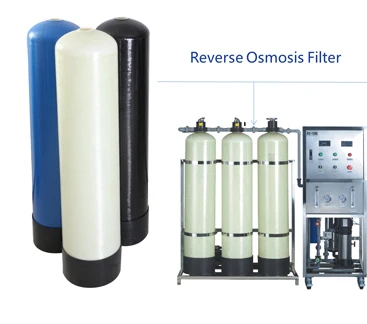

A:yes, water softener/carbon filter/sand filter/RO system/ water treatment solution.
6,Q:How do you package and ship fiberglass tanks?
A:Re:FCL:paper box for small fiberglass tanks, paper box and pallet for big fiberglass mineral tanks
7,Q:Can you make your model 4272 and 4872 with only 4 inch NPSM top and bottom?
A: no problem, we can made to order
