Product Overview

Description


Product Description

Handheld Crane Digital Wireless Remote Control Apollo system Industry Remote Control application:


A, Pre-installation please check whether the transmitter’s S/N is in consistent with the receiver’s CH.
B, The person without professional training shall not permit to disassemble the machine.
C, The general power supply of crane should be closed to cut off the receiver power supply.
D, The crane should have a general power relay, limit switch and other safety facilities.


Handheld Crane Digital Wireless Remote Control Apollo system Industry Remote Control :

A, The production should be installed by trained electricians.

B, The wiring diagram: please reference the receiver machine’s external wiring diagram.

C, Power supply options: Receiver can be divided into direct current(DC) or alternating current(AC).

D, The receiver suitable for dc power supply, can be directly access to 12 or 24v dc power supply.

E, The receiver suitable for ac power, have to confirm the normal access to the rated voltage of the receiver.

F, To avoid signal disturbance, the receiver’s installation locating must be as far as possible from transformer, motor and cable.

G, The receiver cannot be installed in the electric control cabinet and correct installation method is to fix the receiver on top of the electric control box(for external) position, and then wear the receiver output cables into the electric control box with proper connection.

H, Though this series of remote controller have 4 billion groups of security codes, and we do not set the same security code into different controllers, but the installer still have to confirm the same installation work area cannot have the same security code remote controller to prevent accident.

I, Do not use the same channel equipment within 200 m range, in order to avoid radio interference.

J, Check the wiring correctly installed.



Technical data
\t
Model
\t
C1.C2-48S
\t
Key function
\t
6pcs single speed key&master/alarm bell&scram&rotate key
\t
Level of protection
\t
IP65
\t
Housing material
\t
Glass fiber reinforced nylon
\t
Usage temperature
\t
-35℃ to +80℃
\t
Security code
\t
32 digit
\t
Control distance
\t
100m（some products can be reach 200m）
\t
Frequency range
\t
VHF：310.0325-331.165MHz
UHF: 425.5925-446.725MHz
\t
Transmitting power
\t
≤10dBm
\t
Receive sensitivity
\t
≥-110dBm
\t
Sender power
\t
DC 3v（2pcs alkalinity 5th battery）
\t
Receiver power
\t
AC/DC18~65v,AC/DC65~440V

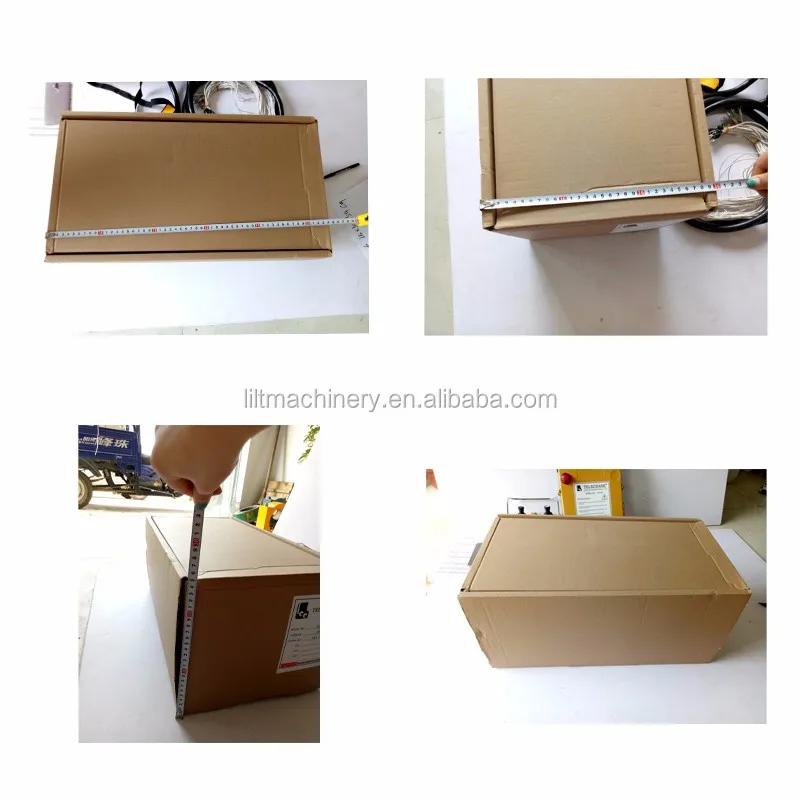

Packing & Delivery
\t
Packaging
\t
Size
\t
540mm*300mm*260mm
\t
Weight
\t
450g
\t



Packaging Details
\t
The normal package is carton box, exported standard
