Product Overview
Description
TAL107 series MICRO LOAD CELL
◆Capacity ：10kg , 20/30kg , 50kg
◆Material: alloy steel
◆Type: micro load cell
◆Defend grade: IP65

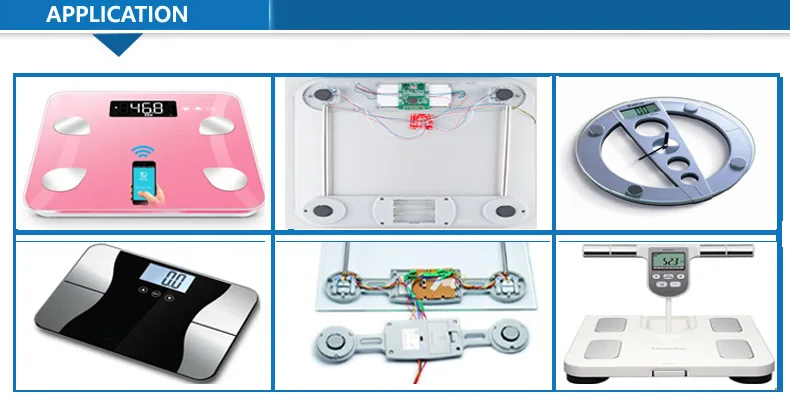

◆Application : body scales, hand scales, kitchen scales, postal scales, bathroom scale, baby body scale
and other micro electronic weighing systems.

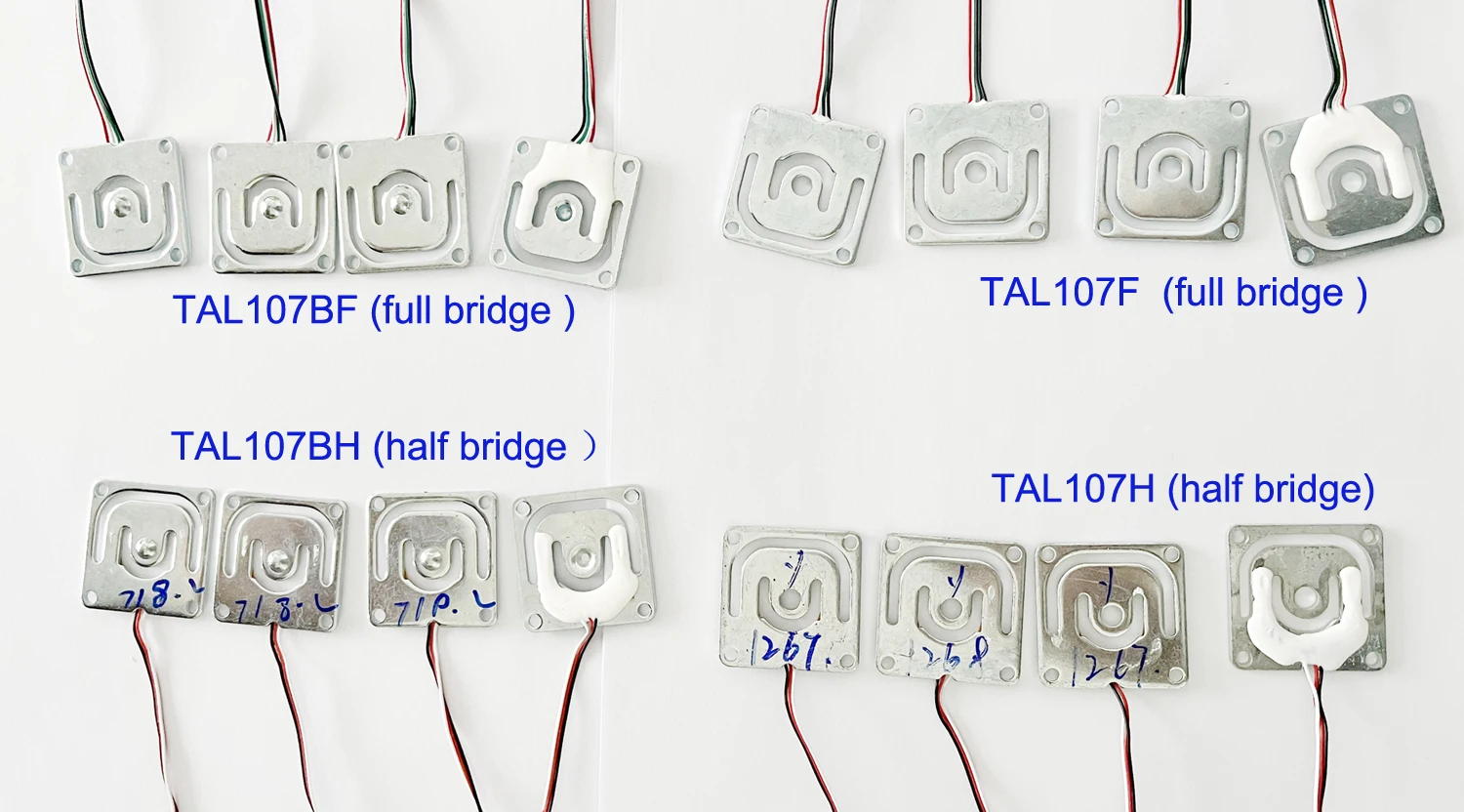

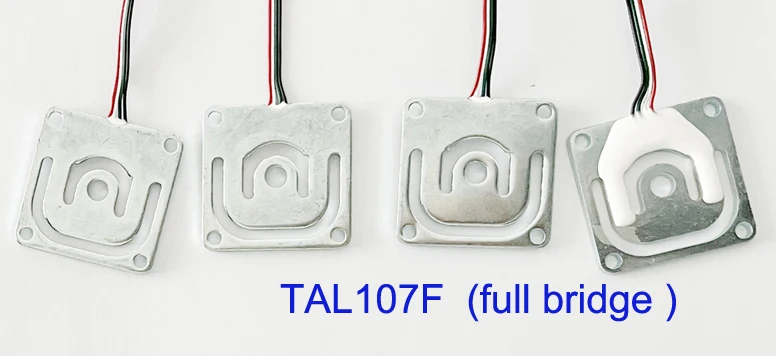

TAL107F ( Full bridge load cell) Used individually. So there is no matched output signal.

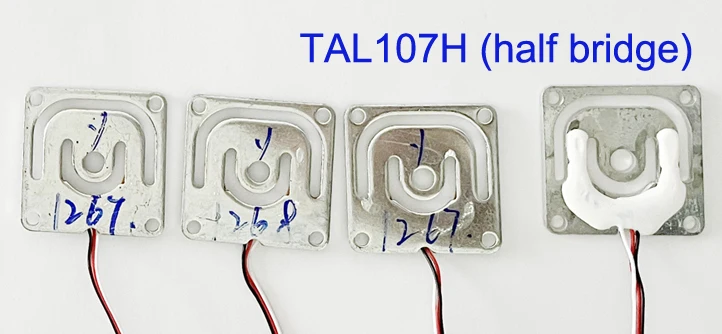

TAL107H (Half bridge load cell) 4pcs with matched output signal.

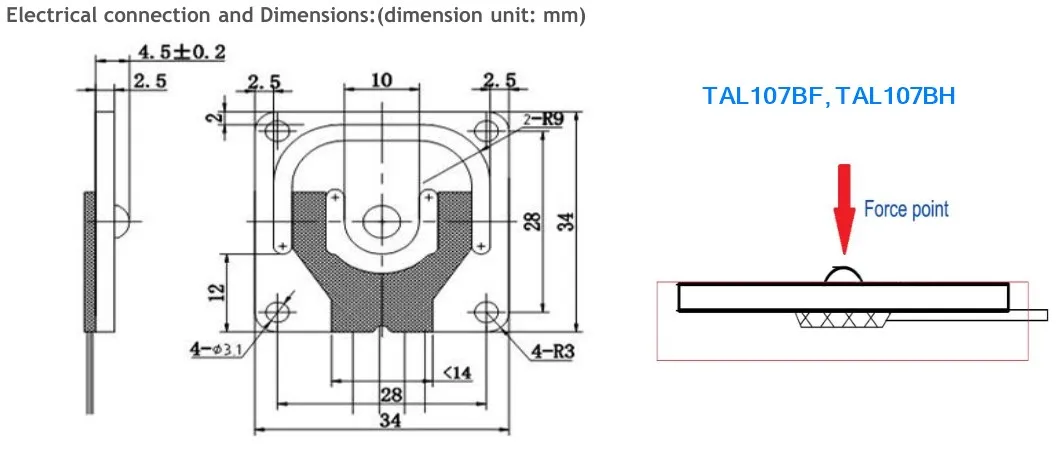

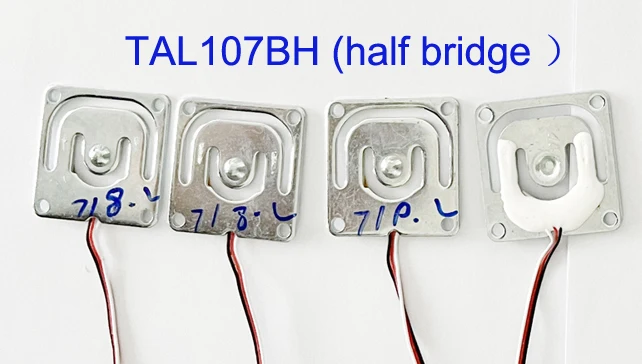

TAL107BH ( Half bridge load cell) with Bump for loading force. 4pcs with matched output signal

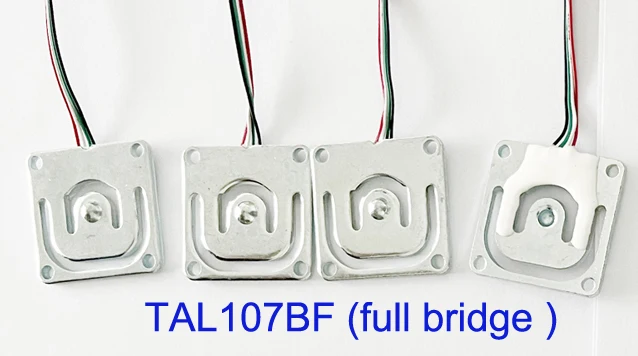

TAL107BF (Full bridge load cell) with Bump for loading force. Used individually. So there is no matched output signal.

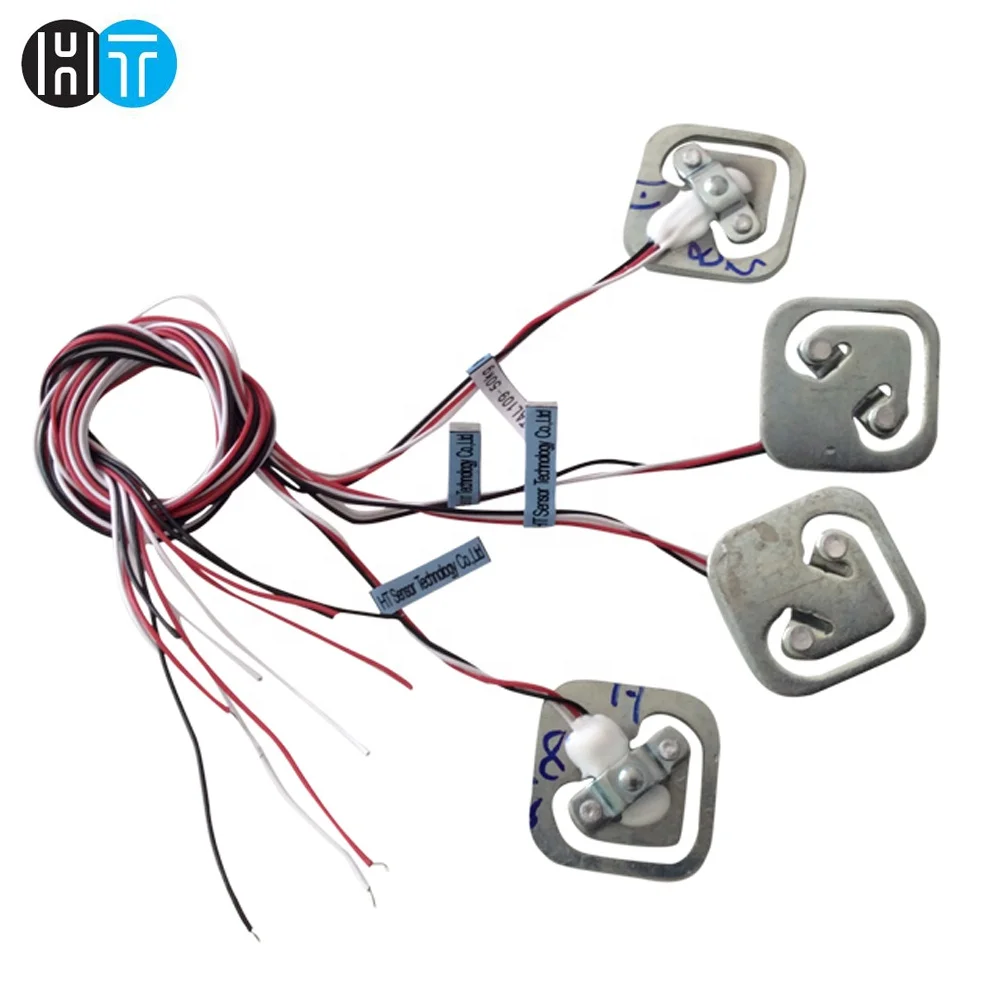

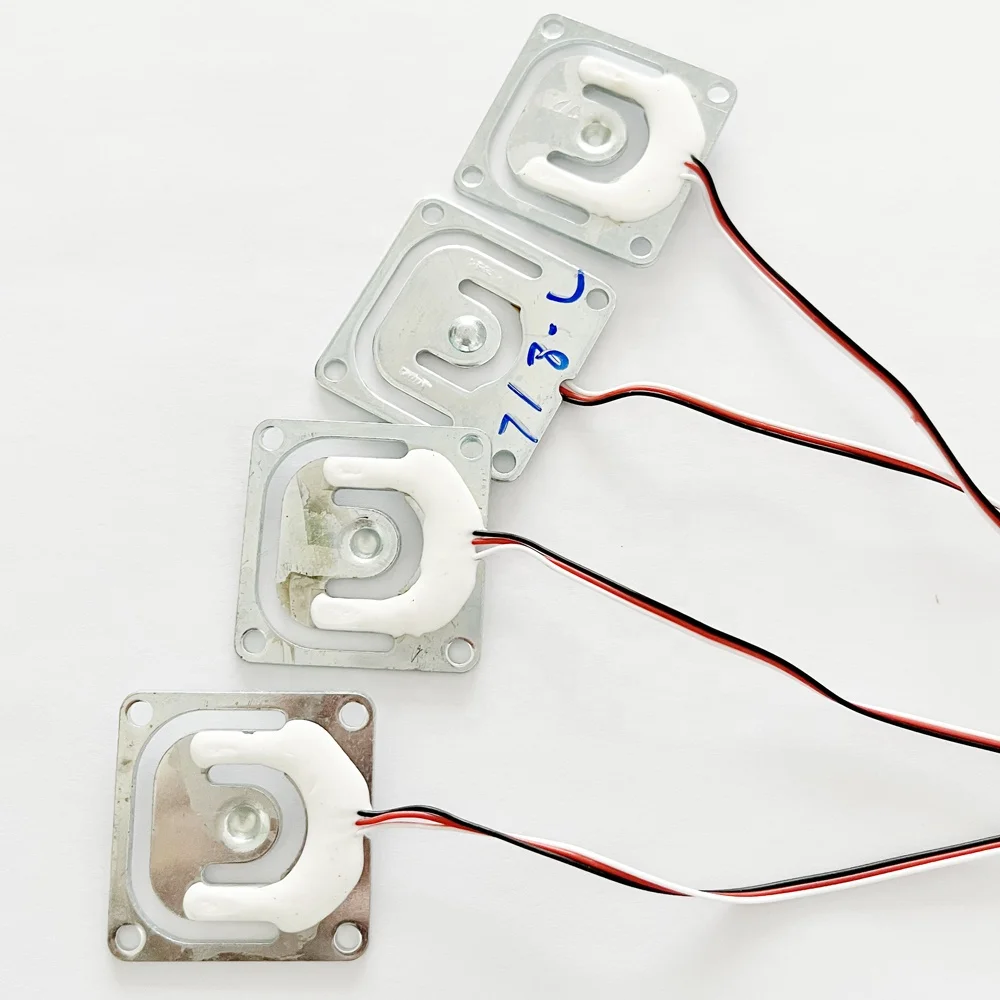

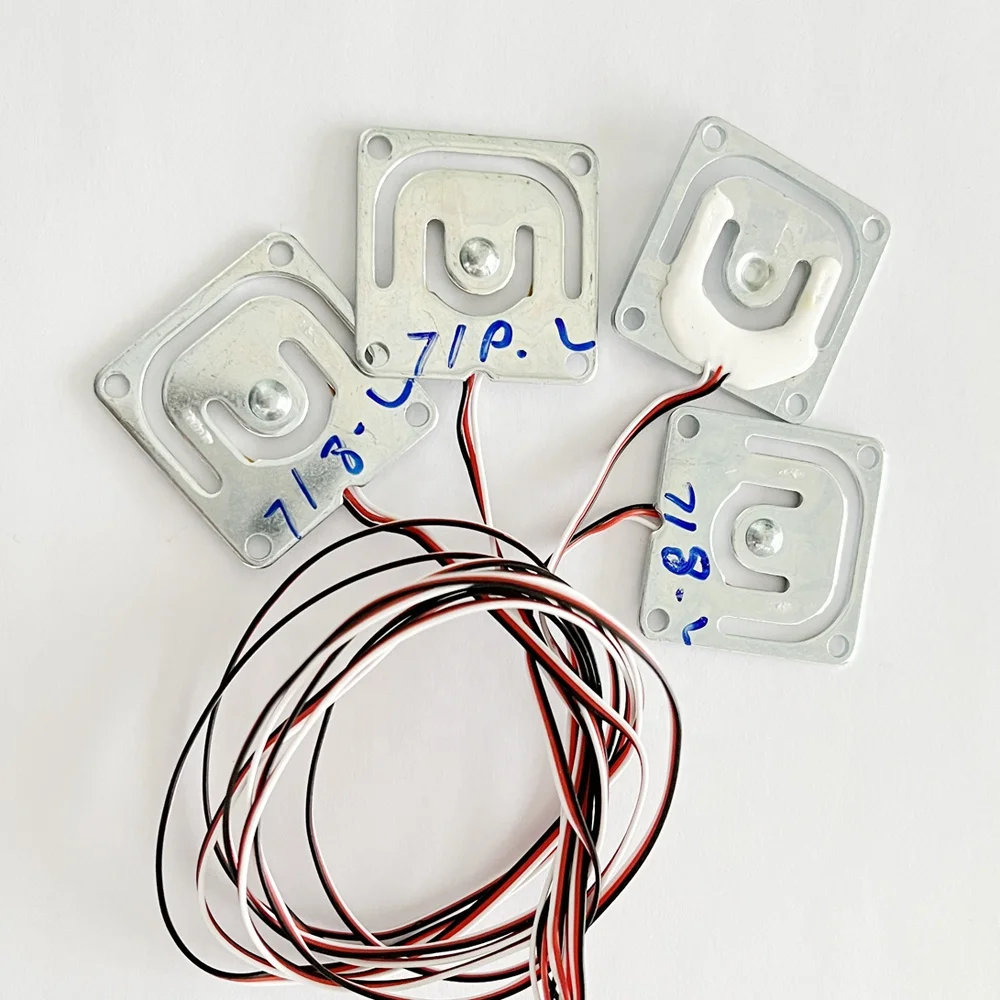

Half bridge load cell with though hole.
4pcs as one set. ( 3 wires)

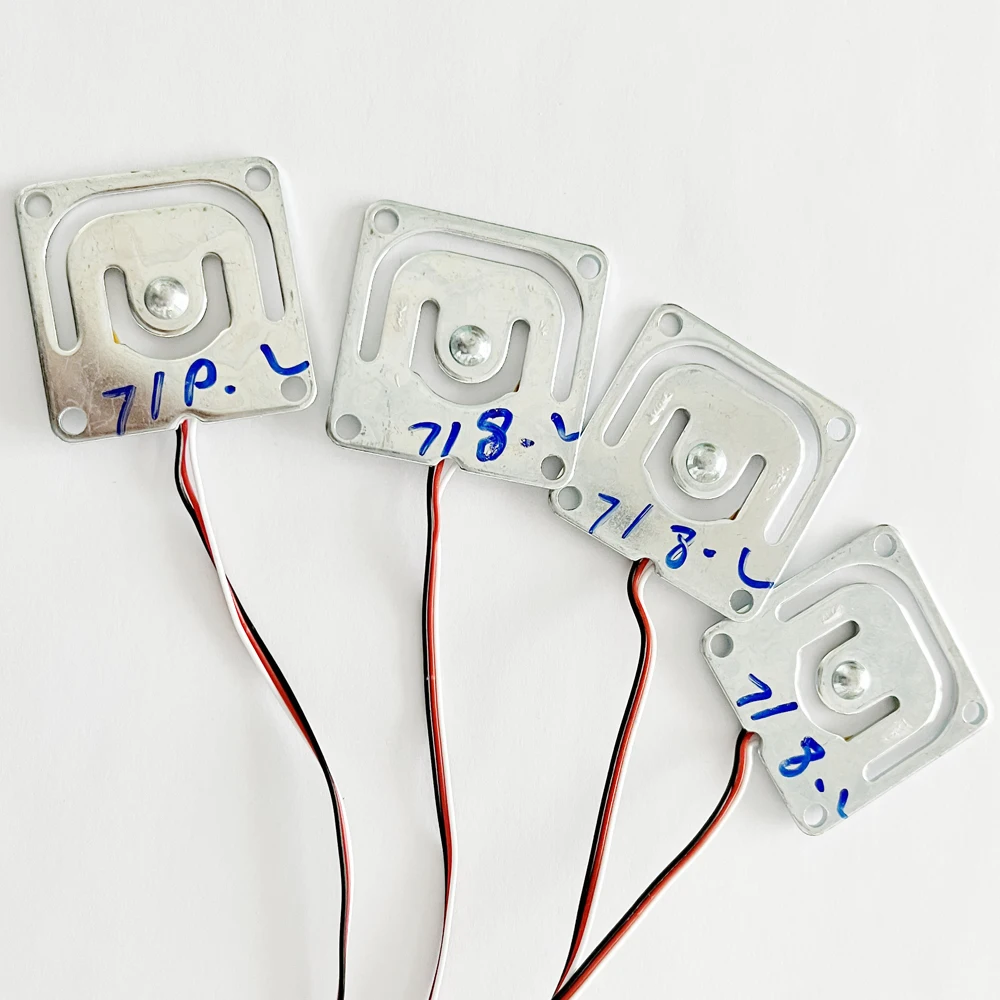

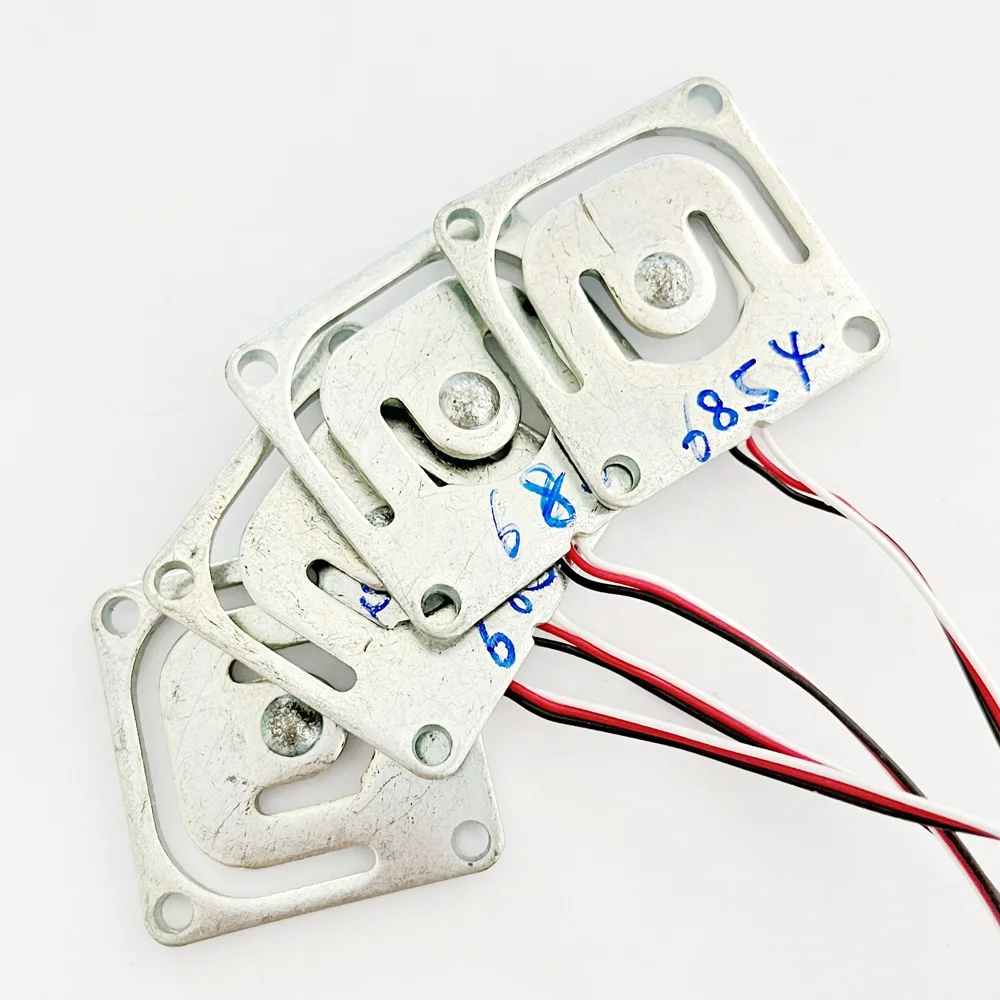

Half bridge load cell with bump.
4pcs as one set with matched output signal. ( 3 wires)

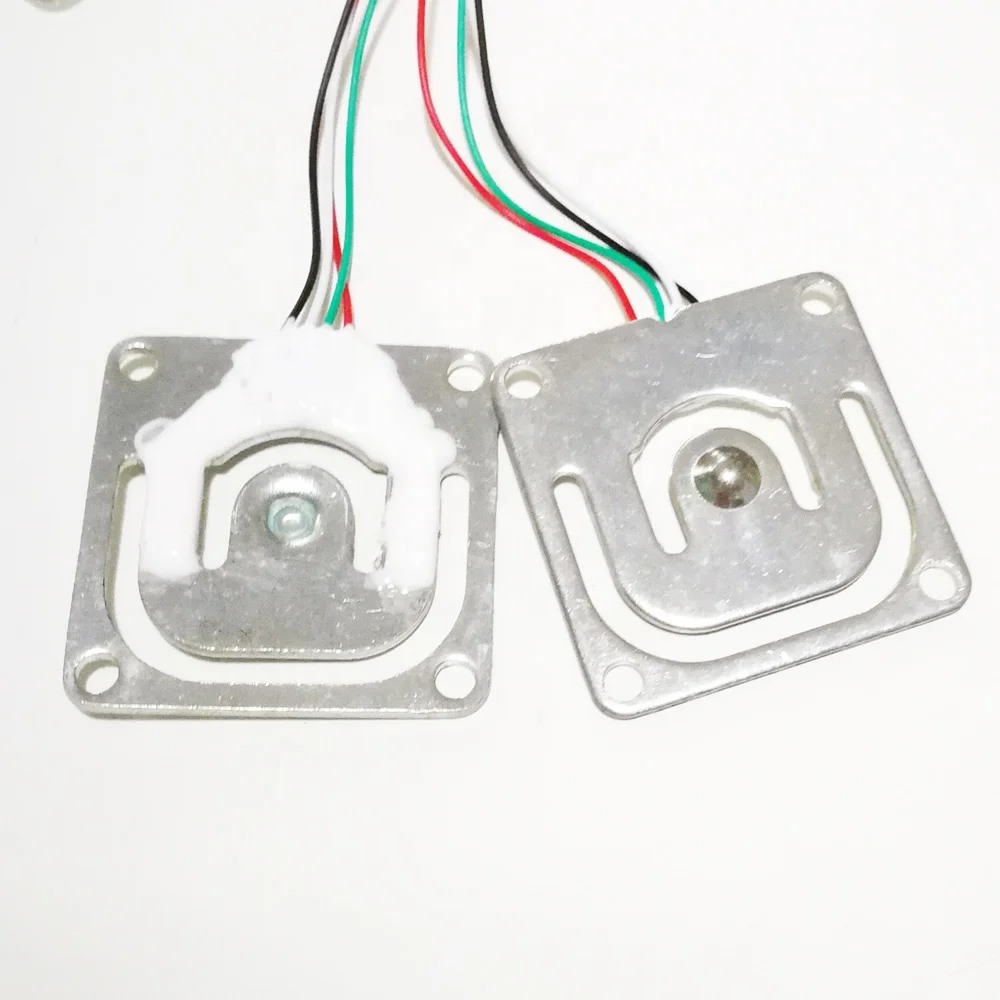

Full bridge load cell with through hole, Excitiona+: red,
Excitation-: black,
Signal+ : green,
Signal-: white
Full bridge load cell with Bump
4 wires.
Excitiona+: red,
Excitation-: black,
Signal+ : green,
Signal-: white

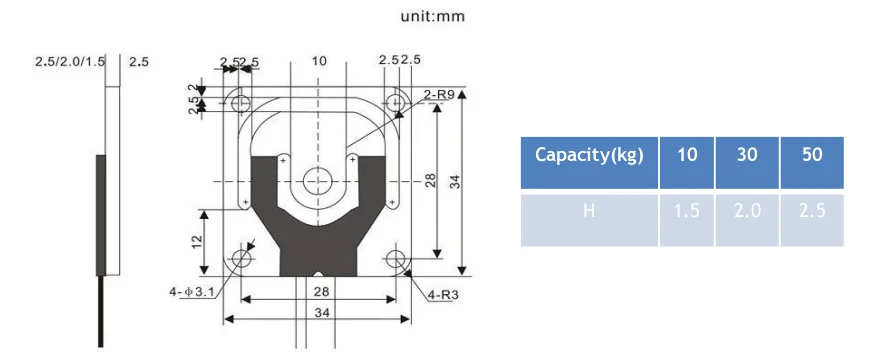

Capacity: | 10 ,20, 30, 50kg | Safe overload: | 120%FS | ||
Rated output: | 1.0/2.0± 0.2mV/V | Ultimate overload: | 150%FS | ||
Excitation voltage: | 5~10Vdc | Input resistance: | 1090 ± 10Ω | ||
Combined error | ± 0.05%FS | Output resistance | 1000 ± 10Ω | ||
Zero balance | ± 0.3%FS | operating temperature range: | -10 ~ +55 | ||
non-linearity: | ± 0.05%FS | compensated temperature range | -10 ~ +40 | ||
hysteresis: | ± 0.05%FS | temperature coefficient of SPAN | ± 0.10%FS/10℃ | ||
Creep: | ± 0.05%FS/3min | temperature coefficient of ZERO | ± 0.10%FS/10℃ | ||
Electrical connection | 4 color wire , Ø 0.8×400 mm Red, black, green, white | ||||
