Gap Bed Bench Engine Lathe Conventional Type C6246
- Category: >>>
- Supplier: Chongqing Kaku Machinery Imp & Exp Co. Ltd. [Chongqing China]Chongqing Ltd.
Share on (60714755396):
Product Overview
Description
Product Description
Features of C6246 lathe:
Spindle box gears are precision grinding with the processing, high precision.
Machine bed with one-piece casting, good stability, long life, accuracy will not be lost.
Complete accessories: a full set of special attached, three claws, four claws, the center frame, with the knife, disk.
With Siamese foot brake, easy to operate, the use of high efficiency.
Mian Spindle
Running in an oil bath
Gearwheels smooth running
Hardened and ground

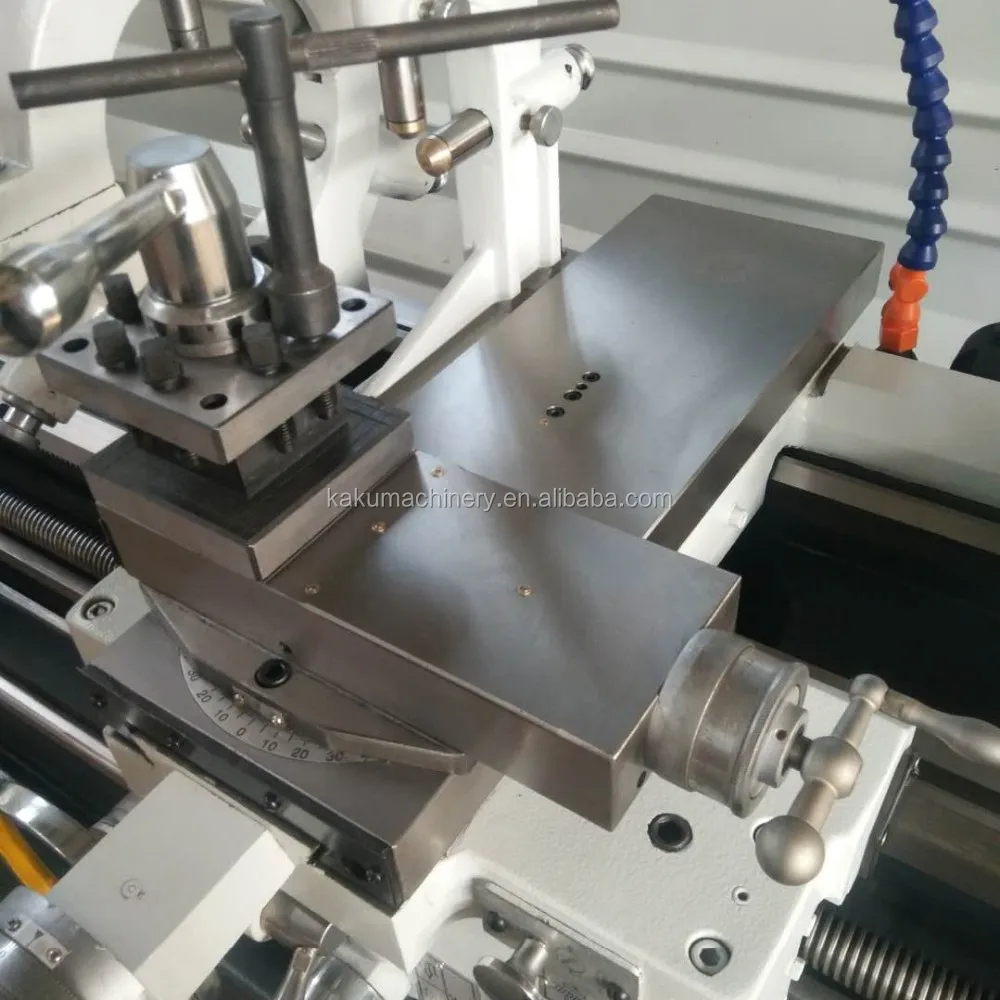

Turret head
With fine adjustment as limit stop for table saddle

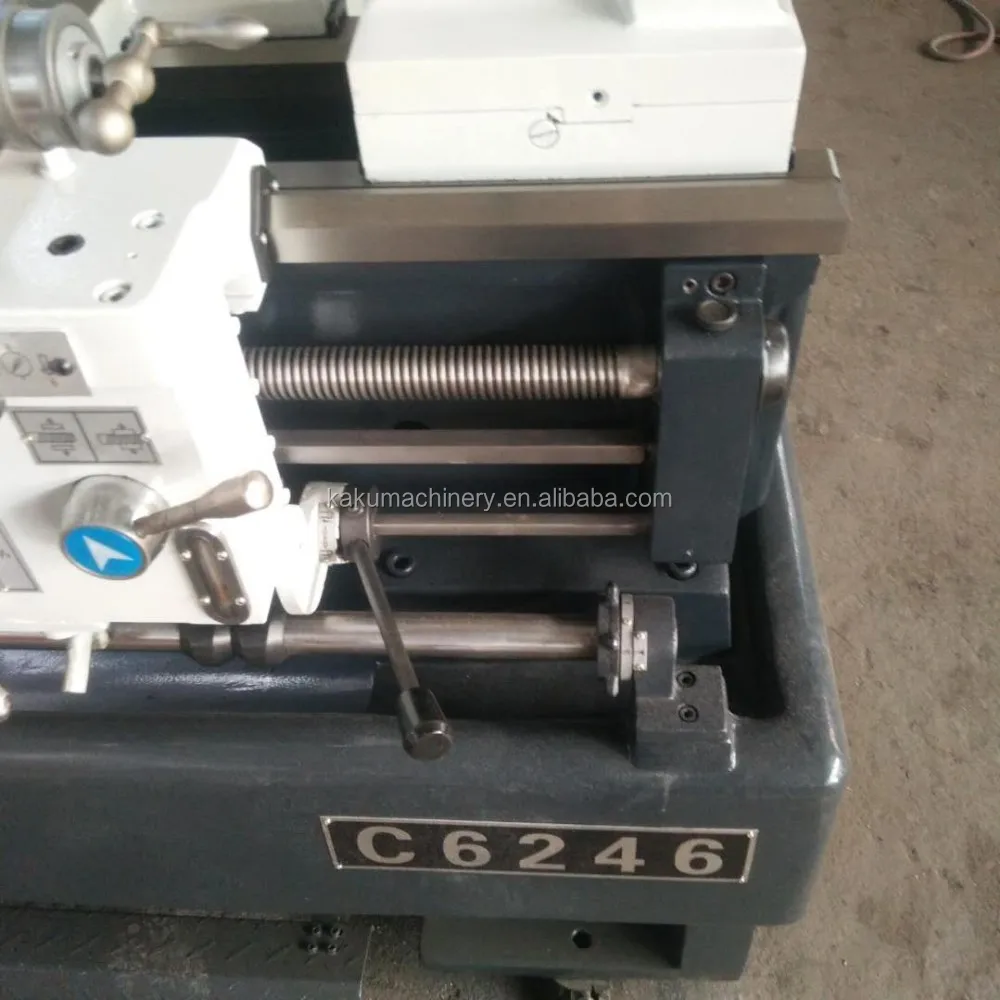

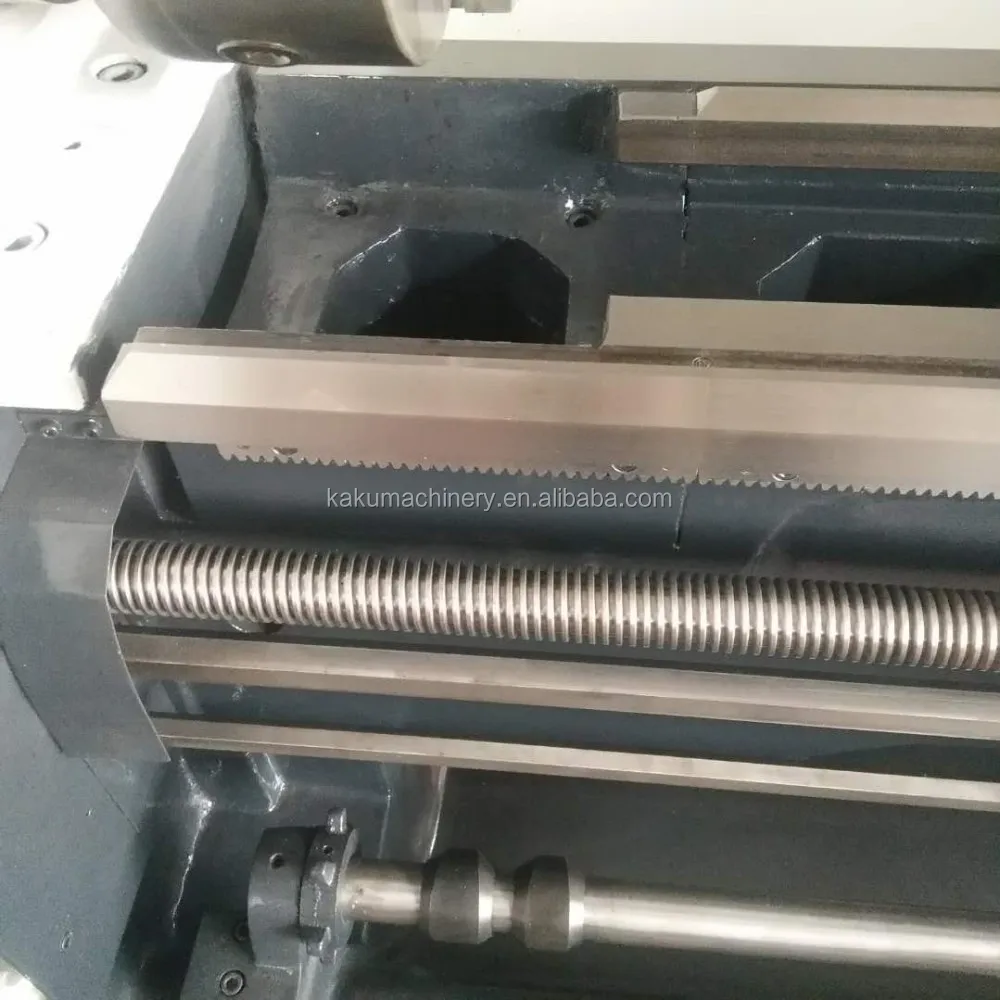

Guide and Screw
With high quality casting structures, make the machine more rigid
The machine adopts Imported screaw
Tailstock
Adjustable by ±5mm for taper turning
Tailstock spindle sleeve and hand wheel with adjustable precision scaling of 0.02mm
Rapid and easy adjustment of the tailstock by means of a clamping lever
Parameter Item C6246 Processing capacity The maximum diameter of the bed 460mm The maximum turning diameter on the tool holder 270mm The maximum turning diameter of the saddle 690mm Saddle effective width 165mm Center distance 1000, 1500, 2000mm Max. Section of tool 25*25mm Bed width 300mm Front box Spindle bore diameter 58mm Spindle end type D1-6 Spindle bore taper No.6 Morse Feed box Vertical feed range 42kinds 0.031-1.7mm/rev Horizontal feed range 42kinds 0.014-0.784mm/rev Metric thread range 41kinds 0.1-14mm Inch thread range 60kinds 2-112 T.P.I Modulus thread range 34kinds 0.1-7MP Radial thread range 50kinds 4-112D.P Tail stock Tail stock sleeve diameter 60mm Tail stock sleeve taper No.4 Morse Motor Main motor power 5.5KW Fast moving motor power 250W Cooling the pump 100W Package (L * W * H):
Center distance 1000mm 2780*1120*1750mm Weight (N W/ G W):
Center distance 1000mm 1745/2230kg
Configurations Standard configurations:
3-jaw chuck and 4-jaw chuck: each one
Face plate 300mm: 1
Longitudinal touch stop: 1
Coolant system: 1
Foot brake: 1
Dead center and certer sleeve: 1
Oil gun: 1
Steady rest and follow rest: each one
Turret 4-station: 1
Manual Tailstock, MT.3 manual quill: each one
Thread-cutting dial: 1
Work lamp: 1
Full-length splash guard: 1
One set tool and tool box: 1
Operation manual/Packing list/Test certification: 1
Optional configurations:
Chuck guard and tool post guard
Digital readouts 2-axis
Magneto electrical brake
Quick change tool past
Taper cutting function
Lead screw cover
Live center (MT4)
Drill chuck set

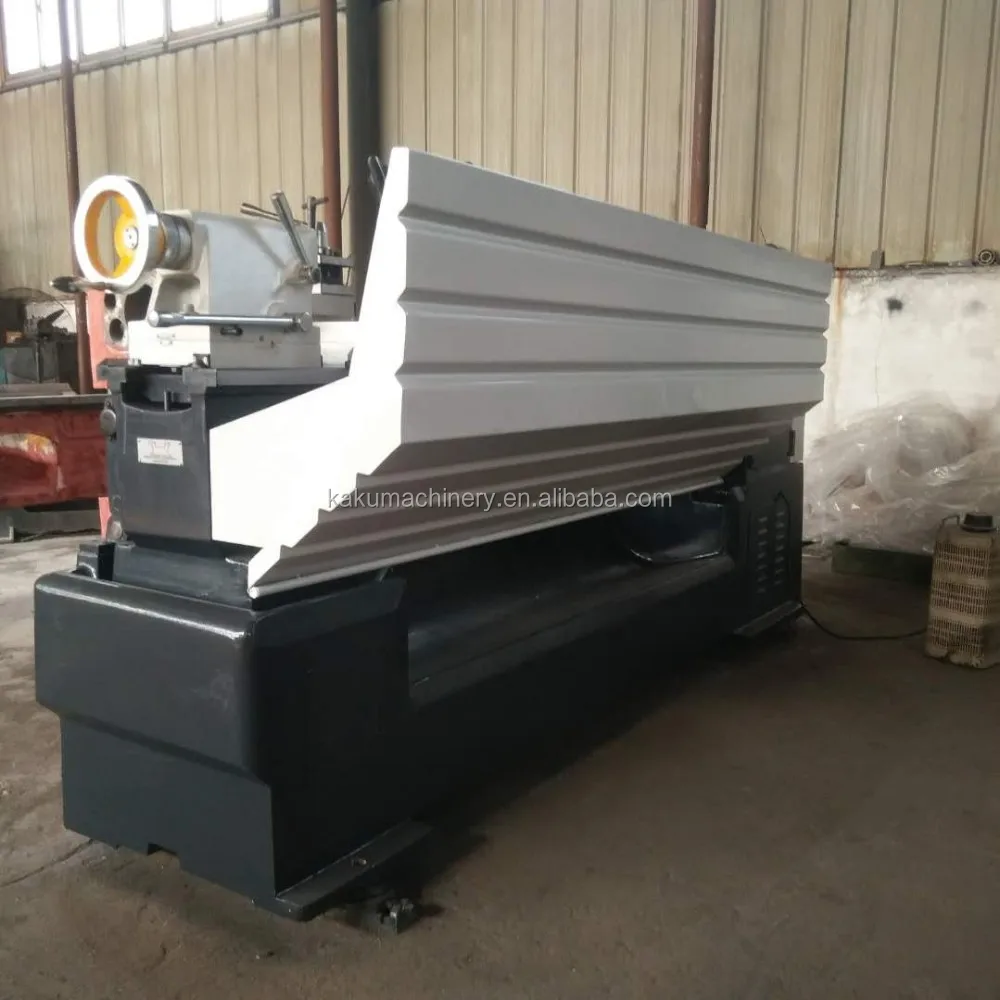

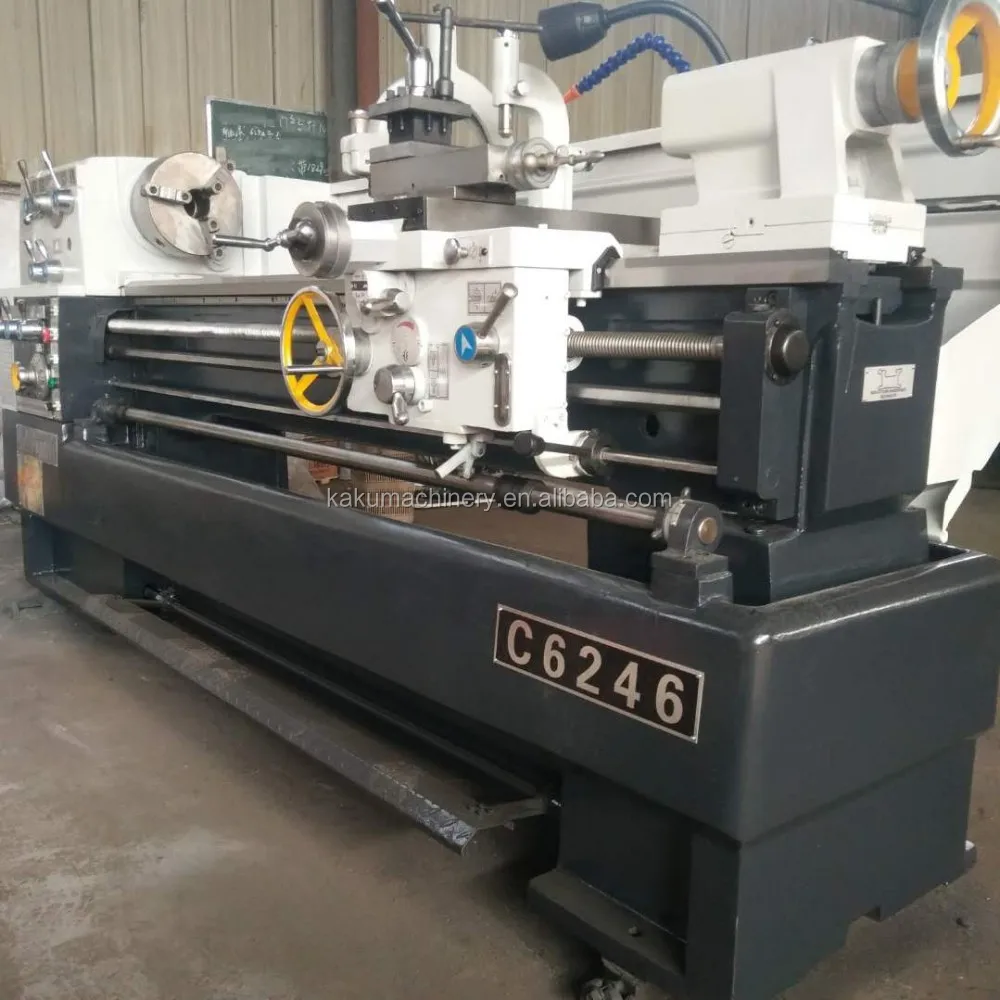

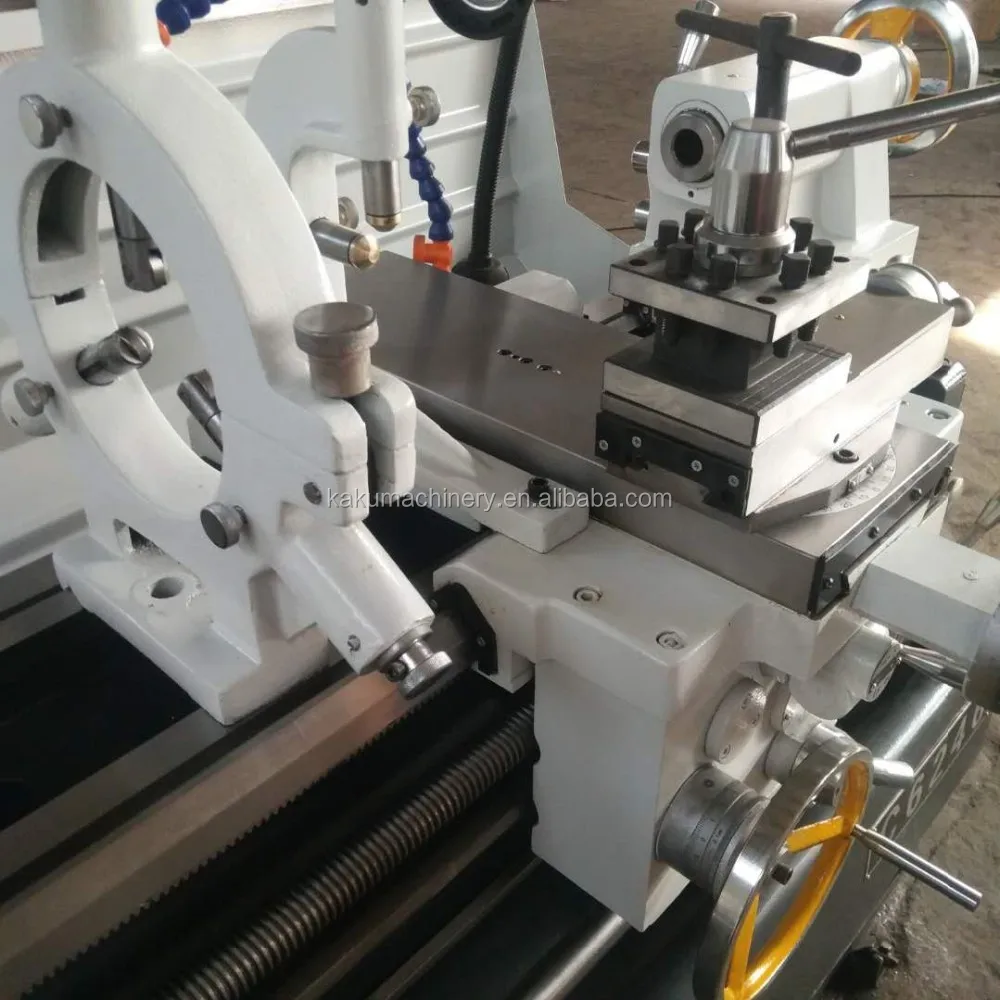

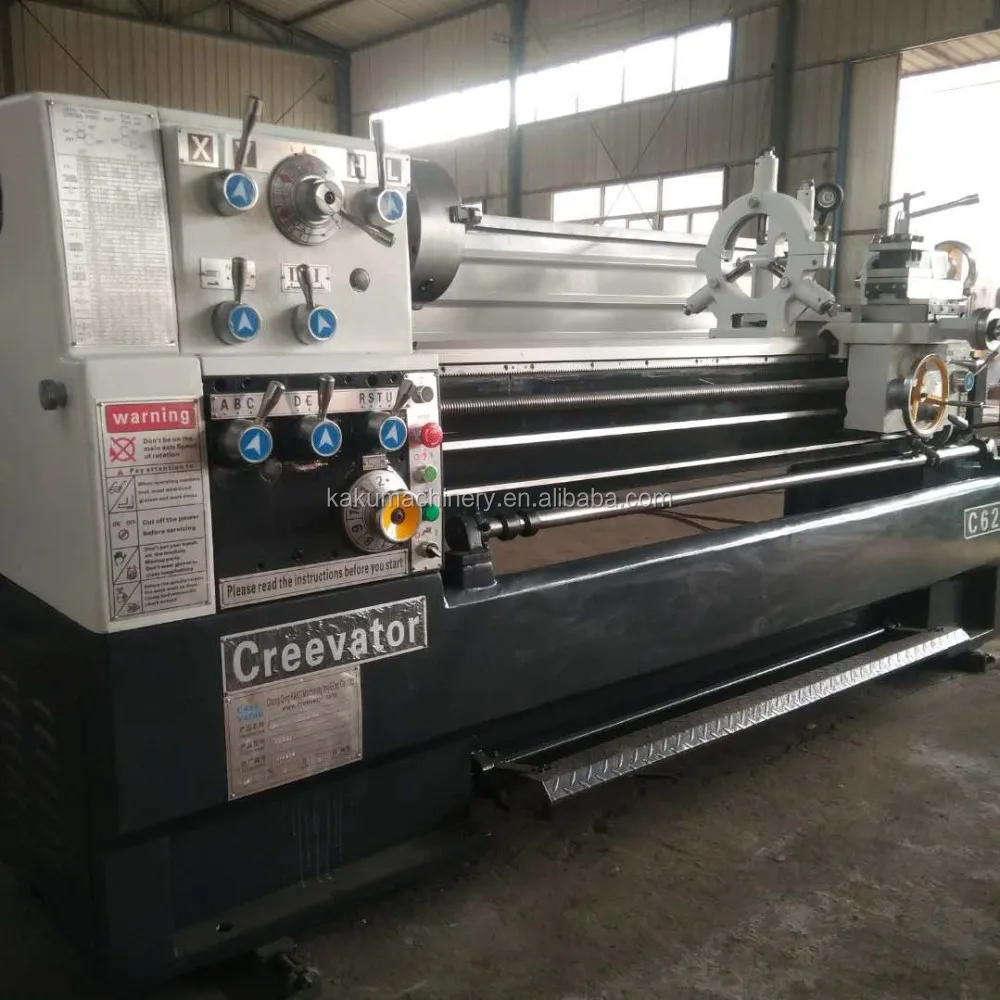

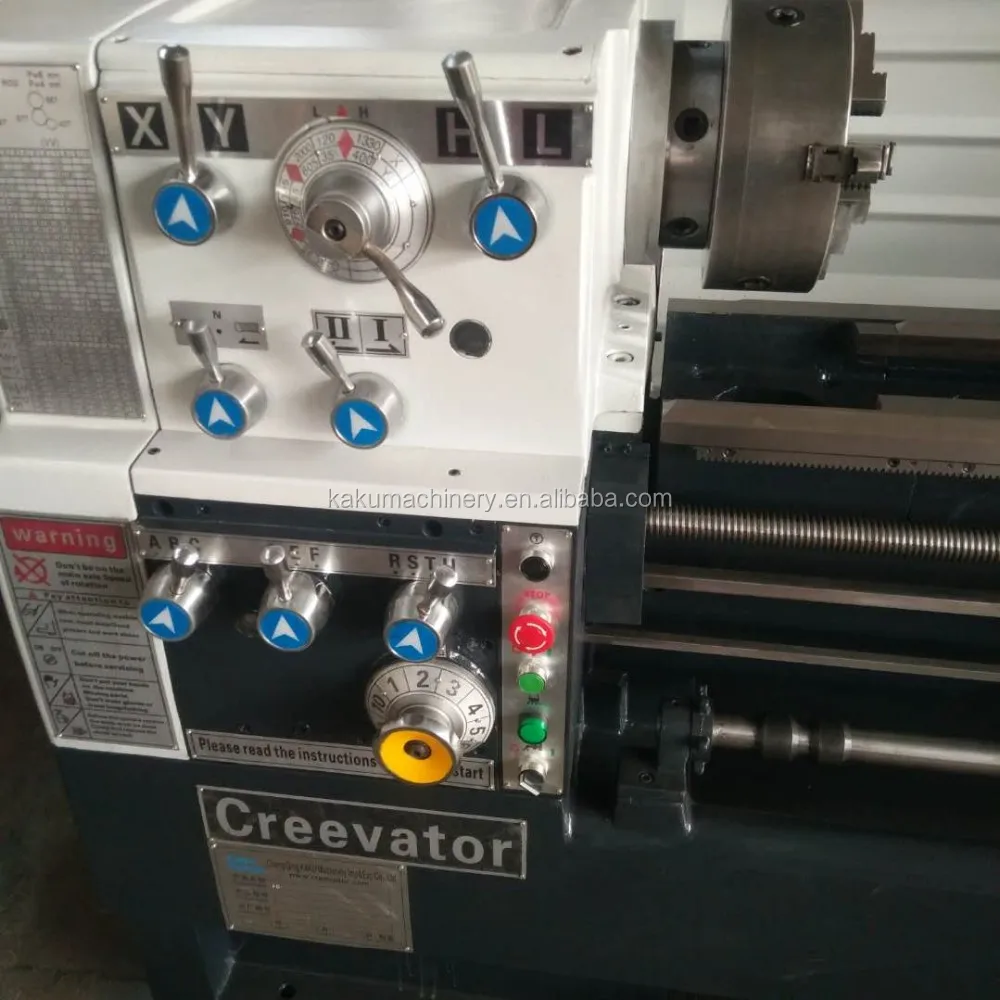

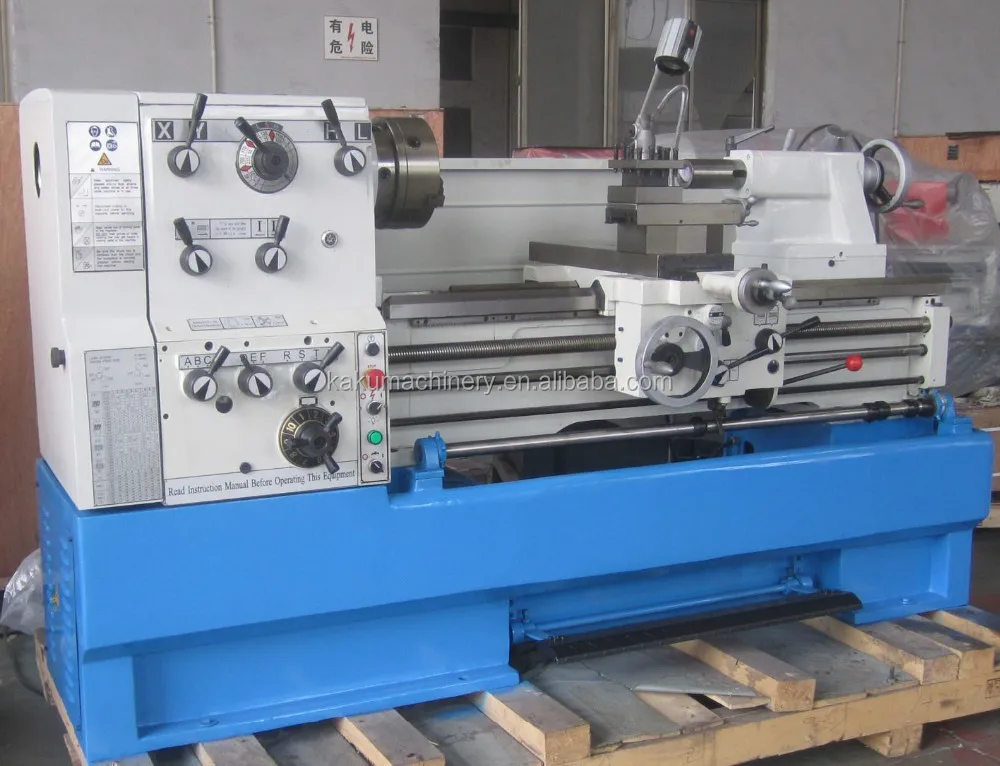

Detailed Images
More productsC6241 Conventional Engine Lathe

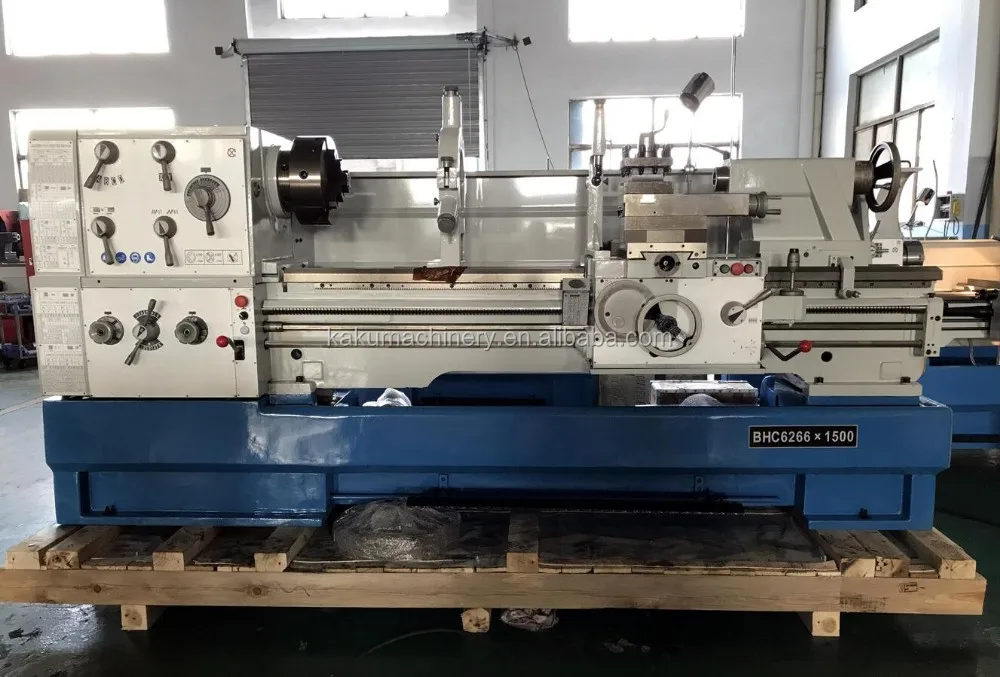

C6266 Conventional Engine Lathe
CD6241 Economical Conventional Engine Lathe

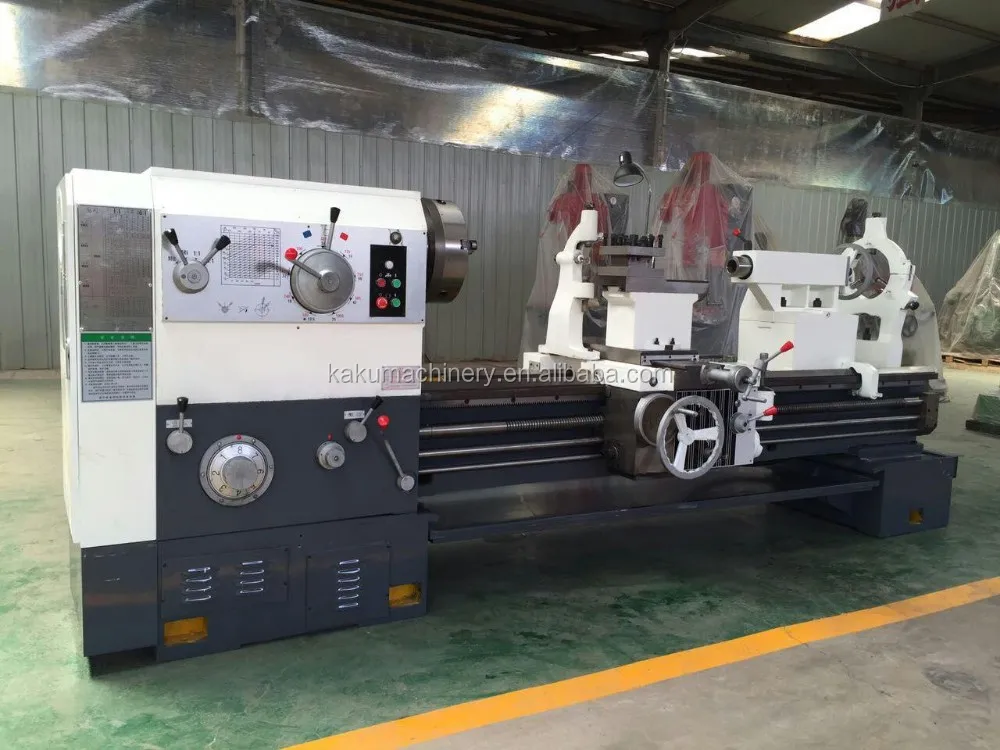

CW6163B Heavy Duty Lathe

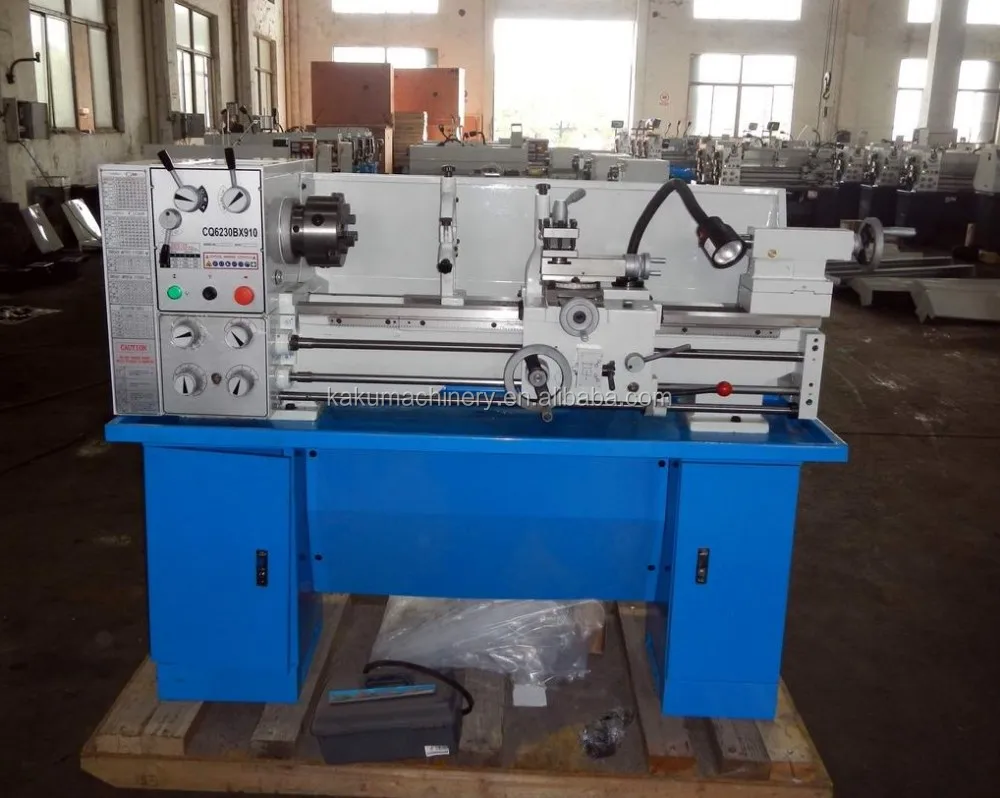

CQ6230B Mini Engine Lathe

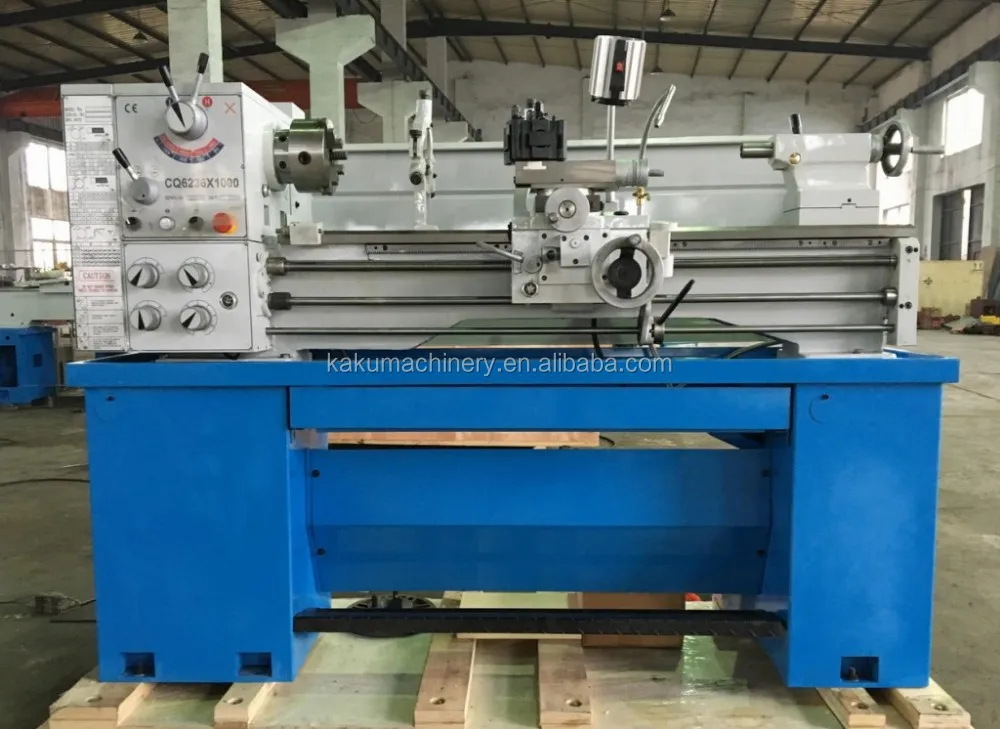

CQ6236G Mini Engine Lathe

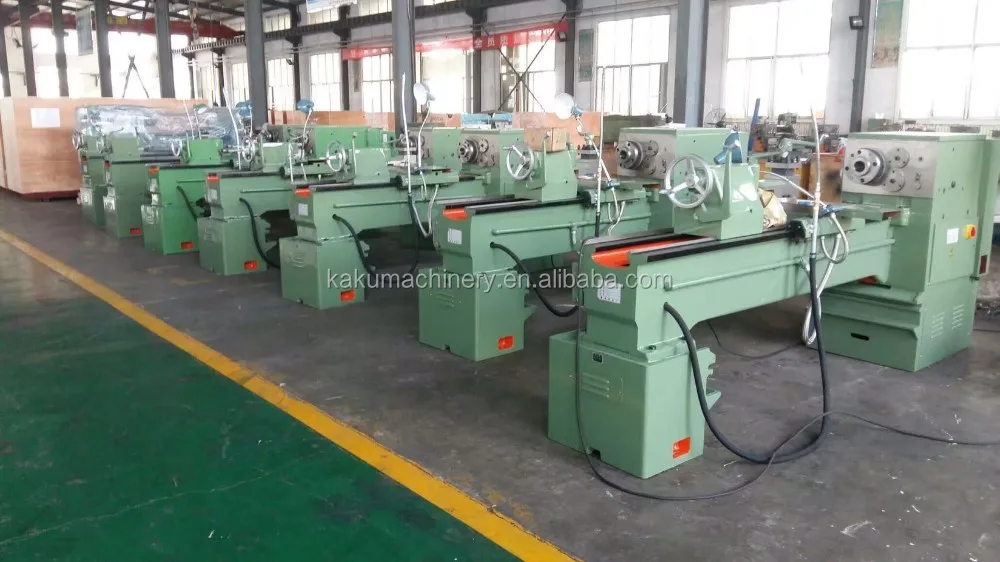

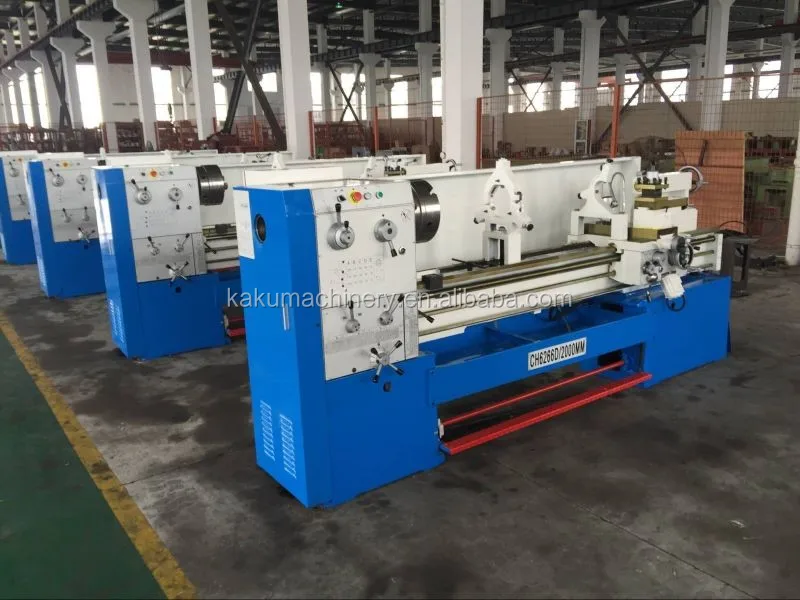

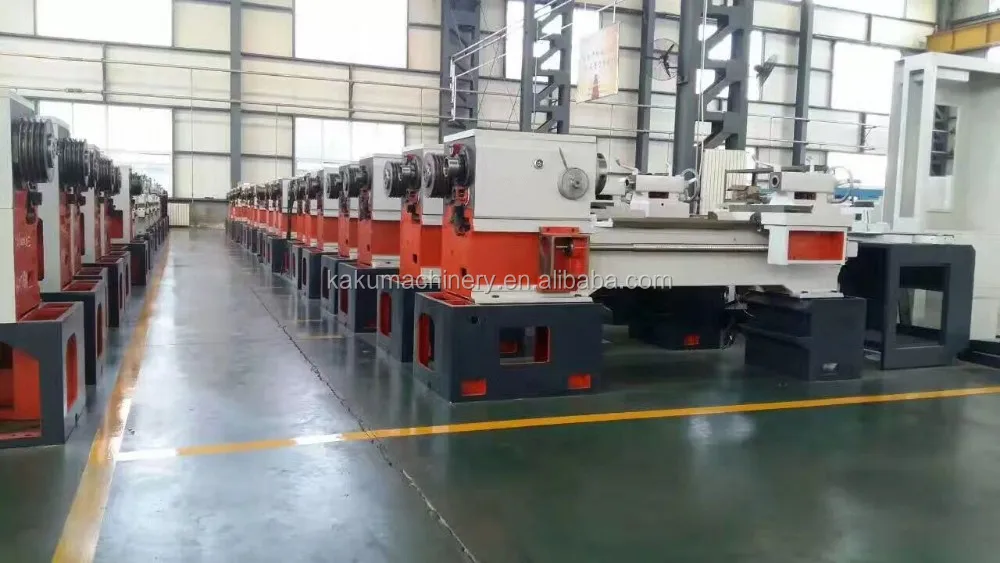

Workshop of lathes

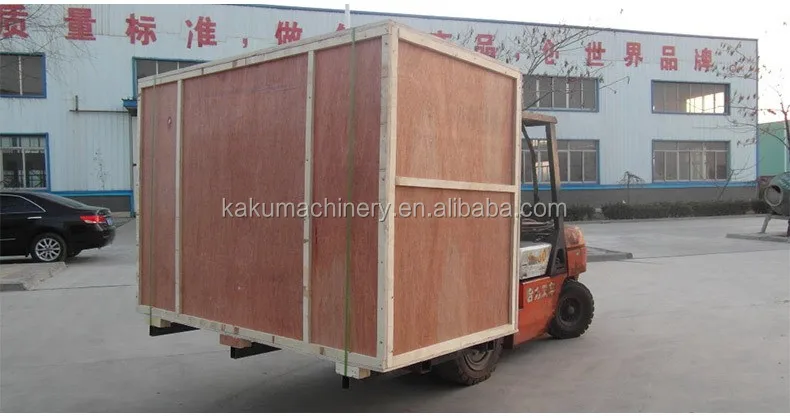

Packing & Delivery
Packaging details Size 2780*1120*1750mm Weight 2.23T Packing detials The normal package is Fumigation-free plywood, if export to european countries, the machine have CE certificate. If the container is too bigger, we can use PE film for packing or pack it according to customers special request.
Service and ContactOur Service
● Machine preparation
All Machines go through a pre-delivery inspection carefully (inspect every spare parts, painting, package, and performance trial, and so on even tiny flaw won’t tolerate) by our experienced qualified service engineers. Installation & commissioning packages can be also offered (additional cost should be paid by client)
● Spare Parts
Spare parts is quite important for machine tools. KAKU machinery supply each machine is supplied with a full instruction manual and parts list.
● Built to last
All of our machines are made from cast iron and are quality checked both at the factory and before dispatch.
● Warranty
Guarantee Period: 1-year warranty period.
A. within one year, we will offer free spare parts to change when the machine can not work in case of the natural use, not man-made destroy. But you need to pay for the shipping cost.
B. After one year, we always have spare parts for you, not free.
● Service & support
If something wrong happened with your machine, our many experienced engineers are always here to help you.
Our company spirit: Integrity, Professional, Efficient and High Quality!
We insist on doing everything seriously, and continuously improve and enhance our team's capabilities and services.
In order to meet your needs, our team ready to go all out! Once you selected, we want to be your partner forever!
Our contact information:
Contact person: Vivian Guo
Number/ wechat/ skype/ whatsapp: +86 18375818621
Email: sale3 @ kakumachinery.com
