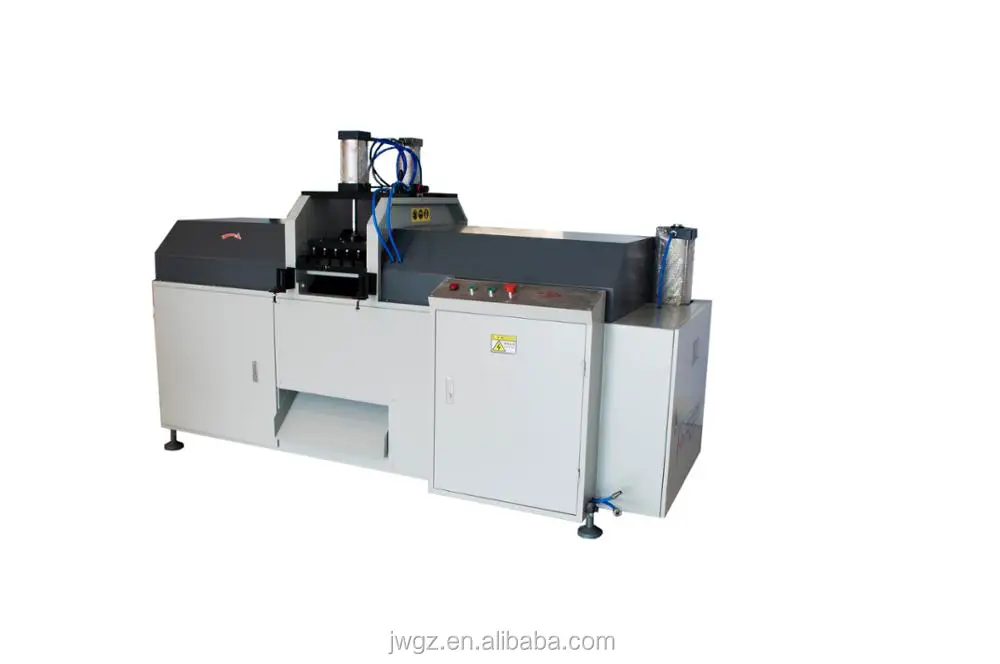

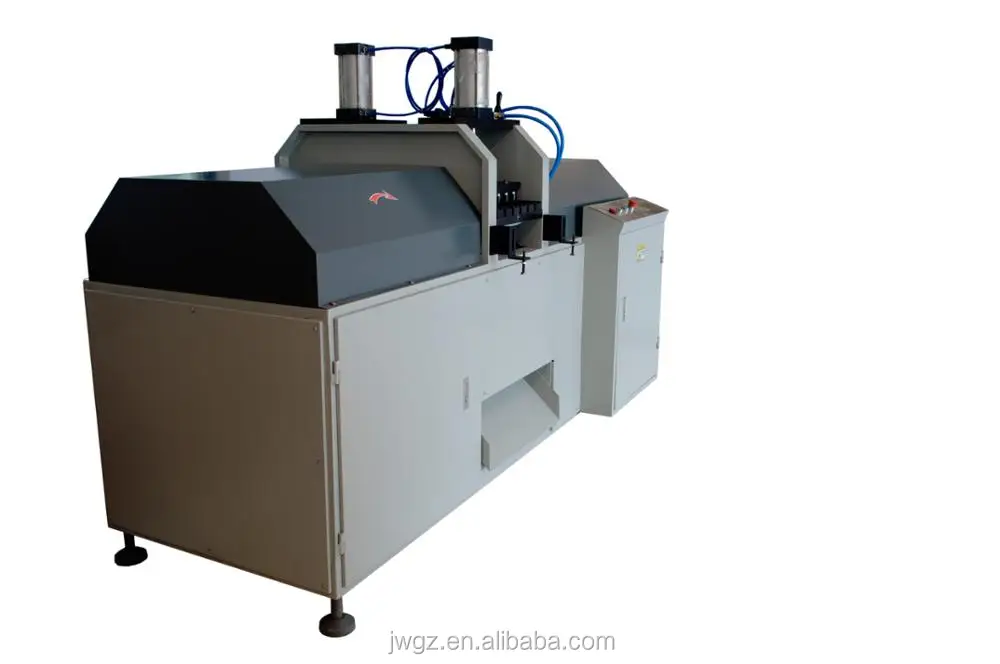

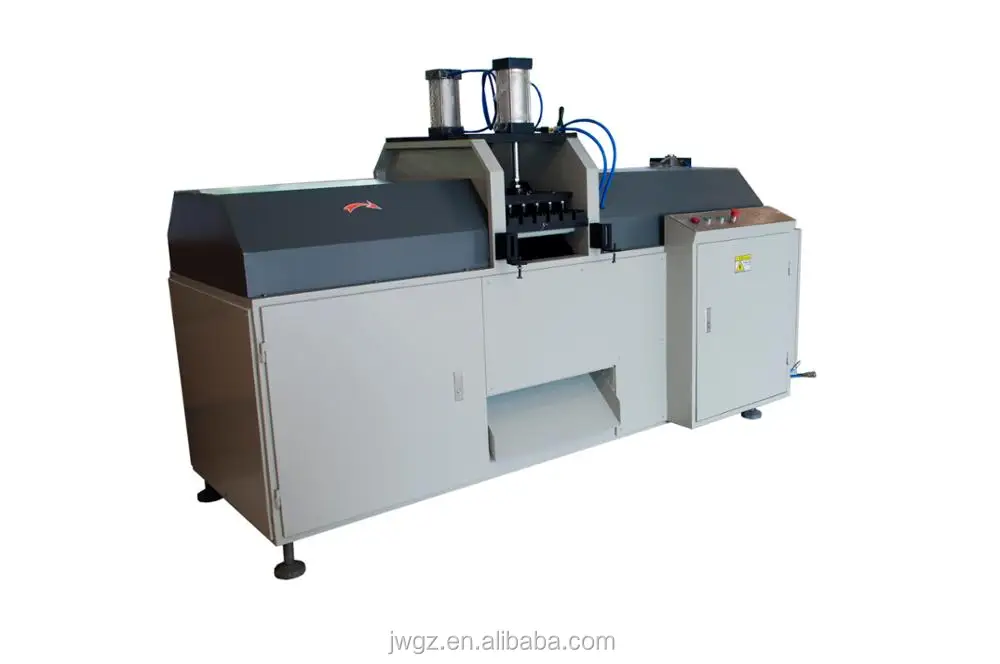

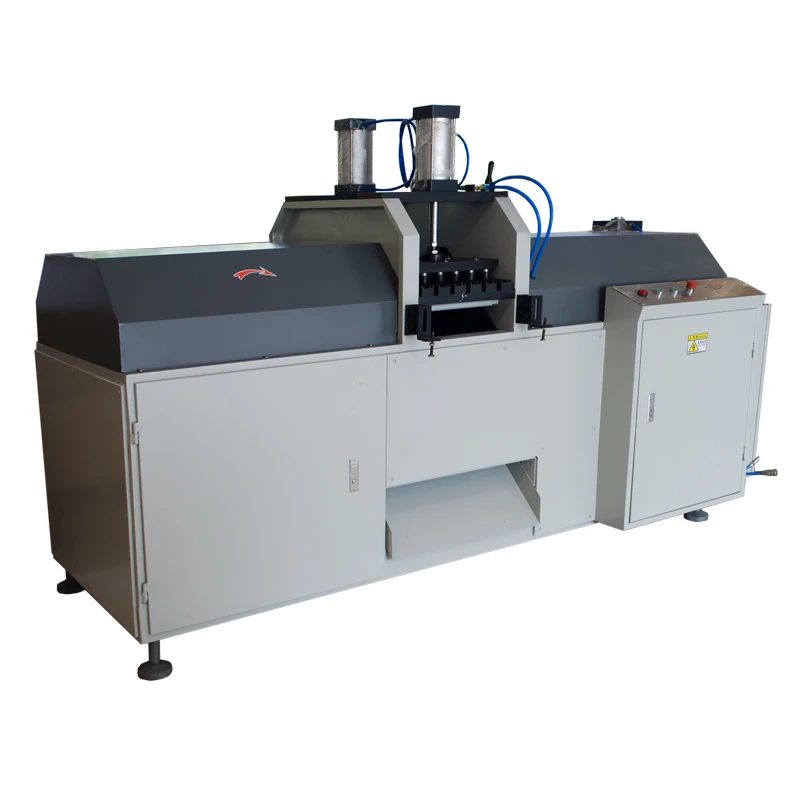

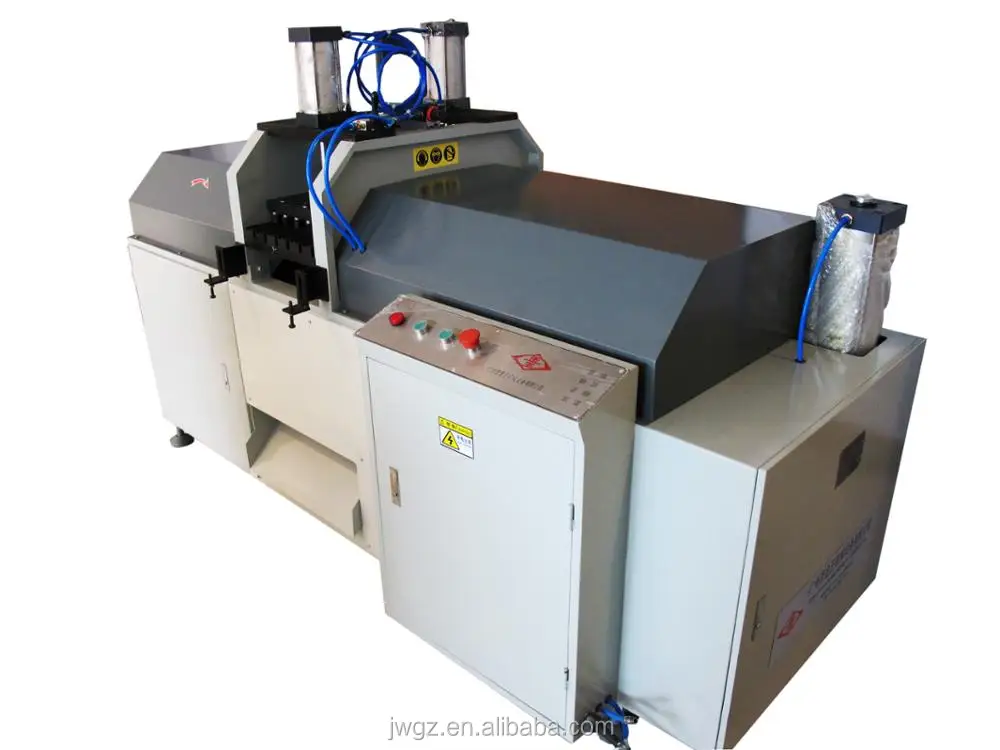

This model of Horizontal V Type Cutting Machine is the fourth generation product of our company. Still remember the previous third generation product revised with the original design of automatic saw blade descend during the drawcut (Patent # 200920194599.1)? This technique innovatively resolves the long-term issue of blade dragging during drawcut, surpassing its contemporary products and imitation. Based on this very premise, the current fourth revise has increased the feeding distance in order to stabilize the cutting efficacy, trustworthy for widespread promotion and application. Through adjusting the tong holder dimension, it is suitable for cutting in 45° for materials of different size and type. The current product is popular to our customers since it has been launched in the market.

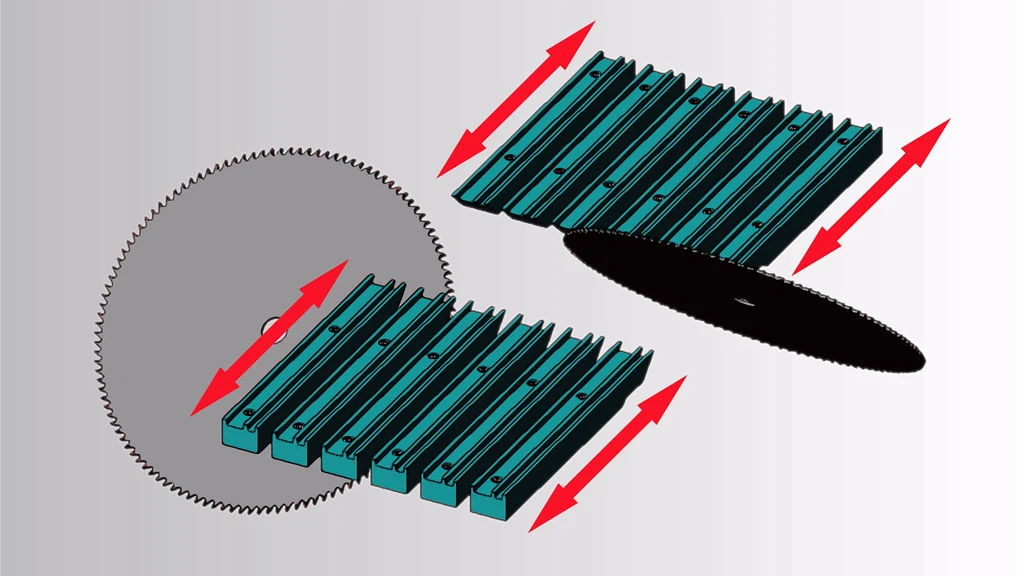

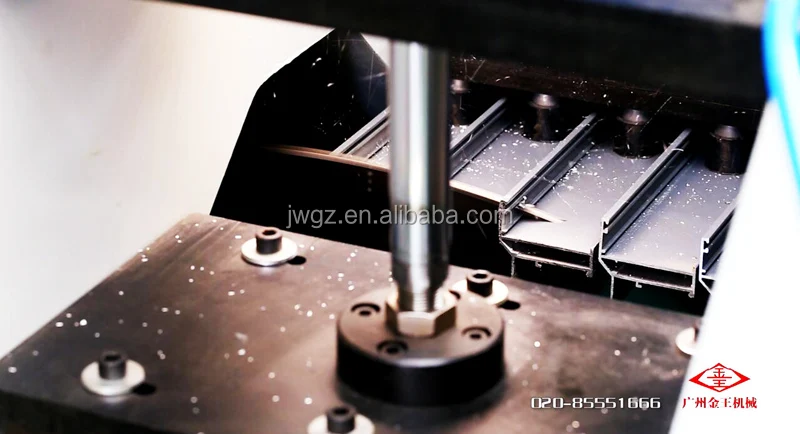

The size and shape of the clamping device is customizable to fit in larger quantity of narrow profiles for up to 10 pieces at a time.Cutting occurs alternately at both end of the materials, handy and efficient. It is the perfect machine for massive production of narrow Aluminum frames under 85mm in height such as photo/picture frames.
Product Structure and Characteristics:

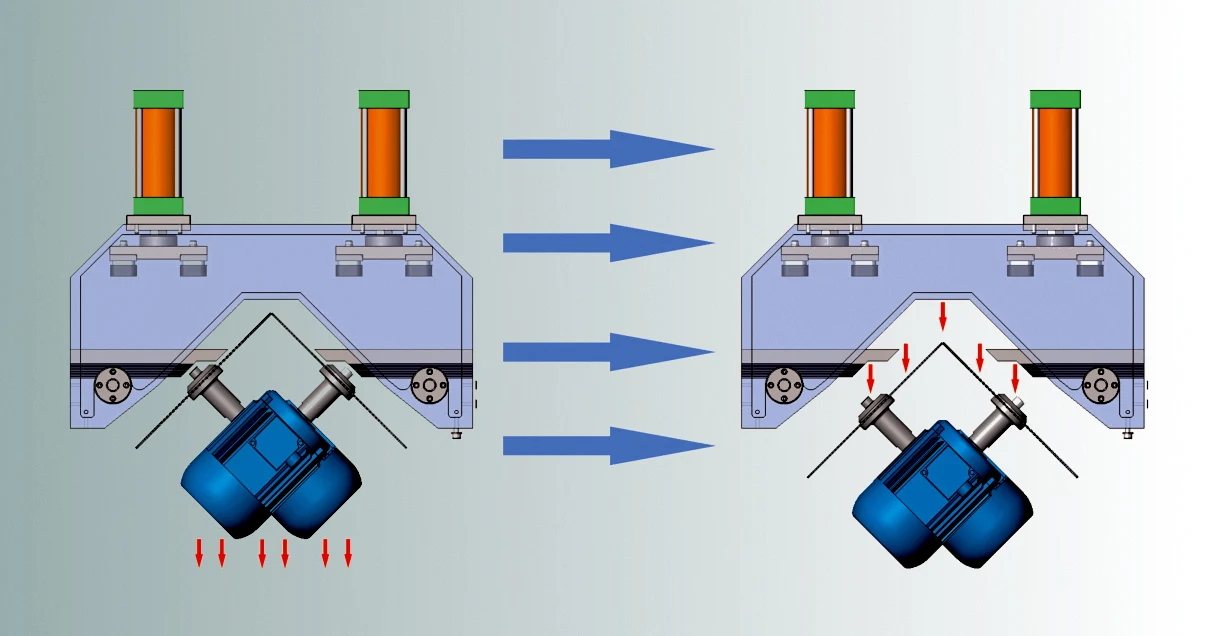

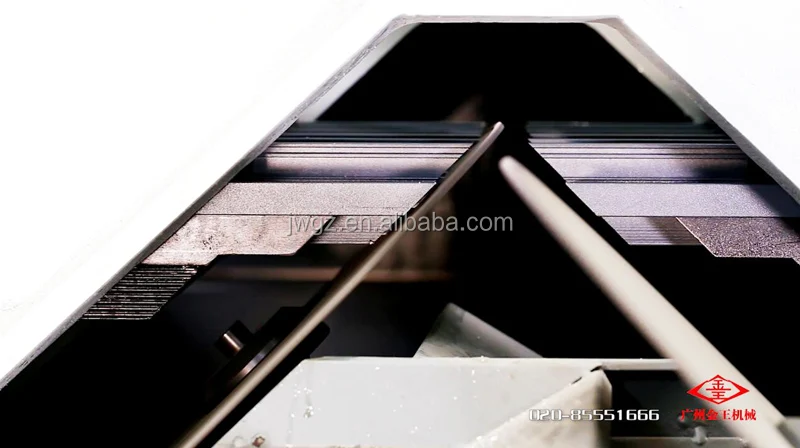

Original design of automatic saw blade descend during the drawcut, eliminating the issue of blade dragging, idealizing the cutting efficacy
Succeeding the exquisite design of the previous product – tongs can shift horizontally to the blade after the elevated blades have been tuned, providing better support to materials, and which is reason why the cutting efficacy is exceptionally ideal
Mechanical motor is equipped with straight axes in both vertical and horizontal guide rail, making movement steadily flexible

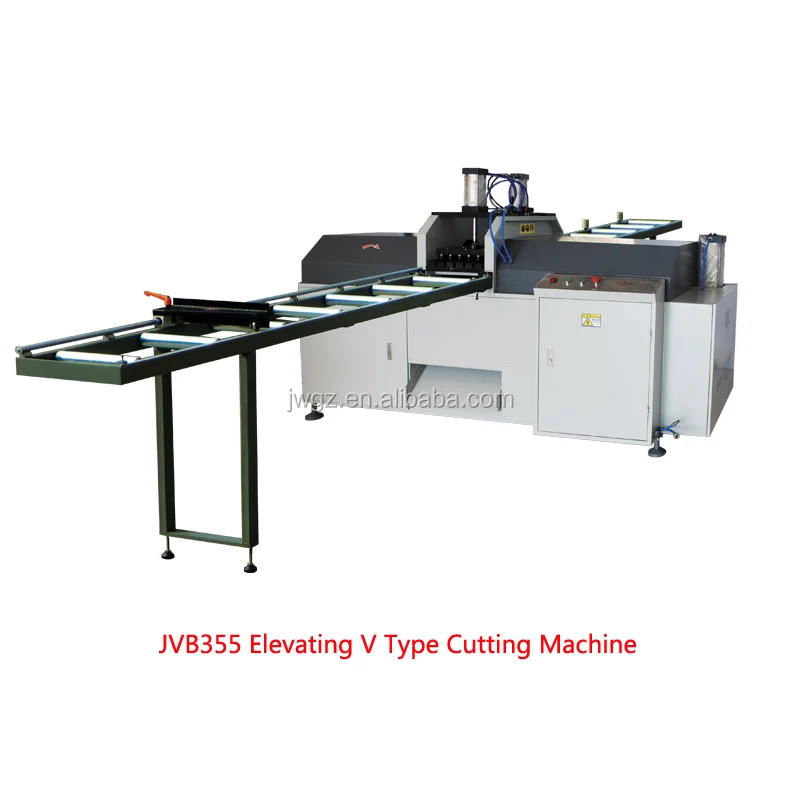

The equipped feeding rack and positioning device are the essential for straight axis guiding and fine processing
Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better milling efficacy and longer blade longevity
MAIN TECHNICAL PARAMETER
WORKING VOLTAGE
380V.
MOTOR POWER
2x1.5Kw.
MOTOR ROTARY SPEED
2800r/min.
SAW SPECIFICATION
Ø355×Ø25.4mmx3.6mm.
MAX CUTTING HEIGHT
85mm.
WORK DISTANCE
800mm.
MATERIAL CLAMPING CAPACITY
10 (OF THE NARROW PROFILE)
OPERATION PRESSURE
0.6-0.8MPA.
TRANSMISSION METHOD
MOTOR DIRECTLY TURNING THE SAW BLADE
COOL DOWN METHOD
ATOMIZED DIESEL SPRAY
WEIGHT
750KG.
OVERALL DIMENSION
2280 x 950 x 1420mm
