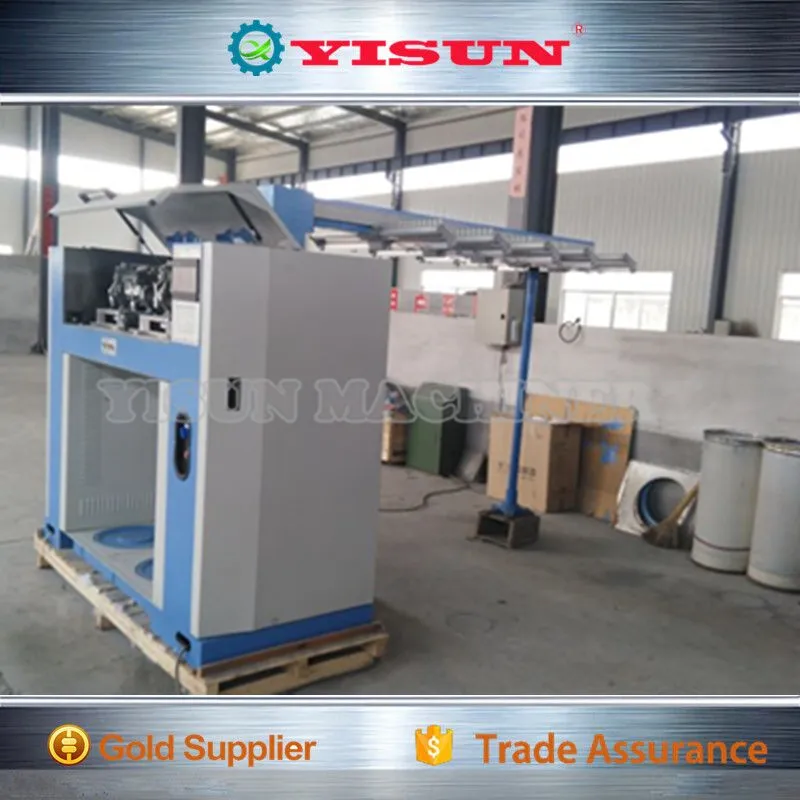

The machine is suitable for long fiber of 58-138mm such as wool, hemp, chemical fiber and so on. It can imporve the evenness of the strip and the straightness and parallelism of the fiber.
The machine is composed of frame, front and rear drive, guide bar, motor, suction chute feeder, roller, coiler, drafting, pressure, up and down cleaning, automatic change tube etc 13 kindsparts and electrical parts.

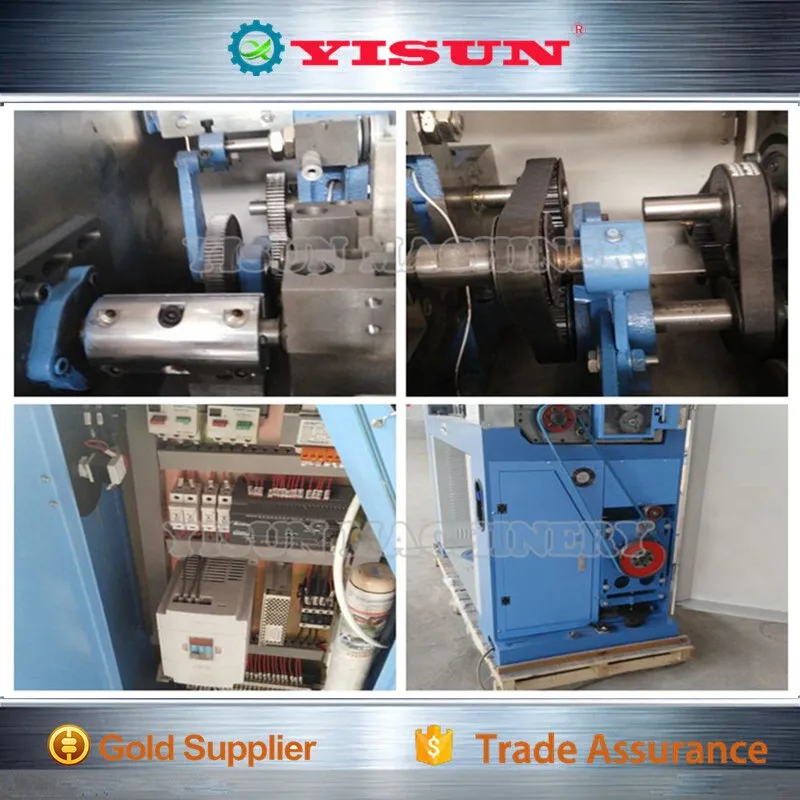

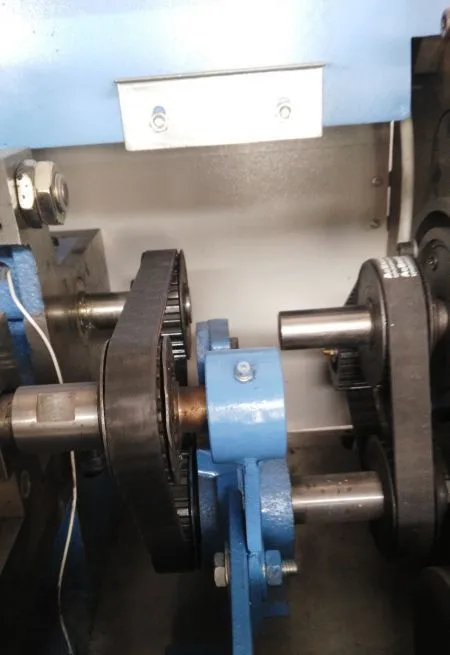

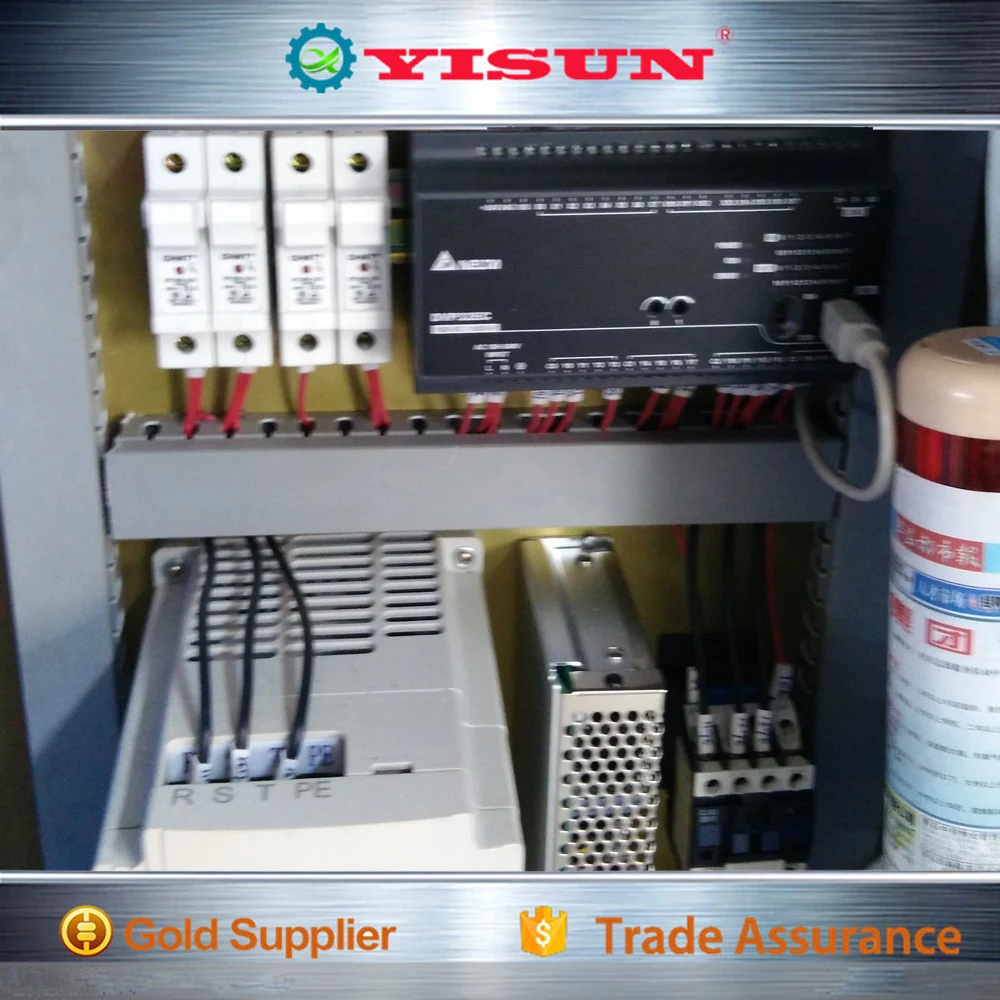

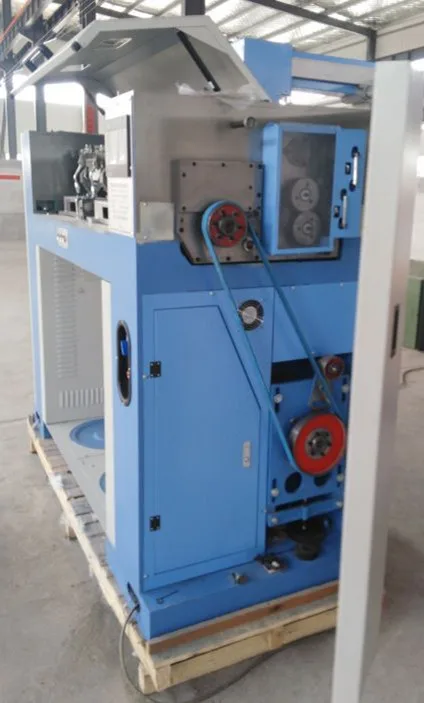

Detailed Images
Specification
No of deliveries
2
No of feeding ends
3-8
Output speed
280-480m/min
Power
4kw
Coiler form
Big coiler
Feeding form
High rack positive feeding
Size of feeding bucket(Diameter*Height)
400/500/600/800*900/1100
Packaging & Shipping
Outside packaging: Standard Export Packaging
Inner Packaging: Plastic Foam Packaging
Customized by customers
Our Services
1. Engineer available for overseas service according to request.
2. Any machine from our factory has one year guarantee.
3. 24-hour technical support via wechat, whatsapp, email and QQ.
