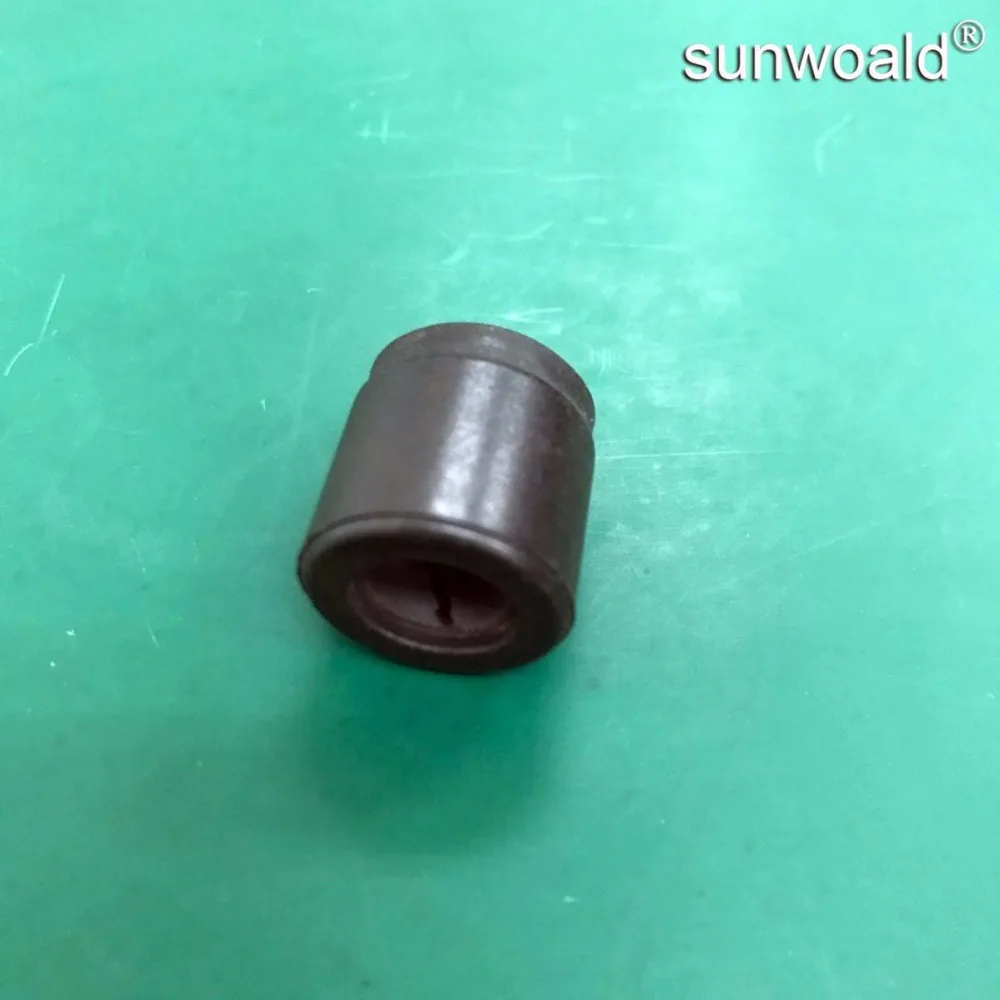

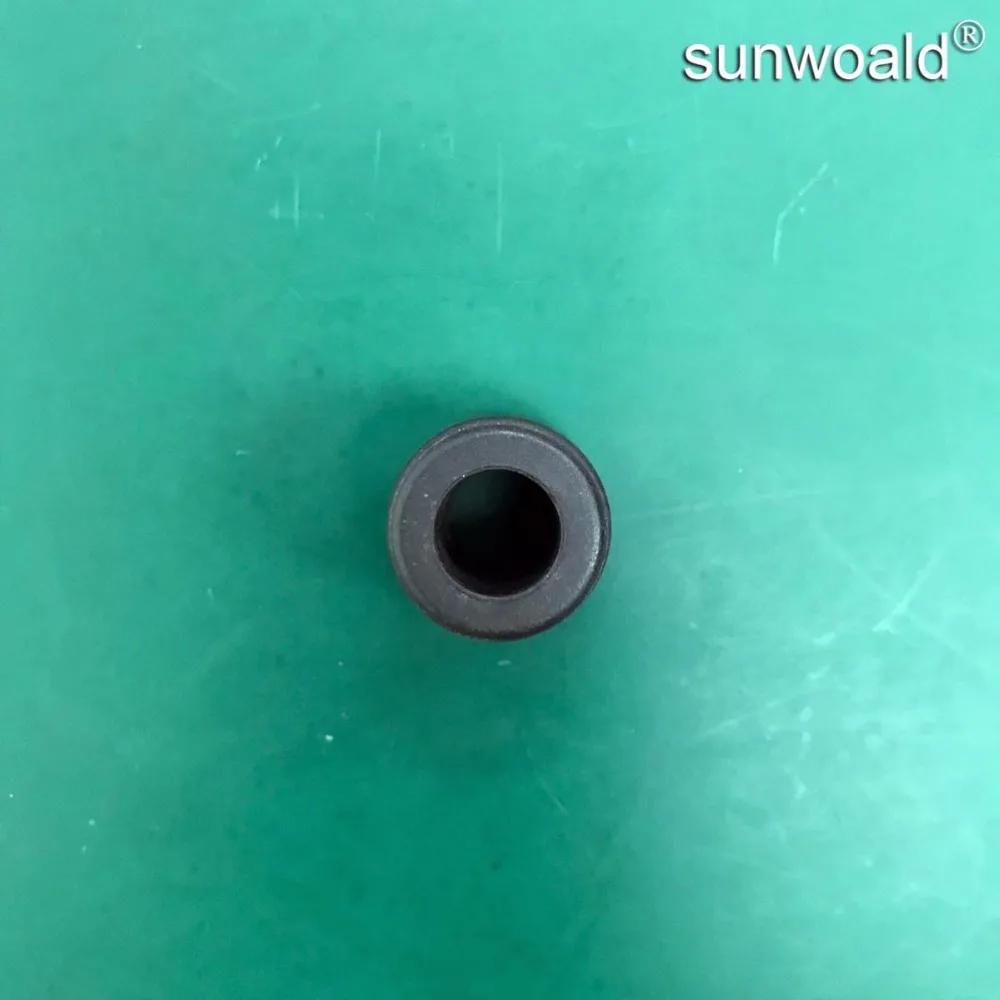

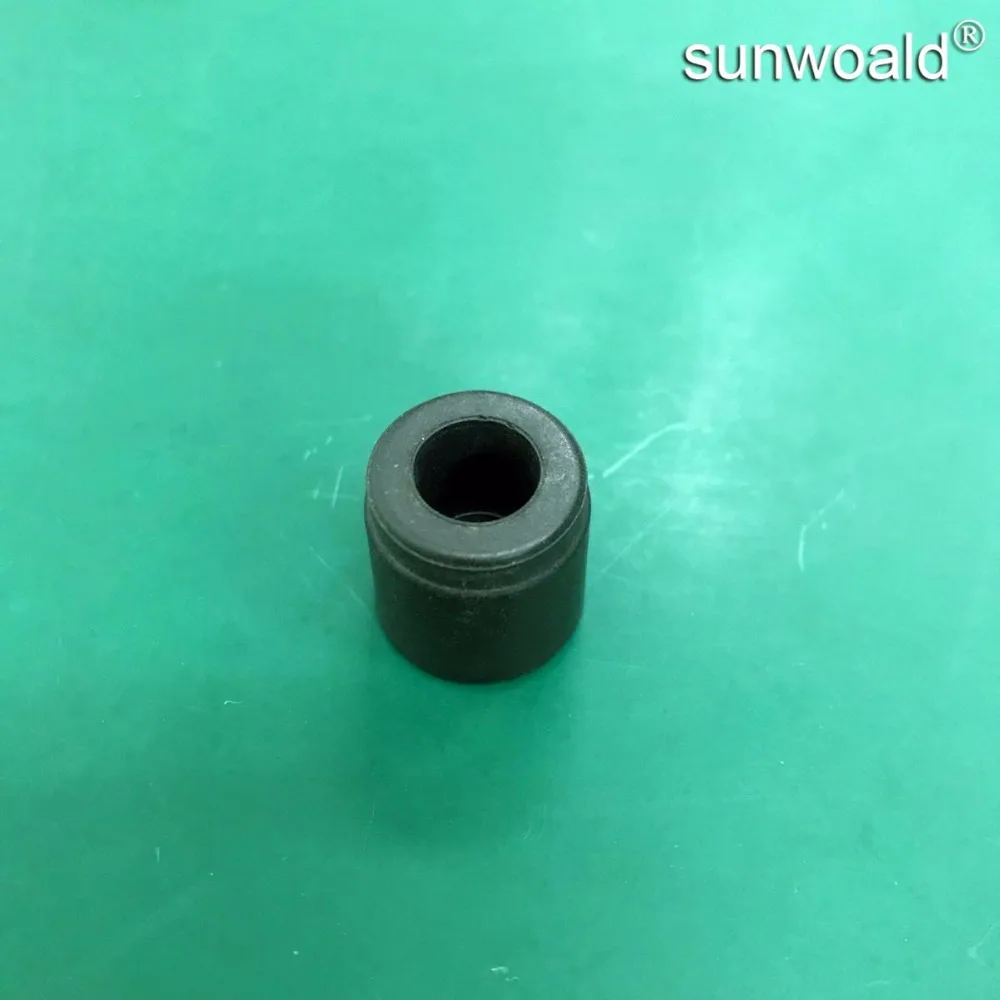

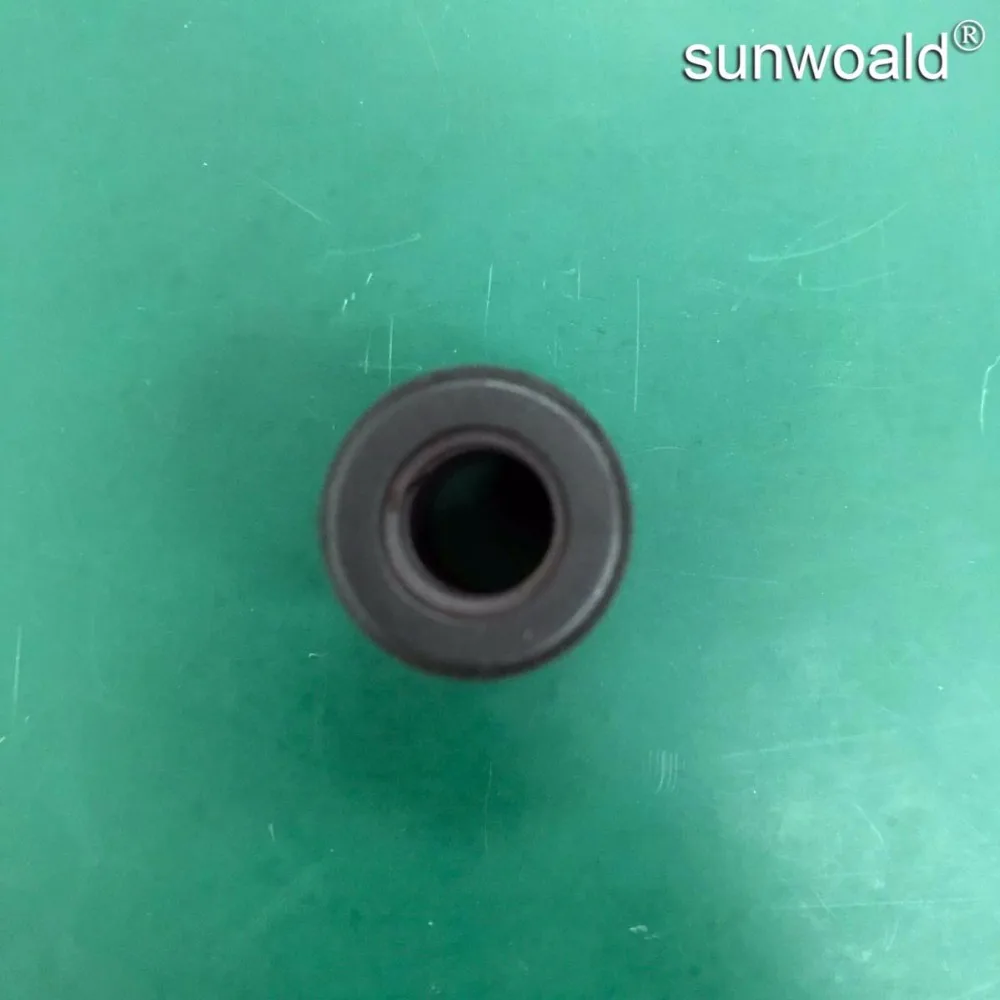

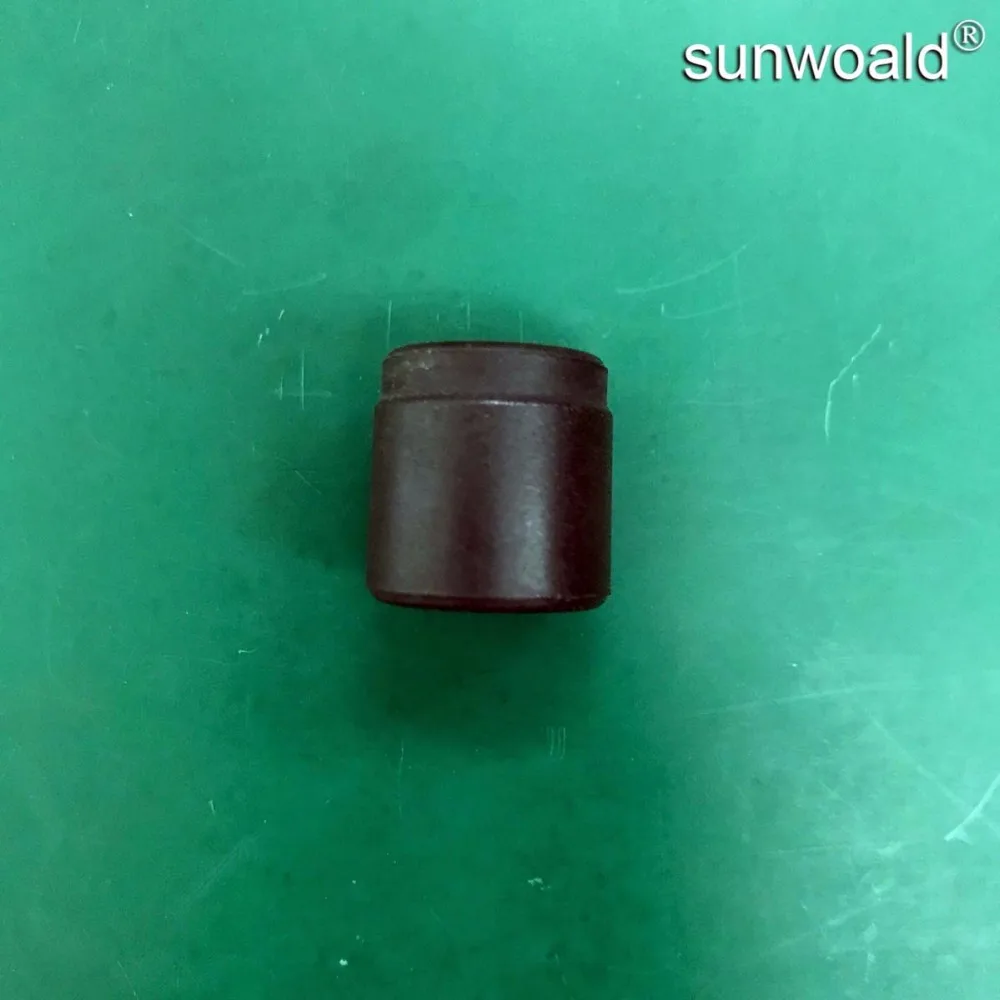

Sunwoald OD18mm Magnetic NBR Hollow Float Ball for Water Level Sensor

Product Overview

Description

 NBR High Temp Magnetic Float

Product Description



Working theory:



The magnetic float  is a device used to sense the level of liquid in a tank. There is a magnet in the float ball and a magnetic reed switch in the rod. When the liquid level rises, it drives the float ball up close to the reed switch inside the rod. The magnet then force the two magnetic contacts inside the switch to connect, which allows current to pass. When the reed switch connects the circuit, it’s called “Closed.”

Product Application

The magnetic float  can be used to monitor liquid level in watering machine, water heater, solar energy, air conditioner, vending machine,BSD-P, water dispenser, Humidifier, dehumidifier, fluid control, a pump, alarm device, moisturizing machine , bathroom utensil , oil tank , water tower and chemical industrial ,etc. And widely applied in motor vehicles, industrial equipment, agricultural equipment and household electrical appliances in the future.





Product Specification



Characteristics
Size	OD18mm ID10.5mm  H18.5mm
Material	NBR
Color	Black
Operating Temperature	-40~+110°C
Total Weight:	2.5±0.2g
Remark	No flaw and shrink at outside surface

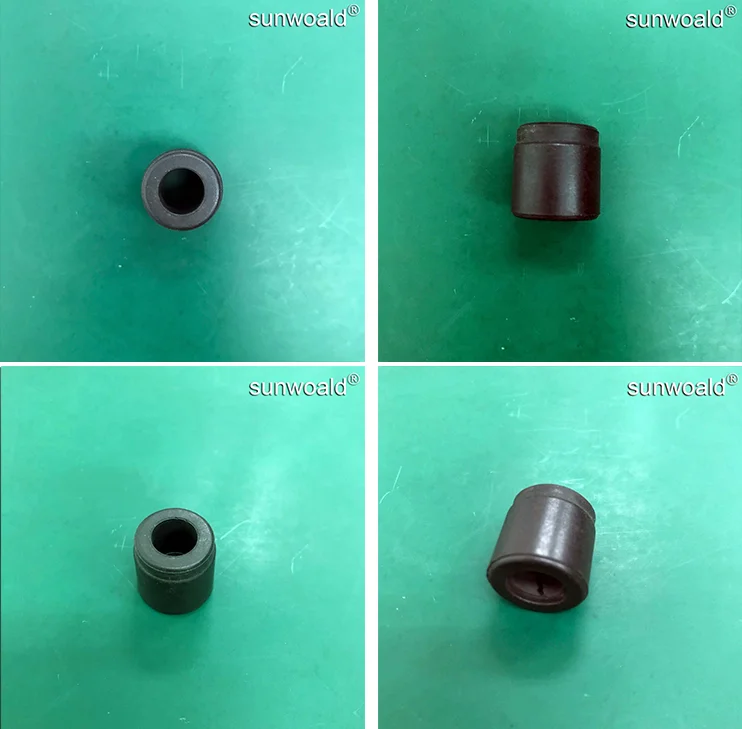

Product Image







Related Products



D-00202NBR	D-00999	D-00199





Certifications

Package & Delivery





FAQ

1.Question:  What are your main products?

Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.

2.Question: Where is your company?

Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.

3.Question:  What are the available materials for magnetic float  ?

Answer: Plastic PP, NBR,Stainless steel,etc

4.Question: Are these materials safe for drinking water?

Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.

5.Question: There is no magnetic float  in the list suitable for me, can you OEM a new model according to our desire?

 Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
