Offer Zx 100/30 Desander Cone Slurry Separator For Civil Engineering
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60714939757):
Product Overview
Description
Product Description
ZS Slurry Treatment Plant and Slurry Treatment System has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc.
Features:
1.High mud handling capacity, sand can be removed efficiently.
2.The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
3.Slag charge screened by advanced straight-line oscillating system is effectively dewatered.
4.The adjustable vibrating force, angle and mesh size of the oscillating screen enable the equipment possess a high screening efficiency in all kind of strata.
5.The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
6.Energy saving efficiency is significant since the power consumption of the oscillating motor is low.
Model&Parameter
| ZSMS Mud system(380v/50hz) | |||
| Model | ZSMS200D | ZSMS500D | ZSMS1000D |
| Treating Capacity | 200GPM(45M3/h) | 500GPM(120M3/h) | 1000GPM(240M3/h) |
| Solids feed capacity | 10~30t/h | 25~50t/h | 25~80t/h |
| cut point | 20~60um | 20~60um | 20~60um |
| Mud cleaner | SSZS3/2 | SSZS3/2 | SSZS3/2 |
| Vibration Strength | ≤6.0g | ≤6.0g | ≤6.0g |
| UPPER Screen Area: | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) | 1.71 m2 (2 pcs 1040mm×820mm×(20-40)Meshes ) |
| Bottom Screen Area: | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) | 2.34 m2 (3 pcs 1150mm×680mm×(20-60) Meshes ) |
| Desander Size: | 8`10Inch | 10Inch | 10Inch |
| Cone Number: | 1 | 1 | 2 |
| Centrifugal pump | ZSSB4×3(15kw) | ZSSB6×5(37kw) | ZSSB8×6(55kw) |
| Total Power: | 18KW | 41KW | 58KW |
| InLand Shipping Dimension: | L3200×W2350×H1500 | L3200×W2350×H1500 | L3200×W2350×H1500 |
| Total Weight: | 2750kg | 2950kg | 3150kg |

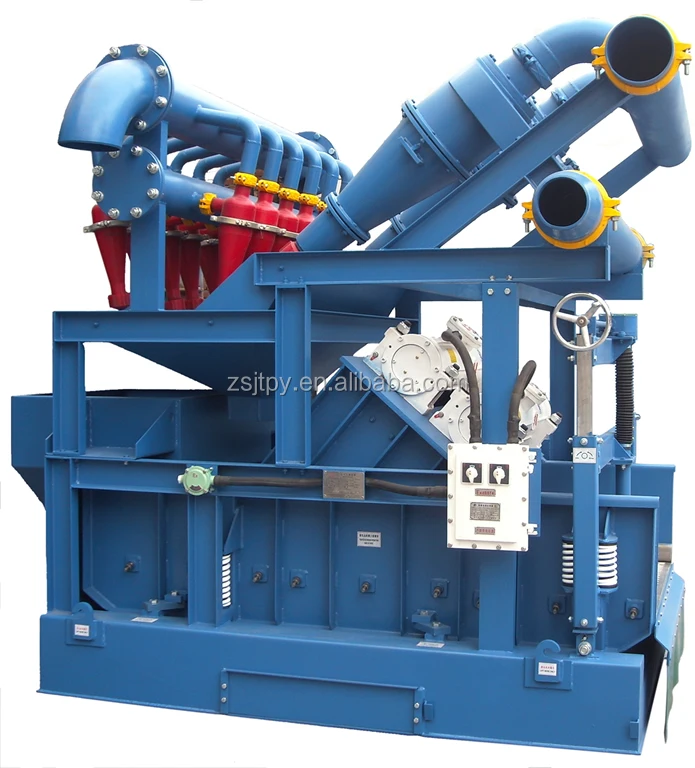

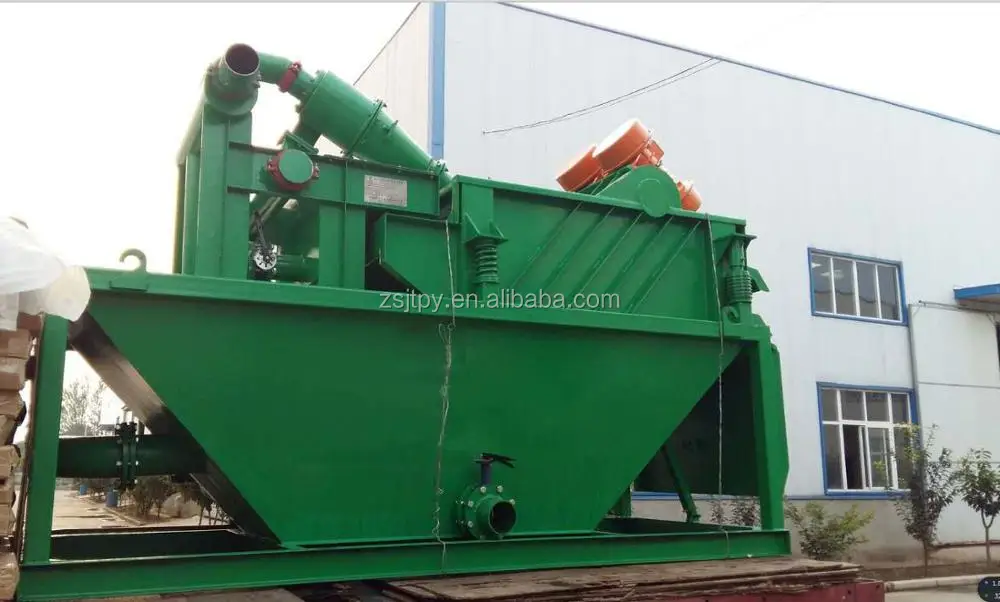

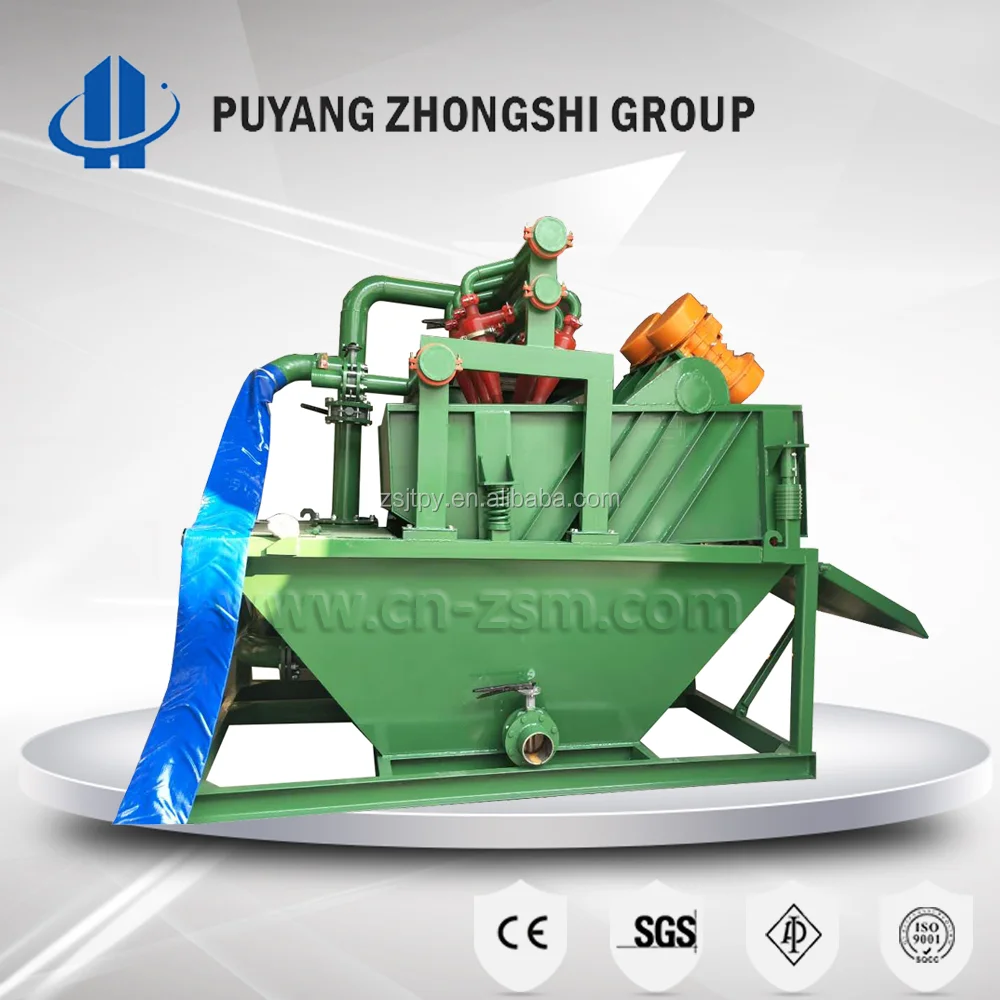

Detailed Images
Packaging & Shipping

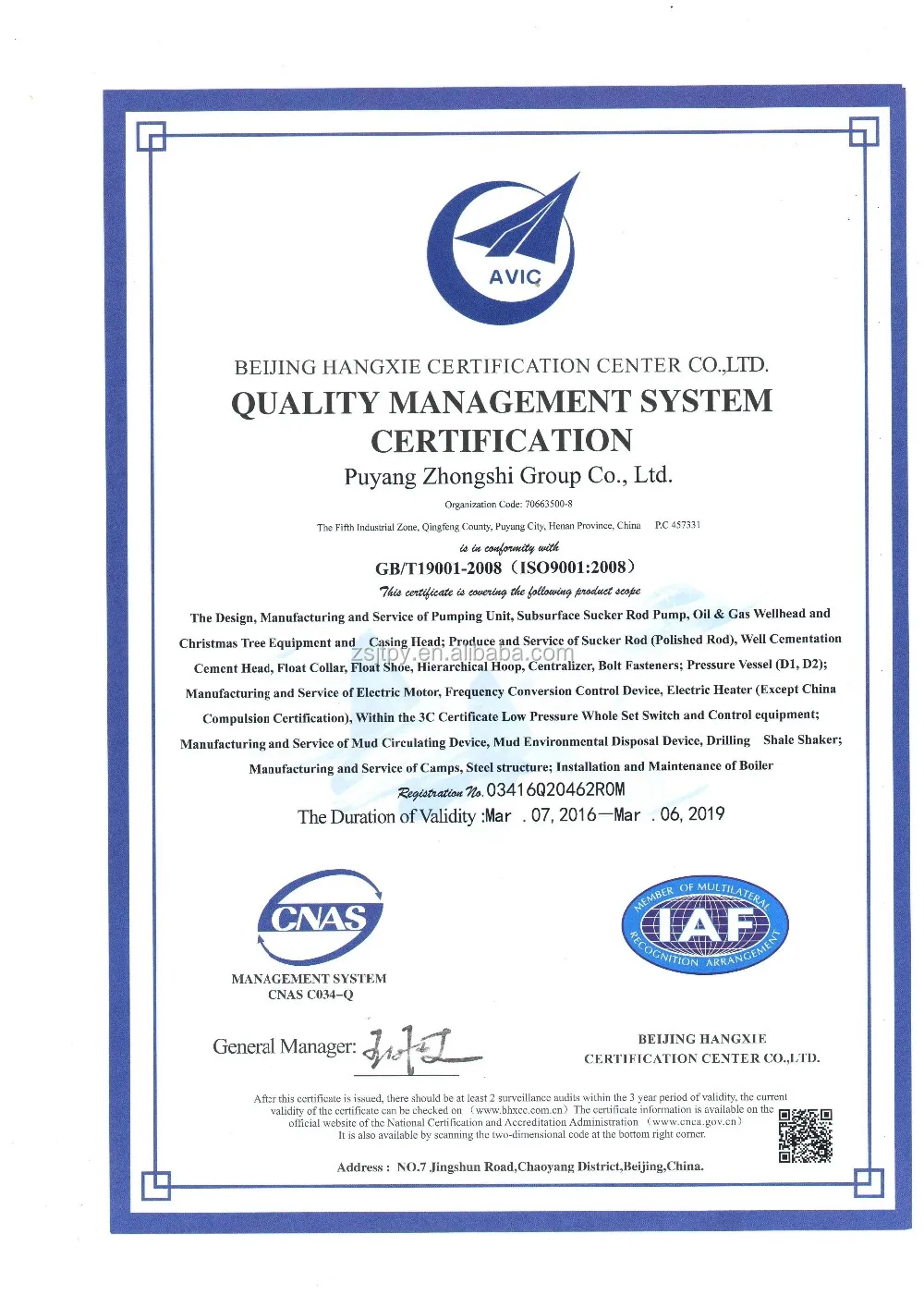

Certifications
c
Company Information
Puyang Zhongshi Group Co. Ltd, is a professional manufacturer of variousDesanding Plant since 1997, restructured enterprise of SINOPEC.
Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
Contact information :
Ms.Catherine
Email:Catherine(AT)cn-zsm.com
Skype/phone :0086-15138695499
