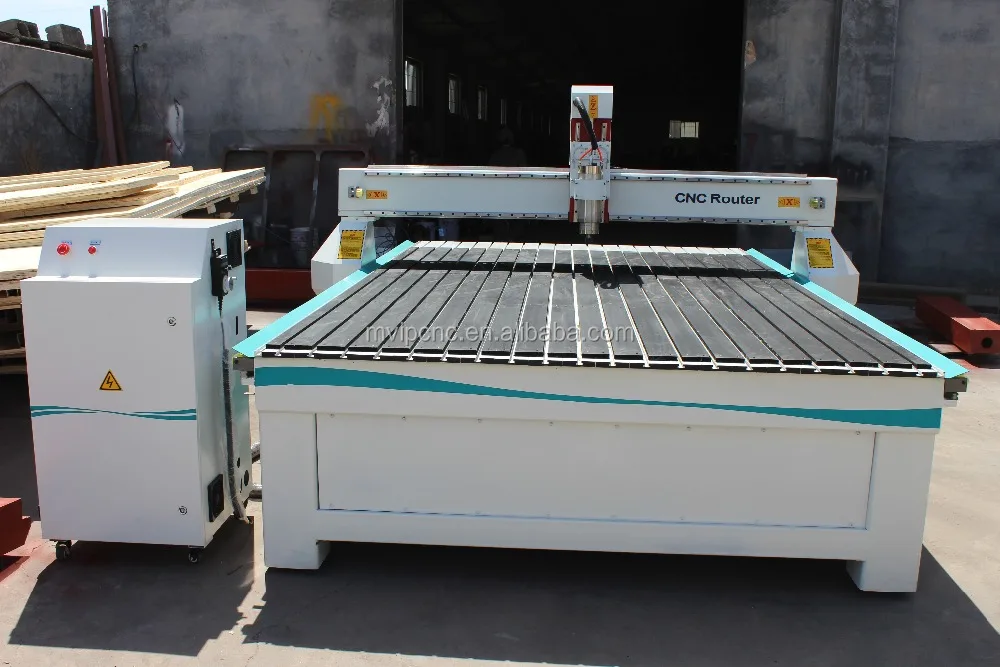

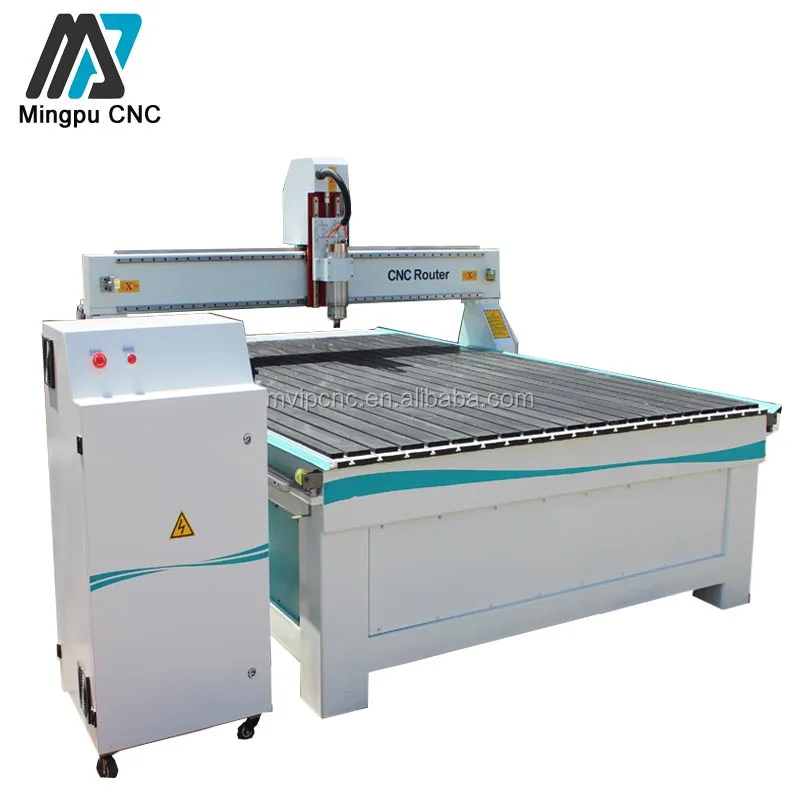

Trade Assurance! Ucancam / ArtCam/TYPE3 Software Wood Stone Metal Cutting Engraving 2030 CNC 3 Axis CNC Router
Product Application
Our 3 axis cnc router can be used to carve patterns on wood, aluminum board, brass board, plastic, density board, PVC, acrylic etc.

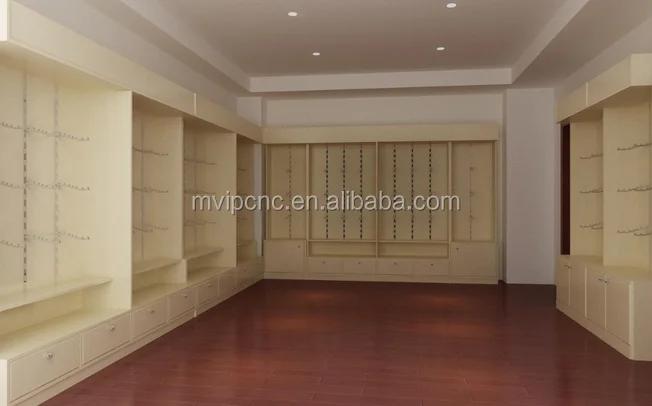

1.Furniture Industry
It can be used to make wood doors, composite gates, cupboard doors, interior doors, sofa legs, headboards, antique furniture and other panel furniture.
2. Decoration Industry
It can be applied to engrave decorative patterns on the surface of decorative paintings, screens,three-dimensional wave boards, and acoustic boards.
3.Craft Industry
It can be used to engrave decorative patterns on craftworks, automobile accessories and other craftworks.

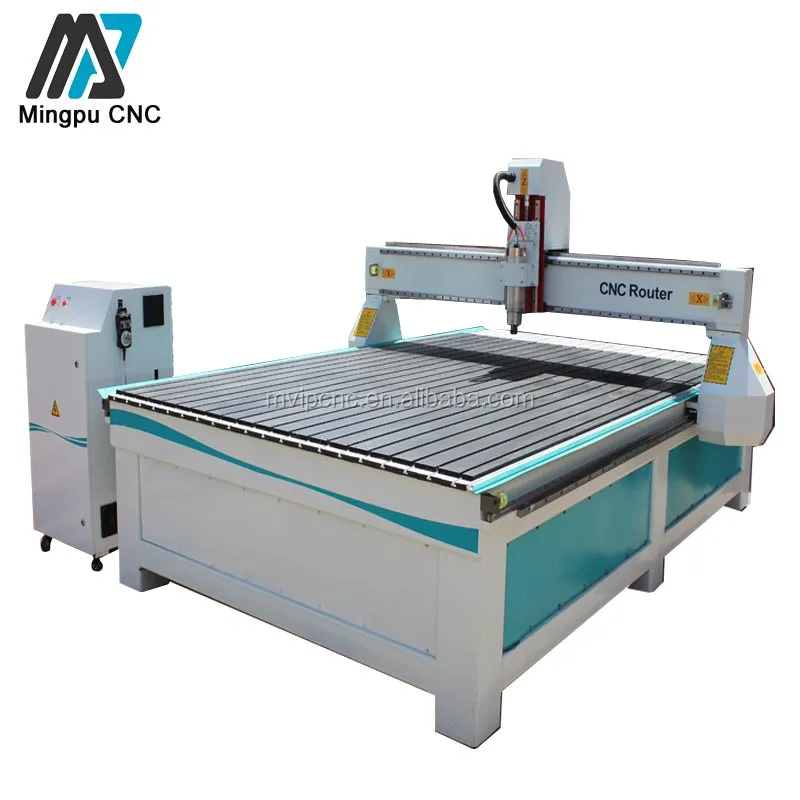

Trade Assurance! Ucancam / ArtCam/TYPE3 Software Wood Stone Metal Cutting Engraving 2030 CNC 3 Axis CNC Router
Description | 3 axis cnc router | Remarks |
X,Y,Z working area | 2000*3000*200mm | |
X,Y Structure | Rack and pinion; Taiwan HIWIN guide rail 20mm | |
Z Structure | Ball screw 2510; Taiwan HIWIN guide rail 20mm | |
Motor | Stepper system 450B | |
Drive | Leadshine 860 | |
Inverter | Fuling 3.7kw | |
Spindle | Water-cooling | |
Spindle power | 3.0kw | |
Spindle speed | 6000-24000RPM | according to the material |
Lathe bed frame | Steel square tubes | |
Table surface | Aluminum T slot | vacuum table optional |
Fixing method | By clamps | by vacuum absorption |
X,Y,Z repositioning accuracy | ±0.03mm | |
X,Y,Z traveling accuracy | ±0.03/300mm | |
Max working speed | 20000mm/min | |
Max rapid travel speed | 30000mm/min | |
Working voltage | 380V/50/60Hz | |
Operating system | DSP system | NC studio optional |
Command language | G code | |
Computer interface | USB | |
Flash memory | 128M(U Disk) | |
Collet | ER20 | |
Resolution | less than 0.02mm | |
Software compatibility | Type3/Artcam/Artcut/Ucancam/JDpaint etc | |
Running environment | 0~45 centigrade | |
Relative humidity | 30%~75% |
Main Features
Our 3 axis cnc router has many advantages:
Delicate selection of machine parts:
All the 3 axis cnc router parts are with CE, ISO certificate.
The 3 axis cnc router standard spindle is water-cooling 3.0kw: cutting thickness MDF0-20mm, very powerful. You can choose more powerful one according to your needs or choose air-cooling type.
The 3 axis cnc router control system is DSP A11 control system with English version: easy operation with DSP handle, only 16 buttons.
The 3 axis cnc router adopts imported square guide rail to ensure higher precision.
Y-axis adopts advanced dual-axis gear transmission and dual-motor driver system which ensures speed, strength, and accuracy of automatic cutting.
Certifications

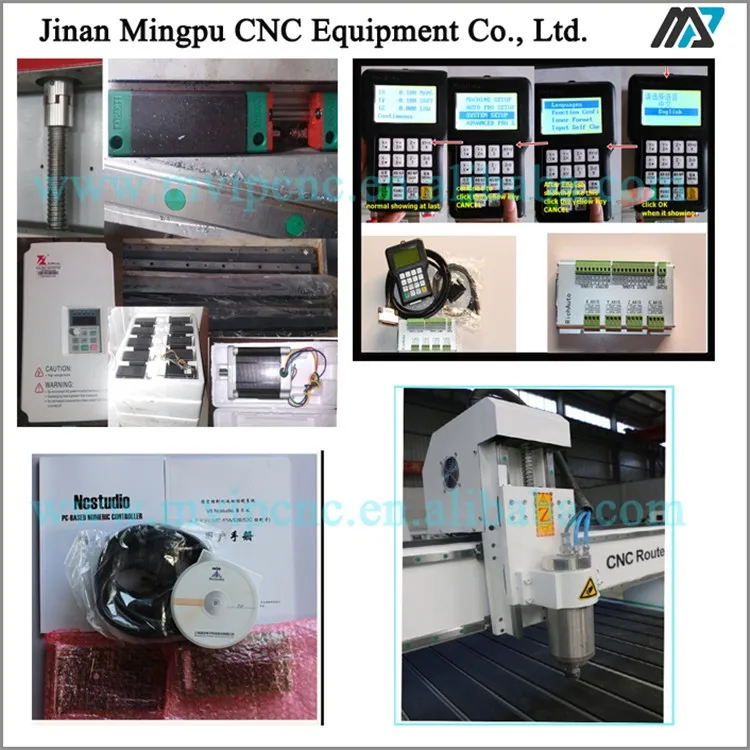

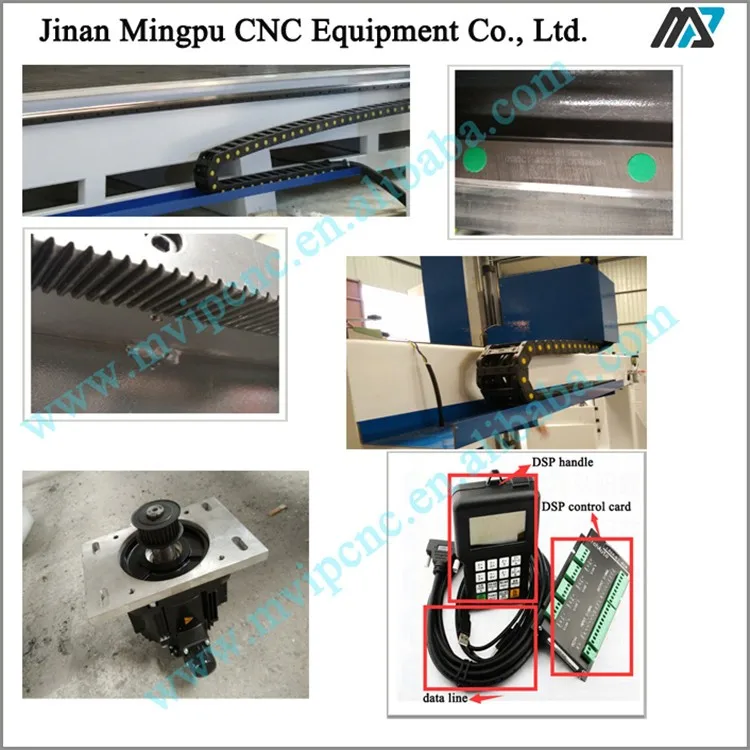

Detailed Images
Our Service
Packing & Delivery
Trade Assurance! Ucancam / ArtCam/TYPE3 Software Wood Stone Metal Cutting Engraving 2030 CNC 3 Axis CNC Router
Packaging | ||
1.The 3 axis cnc router is packed by plastic sheet, water-proof and dampproof. 2.The foam are put on the important parts of the 3 axis cnc router. 3. Then the 3 axis cnc router is packed by the plywood case. | ||
Our Company
Jinan Mingpu CNC Equipment Co.,Ltd,mainly exports woodworking cnc router,laser engraving machine,laser cutting machine,wood lathe etc.Its products also include cnc machine tools and bits.
