Sejoy Household Medical Equipment Strips for Glucometer
- Category: Glucose Meter >>>
- Supplier: Hangzhou Sejoy Electronics & Instruments Co. Ltd.
Share on (60715100482):
Product Overview
Description
Product Description
Blood Glucose Test Strips
The Sejoy BS-101 Test Strips are used with the Sejoy BG-101, BG-102 and BG-103 Blood Glucose Meters to quantitatively measure glucose with fresh capillary whole blood. The test strips can be used for self-testing at home or for professional use. It is not used for diagnosis, screening nor for testing newborns.
The product is for in vitro diagnostic use only.
S/N | Feature | Description | ||
1 | Item Name | Blood Glucose Test Strips | ||
2 | Product Description | 1 | ||
3 | Model | BS-101 | ||
4 | Blood Sample | Fresh capillary whole blood | ||
5 | Blood sample volume | 1ul | ||
7 | Measuring time | 5 seconds | ||
8 | Storage condition | 1°C-30°C | ||
9 | Result calibration | Plasma- Equivalent | ||
10 | Operating humidity | 10-90% RH | ||
11 | Shelf-life | 24 months( Discard 3 months after first opening) | ||
12 | Unit Weight | Approx22.5g（50PCS/bottle） | ||
15 | packaging | 10pcs/Bottle; 25pcs/Bottle; 50pcs/Bottle Carton Size:41*38*13.5cm 200boxes/carton N.W.:5.5 kgs; G.W.:6.5 kgs Tip：individual packing is available | ||
【Storage and Handling】
Store the test strip in a dry place at temperature between 1℃～30℃(33.8℉～86℉).
Test strips must be store in original vial with cap tightly sealed.
Do not exposure test strips to sunshine. Avoid moisture.
Test strip are valid before either 24 months after produced or 3 months past the opened date; write the first opened date on the package.
Do not freeze or refrigerate.
Immediately recap vial after removing a strip.
Use the test strip immediately after it removed out from package.
【Blood Sample Requirement】
Use fresh capillary whole blood; Applying anticoagulant in blood sample may affect test results.
Venous blood sample is not recommended for test.
Do not use arterial blood, serum or plasma.
Remaining water or alcohol on blood sample puncture site causes inaccurate results.
【Precautions】
Test Strips are for in vitro (external) testing of whole blood.
Operate the Blood Glucose Monitoring System at room temperature.
Test strips are for single use only. Do not use test strips that are torn, bent, or damaged in any way.
Lancing device can only be used for single person, exclusively; lancet is for single use only.
Do not use expired test strips as it caused incorrect test results.
Never use iodine solution to disinfect puncture site.
Keep puncture site dry.
Second drop of blood sample is recommended for measurement.
Before testing, make sure the code number is matched.
If the test strip is cold, do not use until it has warmed to room temperature.
To eliminate any chance of infection, discard the used test strips, lancing
device and lancet properly follow the local environmental affairs regulation.
【How to Test Your Blood Glucose】
Read the BG-101, BG-102, BG-103 Owner’s Booklet thoroughly before test.
1)Prepare system components:
BG-101, BG-102, BG-103 Blood Glucose Meter
BS-101 Test Strips
Code Chip
Lacing Device, Lancet
2)Coding the meter
When open a new package of test strip, code the meter with package attached code chip
1.Confirm the code number on code chip label is same as package shown;
2.With meter power off, insert the code chip into the code chip port;
3.Insert a test strip, the meter automatically turn on then display the code number. Confirm the code number matches the number shown on test strip package;
4.Apply System Check Solution to test strip;
Note: Do not move the test strip during testing
5.After counter down, meter display solution test results. Check the results are within CTR range that is printed on the vial label.
Note: Keep the code chip in the meter until use a new pack of test strips.
3)Measuring blood sample
1.Blood Sampling
The blood glucose system requires a tiny of blood sample from your fingertip to test the blood glucose. Before sampling your blood, wash your hands and the puncture site with an alcohol swab or soapy water. Rinse and dry thoroughly.
Turn the cap anti-clockwise to remove it. Insert a new sterilized lancet into the lancet holder and push it down firmly until it stops.
Twist off the protective disk until if separates from the lancet
Slide the cap on until it stops (Avoid contact with the lancet pin)
Adjust puncture depth by turning the Depth Adjusting Knob. The Depth Indicator shows the current depth selection. There are 5 optional depths. The higher of the number, the deeper of penetration
After slide the Ejection Spring Controller back until it clicks. The Lancing Device is ready to use.
Wash your hands and the puncture site with an alcohol swab or soapy water. Rinse and dry thoroughly.
Hole the Lancing device firmly against the side of your fingertip. Press the Release Button. Gently squeeze your finger to assist the blood flow. This will help you to get a drop of blood.
Note: Choose two sides of your finger for the blood sampling site as it can reduce pain.
Put the Protective Disk back on the lancet. Discard it properly.
2.Testing your blood glucose
Insert a test strip, contact bar end first and facing up, into Strip Port. Push it in until stops. The meter will automatically turn on and shortly display symbols on screen. Make sure all the symbols are completely displayed.
After the meter run self check, the code number will appear on the screen. Be sure the number is same as the numbers that are shown on the package and code strip label. If not, check whether the Code Chip and the test strip are from same package.
Do not use unmatched package test Strips and chip code. Contact retailer at this time.
After display code number, a test strip symbol will appear in the top-right corner of the screen The Blood Sample Reminder symbol flashes to remind applying blood.

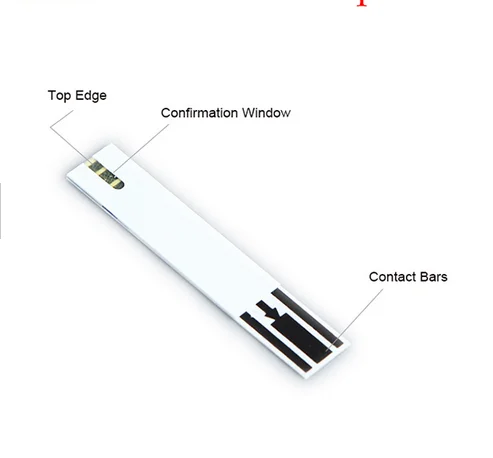

Touch the blood drop to Top Edge at the end of test strip. Hold until the Confirmation Window is full. The meter begins testing with display countdown.
Note: “E-4” error will appear when the test strip moved during measurement.
At the end of the countdown, one beep sound to remind you test finished. The screen will display test result.
Note: To avoid inaccurate test results affect 7, 14, 28 day average, user may delete the last test result by simultaneously pressing “S” Button and “M” Button.
Andy: discrepant description against meter’s user booklet.
Remove the used test strip. The meter will store the test result and automatically turn off.
Note: To prolong battery life, remove the test strip to turn the meter off.

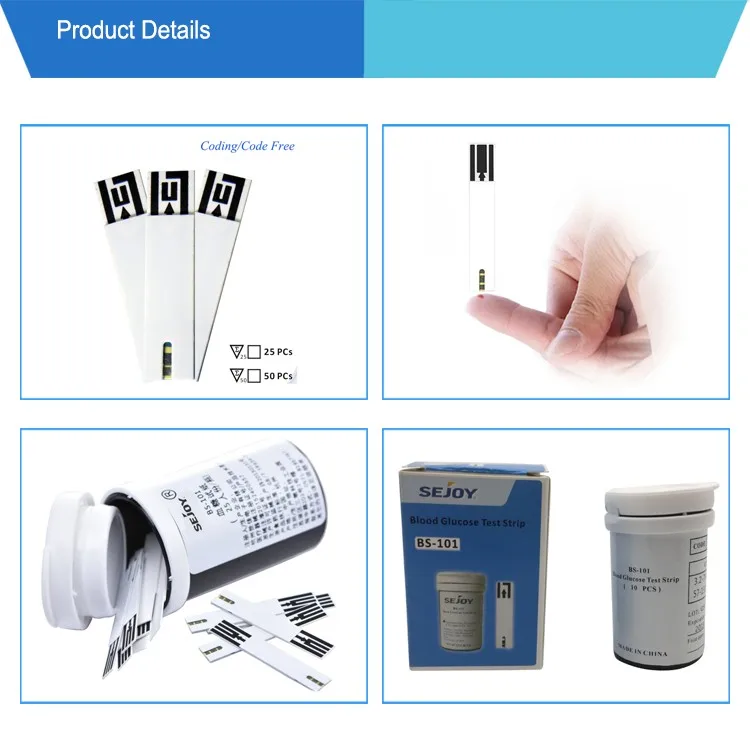

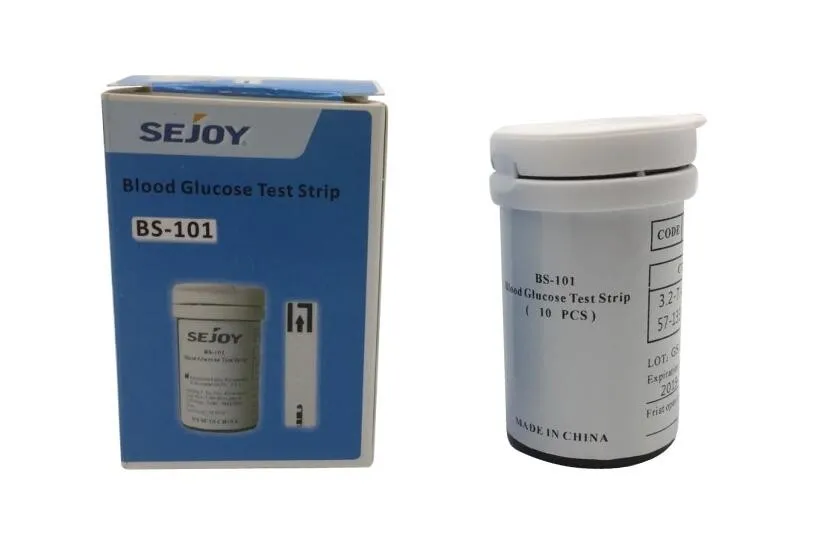

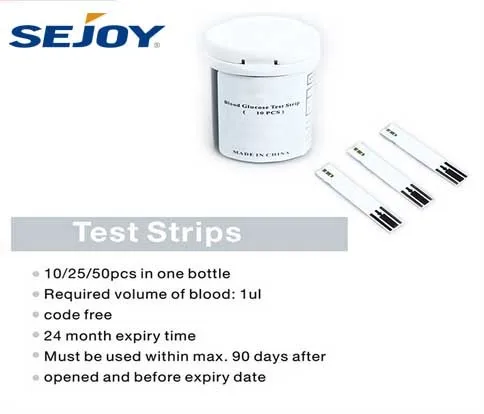

Detailed Images
Packing & Delivery
Standard Packing | ||
Packaging | colorbox or individual packing | |
Packing | 1PC/Giftbox; 200 Boxes/CTN | |
CTN Dimension | 41*38*13.5cm | |
G.W. | 6.5KGs | |
N.W. | 5.5KGs | |
Giftboxes are optional, OEM and logo print need artwork provided.
can be designed to meet customers' requirement.（Normally，for Blood glucose monitor is N/A）
Normal carton packing, also can be designed to meet customers' requirement.
Our company

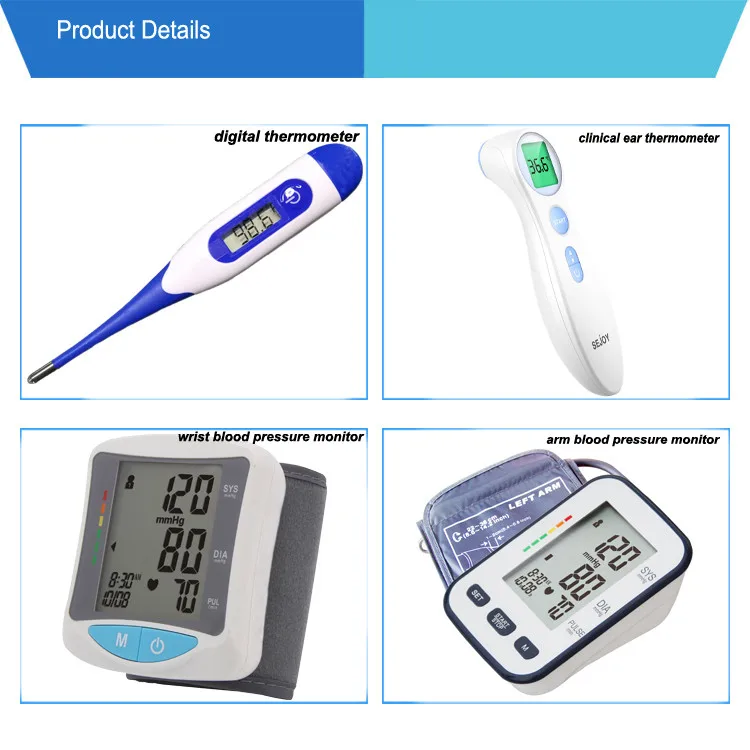

Establish in 2002,Hangzhou Sejoy Electronics &Instruments Co., Ltd is a fast growing Hi-Tech electronic manufacturer with a primary focus on designing and manufacturing home-care medical instruments in China with more than 15 years’ experience. Our innovative and technological excellence supports production of high quality devices such as digital and infrared thermometers, blood glucose monitoring systems, blood pressure monitors, and POCT line.
Our company overview
Our market and foreign branch offices
Market extension
One is locate in Jordan, another one is locate in USA
Our Partner
We currently work with some major companies in the industry such as Beurer, Laica, WalMart, Mabis, Graham Field, Cardinal Healthcare and Medline to name a few
Our cooperated customers case
\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t
Sejoy is well developed and highly social responsible company in China. We have got professional medical approvals, including
√ ISO13485
√ ISO9001
√ USA 510K
√ RoHS
√ CE0197
√ Canada Health
If you are interested in our certifications and reports, please don't hesitate to contact us for more details by the contacts in the navigation bar of "Contact us"
Related product
Hemoglobin Meter
10 ul small blood sample
Memory stores 1000 reading
15 seconds measuring time
Breast Pump
Compact, lightweight motor
2-phase expression technology
Convenient AC adaptor or battery.
Syringe Infusion Pump
Drop detection-optional
Memory stores 100 reading
PC port-optional
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you a factory or trading company?
A: We are a factory. We have been in business for more than 15 years, starting with digital thermometers then moving into digital blood pressure and POCT.
Q: Where is you factory located? How can I visit there?
A: Our factory is located in Hangzhou, Zhejiang Province, China, about 1 hours by train from Shanghai. All our clients, from home and abroad, are warmly welcome!
Q: Would you send me a sample to check the quality before I order?
A:.Sure. We would love to send you the sample ,even with logo if you can offer your artwork.
Q: How does your factory do regarding quality control?
A:1) 100% QC inspection Before Shipment.
2) Skilful workers care every details in handling the producing and packing processes.
Quality Control Department is specially responsible for quality checking in each process.
Q:Can we customize the box or print the logo on the gift box ?
A:No problem. We absolutely do that for you if you send us your logo design or artwork of box.
Q: What is your MOQ?
A: Please contact the customer service, and the price is negotiable for large quantity.
Q: When will you make the delivery?
A: We can make the delivery within 15-45 days according to the size of your order. And the sample will
be sent in 2 days after received the payment.
