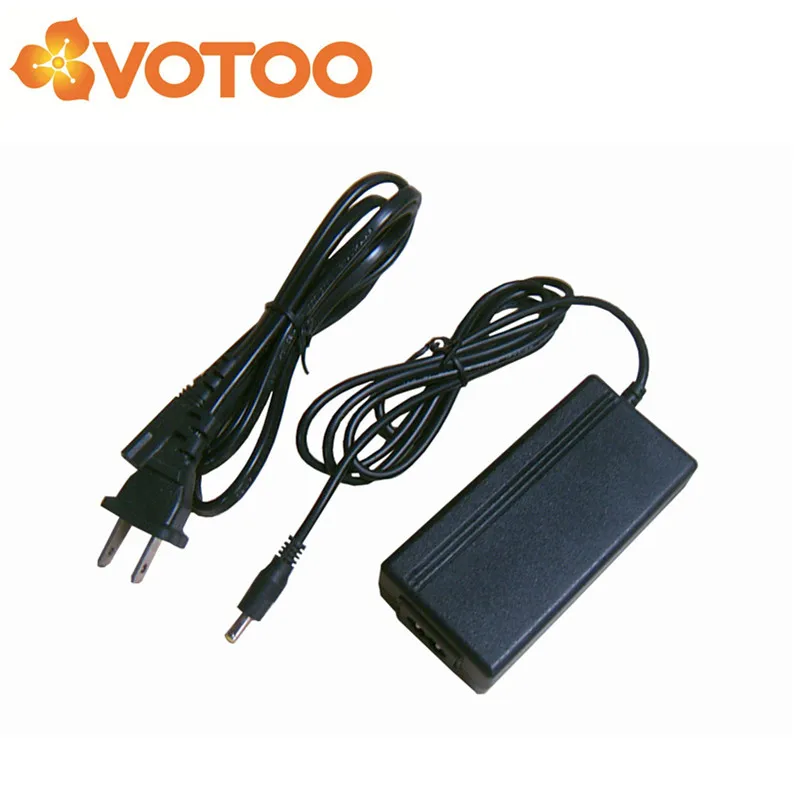

China manufacturer Power Adapter 9V 4A with input 100 240VAC ac dc power adapter for verifone vx510

Product Overview

Description

China manufacturer Power Adapter 9V 4A with input 100-240VAC ac dc power adapter for verifone vx510



Power Adapter 9V 4A for pos machine:

• 100% full in load test before package


• Small volume, light weight.


• Strong built for heavy duty and long usage performance


• US plug, EU plug, UK plug, Au plug optional


• Ouput over-volatge protection, output short-circuit protection, Over current protection


• Compliance with CE,RoHS,ETL,SAA,FCC,CB





DC Cord: 18AWG/20AWG/22AWG



DC Cable Length: 1.2-2M / Accept cutomized



DC Jacke size: 5.5*2.5mm / 5.5*2.1mm / 4.0*1.7mm /2.5*0.7mm / customized



­

Specifications:

Input	Input voltage		AC100~240V
	Input frequence		50~60Hz
Output	Output voltage		9V
	Output current		4000mA
	Output power		36W
	Output plug		5.5*2.1mm/5.5*2.5/3.6*1.36
Safety protection	Over voltage protection		120% min
	Over current protection		120% min
	Short circuit protection		Auto Recovery
Electronic characteristics	Operating Temperature		0~50 °C
	Storage Temperature		-20 to +85 °C
	Humidity		10%~95%RH
	Output Ripple and Noise		<100mV Vp-p(max)
	Efficiency		80%
	Turn-on Delay Time		3 second Max.
	Overshoot at Turn-on		10% Max. When power supply on or turn off.
	In-rush Current:		60 A mps Max Cold start at 230Vac input and 30 A mps Max Cold start at 115Vac input with rated load and 25°C ambient.
	AC leakage Current:		0.25mA Max .At 240Vac input
	Load Regulation		±5%
	Line Regulation		±5%

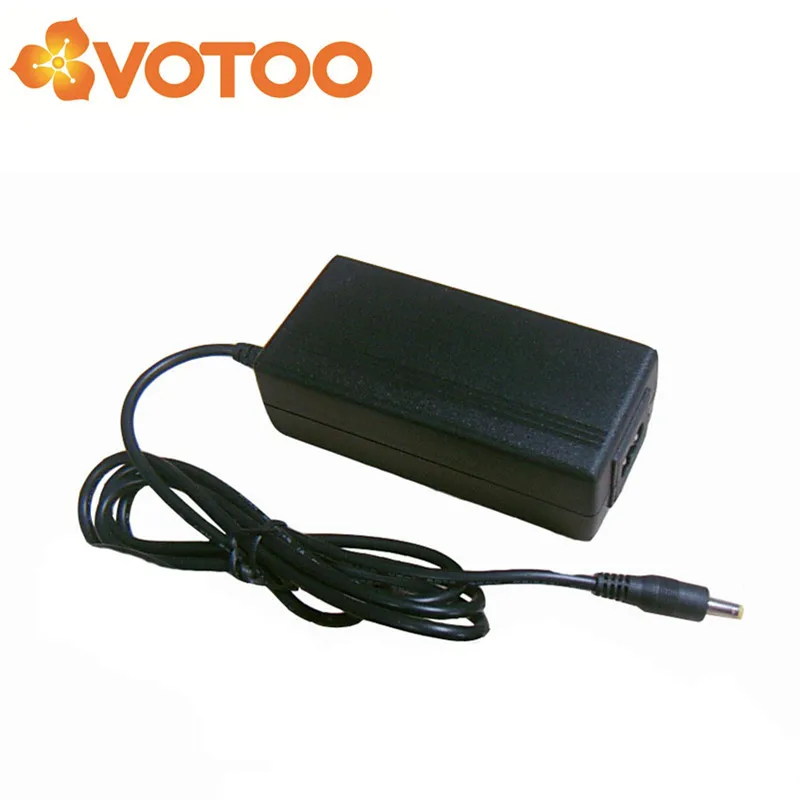

China manufacturer Power Adapter 9V 4A with input 100-240VAC ac dc power adapter for verifone vx510



FAQ:

1.Are you a factory or trading company?

We are a factory design and manufacture by our own.

2.Do you offer free samples?

yes, samples can be free, but freight should be paid by yourself.

3. Can you do the design for us?

Yes. We have a professional engineer having rich experience in cable design.

Send us the SPEC., and we will send you product drawing for confirmation.

4. Can you accept OEM order?

Welcome to send your specified product design and package design to us for your order.

We can accept to print your logo and design the package according to your specific

requirement.

5.How to contact us?

Send your detailed inquires in the belows for free sample,click "send"now.
