Electrode lifting system electric arc furnace shell

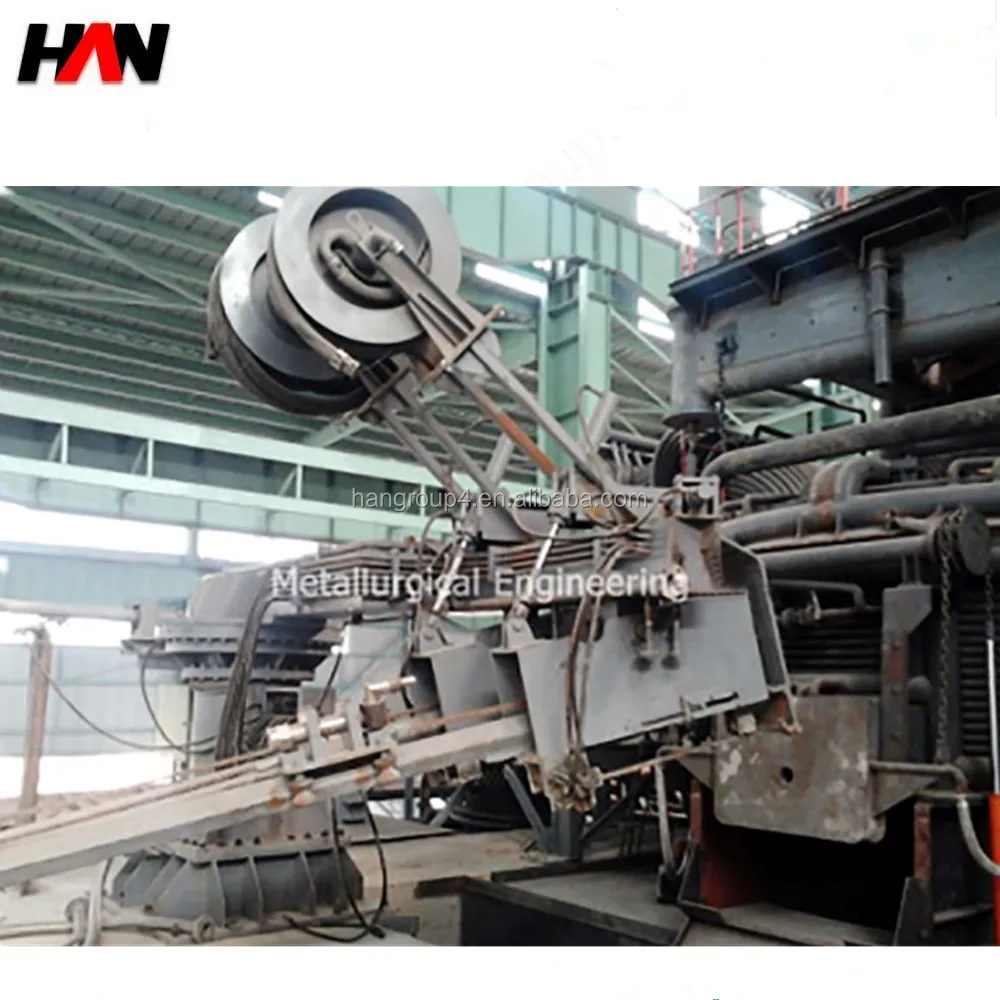

5t three-phase arc steelmaking furnace, the structure of removing the roof, then feeding from the top, tapping from tapping mouth, operating by right side. Mechanical Electrode lifting structure, furnace is tilting and furnace lid lifting, rotating by hydraulic, electrical control using PLC (Siemens) mediator control.

According to requirements, the steelmaking arc furnace can adopt alkaline or acid lining, and can smelt carbon steel, high-quality carbon steel, alloy steel, stainless steel and other varieties. The electric arc furnace equipment has the following main features:
▲ Electric furnace equipment adopt open the lid by rotating, top feeding, tapping from tapping mouth, semi-elevated layout.
▲ Copper composite conductive cross arm, and the overall is the way of column.

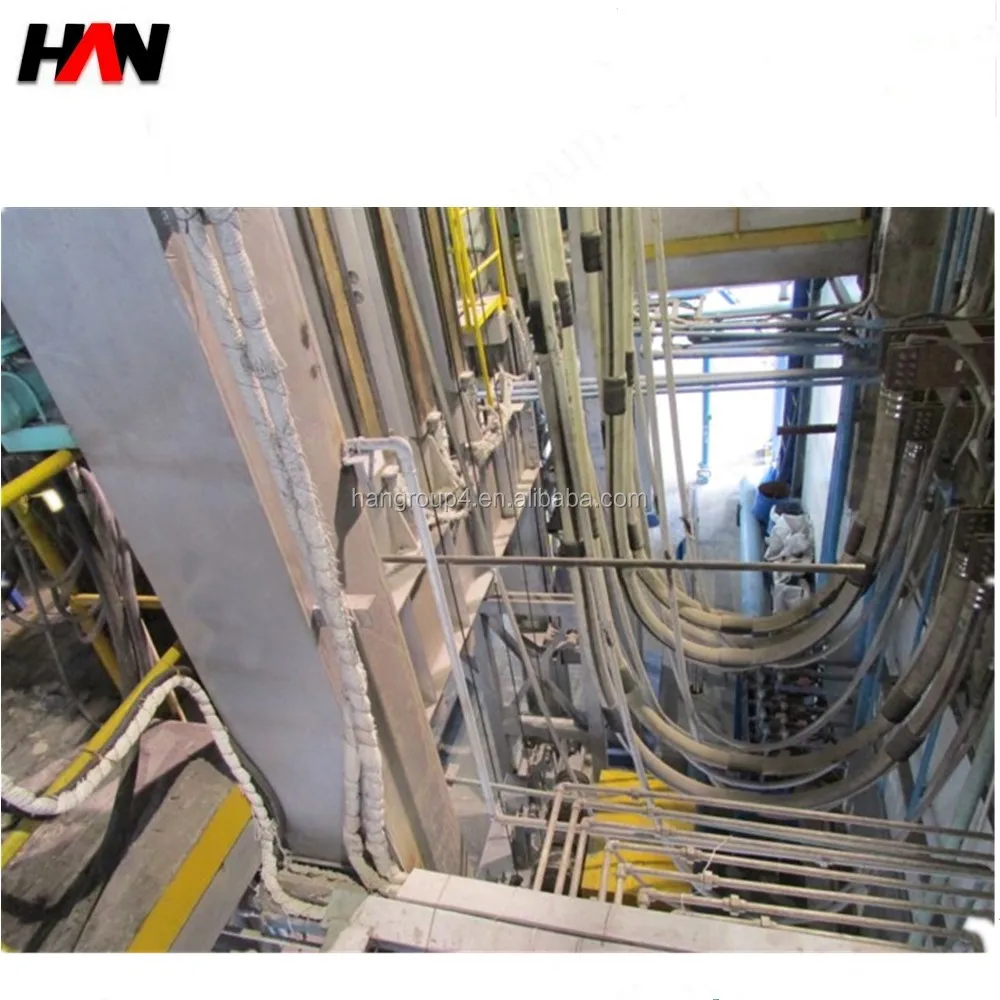

▲ Large cross-section water-cooled cable.
▲ The overall furnace shell, solid structure, good rigidity

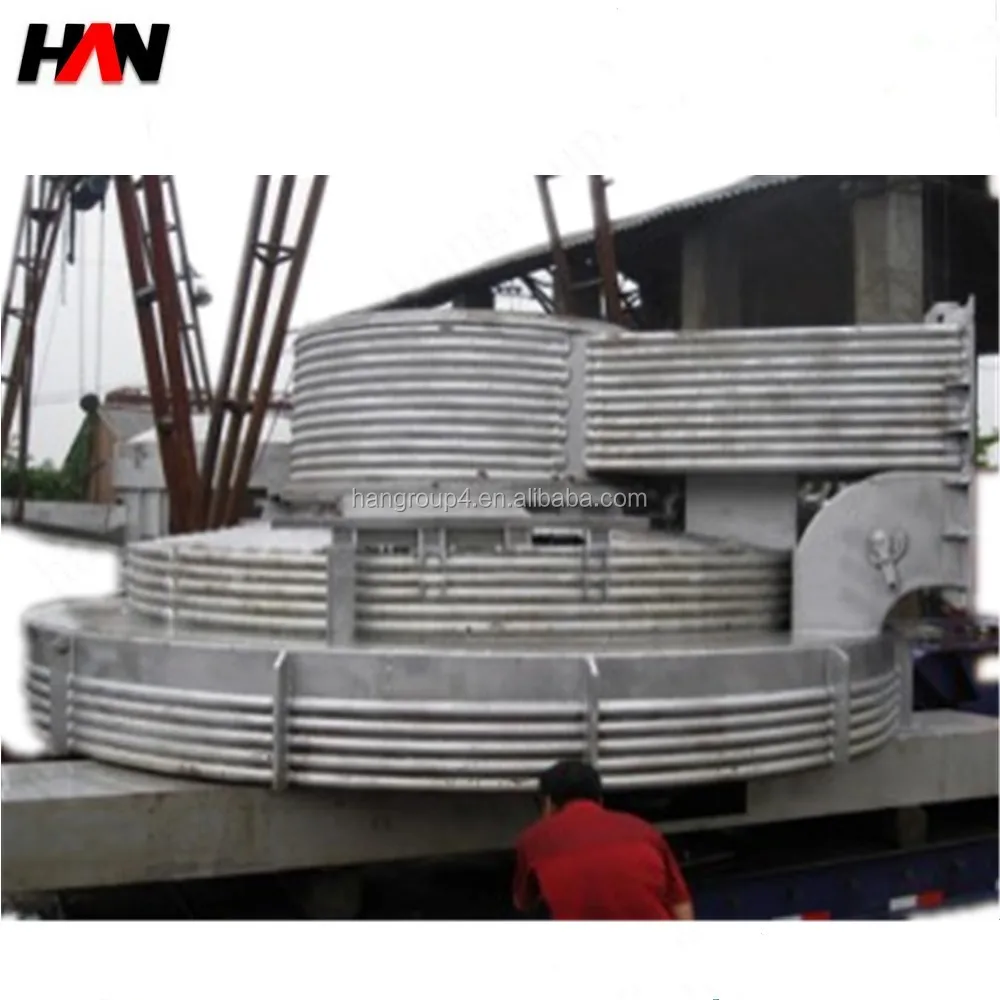

▲ Furnace cover structure by water-cooled, long life

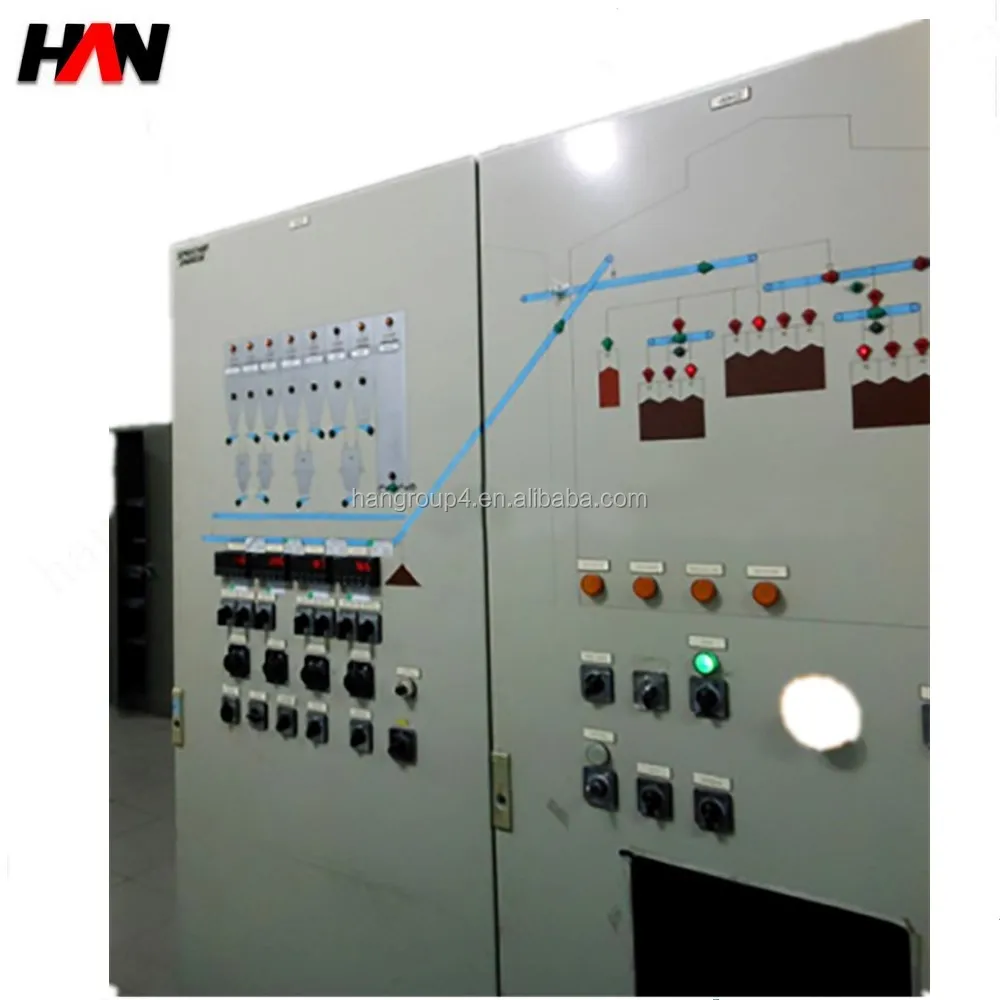

▲ Adopting the most advanced intelligent PLC electrode regulator at present, the maximum guarantee the accuracy and reliability of electrode automatic system.
▲ Electric furnace tilting and furnace cover rotation adopt hydraulic drive operation, improving smoothness and reliability of equipment.
▲ Hydraulic system and hydraulic pump, one for using, the other one is for preparing.
▲ Hydraulic tank is stainless steel fuel tank.
▲ Electrode automatic lift system with non-conductive transmitter device, to prevent the breaking of electrode.
▲ Transformers can be overloaded by 20%, with sufficient mechanical strength to ensure that they can withstand frequent short circuit shocks.
▲ Transformer for the strong oil circulating water (OFWF) adopts trouble-free oil circulating water cooler.
▲\tNo loading switch adopts electric control.
