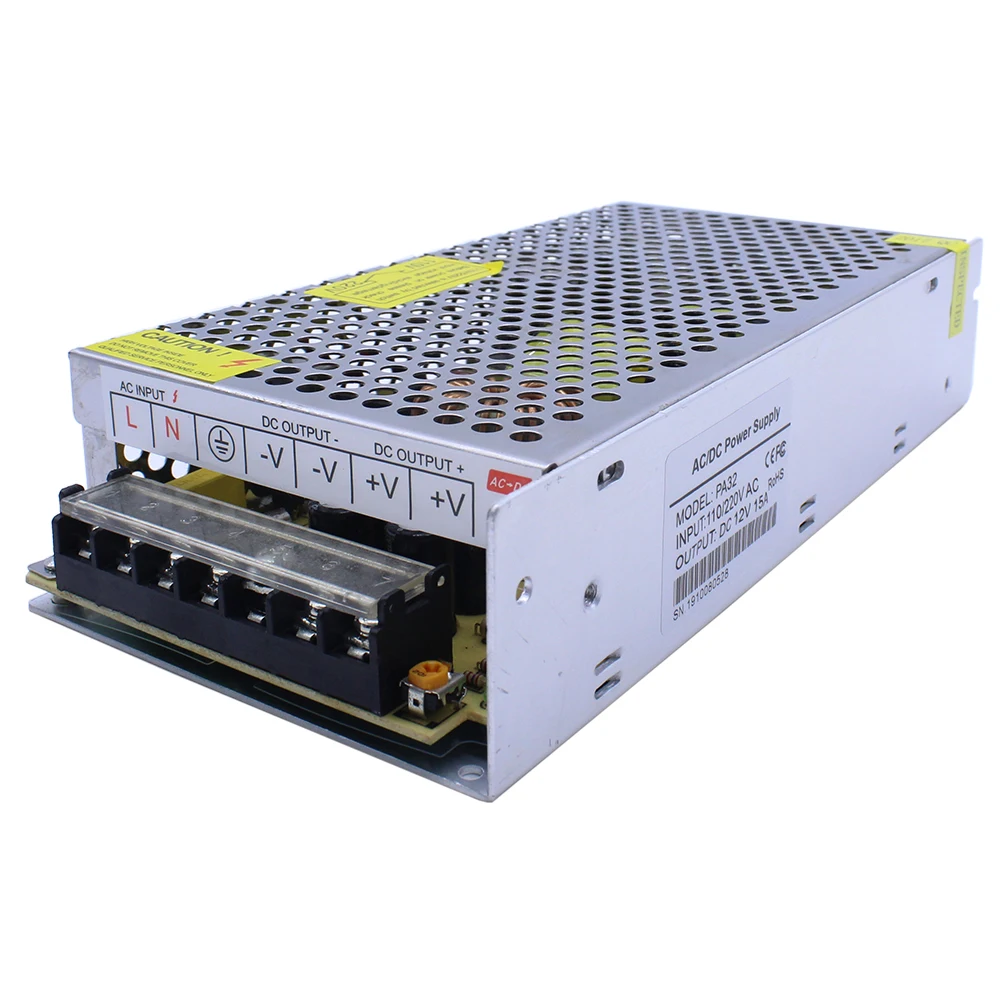

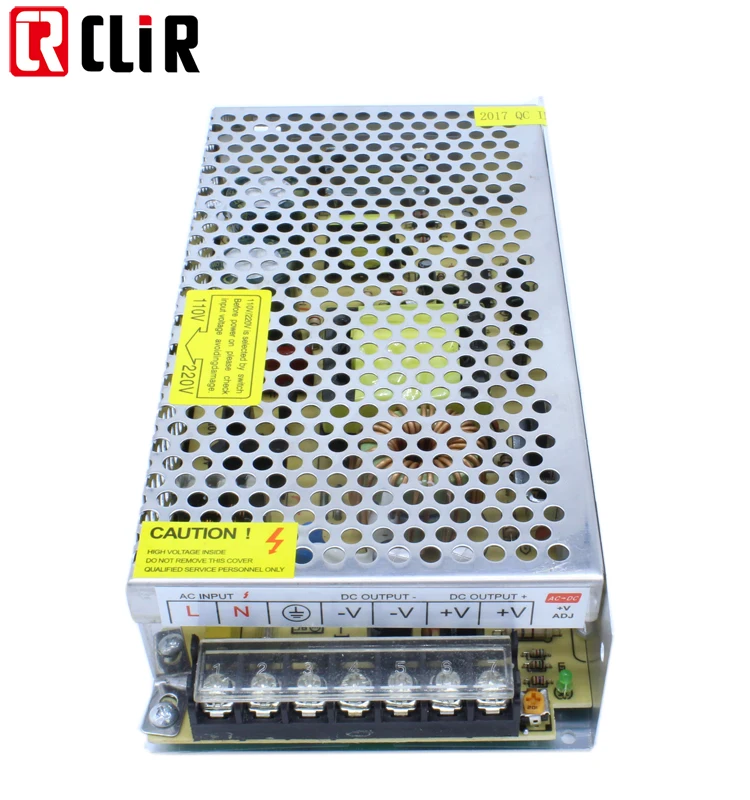

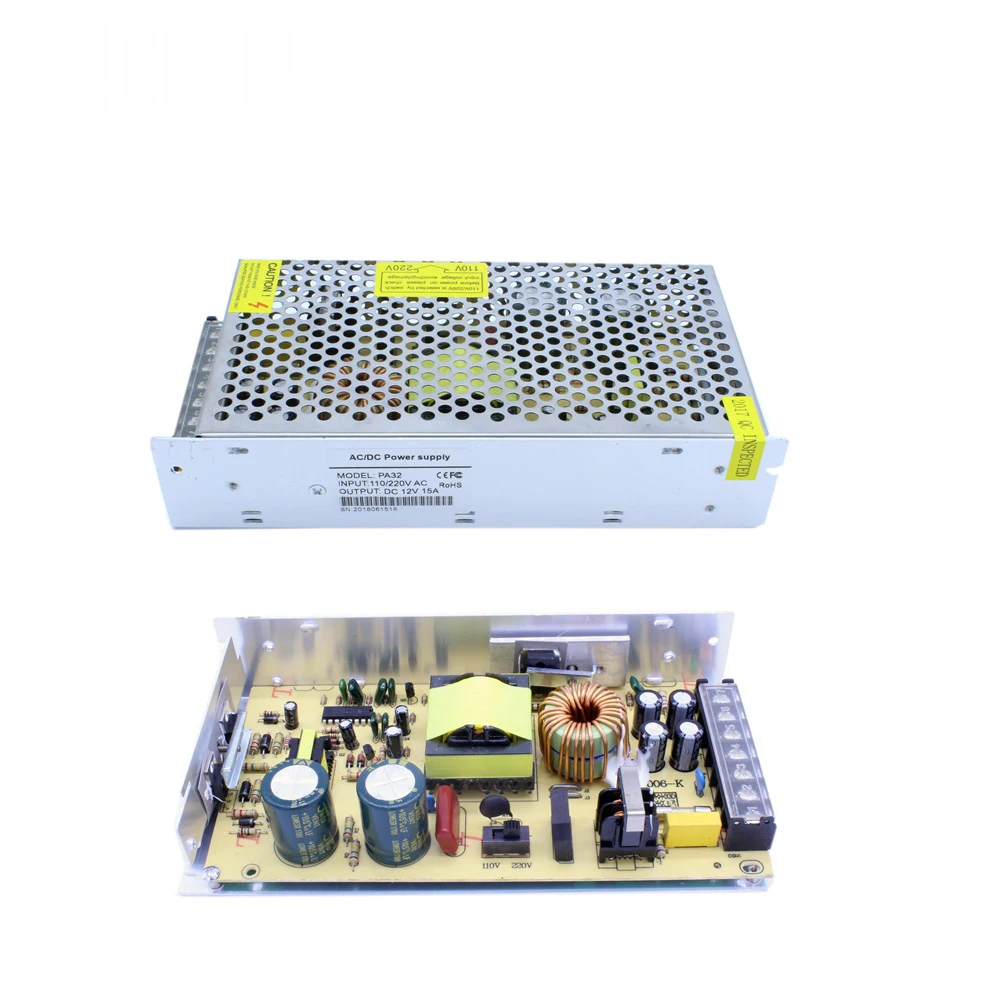

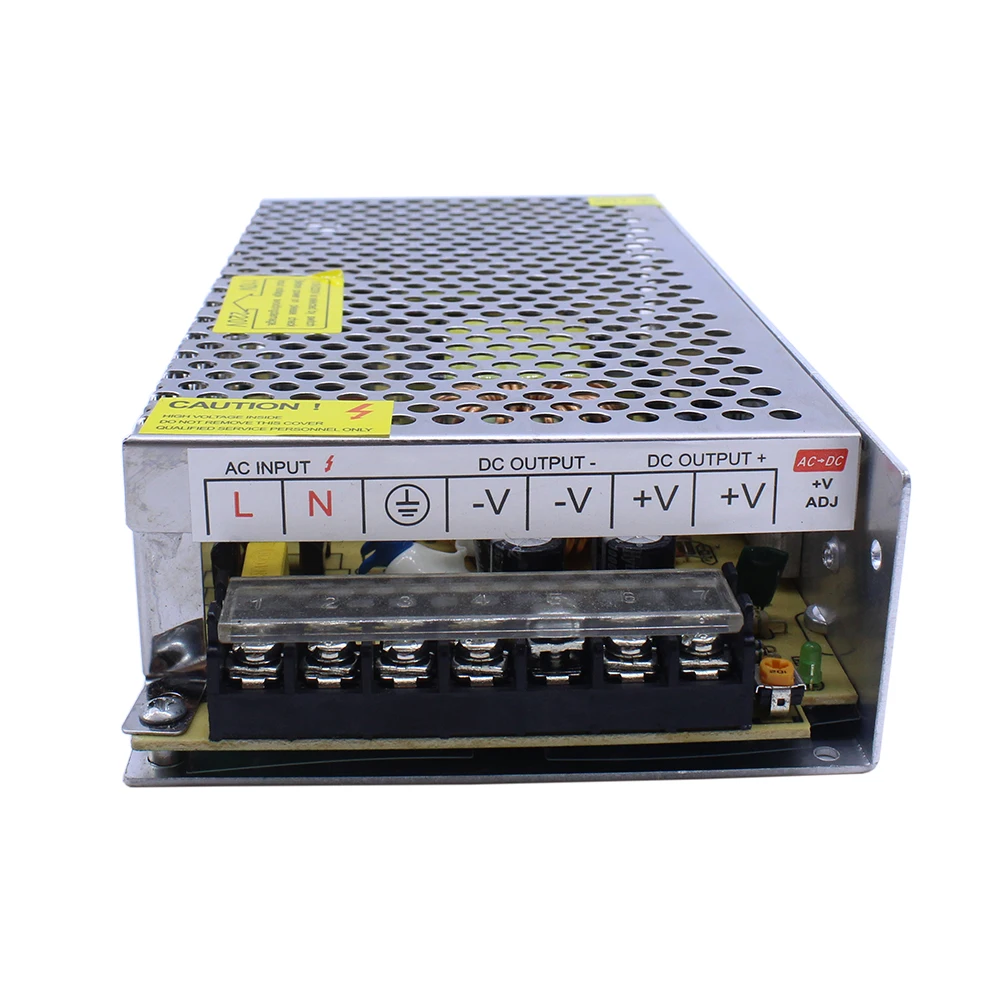

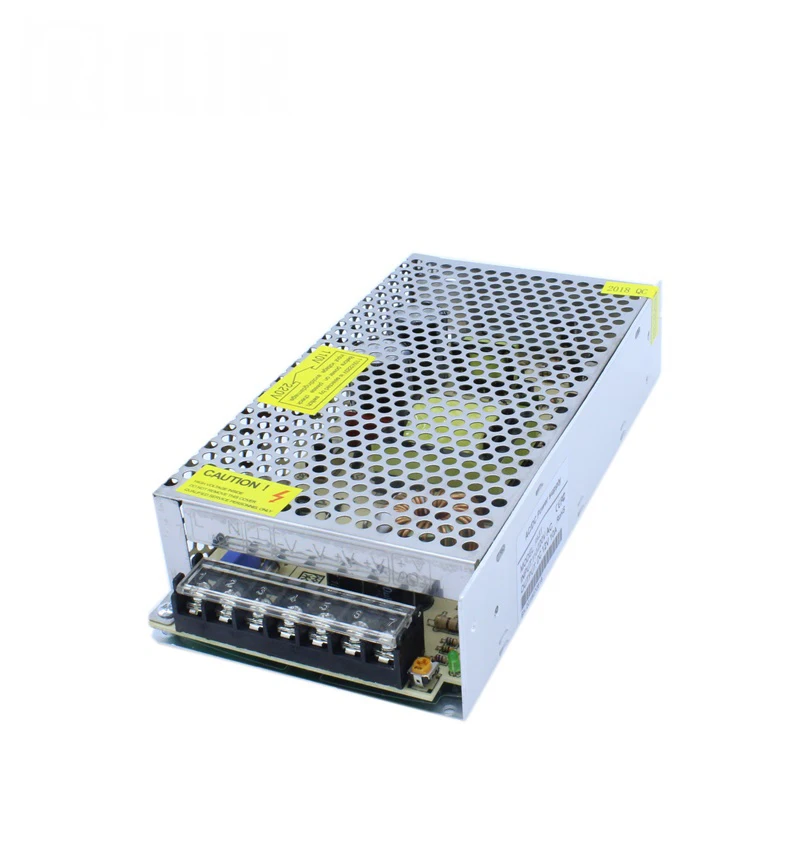

10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply
10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply

10A 15A 20A 30A 40A 60 40 10 30 15 50 amp DC 12V SMPS Mode CCTV Switching Power Supply

Share on (60715254219):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Model
PA32
OUTPUT
DC Voltage
12V
Rated Current
15A
Current Range
0 ~ 15A
Rated Power
180W
Ripple & Noise
120mV
Voltage Adj. Range
±10%
Voltage Tolerance
±2%
Setup, Rise Time
≦1S
Hold Up Time
20mS
INPUT
Voltage Range
100 ~ 250VAC
Frequency Range
47 ~ 63Hz
Efficiency
80%
Inrush Current
Cold Start 40A
Leakage Current
<2mA / 240VAC
PROTECTION
Over Load
105 ~ 150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage
105%---150% Rated Voltage
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp.
-20℃~60℃ non-condensing
Working Humidity
20 ~ 90% RH non-condensing
Storage Humidity
10 ~ 95% RH
Temp. Coefficient
±0.03%/℃ (0 ~ 45℃)
SAFETY&EMC
Safety Standards
Design refer to UL60950-1, CB(IEC60950-1),CCC GB4943
Withstand Voltage
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC Immunity
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A
SPECIFICATION
Dimension
202*103*47mm (L*W*H)
Net.Weight
0.6Kg
Packing
Carton


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile








Headquartered in Shenzhen, CLIR TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level BNC Connectors, Video Baluns, CCTV Power Supplys. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, CLIR is able to control every aspect of the process from end-to-end.
