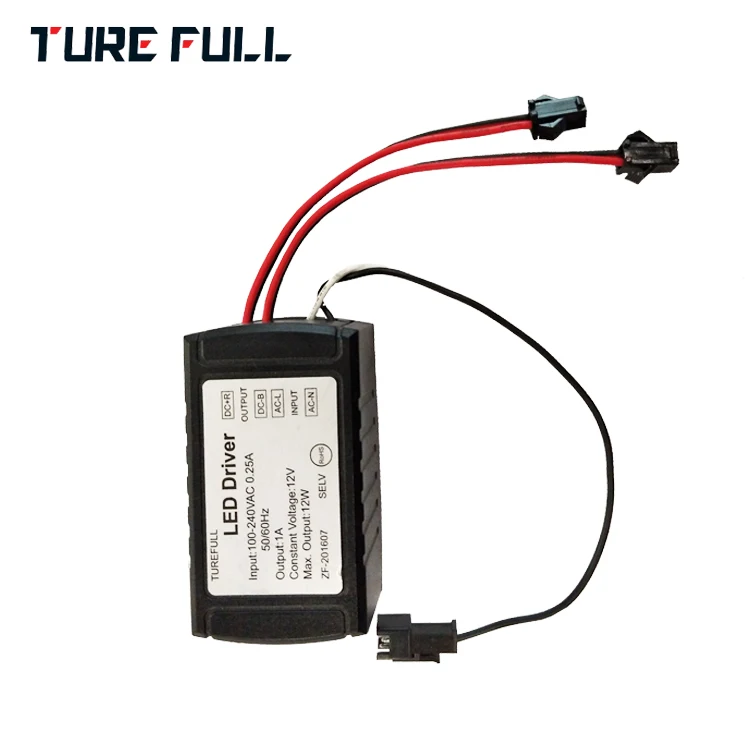

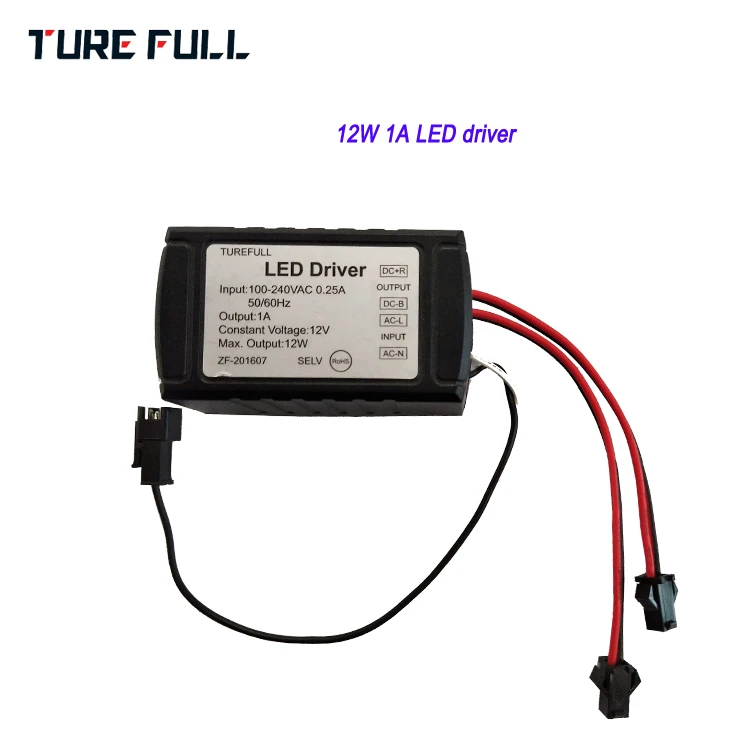

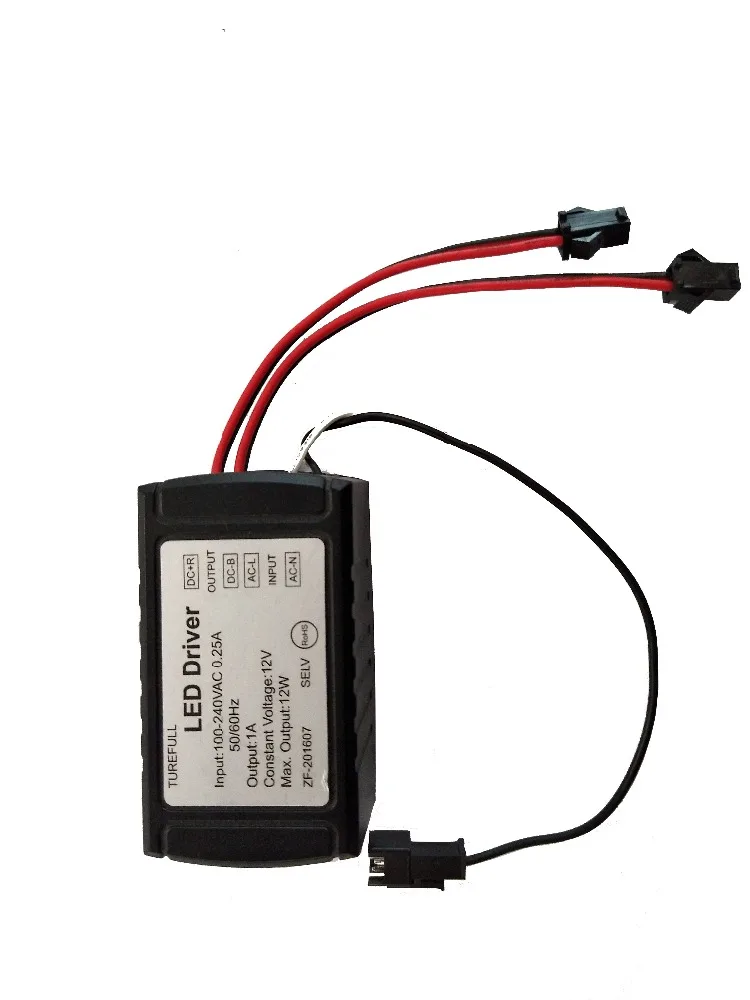

Constant Voltage Led Driver Dual Output No Waterproof 12W 12V 1A Lighting and Circuitry Design 1 50W 3 YEAR Single
- Category: LED Driver >>>
- Supplier: Shenzhen Zhongfu Optoelectronics Technology Ltd.
Share on (60715264216):
Product Overview
Description
Features and parameters
1.Features
- Input voltage:100-240V
- protection design:over-current/over-voltage/over-temperature/short-circuit
- IP33 grade,for indoor installations
- suitable for fan,repaly
- Conform to World Lighting equipment safty standards
- 1 years warranty
2. Parameters
| Model No. | ZF-HYA-12H-12 | |
| Output | No load voltage(MAX) | 12.3VDC |
| output current | 1.2A | |
| output power | 15W | |
| Ripple and Noise | 100MV | |
| Voltage error | ±3% | |
| Efficiency | 80% | |
| Line regulation (MAX) | ±2% | |
| Load regulation(MAX) | ±2% | |
| output voltage range | 11.7-12.3V | |
| Input | Start time | 300ms 600ms(full load)230Vac/115Vac |
| Keep time | 10ms full load 230V AC/115VAc | |
| Frquency | 47-63HZ | |
| PFC | PF>0.55 230VAc full load | |
| input voltage | 100-265V | |
| AC current(TYP) | 0.3A/115VAC,0.15A/230VaC | |
| Inrush current(TYP) | cold start<30A/230Vac | |
| Leakage current | <0.75MA/240VAc | |
| protection+Temp. | over current protection | 110-120% protection mode:constant power limit |
| over-voltage protection | protection mode:constant voltage limit | |
| short-circuit protection | Hi-cup mode,It can recove itself after short-circuit remove | |
| over-Temp. protection | 145°C±10°C,start | |
| Operating Temp. | -40--±55°C | |
| Working humidity | 20-95% RH | |
| storage Temp.,Humidity | -40--+80°C,10-95%RH | |
| Others | MTBF | ≥150KhrsMIL-HDBK-218F |
| Size | 76*38.5*28.7mm | |
Inner picture and components
Company profile
Our company was founded in 2009, is a professional waterproof lighting power supply, high-tech enterprise integrating R & D, manufacturing, trade, services and other functions in one,providing types of constant current LED driver is stable and reliable for all types of lighting project;
The company has nearly 3000 square meters of modern workshop, the existing staff of 100 people,the company passed the ISO9001 quality system certification, the product through the CCC,TUV, SGS, SAA, CE, ROHS etc. domestic and international certification; products are widely used in LED street lamp, tunnel lamp, flood lamp, spot lamp,solar street lights, panel lights,Tongdeng, has achieved the trust of customers at home and abroad.
