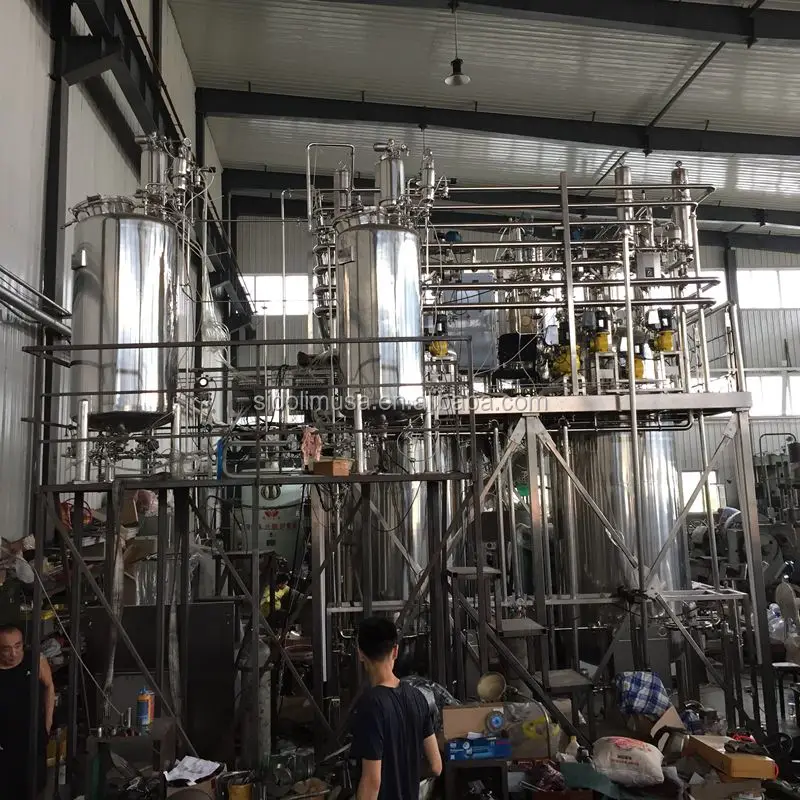

SiDoLim (1~30ton) system is designed based on the spirit of mass production that the system can perform the industrial scale fermentation process. The whole system is designed by the design team of Silver Double Limited.

All of the special options or ordered specifications can be acceptable.

As a leading fermentation technology, equipment supply and technical value-added services supplier,our company has a wealth of experience in project and outstanding professionals.

Advanced technology, Services responsive and high cost-effective is our operation principle.

fermentor 10



lab scale bioreactor

We offer brewing equipment bioreactor and fermenter from working volume 0.3L to 2000L, which can be applied for lab scale fermentation, pilot fermentation and industrial manufacture fermentation.

Sidolim bioreactor is a container to hold organisms for harnessing their natural biochemical processes. It is a easy-to-use bioreactor with a full range of microbial application possibilities, beginners and experienced users can perform easily.


Key parts of the bioreactor:

Bioreactor + Agitator + Baffle + Sparger + Jacket



Bioreactor control systems:

Temperature Measurement and control

PH measurement and control

Identification of pH controller

Dissolved oxygen controller

Foam control

fermentor 29

Parameters

Agitation

Drive

DC motor, AC Gear motor, Top drive (mechanical seal driving)

Range

50~1000rpm 1rpm

Impellers

Turbine impeller (SUS316L) Foam breaker (SUS316L)

Sensor

Magnetic Hall sensor

Control

Microprocessor based PID

Materials & Finish

Vessel

Using 316L stainless steel it is polished mechanically or electrically

Piping

316L stainless steel prevent contamination and is polished by electrically

O-rings/Gaskets

Viton or silicon material is used for the O-ring and the EPDM is used for gasket

Sterilization

Built-in heater makers the in-situ sterilization for the vessel, head plate, filter, aeration pipe lines in 105 ~130 temperature range automatically

Temperature

Range( )

From 3 above the cooling water temperature to 80 (accuracy 0.1 )

Sensor

RTD(Pt-100)

Control

The built-in heater cartridge raises and cooling water pulling downs the water temperature and water pump circulates the water inside of the jacket

Aeration

Sparger

Ring sparger (SUS 316L)

Intel Filter

The cartridge type sterilizable pleated type 0.2µm absolute filter specifications(option item)

Out Filter

The same as internal filter specification(option item)

Control Range

Different vessel size and/or ordered specifications

Pressure Control

The back pressure is controlled manually or automatically

Control Unit

Panel

8.5" Graphic Color LCD, Membrane keypad

Communications

Memory stick, printer, computer with the RS-232C communications protocol.

Controller Board

MC68EC020 microprocessor based integrated controller board is adopted to measure, control and display the fermentation system

Related Products

Insulin production line

Vaccine production line

Antibiotics production system

production line

Lysine production line

lysine production line.png

Biological health drinks production line (e.g. hericium drinks)

drinks production line 2.png

Any shape of tablet production line

tablet production line.png

Our Services

1. Installation: We will send our engineer to help you with the installation and guide you with usage.



2. We will ensure the success of installation and commission.



3. Working life of main equipments: 15 years



4. Potential problem: Degradation of strain.



5. Solutions: Optimization and renew, we will supply the new strain freely in two years, then our engineer will provide techniques for optimization and renew.



6. Plant visit:   We will arrange to visit one of similar lines we implemented in China and expect your coming!

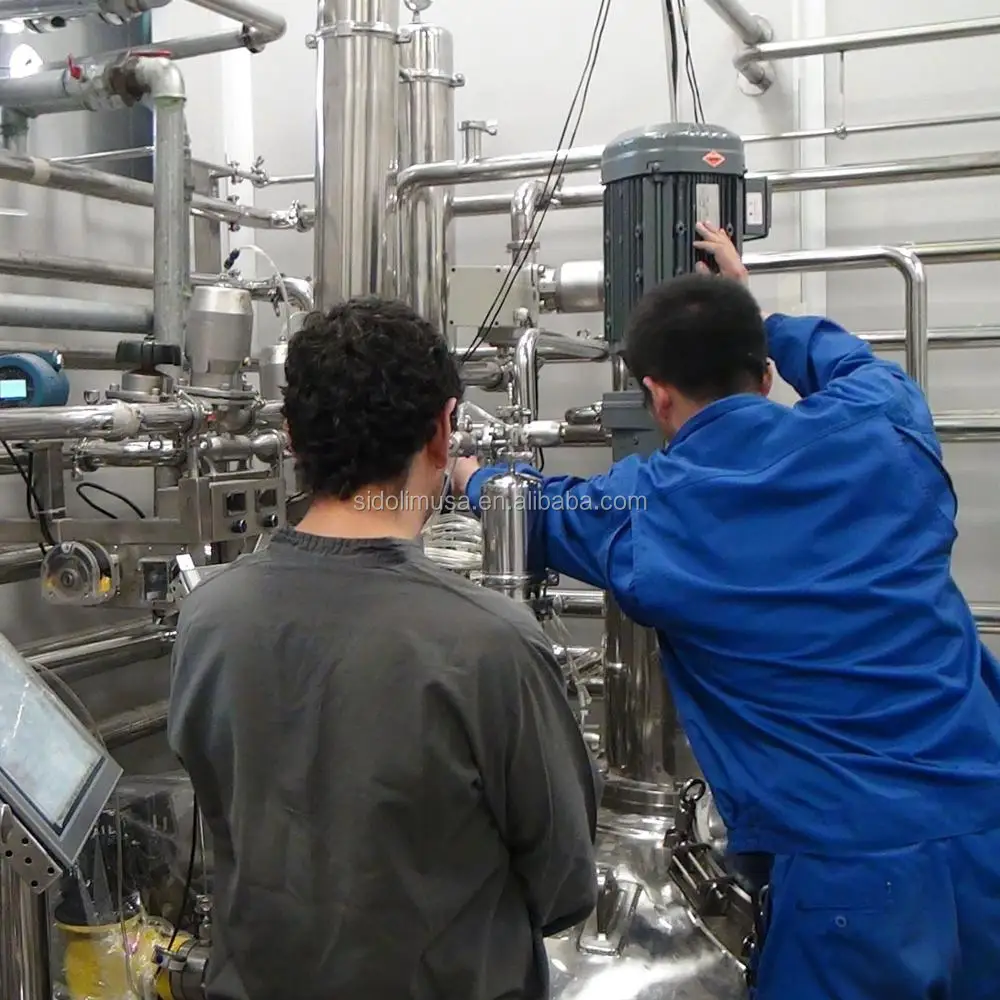

 fermentor 37







Packaging & Shipping

1.Qualified wooden package or carton for different products or as customer require.


2.Sufficient inner protection with different materials, including bubble bag, foam board and others.


3. Strict packing process to ensure the safety and completeness of the goods.



4. We have good cooperation with many international express companies such as DHL / UPS / FedEx / TNT and Other, as well as large shipping companies to provide air shipping and sea shipping. We can also arrange global shipment as clients' requirement.

 Packing & Delivery 1



Packing & Delivery 6



Packing & Delivery 9



Company Information

SiDoLim, Silver Double Limited is a worldwide leading OEM manufacturer and supplier of measuring instruments and automation solutions for the industrial process, engineering industry, chemicals and petrochemicals industries,and paper making industries, metallurgy and so on, and is focused on providing advanced, state-of-the-art products for our customers. We are also committed to producing cost-effective, accurate, rugged, and reliable monitors and control solutions at reasonable prices.



We involved in manufacturing, supplying and exporting a commendable gamut of Biotechnology & Laboratory Equipment and Bioreactors. We Manufacturers offering high grade Fermentor Bioreactor Jacketed Bioreactor Assembly, Photo Bioreactor, Fermentor Bioreactor, Fed Batch Fermentor, Solid State Fermentor, Reactor Vessel Fermentor and Biopharma Fermentor Bioreactor. Manufacturer Fermentor, Fermentor Vessel, Fermentor Agitator, Fermentor Feed Batch, Fermentor Algae, Fermentor Photo Bioreactors, Fermentor Enzyme, Fermentor Biopherma, Fermentor Stainless steel, Fermentor Labs scales, Fermentor Biotechnology, Fermenter Cell Culture, Fermentor Bacteria, Fermentor Food and Fermentor Beverage. Fermentor, Jacketed Bio Reactor Assembly, Photo Bioreactor, Fermentor Bio Reactor, Fed Batch Fermentor, Solid State Fermentor And Rhizobium Bio Fertilizer. Along with this, Stainless Steel Fermentor, Batch Type Fermentor, Cylindrical Fermentor Bio Reactor, Stainless Steel Fermentor Bio Reactor manufacturer a commendable gamut of Fermentor, Biotechnology & Laboratory Equipment and Bioreactor. We manufacture the offered Bioreactor as per the prevailing trends of the industry and base these on latest technology to ensure their high efficiency Jacketed Bioreactor Assembly for Cell Culture & Microbial Fermentation Biomate Volume Range 3, 5, 7, 10 & 15 Liter or more.

factory

FAQ

1. How can you guarantee we receive a good quality?

First, we have Q/C department to control the quality from raw material to the finished products. When the machine was finished, we will send you the inspection video and pictures. Or you can come to our factory to inspect the machine before you arrange the balance of the payment.



2. Do you provide any help about the product operation?

We have English manuals and operational video, which could help you know the operation easily.



3. How about warranty?

We could make sure all of our machines with one years warranty and provide you with free technical support of equipment lifelong.



4. How can I get more details about this machine?

Please write all your question in the below mailbox, we will reply to you via E-mail within 12 hours.
