  • RF 4g WCDMA ICS Repeater 20W 10W N Female IP65 Mobile Signal Booster
RF 4g WCDMA ICS Repeater 20W 10W N Female IP65 Mobile Signal Booster
RF 4g WCDMA ICS Repeater 20W 10W N-Female IP65 Mobile Signal Booster

RF 4g WCDMA ICS Repeater 20W 10W N Female IP65 Mobile Signal Booster

Share on (60715340264):


Price:US$1,600.00 - US$2,000.00

Quantity:


Product Overview

Description


Introduction

RF WCDMA ICS Repeater 20W N-Female IP65 Mobile Signal Booster

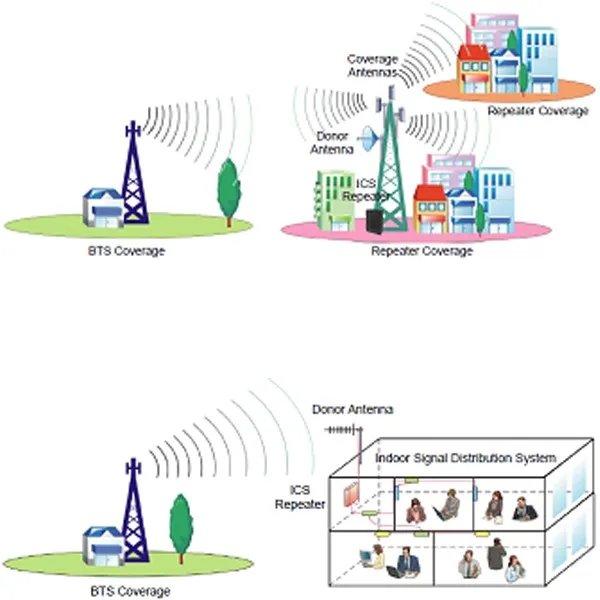

 Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Applicaion
Specification
\t
Parameter
\t
Specification
\t
Frequency Range
\t
Uplink: 1950~1980MHz; Downlink: 2140~2170MHz
\t
Carrier Number
\t
4 carriers channel selective
\t
Interference Cancellation Range
\t
>= 25dB
\t
EVM
\t
<= 12.5%
\t
PCDE
\t
<= -35dB
\t
Maximum Gain
\t
Uplink: 95dB; Downlink: 100dB
\t
Gain Adjustment Range
\t
30dB; 1dB step
\t
Ripple in Band
\t
<= 2.0dB/3.84MHz
\t
Maximum Output Power
\t
43dBm
\t
ACLR
\t
>= 45dBc@5MHz; >= 50dBc@10MHz
\t
IMD
\t
<= -36dBc
\t
Spurious Emission
\t
<= -36dBm/100kHz, 9kHz~1GHz
<= -30dBm/1MHz, 1GHz~12.75GHz
\t
Noise Figure
\t
<= 5dB
\t
Time Delay
\t
<= 10μs
\t
VSWR
\t
<= 1.5
\t
Maximum Input Power before damage
\t
10dBm
\t
Network Management System
\t
Available
\t
Local Monitoring
\t
RS-232
\t
Remote Monitoring
\t
Build-in GSM900/1800 wireless Modem
\t
Power Supply
\t
AC155V~265V / 50Hz±5Hz
\t
Working Temperature
\t
-40 ~ +55 ℃
\t
Relevant Humidity
\t
<= 95%
\t
Protection Level
\t
IP65
\t
RF Connector
\t
N-F / 50 ohm
\t
Size
\t
450×420×164mm

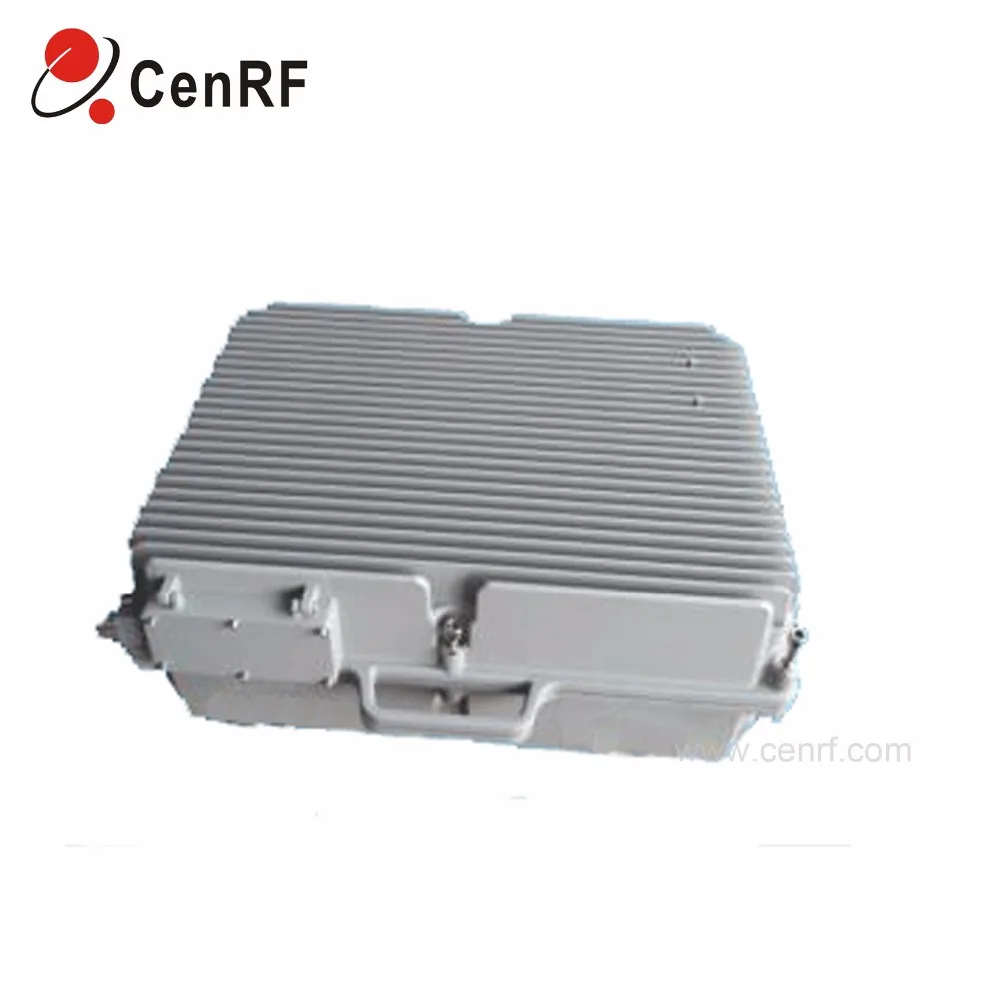

Product Shows

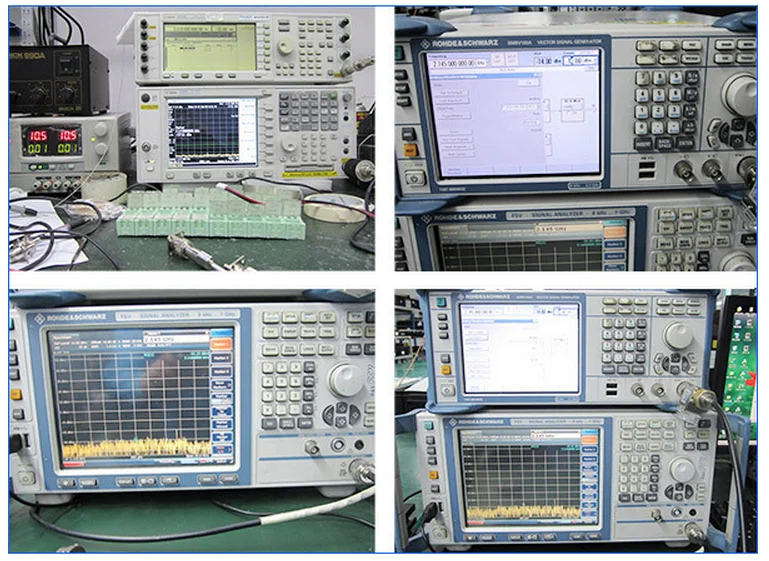

Testing Equipments

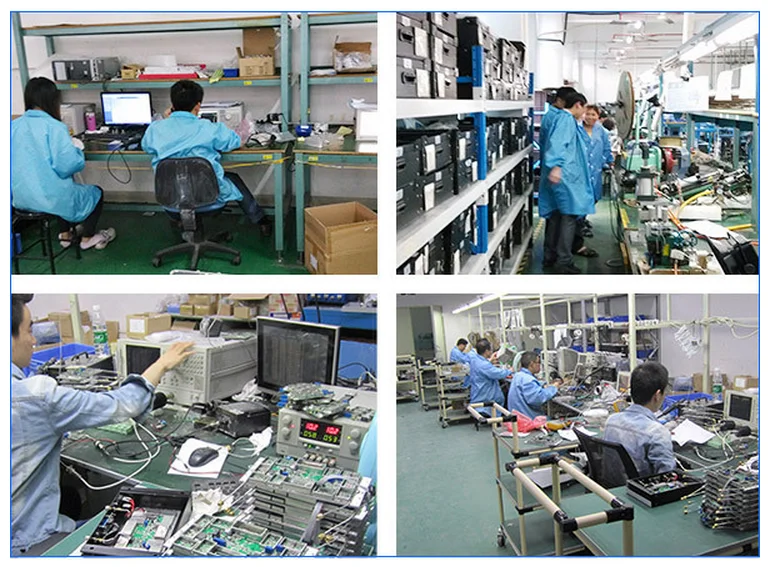

Company&Workshop
Service

CenRF promises reasonable price, short production time, and after-sales service.

FAQ:

1.What're the main products of CenRF?
CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.

2.Can your company provide Technical Support?

Yes. We have experienced technical experts who are willing to help you deal with technical problems.

3.Can your company provide solutions?
Yes. Our team of IBS experts will help find the most cost-effective solution for your application.

4.Do you test the equipment before your delivery?
Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.

5.What is your quality control?
Quality is CenRF's culture. We do have strict inspection and testing before shipment.

6.Can you accept the small order?
Yes, small order is available in our company.

7.Do you have OEM&ODM service?
Yes, we can support our customers specialled products and we are able to put your logo on the products.

8.Can your company provide CO or Form E certificate?
Yes, we can provide it if you need.
