p16/p25/50 Big Advertising rgb flexible LED Display Screen Outdoor

Product Overview

Description





Features



1.Superhigh permeability, can reach 95%;

2.Every video can be controlled individually, high grayscale, high brightness, high reliablity;

3.Alluminium Alloy die-casting , great radiating, light and strong

4. special sealant glue, IP67, suitable for indoor and outdoor

5. special design technology for led supply power, coming ture cascading multiple-unit, more easily for the structure

6. hoisting design with stainless steel wire, snape joint is approved patented technology, easily installation, conveniently maintained

7. operating front and rear,  well-adapted with practical design, satisfied for all kinds of application

8. professional control technology, customized design, three grade color space changable, coming true more high reducing capacity of frame;

9. adjusted RGB Grayscale individually, each 16bits, high speed clock controlled, achieving excellent refresh,1000Hz;

10.Flexible installation for Louver LED Screen, satisfied for mounting  on an incline and  curved surface



Specifiction of Flexible Louver LED Screen



Item No.:	GG-MS-P25*25	GG-MS-P25*25D
Pixel pitch:	25mm×25mm
Pixel Density	1600 pixels/m2
Pixel Configuration:	1R1G1B	2R2G2B
Unit Resolution:	24pix*48pix/unit
brightness:	>7200CD	>14000CD
transparency rate:	>45%
Unit size:	L:1200mm * H:600mm* D80
Unit weight:	13kg/m2
Maximum Power:	400W/m2	460W/m2
Visual Angle	H110o/W60o
IP level:	IP67
grey level:	65536
refresh rate:	≥4000HZ
Working Voltage	AC85-265V 50/60Hz
Service life:	≥50000hours
Operating Humidity / temperature	-25℃~65℃, 10-90%RH
certificate:	CE     RoHS

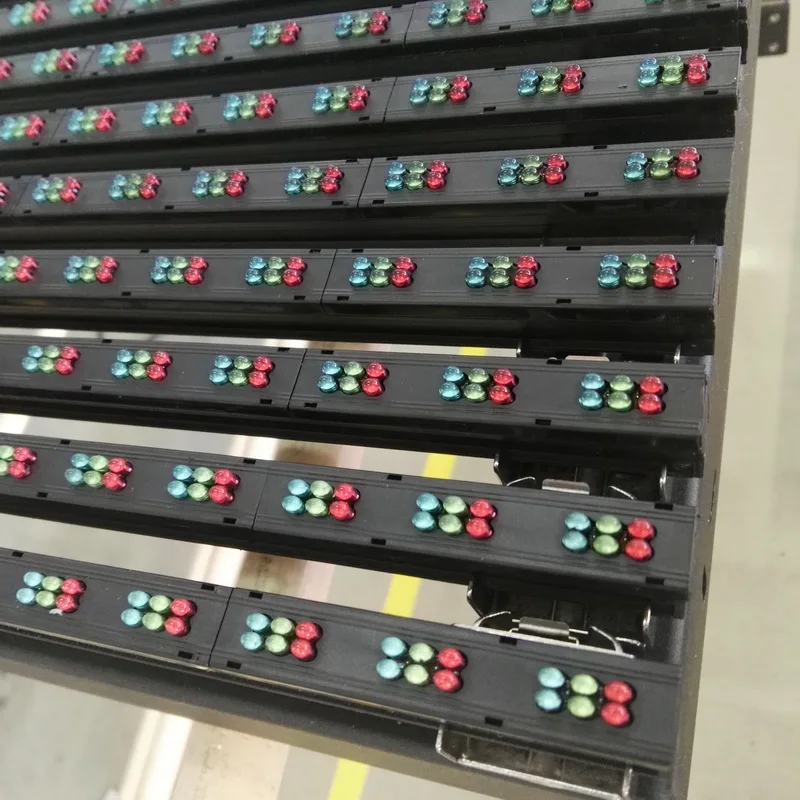

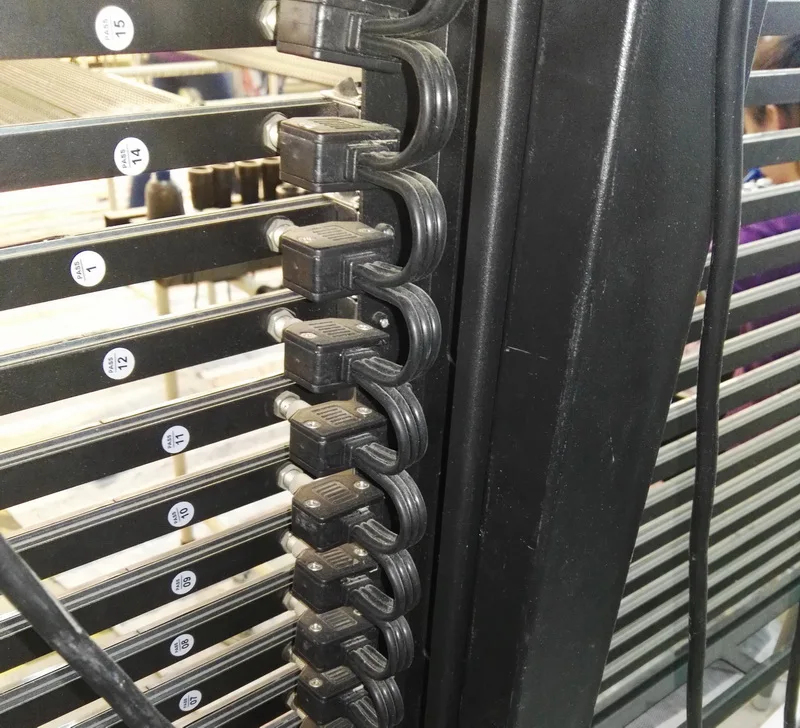

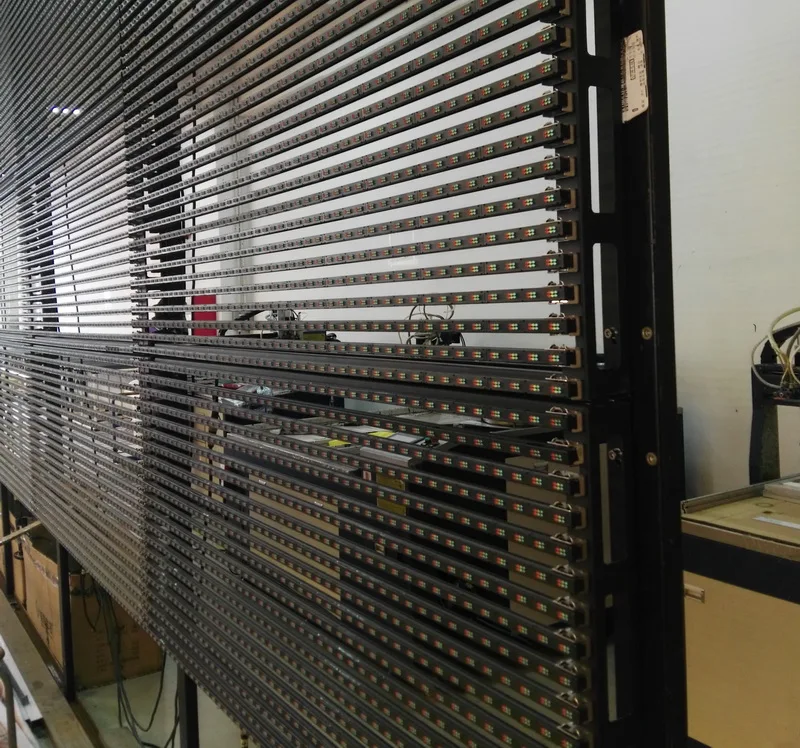

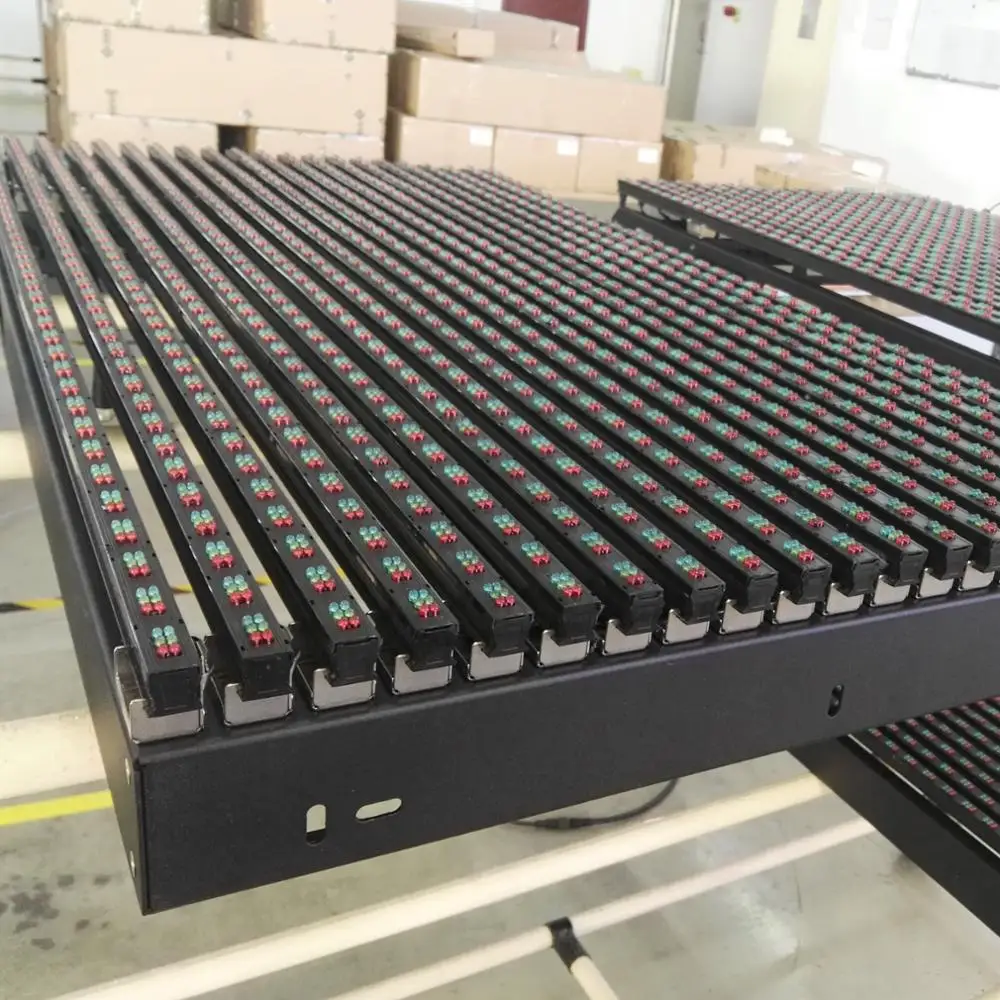

Detail Picture

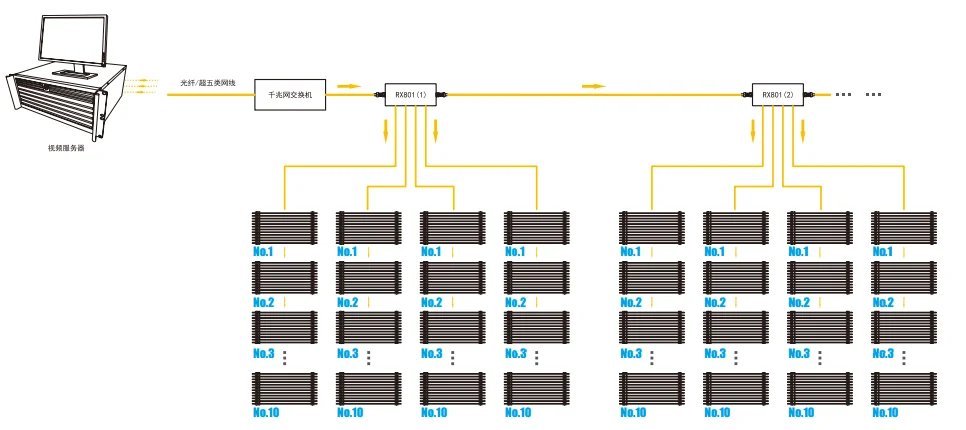

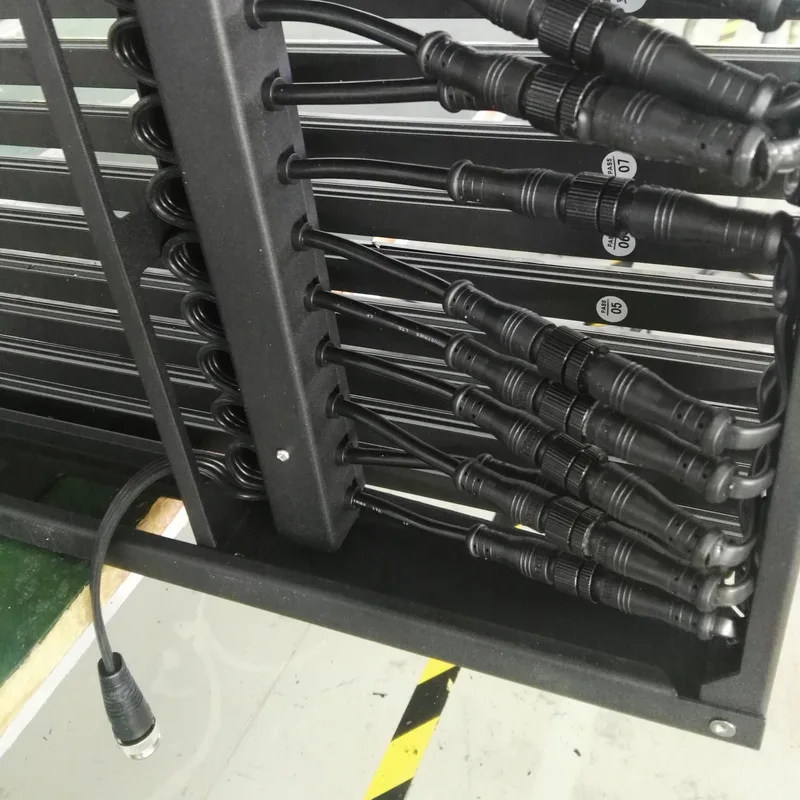

 System wiring:

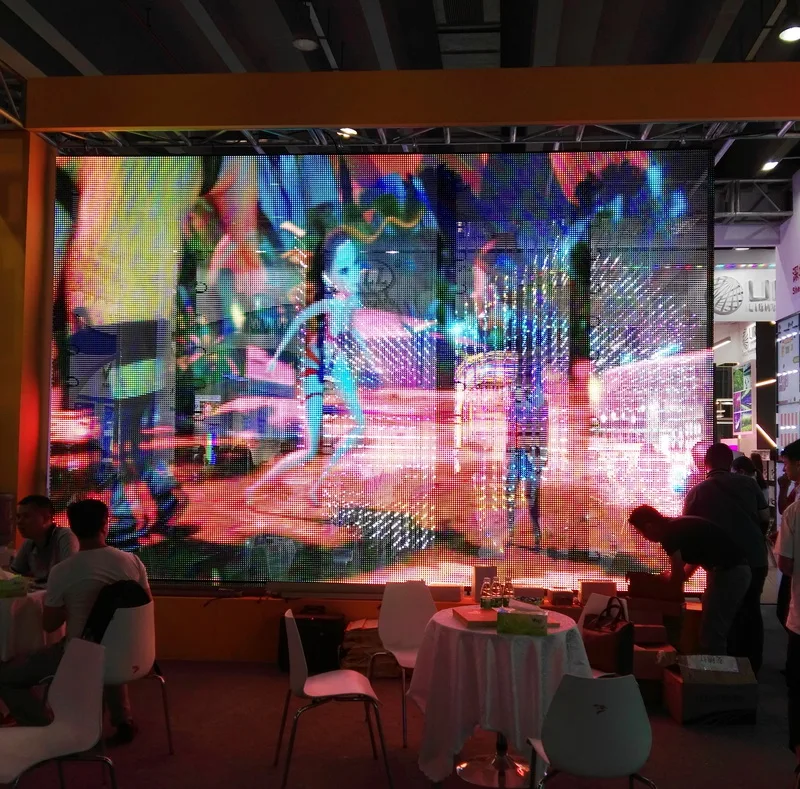

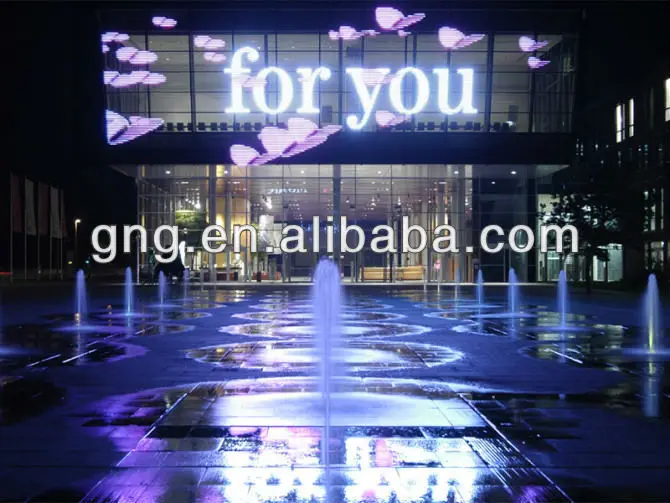

Application



Flexible Louver LED Screen  could be used in outdoor and indoor environment such as cultural or relax square, stage, hall, cinema, club, theatre etc., with various real-time signal sources and propagandize various advertising and provide festival and party atmosphere, etc.





G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products







Good after-sales service:



After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.









1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc

   100% payment if the total amount less than 5000USD

   30% deposit and 70% balance before shipment if the total amount is more than 5000USD

2.Lead time:5-7 working days,subject to the order quantity

3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc

4.Sample is available, Don't limit the quantity
