1000 Kg 2000 Kg 2500 Kg Capacity 1600 7200 mm Driver seated electric forklift reach truck
- Category: >>>
- Supplier: Anhui Yufeng Equipment Co. Ltd.
Share on (60715365375):
Product Overview
Description
Product Description
Standing electric forklift|48V Standing electric forklift|Standing electric forklift 2 ton|Standing electric forklift|48V Standing electric forklift|Standing electric forklift 2 ton|

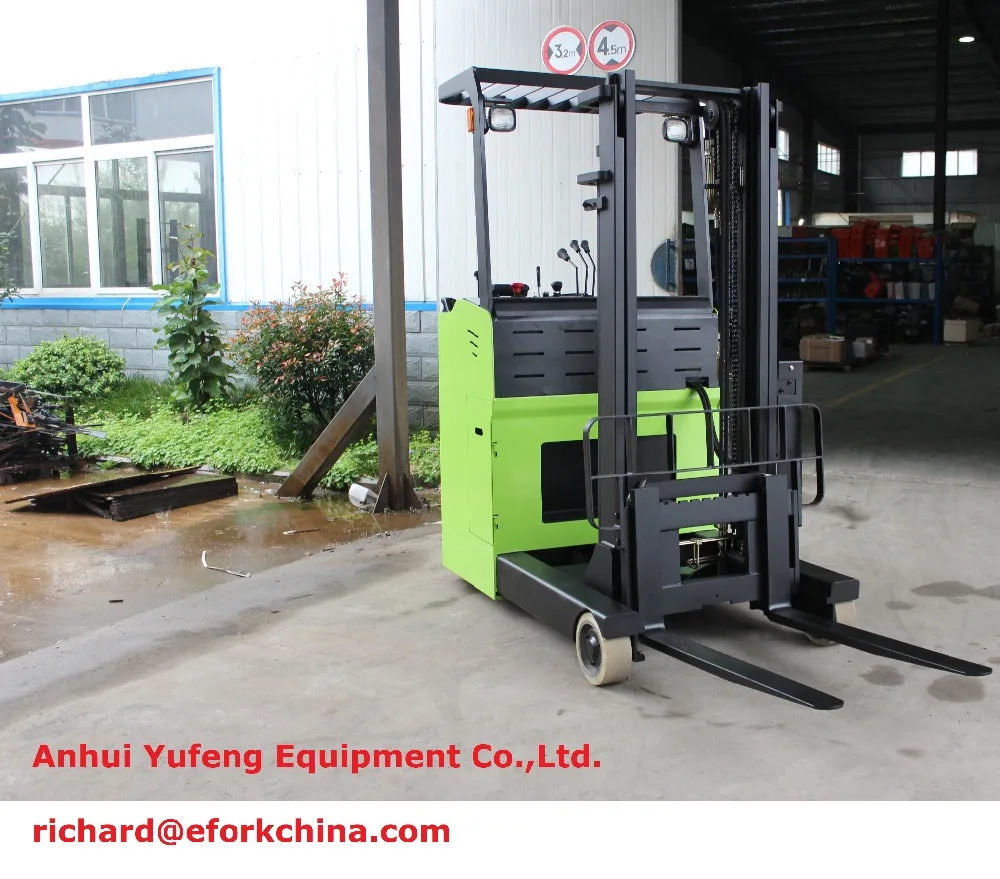

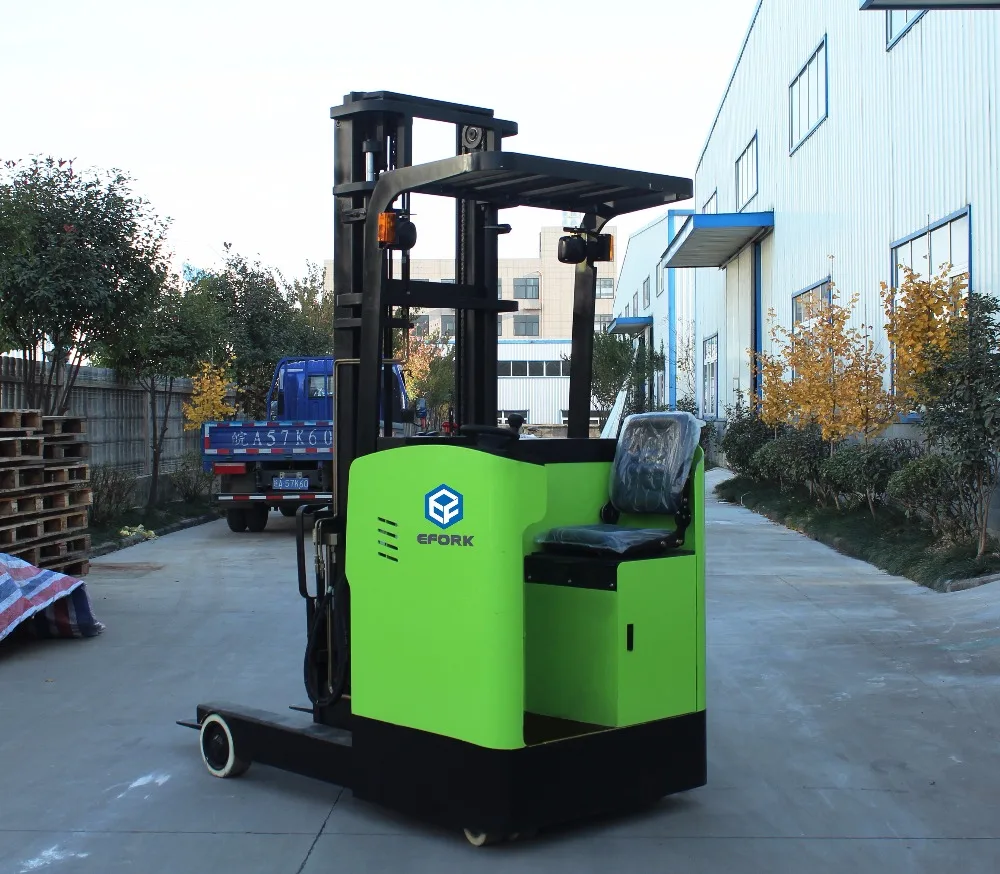

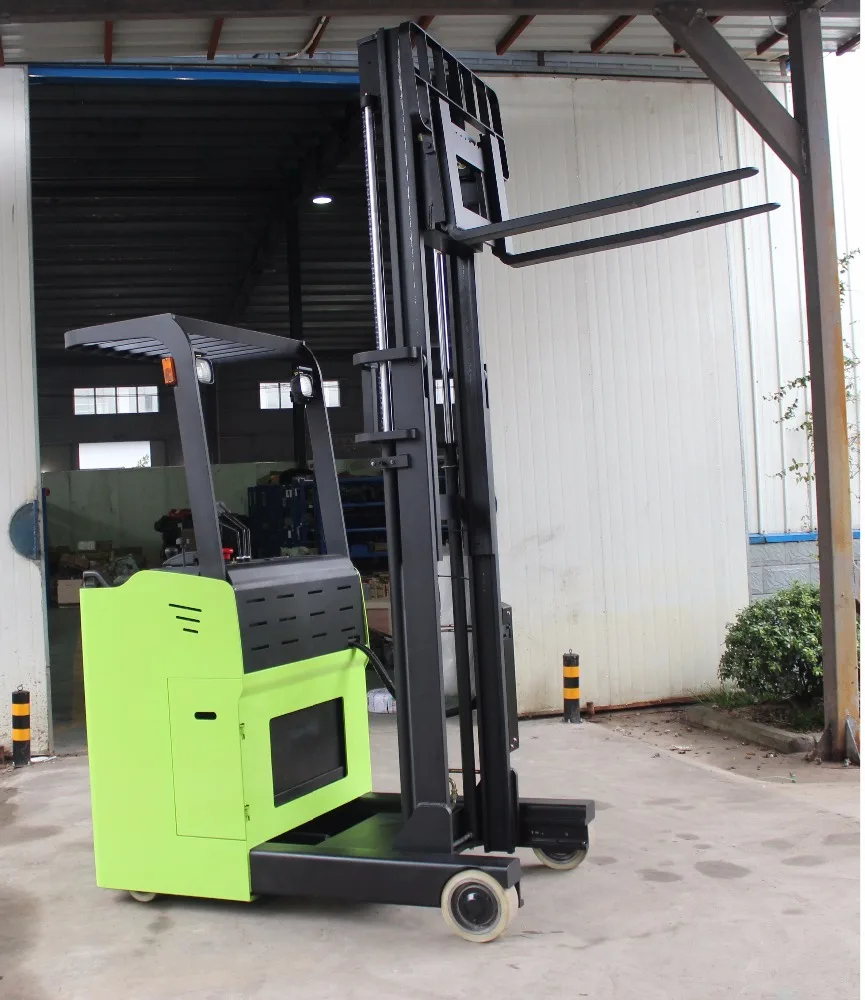

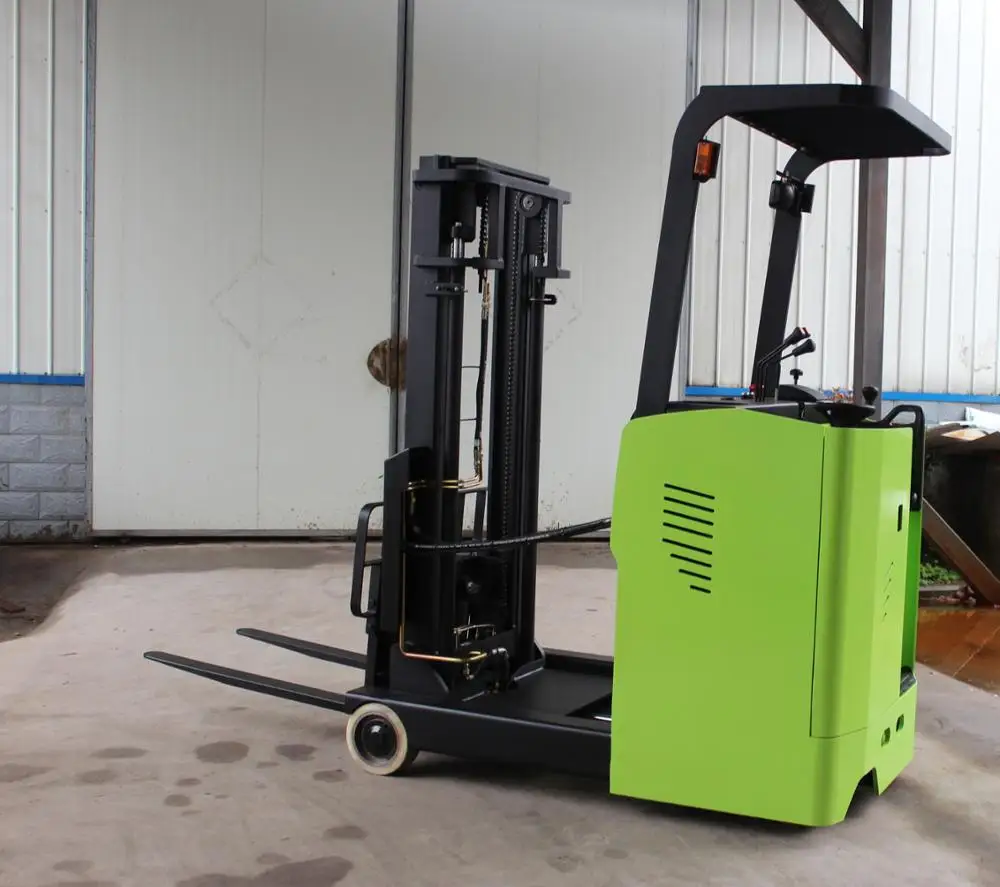

EFQ15/20/25 Series Seated-rider Electric Reach truck 1500/2000/2500 Kg Capacity,Max.Lifting Height 7200 mm
Features:
1.Max.lifting heigh is 7200 mm,supporting all your demands;
2.Imported Amercian curtis controller,highly reliable and stable performance;
3.Vertical AC driving wheel,easy to manitenance;
4.Standing-in operating with EPS wheel steering;
5.48V large capacity battery provide long working hour;
6.Germany ZF gearbox
7.Max.mast reaching distance up to 720 mm
8.Suitable for singel-deck&double-deck pallets
9.Large wheels have high through rating
10.Strong mast made of top quality U-steels
11.Low nosie&lower vibration hydraulic pumps for smooth lifting/lowering
12.Side shiter selected option;
13.Mast tilt as standard option
More VNA forklift trucks,such as 3-way electric stacker,4-direction reach truck,will fit all your needs.Pls feel free to contact for further information:whatsapp +86-18326192573

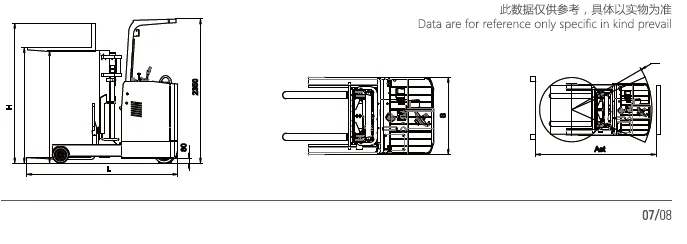

Specification:
Name | Standing Type Reach Truck (48V) | |||
Operation type | Standing Type | |||
Model No. | Unit | EFQ15-30 | EFQ 20-30 | EFQ 25-30 |
Power type |
| Full-Electric | Full-Electric | Full-Electric |
Load Capacity | KG | 1500 | 2000 | 2500 |
Max lifting height | H2(mm) | 3000 | 3000 | 3000 |
Load center | C(mm) | 500 | 500 | 500 |
Wheel type |
| Pu solid tire | ||
The door frame tilt angle |
| 3/5 | 3/5 | 3/5 |
Fork dimensions | mm | 1070*100*35 | 1070*122*40 | 1070*122*40 |
Fork spread | mm | 225-740 | 269-802 | 269-802 |
Reach distance | mm | 605 | 720 | 720 |
Overall length including fork | L(mm) | 2240 | 2470 | 2470 |
Overall width | S(mm) | 1098 | 1260 | 1260 |
Height--Mast Lowered | H1(mm) | 2100 | 2100 | 2100 |
Maximum height when fork is lifting | H(mm) | 3900 | 3900 | 3900 |
Turning radius (outside) | Wa(mm) | 1615 | 1970 | 1970 |
The height of overhead guards | mm | 2280 | 2280 | 2280 |
Min. stacking aisle (1000x1200,1200 along fork) | mm | 2786 | 2940 | 2940 |
Min ground clearance | mm | 80 | ||
Max travel speed | Km/h | 6.5/7.2 | 6.8/7.8 | 6.8/7.8 |
Lifting speed | mm/s | 120/270 | 120/270 | 120/270 |
Grade ability | % | ≤10 | ≤10 | ≤10 |
Total weight | KG | 2300 | 2955 | 2955 |
Driving Wheel | mm | Ø343*108 | Ø382*142 | |
Front wheel | mm | Ø254*104 | Ø267*114 | |
Balance wheel | mm | Ø180*76 | Ø180*76 | |
Battery capacity | V/Ah | 48/300 | 48/400 | 48/400 |
Charger-Intelligent | V/A | 48/40 | 48/50 | 48/50 |
Driving motor | Kw | 4.5 | 5.0 | 5.0 |
Lifting motor | Kw | 6.3 | 6.3 | 6.3 |
Drive Controller Type |
| 4.5(AC) | 5.0(AC) | 5.0(AC) |
Walking Adjustable Type |
| Holzer type accelerator | ||
Walkie brake type |
| Electromagnetic braking | ||
Parking brake type |
| Electromagnetic braking | ||
Packaging & Shipping
- Packaging Details: With nude package or wooden box ( Optional ) for 48V Standing electric forklift 2 ton 4 M for Logistic Place
- Delivery Detail: Shipped in 25 days after payment
Our Services
More Products maybe you interested, please contact us
How to contact us? please visit //www.eforkchina.com
Send your Inquiry Details in the Below, Click "Send" Now!
our Wechat/whatsapp is 008615156565967
After-sale Service
All the product of EFORK supplied with one year or 1000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
Company Information
Anhui Yufeng Equipment Co.,Ltd. is an ISO9001:2008 accredited enterprises which has been involved in manufacturing and exporting warehouse equipment for many years.Supplying various types of warehouse equipment in Aisa,South America,Middle east,etc.Available products cover electric forklift,VNA forklift,reach truck,electric stacdker,powered pallet truck,aerial order picker and towing tractor,etc.Because of our focusing on quality and customer service,nowadays the brand EFORK enjoys more and more customers' favor at home and abroad.
We're looking forward to support your demands and let's work together for a brilliant future.
FAQ
1.What's the Certificate do you have?
EFORK workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. (Include some forklift parts) Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
EFORK will try its best to meet all kinds of clients' special requirements. And our advantage is to made non-standard forklift. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 1000 working hours whichever occurs first. Details to see the EFORK warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 15 days to 90 days.
8. How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
