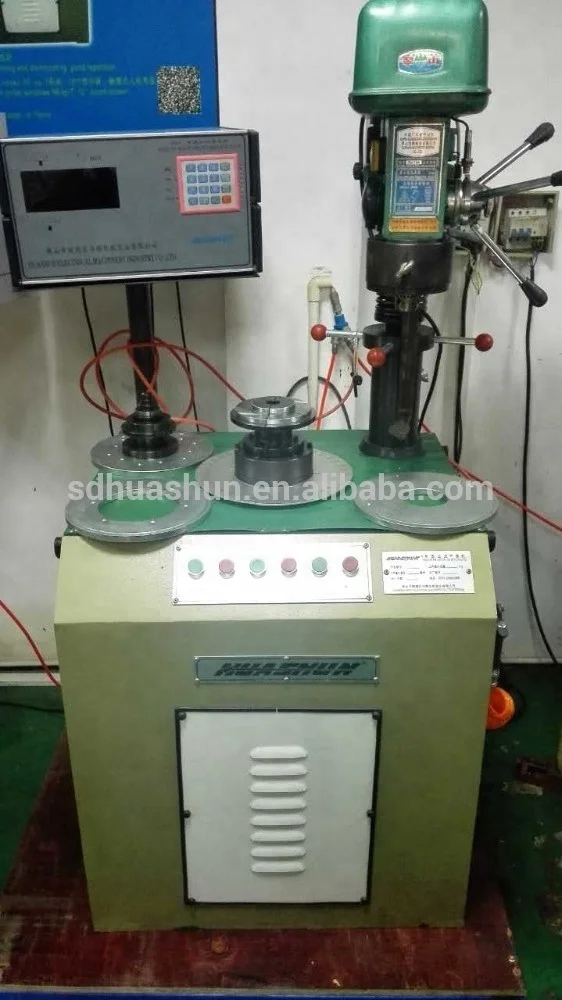

HUASHUN hot sale vertical pulley balancing machine

Price:RUB 75,818.00 - RUB 758,180.00

Quantity:

Product Description

Technical Parameters

Type of balancing machine	Single-plane vertical balancing machien
Specifications/type	HJ200-PI
Max. mass of works(kg)	200
Max. dia. of works (mm)	≤900
Max. dia of the drill head (mm)	16
Workpiece's height(mm)	≤180
Balancing speed area(r/min)	700r/min
Min. achievable residual unbalance amount emar(g.mm/kg)	≤5
Loading capacity of the entire machine	3.5KVA
Unbalance reduction ratio (%)	≥90

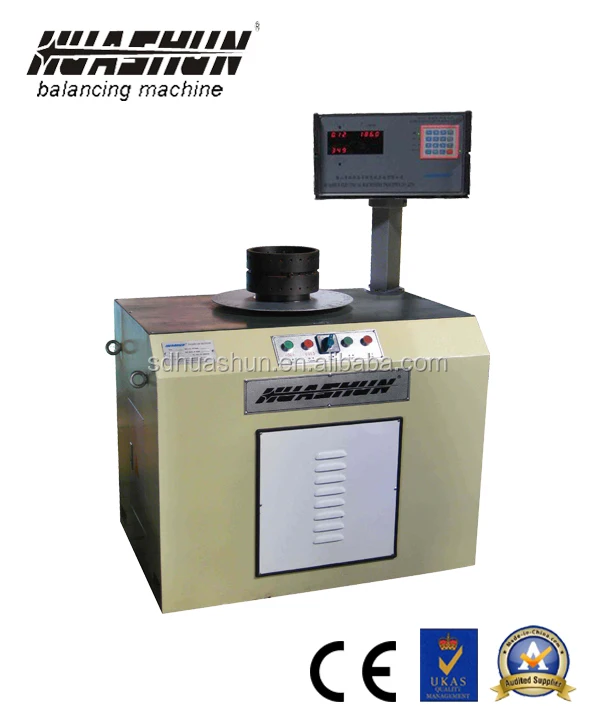

HUASHUN HJ200-PI single plane vertical fan balancing machine

Leading & Unique technology in the industry—pneumatic clamping solution

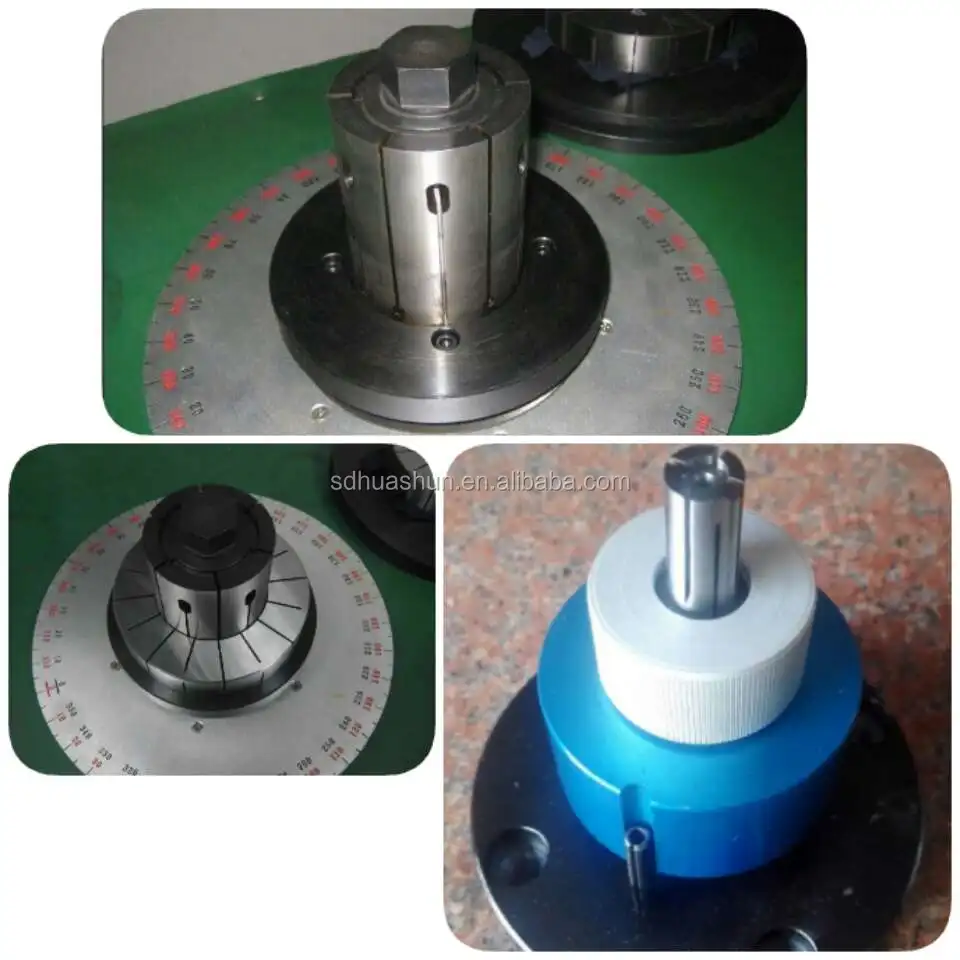

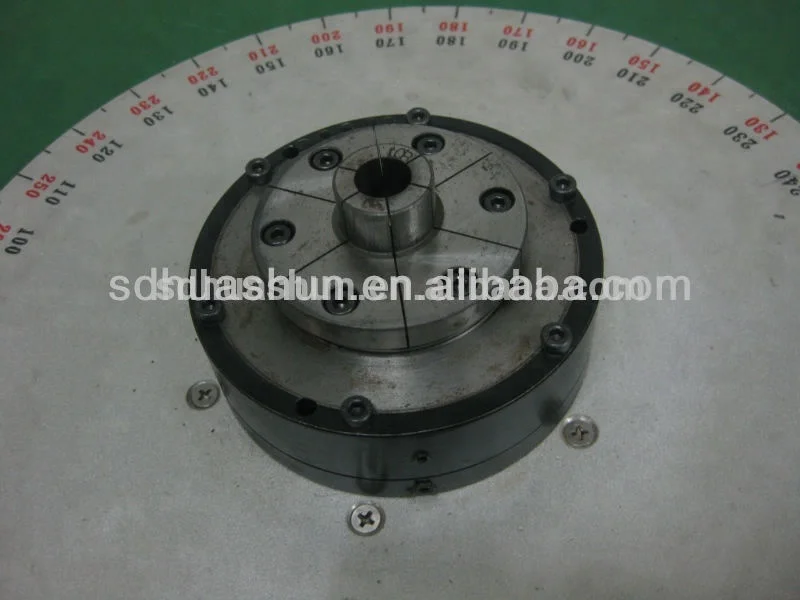

High precision internal expansion chuck

Repeatability precision ≤ 0.01mm

Speed ≤ 3000rpm

Life > 100000 times

Min expansion & clamping inner hole dia. 5 mm

Rotation radial flee movement ≤ 0.01mm

HUASHUN HJ200-PI single plane vertical fan balancing machine
