HSJP 100A Sheet Extruder for PP Plastic Thermoforming Machine Engineers Available to Service Machinery Overseas PS PET Material
- Category: >>>
- Supplier: Zhejiang Honghua Machinery Plastic & Rubber Co. Ltd.
Share on (60715383554):
Product Overview
Description
Our Advantages
1. We are manufacturer with production experience for more than 20 years
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts

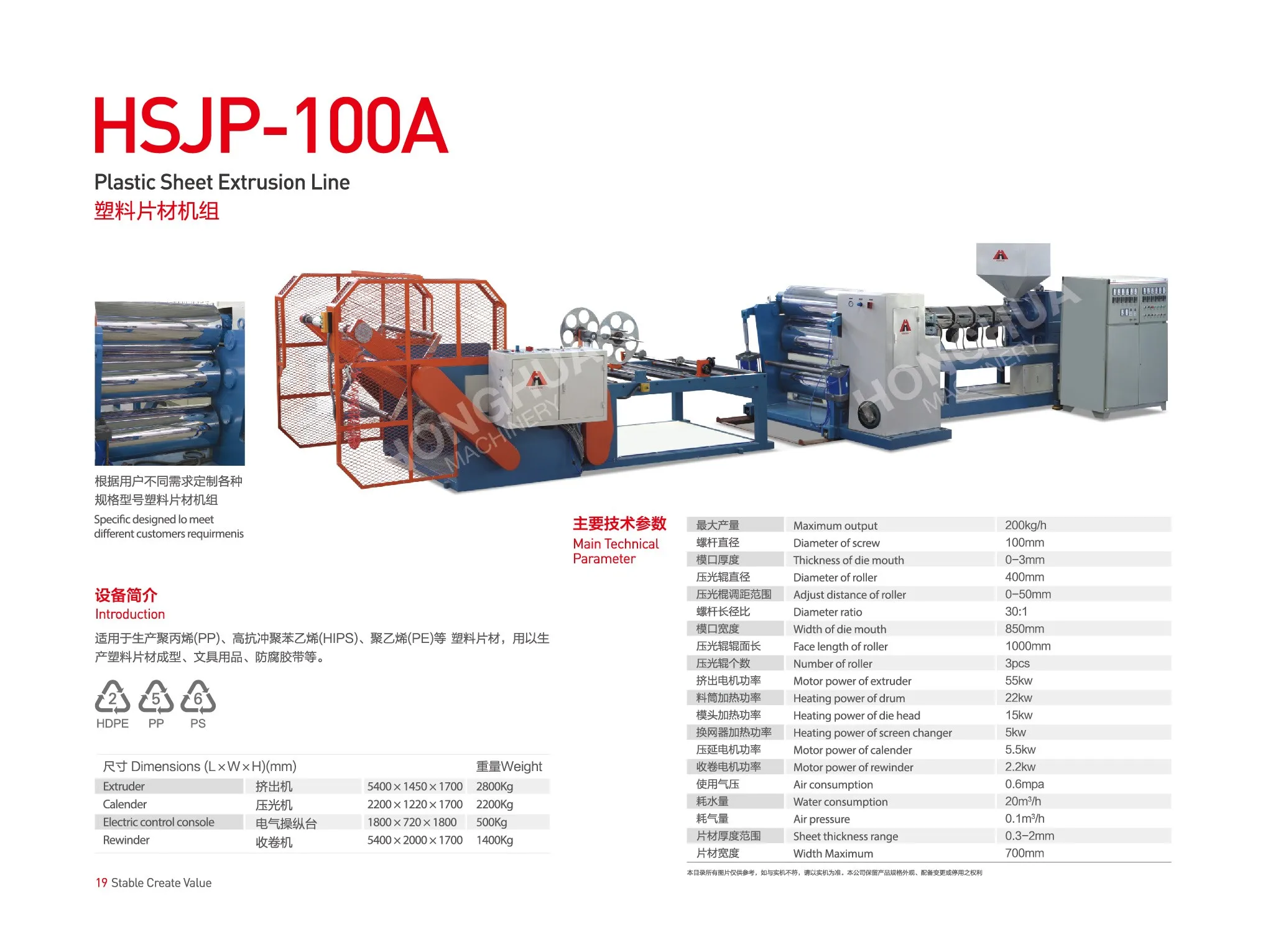

Product Paramenters
Max output | 200kg/h |
Diameter of screw | 100mm |
Thickness of die mouth | 0-3mm |
Diameter of roller | 400mm |
Adjust distance of roller | 0-50mm |
Diameter ratio | 30:1 |
Width of die mouth | 850mm |
Face length of roller | 1000mm |
Number of roller | 3pcs |
Motor power of extruder | 55kw |
Heating power of drum | 22kw |
Heating power of die head | 15kw |
Heating power of screen changer | 5kw |
Motor power of calendar | 5.5kw |
Motor power of rewinder | 2.2kw |
Air consumption | 0.6mpa |
Water consumption | 20m3/h |
Air pressure | 0.1m3/j |
Sheet thickness range | 0.3-2mm |
Width Maximum | 700mm |
Products Description
INTRODUCTION:

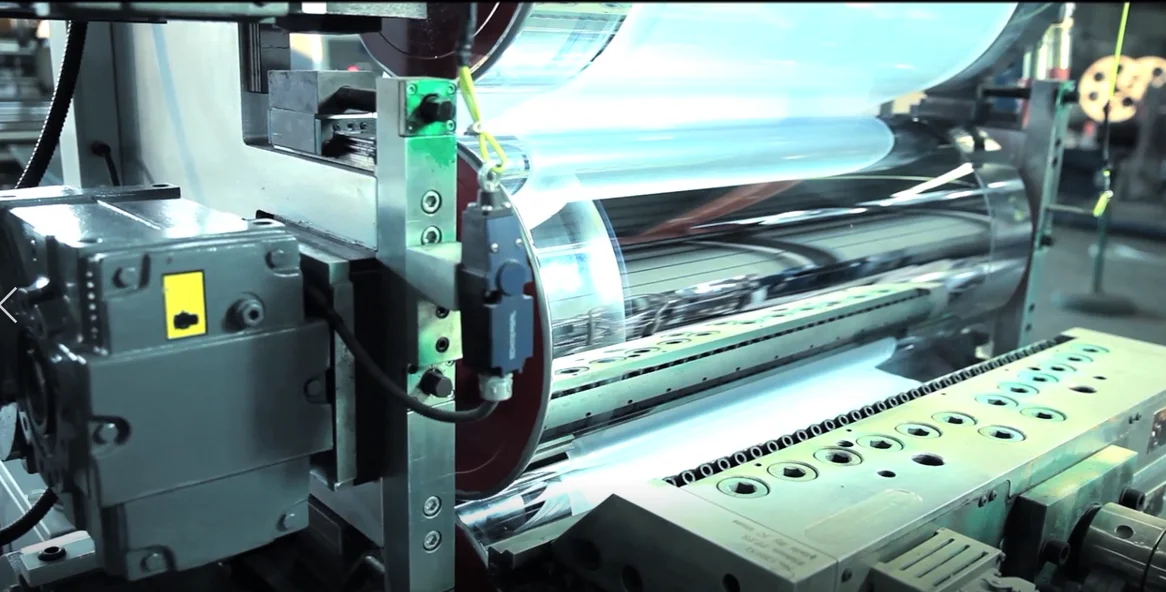

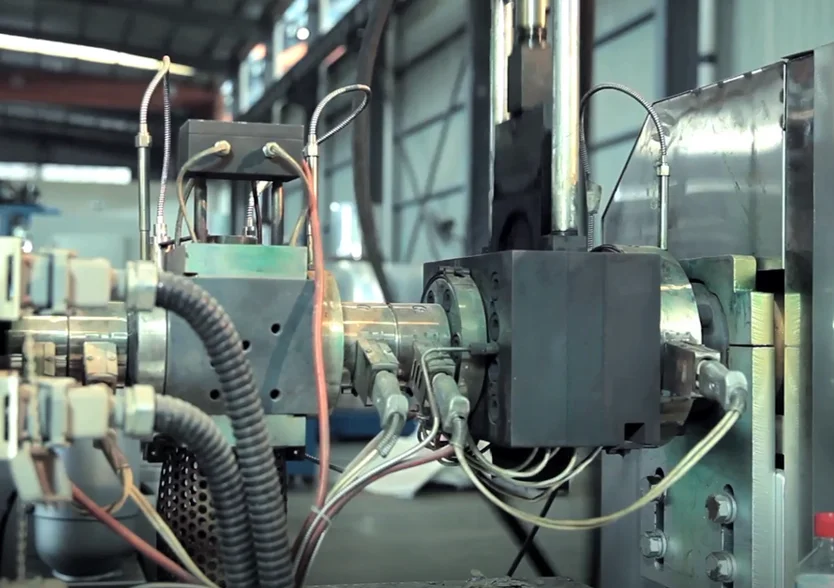

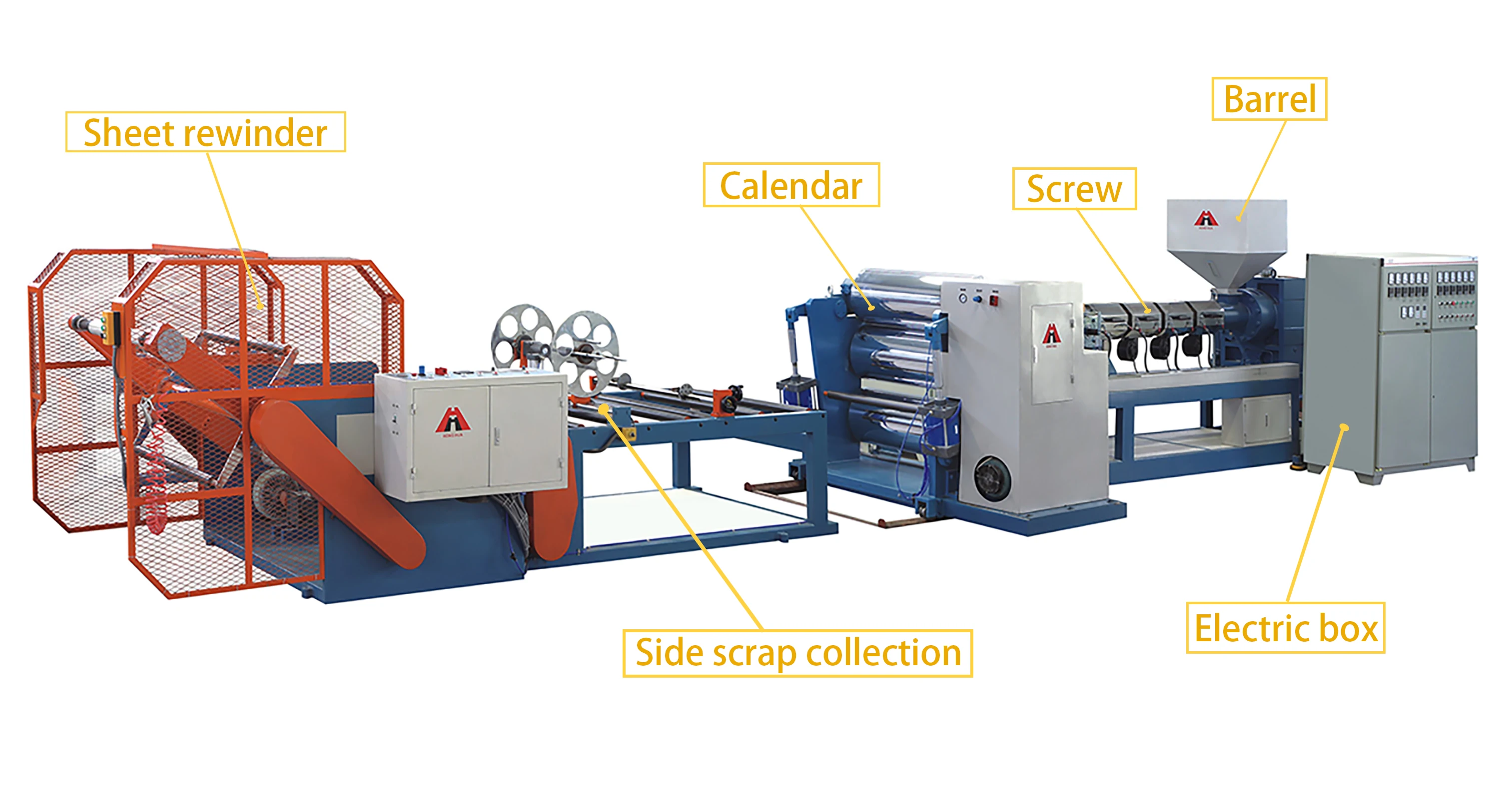

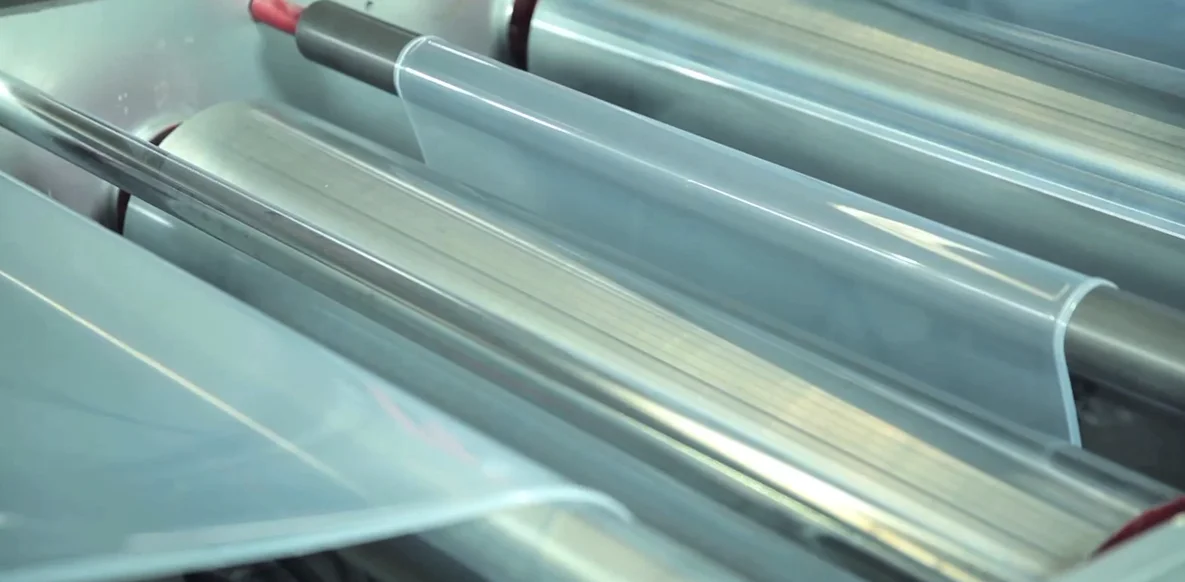

HSJP -100B plastic sheet unit is composed of extruder, three-roll calender, automatic traction winder, and electrical control cabinet. The barrel is newly designed, the height is reduced, and the multi-layer insulation module is installed to recover the heat energy of the screw stirring, which is used for drying and heating of raw materials to improve stability and production capacity.
HSJP -100B plastic sheet unit is composed of extruder, three-roll calender, automatic traction winder, and electrical control cabinet. The barrel is newly designed, the height is reduced, and the multi-layer insulation module is installed to recover the heat energy of the screw stirring, which is used for drying and heating of raw materials to improve stability and production capacity.
APPLICTION AREA:

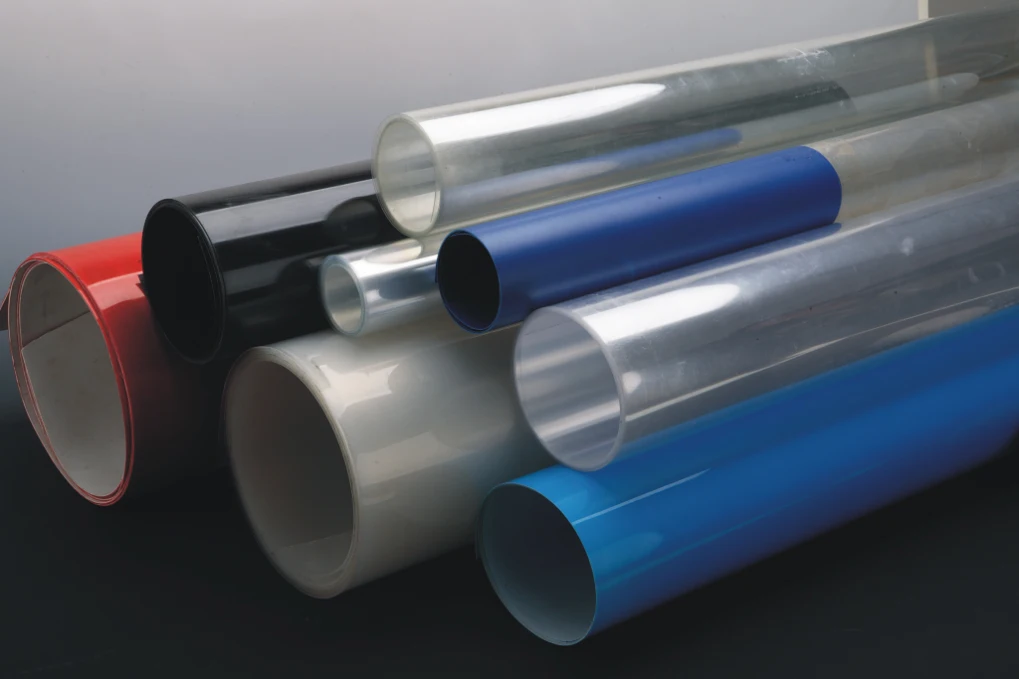

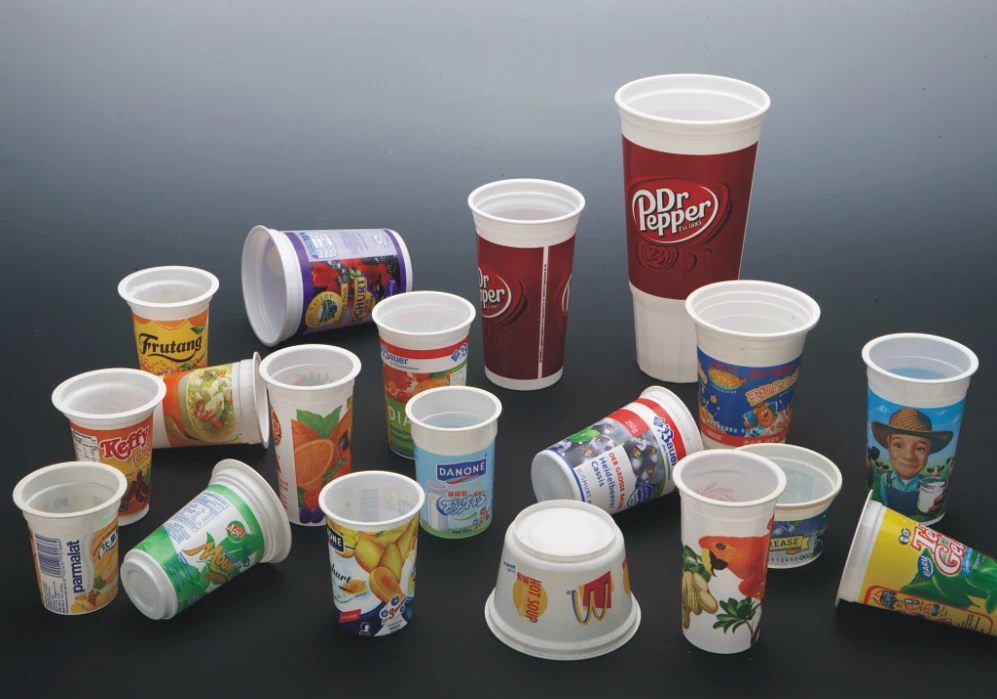

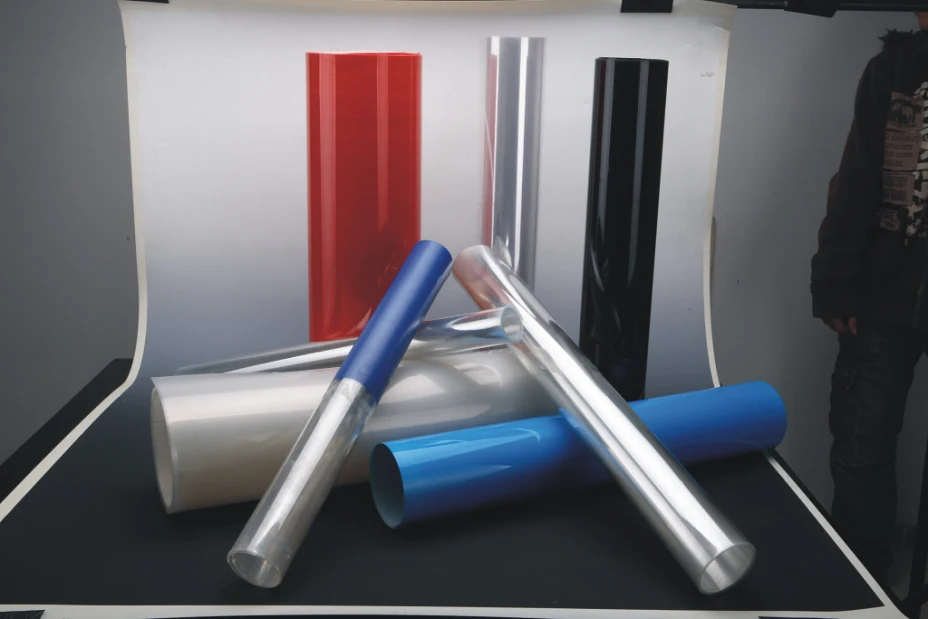

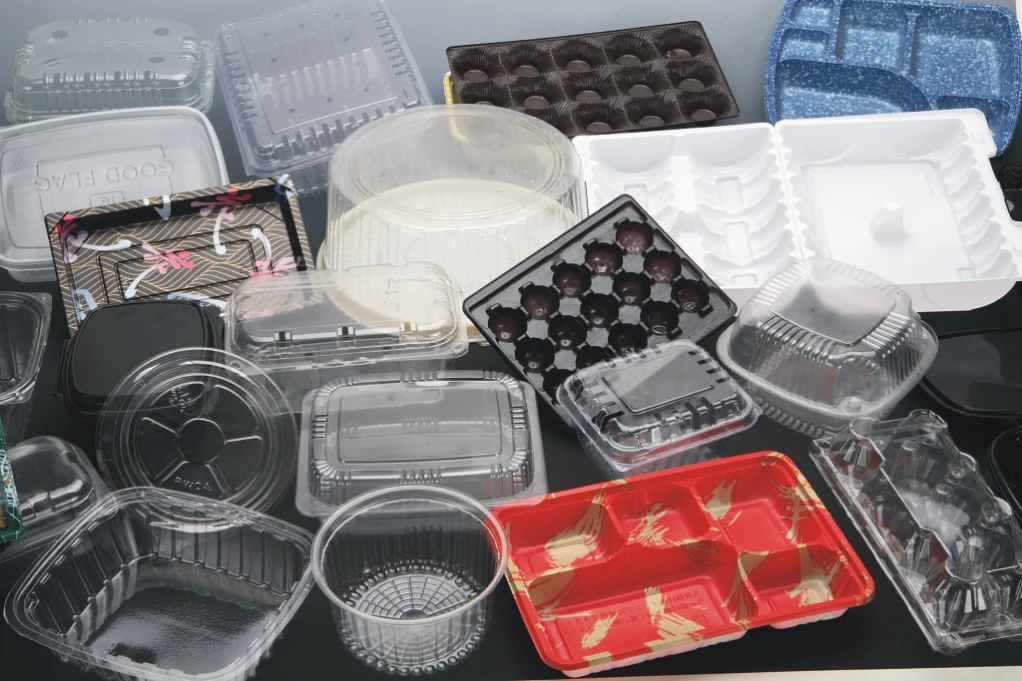

It is used for produce various plastic sheet of PP,PS,HIPS etc,which can be widely used for produce plastic formed sheet,stationery sheet,and adhesive tape withe corrosion resistance etc.
It is used for produce various plastic sheet of PP,PS,HIPS etc,which can be widely used for produce plastic formed sheet,stationery sheet,and adhesive tape withe corrosion resistance etc.
Our Workshop
Certifications
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
