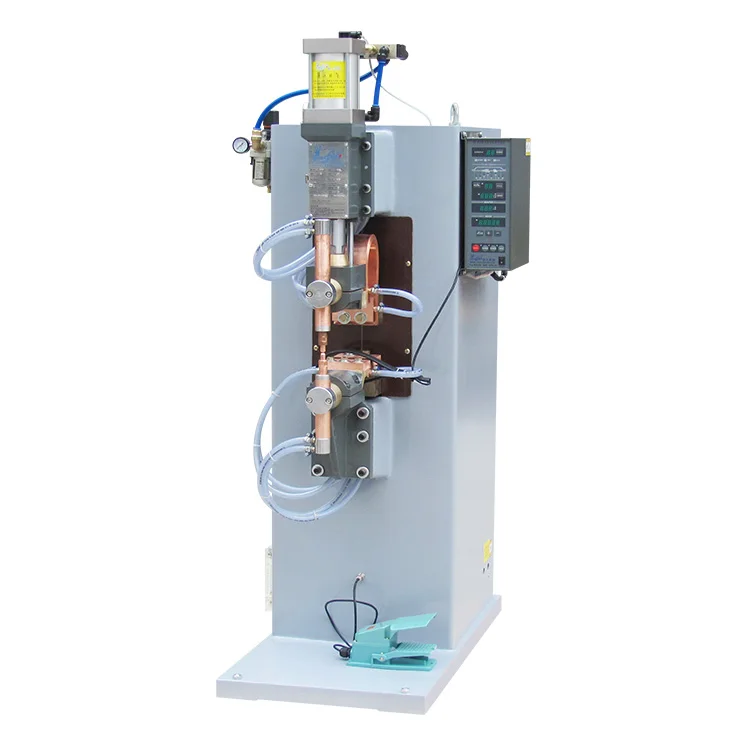

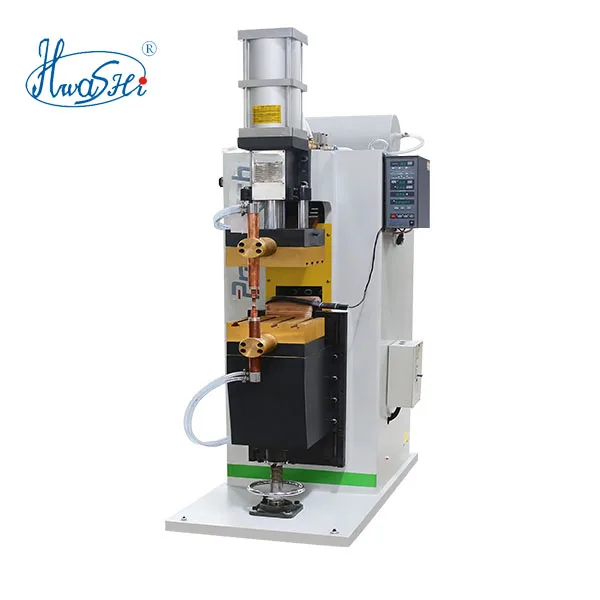

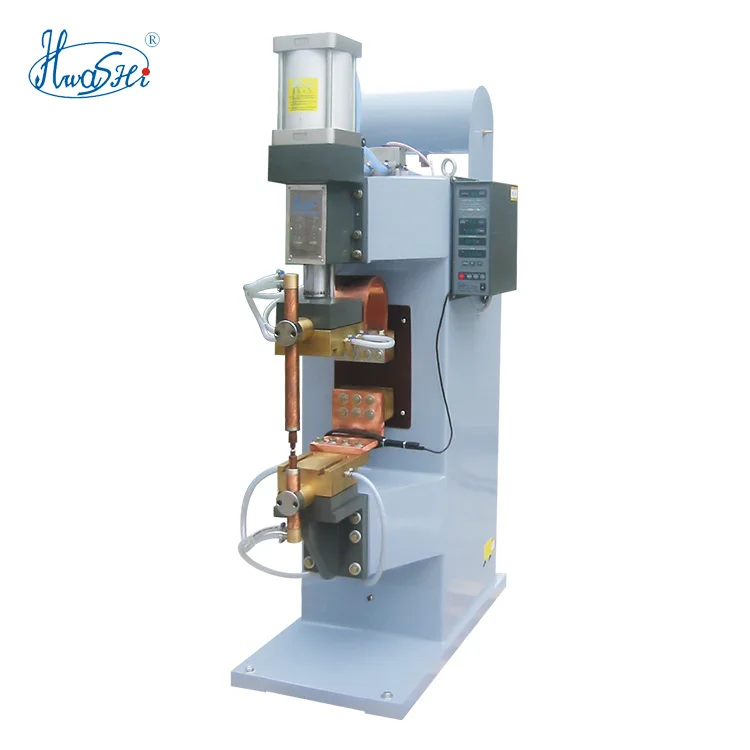

Single / Double Head Spot Welding Machine , Manual Spot Welder
- Category: >>>
- Supplier: Guangdong Hwashi Technology Inc.
Share on (60715467166):
Product Overview
Description
Product Description
Single / Double Head Spot Welding Machine , Manual Spot Welde
AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.
Intelligent welding control system
Intelligent Touch Screen Controller
Input and read welding parameters.
Input and read welding parameters.
Raw materials made to standard
Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding
Custom processing of electrodes
Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.
Shape structure and welding method
Design the right machine shape and mold according tothe welding product.
Features of The AC Pulse Spot Welding Machine
Special design integration of pressurized cylinder which can ensure stability and mobility of pressurized and welding speed.
1.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2.Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3.Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.
4.Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.
5.Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;
6.Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; adopt the quick exhaust cylinder, quick response, good servo performance.
7.Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.
1.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2.Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3.Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.
4.Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.
5.Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;
6.Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; adopt the quick exhaust cylinder, quick response, good servo performance.
7.Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.
Specification
Model | Input Voltage | Input Power | Output Current | Pressurization | Electrode Stroke | Closure | Platform Distance | Electrode Distance |
V | KVA | A | kg | mm | mm | mm | mm | |
WL-S-3K | 220/1 | 10 | 5000 | 200 | 50 | 65-115 | - | 145-165 |
WL-S-5K | 220/1 | 10 | 6000 | 200 | 50 | 65-115 | - | 145-165 |
WL-S-10K | 220/1 | 10 | 8000 | 200 | 50 | 65-115 | - | 145-165 |
WL-S-16K | 380/1 | 16 | 10000 | 300 | 80 | - | - | - |
WL-S-25K | 25 | 12000 | 300 | 80 | - | - | - | |
WL-S-35K | 35 | 16000 | 350 | 80 | - | - | - | |
WL-S-50K | 50 | 19500 | 500 | 80 | - | - | - | |
WL-SP-25K | 25 | 12000 | 300 | 80 | 145-225 | 250 | 320-420 | |
WL-SP-35K | 50 | 16000 | 350 | 80 | 145-225 | 250 | 320-420 | |
WL-SP-50K | 50 | 19500 | 500 | 80 | 145-225 | 250 | 320-420 | |
WL-SP-75K | 75 | 24000 | 1000 | 100 | 130-230 | 260 | 490-540 | |
WL-SP-100K | 100 | 34000 | 1000 | 100 | 130-230 | 260 | 490-540 | |
WL-SP-150K | 150 | 40000 | 1000 | 100 | 130-230 | 260 | 490-540 | |
WL-SP-200K | 200 | 50000 | 1500 | 100 | 130-230 | 260 | 490-540 | |
WL-P-75K | 75 | 24000 | 1000 | 100 | 130-230 | 260 | - | |
WL-P-100K | 100 | 34000 | 1000 | 100 | 130-230 | 260 | - | |
WL-P-150K | 150 | 40000 | 1000 | 100 | 130-230 | 260 | - | |
WL-P-200K | 200 | 50000 | 1500 | 100 | 130-230 | 260 | - | |
WL-P-300K | 300 | 75000 | 2000 | 100 | 130-230 | 260 | - |
Application Industry
It is suitable for the welding of low carbon steel, stainless steel, galvanized plate and other metals, and can realize the convex welding of plate and plate, metal wire mesh, plate and convex welding of nuts and studs. Widely used in hardware, sheet metal, home appliances, machinery, metal cabinets and other industries

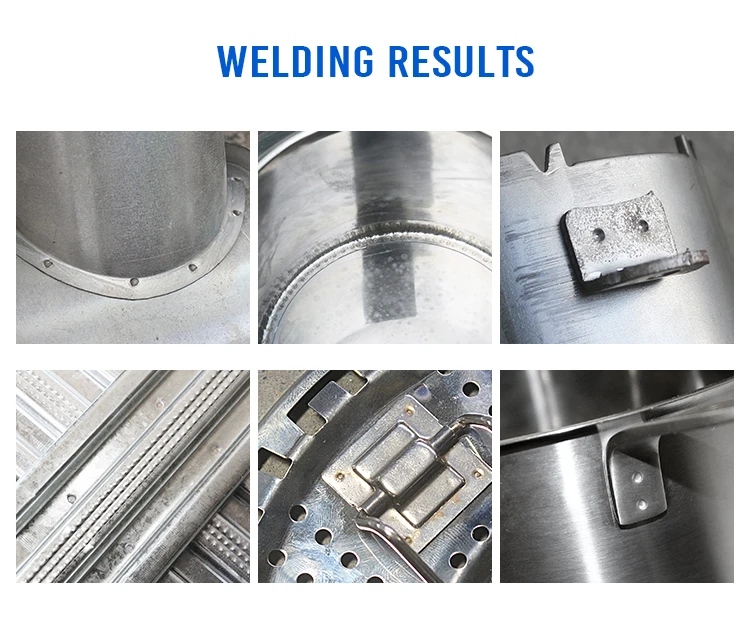

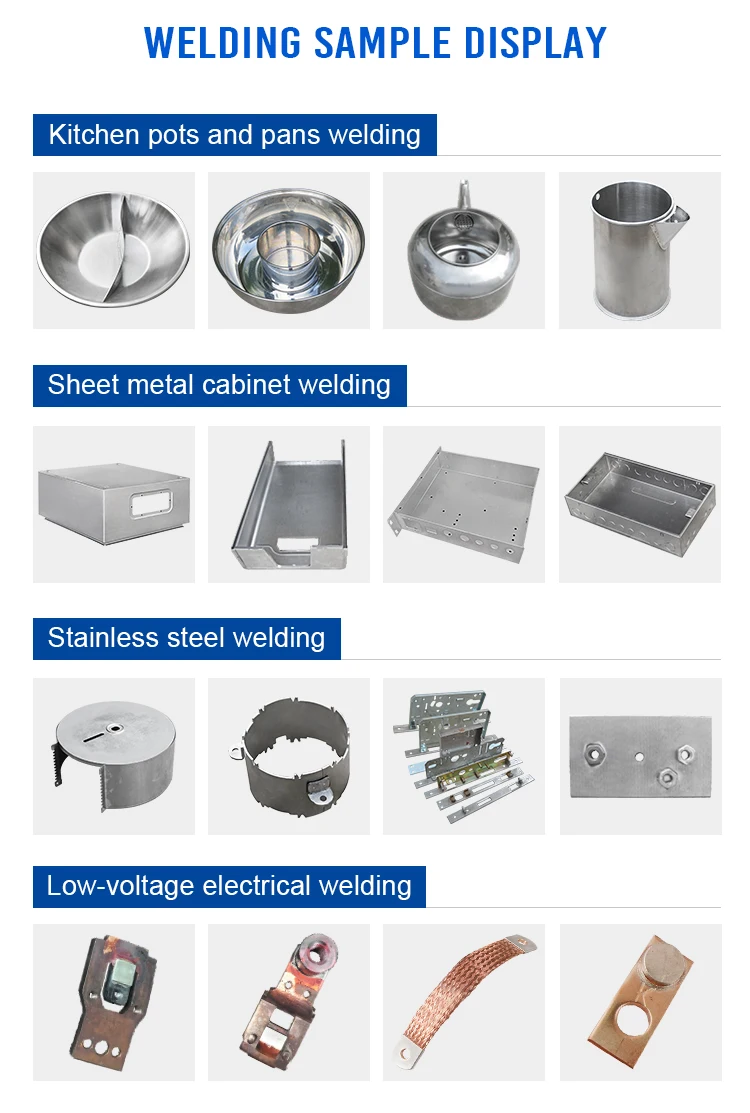

Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
Factory & Certificate
HWASHI 22 years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
Certifications
We have passed the international certifications such as CE certification, ISO 9001 quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting
1.spot welding machine 1 years warranty except consumable parts
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
Packing & Delivery
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
Service Team& feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
