High Precision Power Punch Press Machine With Decoiler Straightener NC Feeder Machine For Metal Hardware Parts Stamping
- Category: >>>
- Supplier: Shenzhen Hong-Er Machine Equipment Co. Ltd.
Share on (60715479535):
Product Overview
Description
High Precision Power Punch Press Machine With Decoiler Straightener NC Feeder Machine For Metal Hardware Parts Stamping
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Description :
1.The machine body is welded of quality steel sheel and treated by tension elimination. improve stability and reliability of precision of the machine
2. In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid board with balancer
3. The precision of mold adjusting up to 0.1mm,safety,reliable and convenient.
Description :
4.Crank,gear,connect bar are oxidized hardening and milled ,having super comprehensive mechanical performance and durable function
5. Reasonable structural design is convenient for automatic production and line production
6. Used reliable high intensity clutch/brake and twin eletromagnetic valve, overloading protector can guarantee safe production all-around

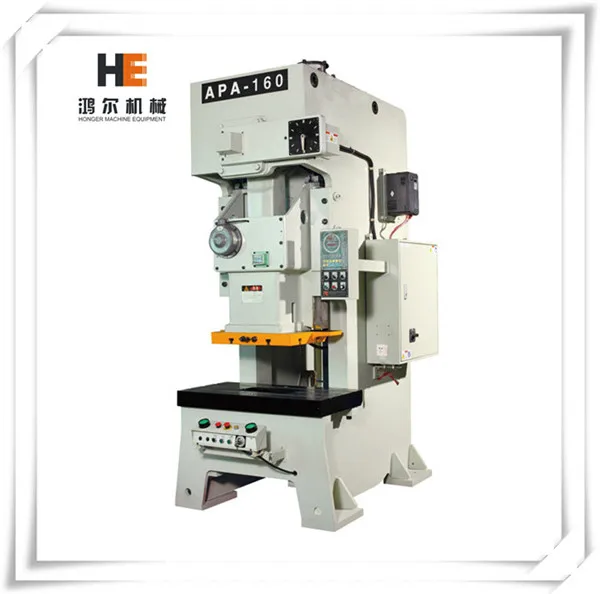

Specification for High Precision Press Machine APA-160 | ||||
Model | V | H | ||
Capacity (ton) | 160 | 160 | ||
Rated Tonnage Point (mm) | 6 | 3 | ||
Speed Changing (s.p.m) | 20-50 | 40-70 | ||
Stable Speed (s.p.m) | 35 | |||
Stroke (mm) | 200 | 90 | ||
Die Height (mm) | 460 | 510 | ||
Slide Adjustment (mm) | 100 | |||
Slide Area (mm) | 700 x 550 x 90 | |||
Bloster Area (mm) | 1250 x 800 x 140 | |||
Shank Hole (mm) | φ65 | |||
Main Motor (KW*P) | VS15 X 4 | |||
Slide Adjust Device | Electrial Driving | |||
Air Pressure (kg/cm²) | 6 | |||
Presses Pecision | GB/JIS 1 class | |||
Presses Dimension (mm) | 2300 x 1400 x 3800 | |||
Presses Weight (ton) | 16 | |||
Die Cushion Capacity (ton) | 10 | |||
Stroke (mm) | 80 | |||
Die Cushion Effective Area | 650 x 420 | |||
Product Features :
1.Reliability;
High rigidity, low integrated clearance
Small changing in mould height,small deviation of dynanmic center
The mould life in large scale
Small deviation of dynanmic center, the mold life in large scale, small transfiguration for press
2.Productivity;
High precision processing
High efficiency operation
Machine to ensure products of high quality
3. Operational;
Facilitate the operation of implementation
Fixed locking type six-surface guide way
Cutting low-noise
Safe and reliable operating state
Accessories :
Standard Unit | Optional |
Hydraulic over-load protector | Automatic Lubrication System |
Automatic Slide Adjust Device | Pneumatic Die Cushion Device |
Main Motor (adjustable ) | Foot Switch |
Balance Device | Fast Mould Change Devide (die lifter,clamp and die arm |
Rotary Cam Switch | Slide Knock -out Device |
Crank Angle Indicator | Misfeed Detection Consent |
Electrical Stroke Counter | Power Supply |
Air Source Receptacle | Anti-Vibration Pad |
Agaist over -run Safety Device | Photo-Electronic Safety Device |
Air Ejector | Touch Screen (Preset ,counter ) |

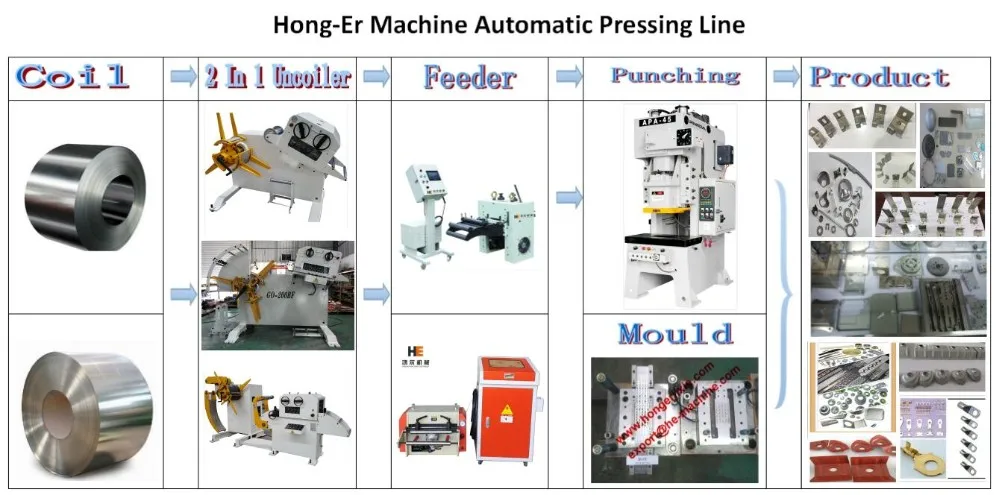

Application Layout
High Precision Press Machine are widely used for manufacturing in the industries of aviation & aerospace, ship & vehicles, electric and electronic appliances, instrument and apparatus ,medical facilities, hardware etc.
Final Product
\t\t\t\t\t\t\t\t\tDetails Images \t\t\t\t\t\t\t
Machine Parts
Name: Electro magnetic valve
Brand: MAC
Original: America
Use America MAC electro magnetic valve advanced on die point of stop device and overload to pretective device to assurance the punch press slide revolution and the stop reliability the accuracy the security
Machine Parts
Name: Bearing
Brand: NSK
Original: Japan
Use Japanese NSK bearing and high functional parts to guarant that supports components long term stability with high accuracy and age characteristic

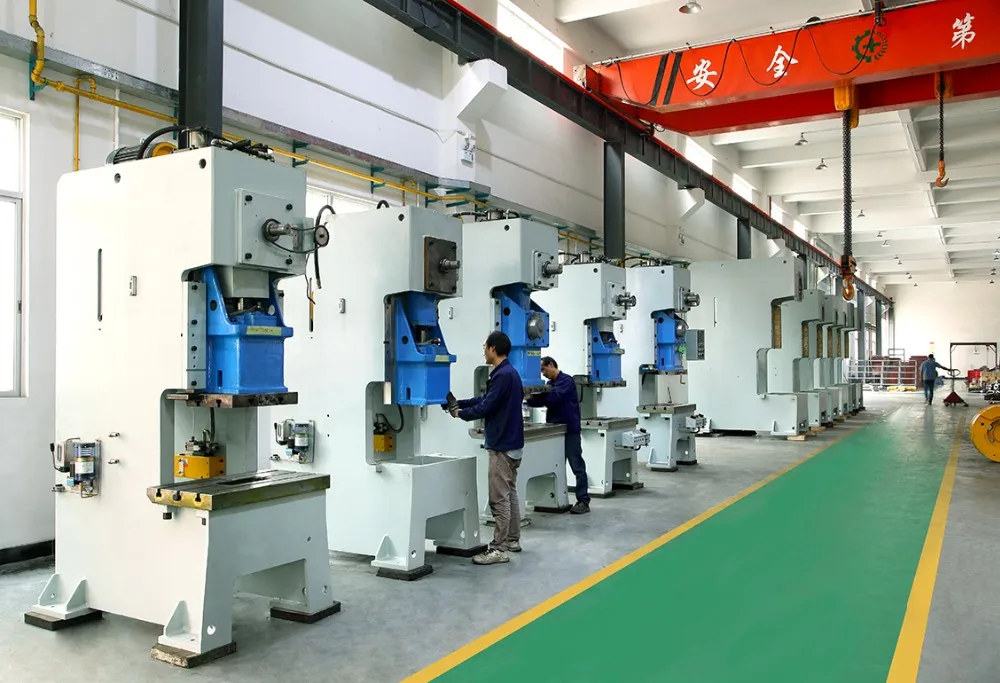

Assembly Workshop
High Precision Press Machine in Assembly
High Precision Grinding Machine
CNC Fabrication
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Our Service
Application Feasibility Test
24-7 sales service
Lifetime Technical Support
Free After-Sales Service 1 year
Customization
About HongEr Company
HongEr is one of the leading press peripheral equipment brand in China.
Our mission is to provide our customers with the very best quality coil handling solutions and after sales service.
We offer a wide range of coil handling equipments, including Decoiler, Straightener, Feeder, Press Machine and Dies, as well as numerous after sales services for individuals, small businesses, mid-sized and large companies and multinational corporations.
Metal coil processing can be carried out faster and more accurately with an HongEr machine for better reliability, less waste and improved productivity.
For more information about how our coil handling equipment can support your business and help improve your productivity contact us directly, we are always happy to work with customers to identify your exact requirements so we can provide the very best, tailored solution.

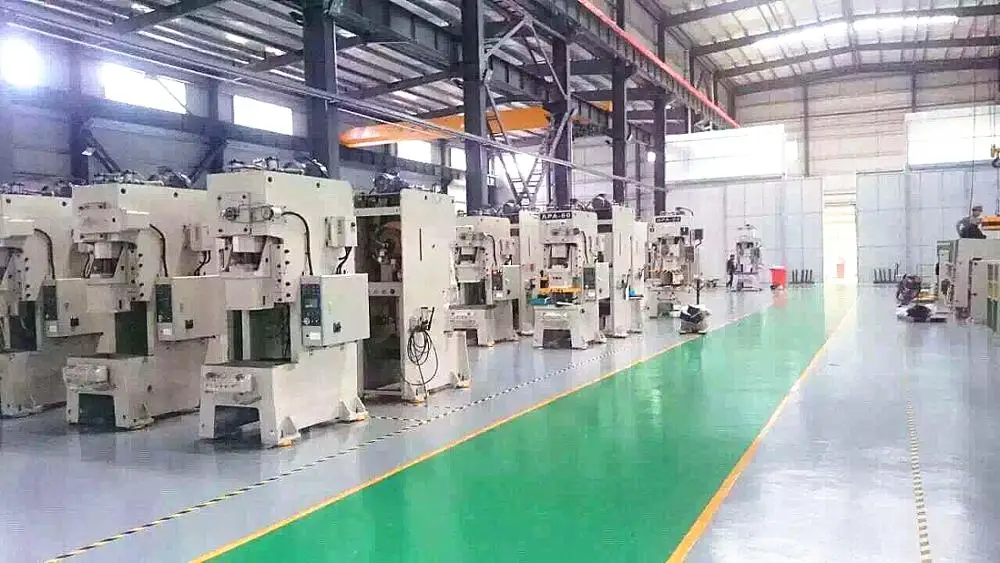

CNC Machining Workshop
Assembly Workshop
Certifications
Exhibitions
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it need 15-20 days for the press machine, if customized would require longer time
Q: How long is the warranty time?
A: 1 year warranty. If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q: How does your factory do regarding quality control?
A: Quality is priority. Hong-Er People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell ONLY standard machines?
A: No, most of our machines are made according to customers specifications, using international brand components.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us now.
