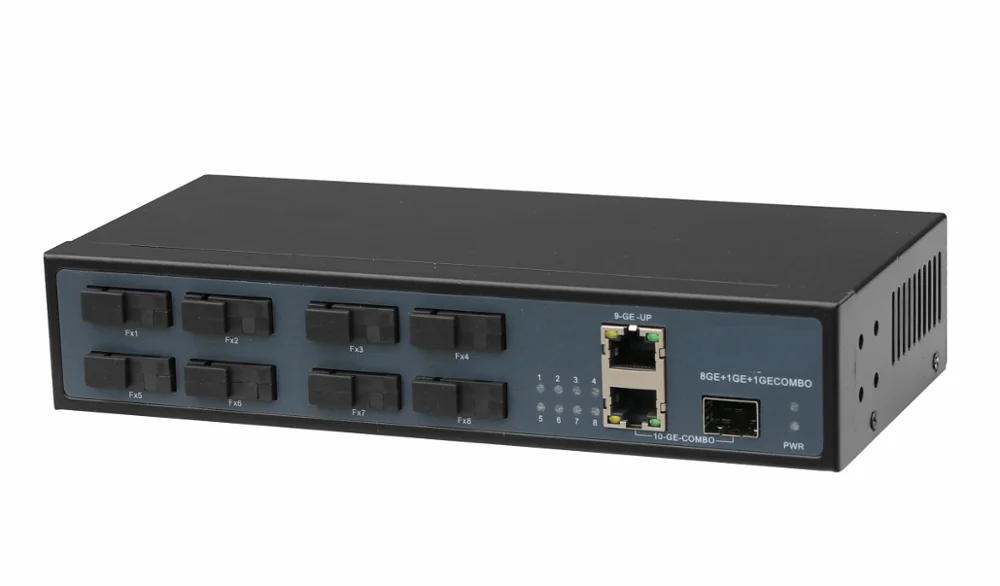

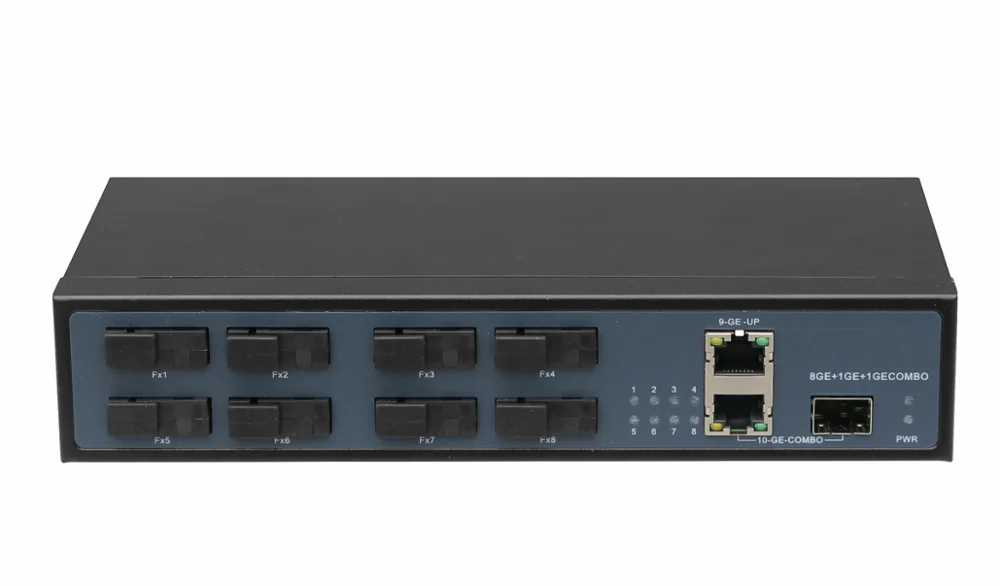

10 port fiber combo switch for hikvision cctv camera
- Category: >>>
- Supplier: Zhongshan Canstar Electronics Limited
Share on (60715516448):
Product Overview
Description

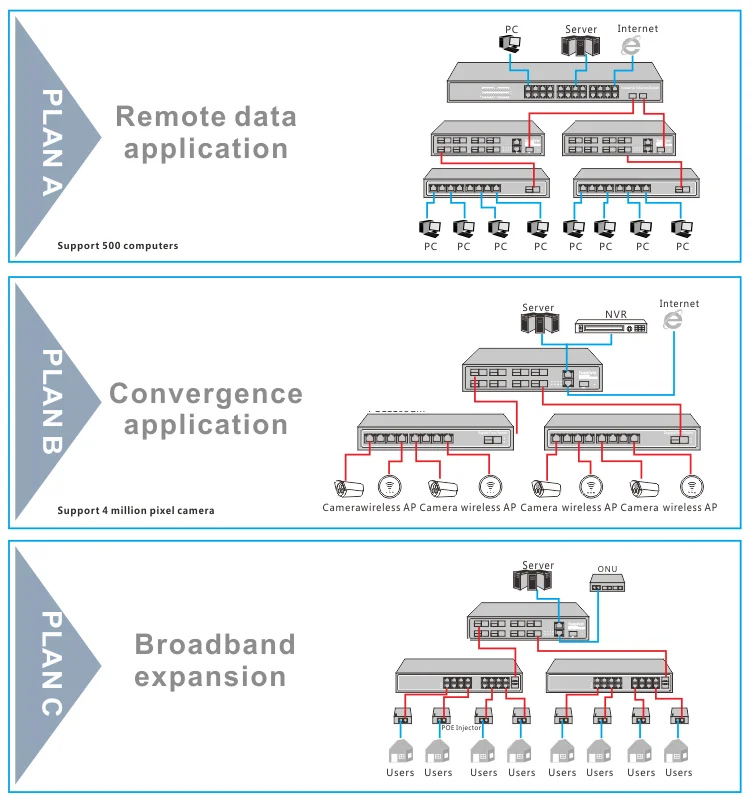

SWCA8208GMS Gigabit fiber switch, mainly for the industrial parks, buildings, factories, government offices and residential broadband network users aggregation layer or core layer, Realization long distance optical fiber connection.
Characteristic
1. Comply to IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,802.3X,802.3z
2. Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
3. Auto MDI/MDIX
4. Store-and-forward
5. All ports support wire speed switch, jumbo frame transmission.
6. Rj45 is self-adaption 10/100/1000M port
7. Support MAC address automatic study function, MAC address table gathered reach 8K
8. The default built-in 3 kilometers single mode single fiber module
9. Configurable: single fiber/ double fiber/ single mode/multimode

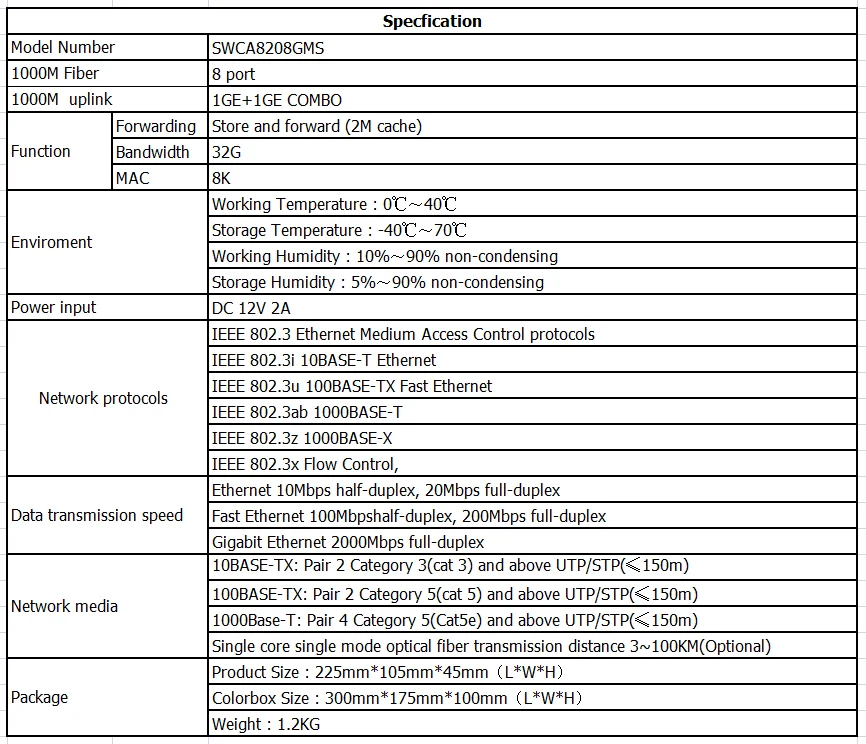

Specifications
Model: SWCA8208GMS
Describe: 8GE FX+1GE+1GE COMBO
Indicating lamp Explain
| Indicating | Explain |
| 1-8 | Corresponding port indicating |
| PWR | Power Indicating |
| Rj45 orange | 1000M Speed |
| Rj45 green | 10/100M Speed |
