4NFCY AC Air Condition AIR Compressor Price List Open Type Compressor
- Category: >>>
- Supplier: Shenzhen J-He Industrial Co. Limited
Share on (60715602134):
Product Overview
Description
Product Description
air compressor is used for bus air conditioner, it suitable for 7meters to 13.5 meters bus and double-decker bus.Create a healthy,comfortable,environment friendly and fashionable travel environment.(Suit for CHINESE Yutong, Kinglong, etc, KOREAN Hyundai, Daewoo, JAPANESE Hino, Suzuki, UD, NISSAN, etc. EUROPEAN Scania, Caterpillar, Volvo, etc.)
Compressor Technical Data
| Number of cylinders | 4 |
| Bore | 70mm |
| Stroke | 42mm |
| Cylinder volume | 647 cm3 |
| Displacement(1450/3000 rpm) | 56.20/116.40 m3/h |
| Allowed speed range | 500...3500 1/min |
| Magnetic clutch 12V or 24V DC | LA16 Option |
| Mass Moment of intertia | 0.0043kgm2 |
| Max. pressure(LP/HP)1) | 19/28 bar |
| Connection suction line SV | 35MM - 1 3/8" |
| Connection discharge line DV | 35MM - 1 3/8" |
| Lubrication | oil pump |
| Oil type R134a | BSE 55 (Option) |
| Oil type R22 | B5.2 (Standard) |
| Oil charge | 2.0 dm3 |
| Crankcase heater | 70W 12V or 24V DC (Option) |
| Pressure relief valve | Standard |
| Net Weight | 33kgs |
| Gross Weight | 35kgs |
| Dimensions | 385*325*370mm |
| Packing Size | 440*350*400mm |

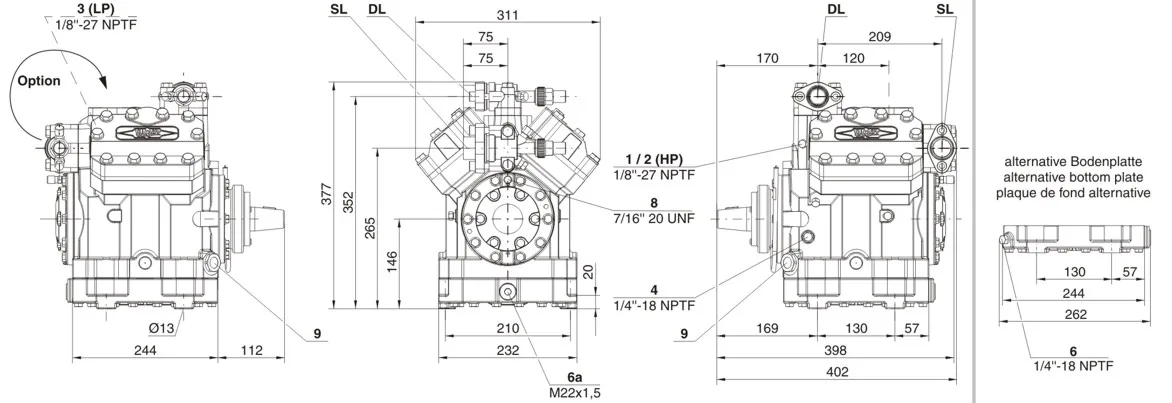

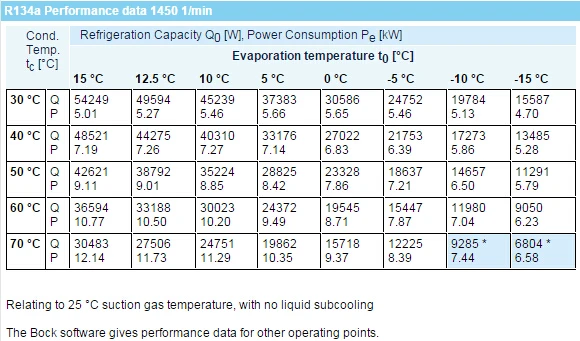

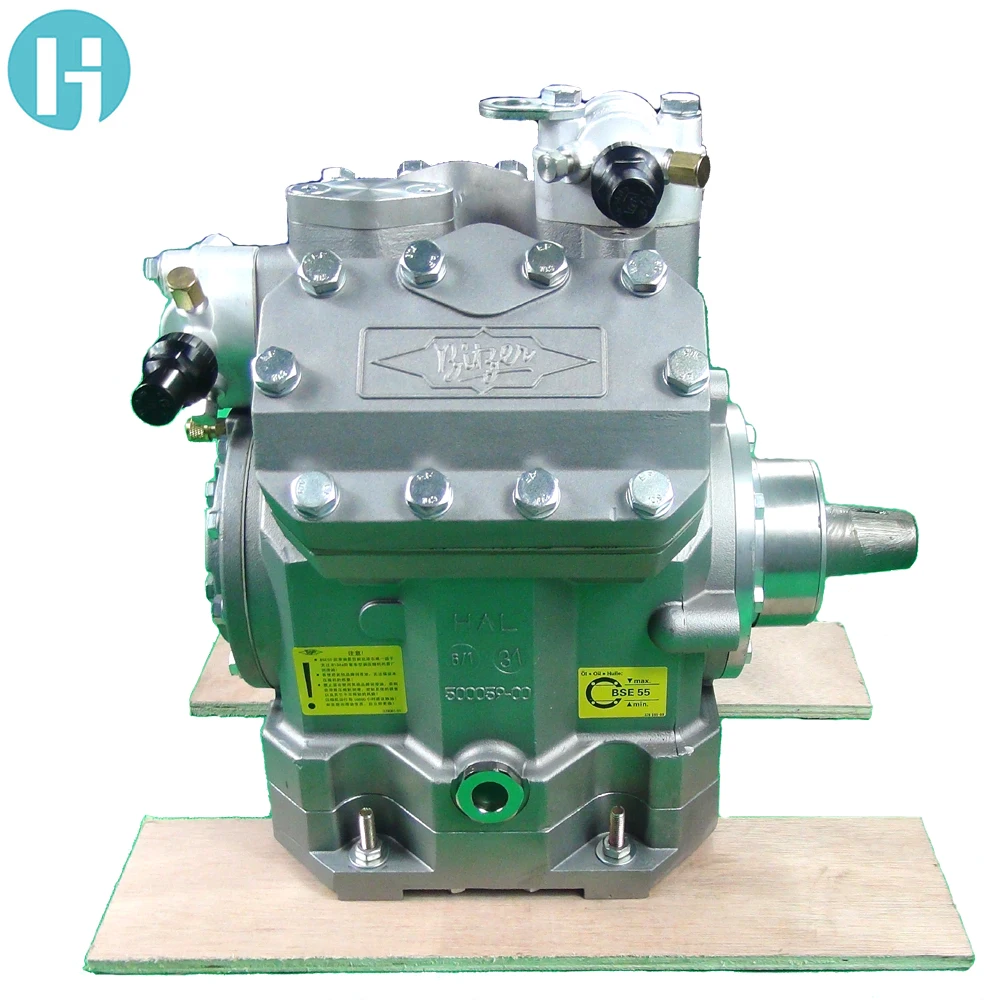

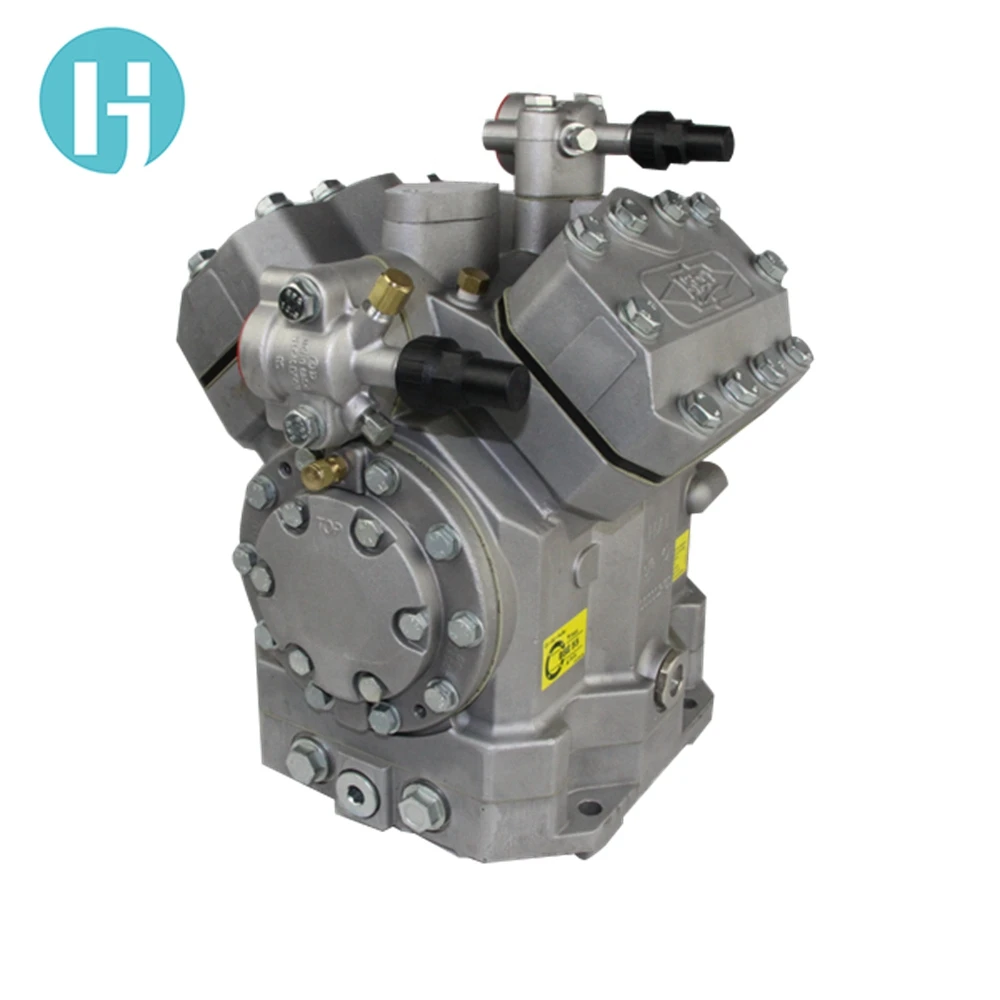

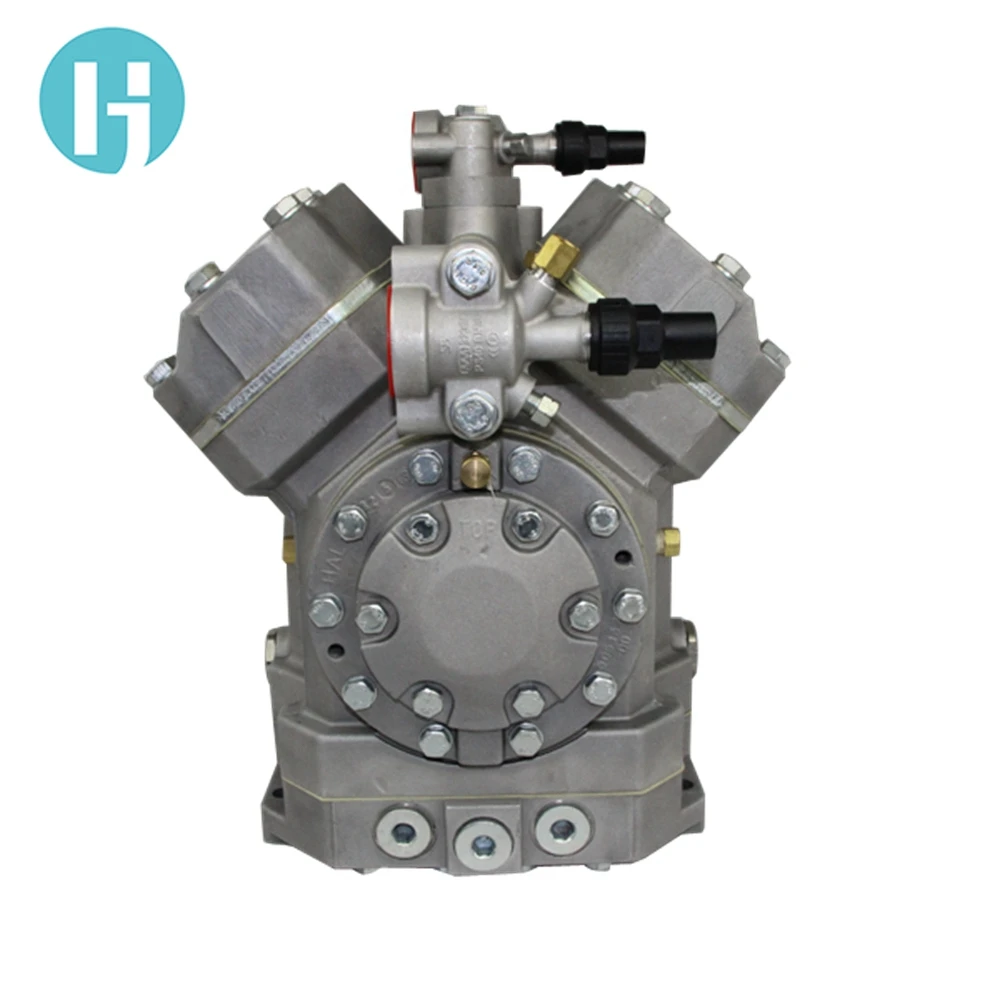

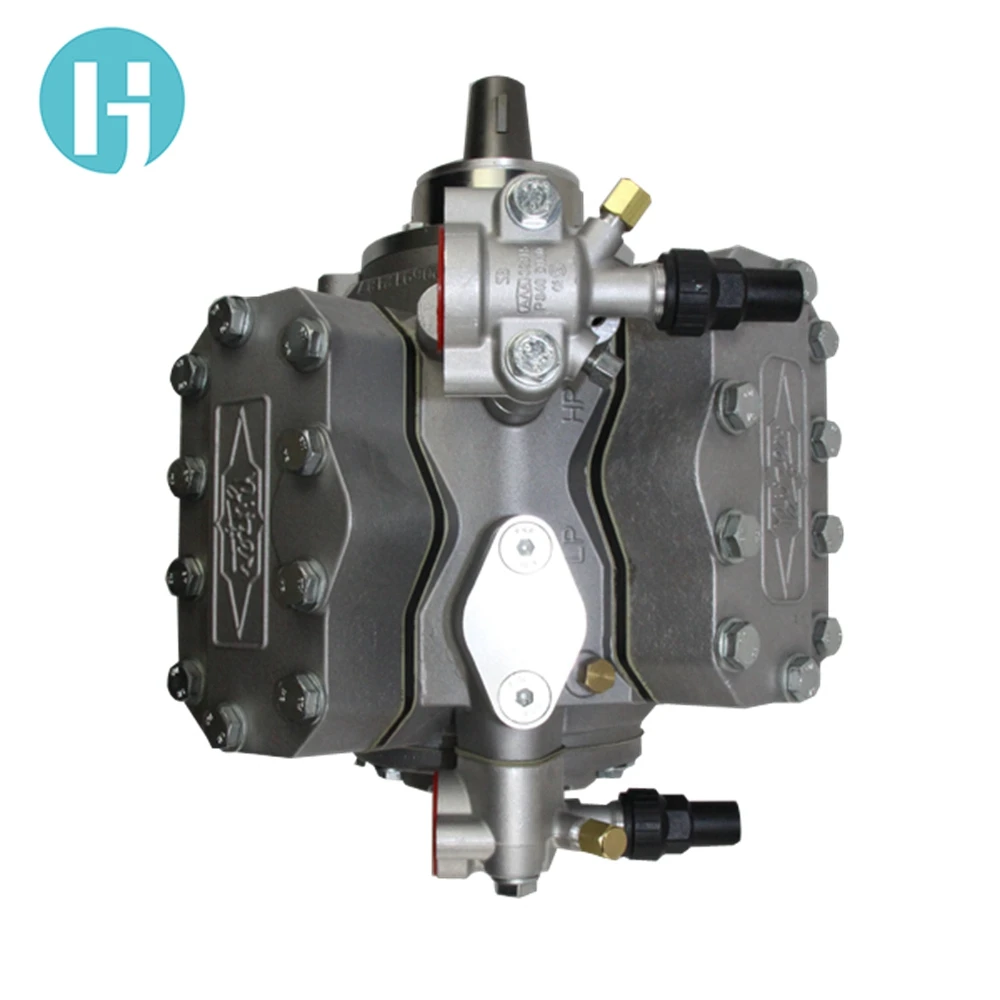

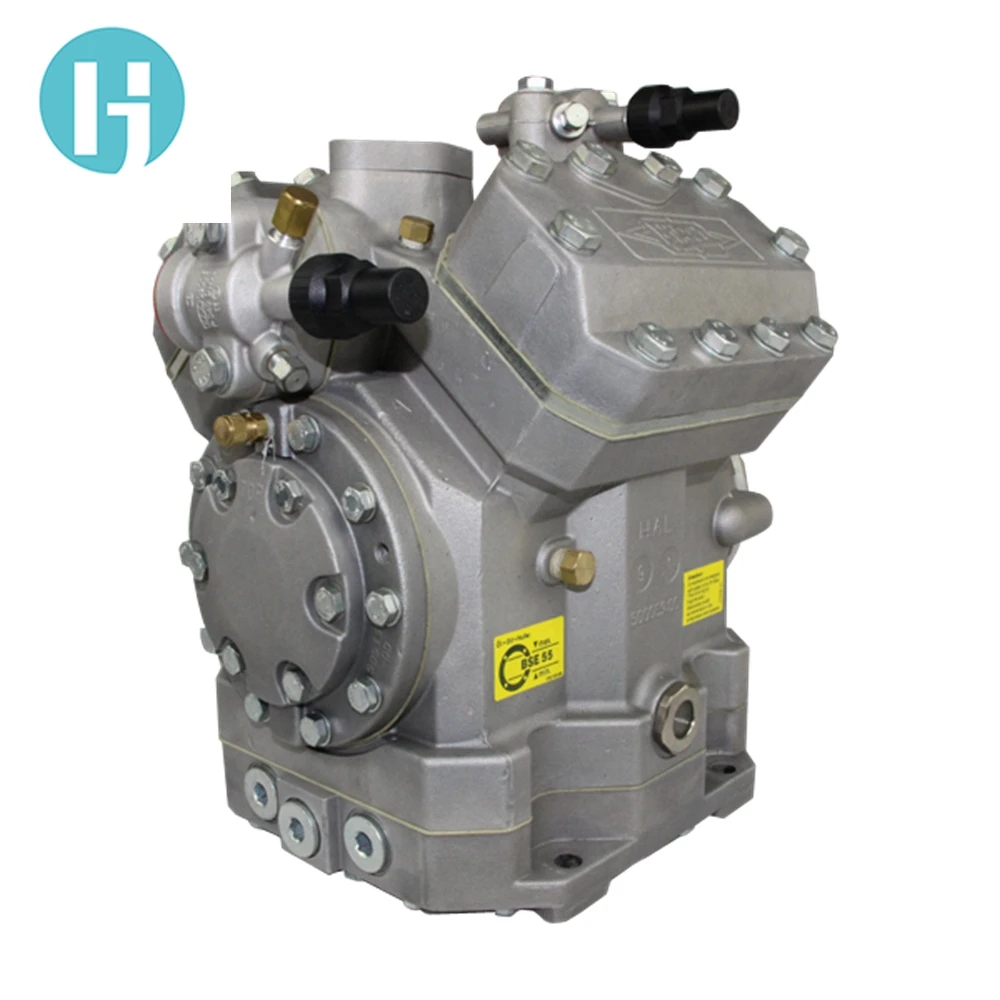

Pictures of Compressor:
