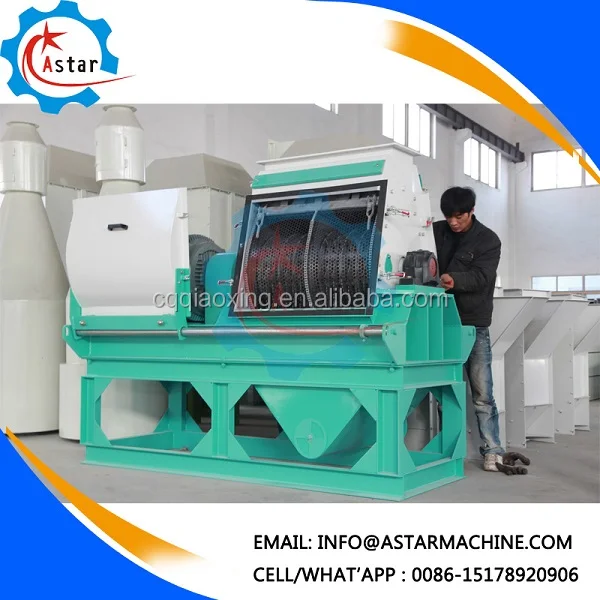

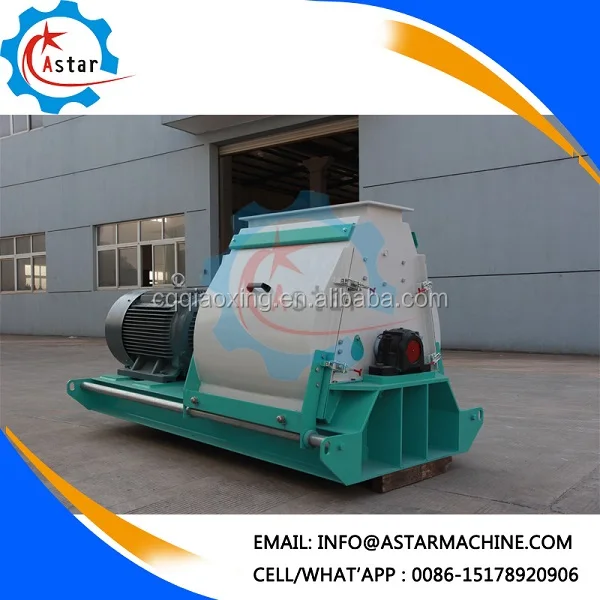

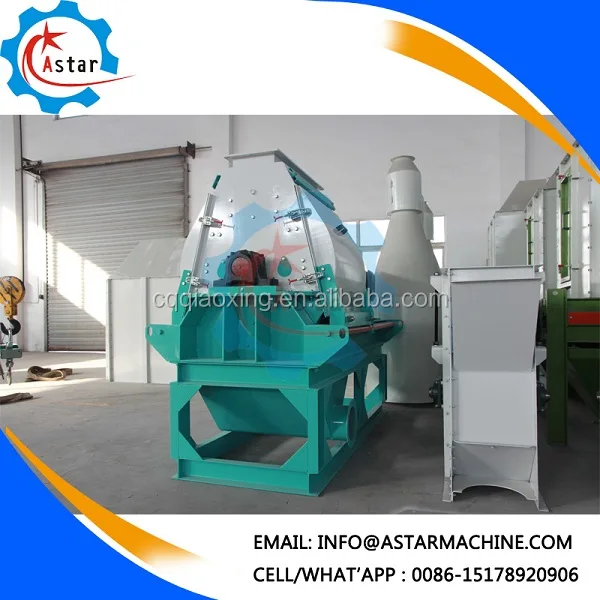

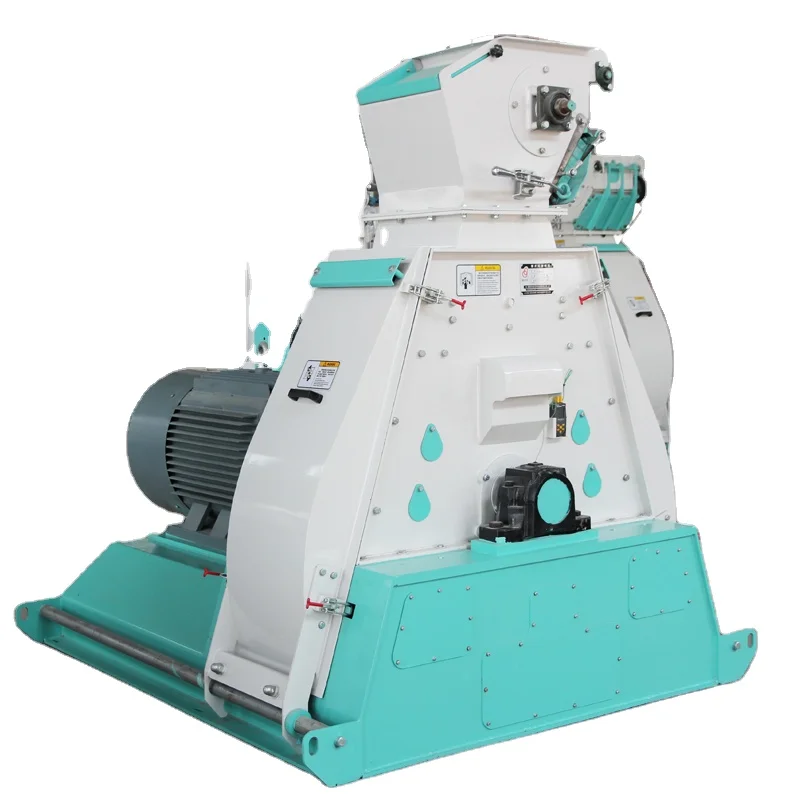

Low cost professional design animal feed grain crusher
- Category: >>>
- Supplier: Chongqing Qiaoxing Machinery & Equipment Company
Share on (60715644644):
Product Overview
Description
Product Description
Model | Power (kw) | Capacity (t/h) |
AST-ZW29C | 55 | 6 |
AST-ZW29C | 75 | 8 |
AST-ZW38C | 90 | 10 |
AST-ZW38C | 110 | 12 |
AST-ZW50C | 132 | 16 |
AST-ZW60C | 160 | 18 |
AST-ZW80C | 185 | 20 |
AST-ZW80C | 200 | 25 |
AST-ZW100C | 220 | 28 |
AST-ZW100C | 250 | 32 |
Model | Power( kw) | Capacity (T/H) |
AST-ZW36A | 22 | 1-3 |
AST-ZW40A | 37 | 3-5 |
Model | Power(kw) | Capacity(T/H) |
AST-ZW60B | 55 | 2 |
AST-ZW60B | 75 | 3.5 |
AST-ZW80B | 90 | 5 |
AST-ZW80B | 110 | 7 |
AST-ZW100B | 132 | 9 |
AST-ZW120B | 160 | 15 |
Low cost professional design animal feed grain crusher Description:
AST-ZW C series hammer mill Main product character :
1.It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
2.The design of overall base is high in structural strength and beautiful in appearance.
3.Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
4.Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
5.The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
6.Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
7.The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
Low cost professional design animal feed grain crusher Specification: | ||||||||||||
Model | AST-ZW-29C | AST-ZW-38C | AST-ZW-50C | AST-ZW-60C | AST-ZW-80C | AST-ZW-100C | ||||||
Rotor diameter (mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1120 | ||||||
Spindle speed(rpm) | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 | ||||||
Linear speed of hammers (m/s) | 86.5 | 86.5 | 86.5 | 86.5 | 86.5 | 86.5 | ||||||
Pulverizing room width(mm) | 290 | 380 | 500 | 600 | 800 | 1000 | ||||||
Number of hammers | 48 | 64 | 96 | 112 | 128 | 192 | ||||||
Power(kw) | 55/75 | 90/110 | 132 | 160 | 185/200 | 220/250 | ||||||
Normal Air Volume ( M3/min) | 55/60 | 72/78 | 95 | 100 | 120/140 | 140/160 | ||||||
Main Features :
1) Easy Operation, Simple Structure.
2) Adopting advanced world famous brand electric motor, Like Siemen Beide Or China Famious Wannan.
3) Bearing USe NSK Or SKF Brand.
4) Matched with bearing temperature tester, clearly know the machine bearings temperature when machine on working.
5) Fast delivery .
Certifications
Detailed Images
Machine Bearing
Name: Main Bearing
Brand: S-K-F or N-S-K
Original: China
our hammer mill main bearing use SKF or NSK brand
Bearing Temperature Tester
Name: bearing temperature tester
Brand: Astar
Original: China
use for test the main bearing working temperature.
Hammer Mill
Name: Hammers
Brand: Astar
Original: China
durable hammers , special treatment .
Impeller Feeder
Name: impeller feeder
Brand: Astar
Original: China
match the impeller feeder can feed raw materials more uniform, and also can remove the impurity like iron . protect machinne .
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.

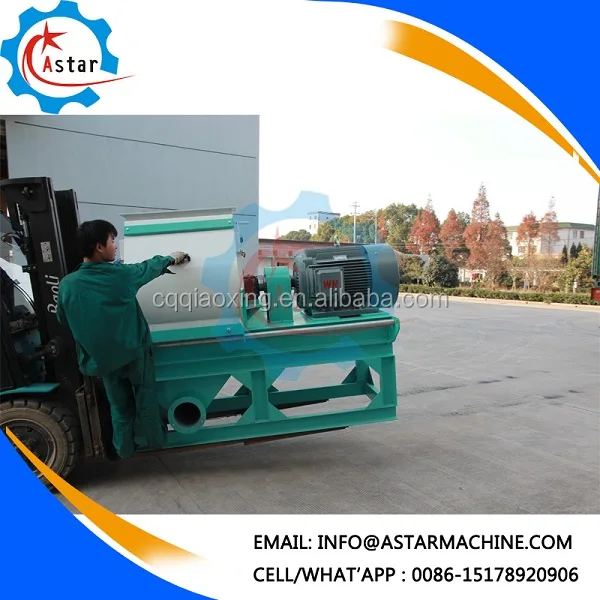

Packing & Delivery
Whole Complete Line Delivery | ||
Size | by Container | |
Weight | 1.8 T | |
Packaging Details | more sets loading by container delivery | |
One Set Low cost professional design animal feed grain crusher | ||
Size | 2000*1450*1720mm | |
Weight | 2000kg | |
Packaging Details | by strong wooden case packing | |
Related Products
Animal Feed mixer
mixing raw materials
Animal Feed Line
we can offer whole complete animal feed line
Animal Feed Pellet Mill
make animal feed pellets
Contact Informations:
any more information need of Low cost professional design animal feed grain crusher , pls contact with us freely.
Contact person: Mrs Winni
E-mail: info(at)astarmachine.com
Cell/What's APP/Viber: 0086 15178920906
Skype: winni.duan
