Factory price conveyor steel roller
- Category: >>>
- Supplier: Hebei Shengye Machinery Manufacturing Co. Ltd.
Share on (60715715724):
Product Overview
Description

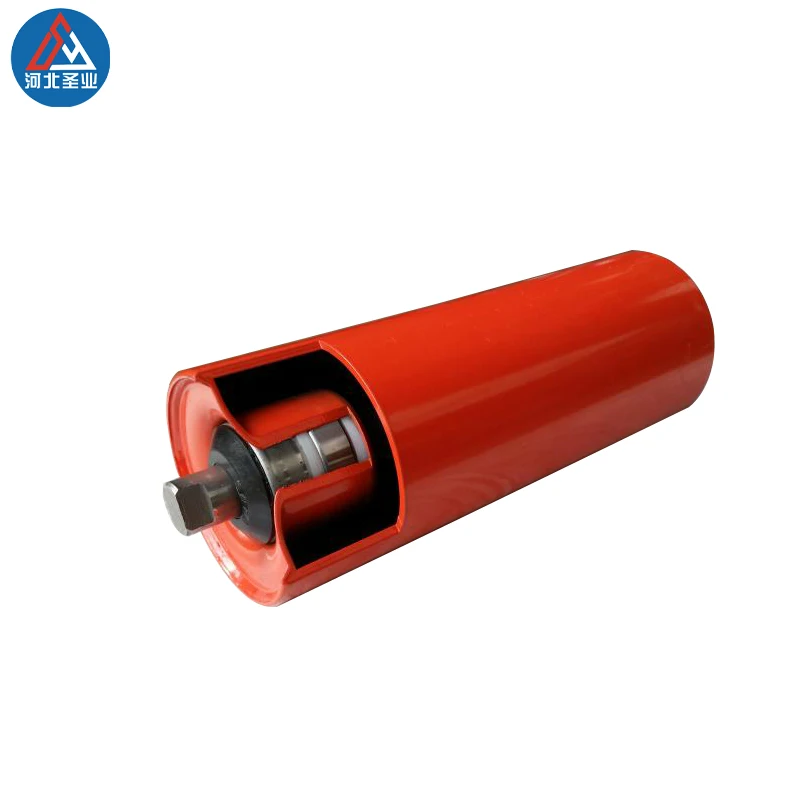

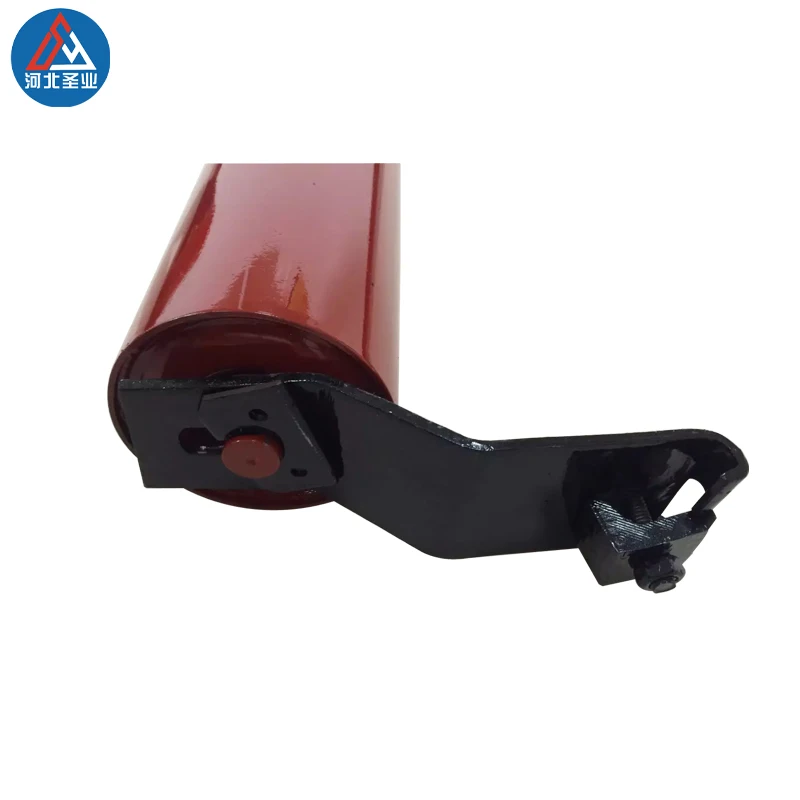

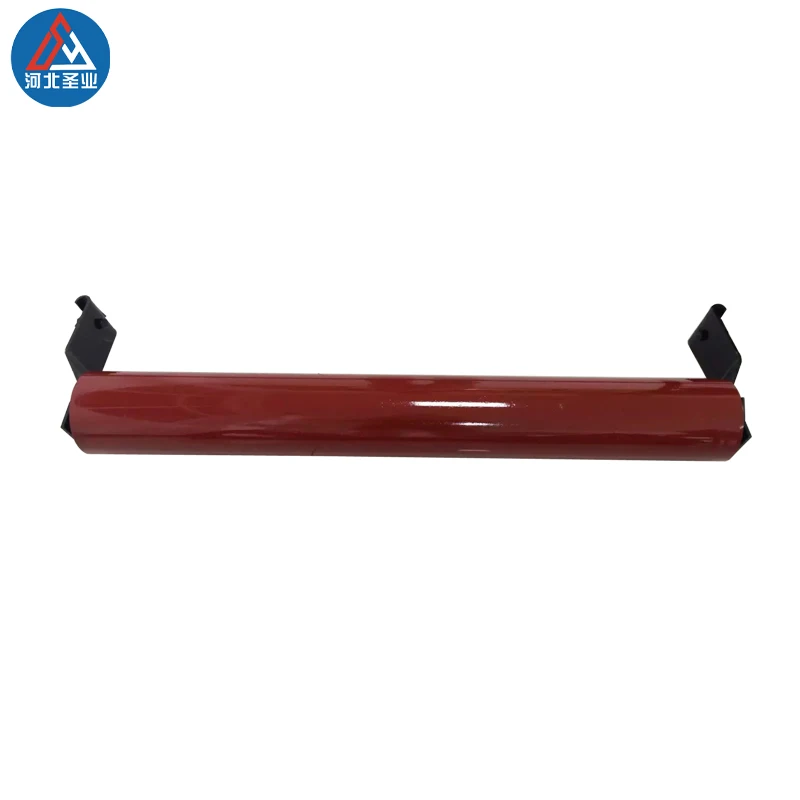

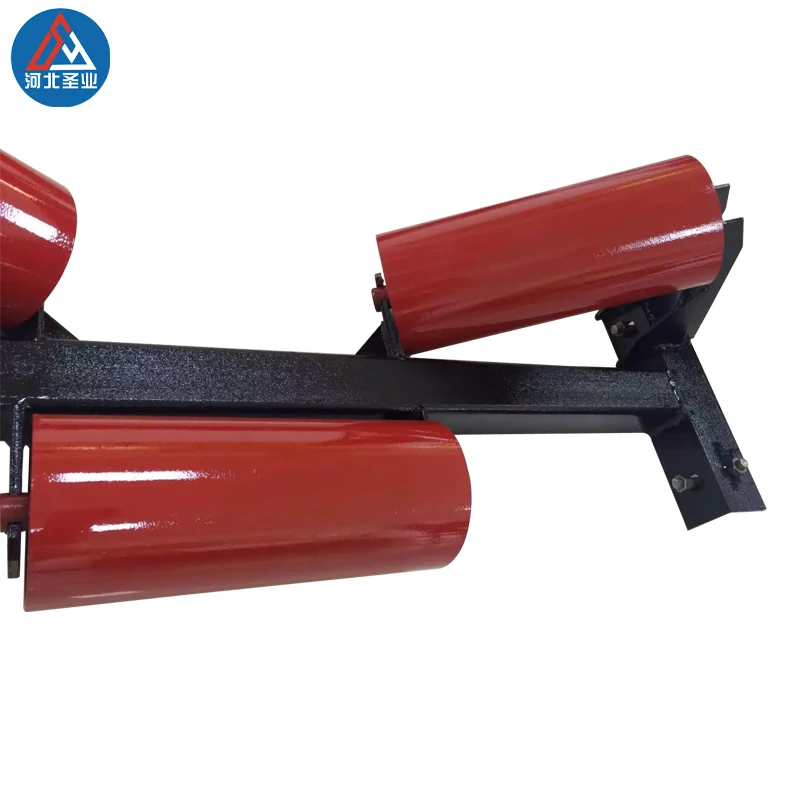

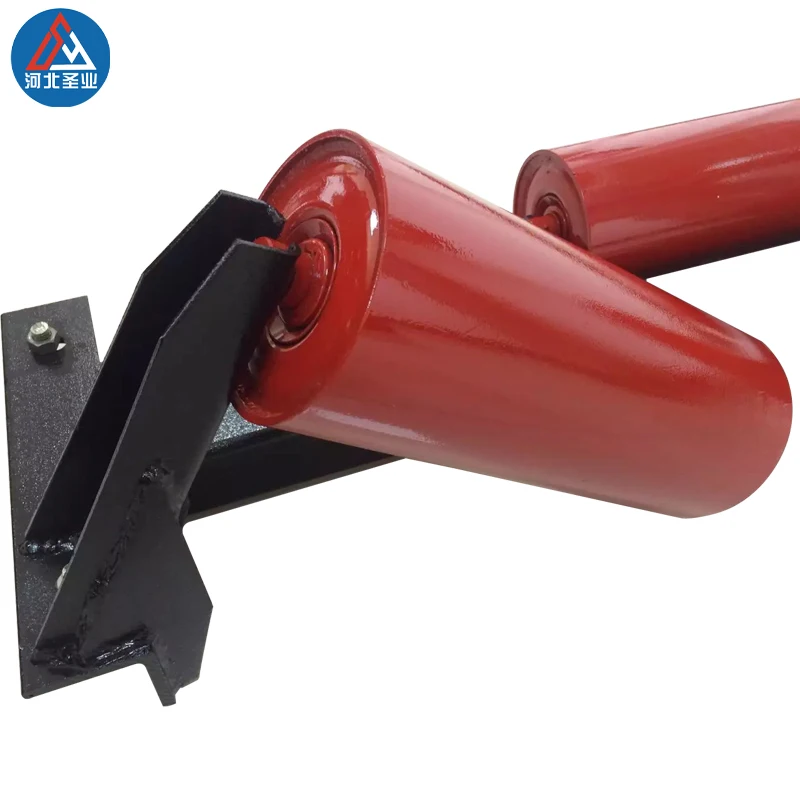

Factory price conveyor steel roller
Product Description
Hebei Shengye Machine Manufacturer is a leader in the design, manufacture and installation of conveyor systems and components for the materials handling industries, incorporating the latest machine technology and up to date production engineering processes.
Product Name | Heavy duty steel rollers |
Type | Conveyor steel carry roller |
Color | Green or customized |
Material | Q235B & 20# steel |
Size | 89*240mm |
Shaft diameter | 20mm |
Bearing | 6204 ZZ/RS |
Seals | Grease retaining inner seal with Multi-stage Labyrinth |
Lubrication | Grease is Lithium soap type grease with Rust Inhibitors. |
Welding | CO2 gas shielded arc welding end |
Conveyor Steel Roller Standards:
GB10595-2008 / ISO90001/ CEMA/ DIN/ JIS
Conveyor Steel Roller Advantages:
- Light and rigid frame construction
- Sealing arrangement consist of a double seal
- Additional water proofing neoprene contact lip seal
- Low friction coefficient, waterproof, effective sealing system
- High accurate steel pipes ensure the rollers with low vibration and noise
- Multi-labyrinth seals achieve waterproof and dustproof
- Adopting good bearing make sure the lifetime, stable running and good quality
- Excellent lubricating property
Conveyor steel roller technical data comparison:
Test Item | GB 10595-89 conveyor roller Standard | Hebei Shengye conveyor roller standard | ||||||||
Radial run- out | Belt speed (m/s) | Roller face length(mm) | Belt speed (m/s) | Roller face length(mm) | ||||||
<550 | ≥550~950 | >950~1600 | >1600~2400 | <550 | ≥550~950 | >950~1600 | >1600~2400 | |||
>3.15 | 0.5 | 0.7 | 2.3 | 1.7 | >3.15 | 0.5 | 0.5 | 0.7 | 1.0 | |
≤3.15 | 0.7 | 1.0 | 1.5 | 1.9 | ≤3.15 | 0.5 | 0.5 | 0.7 | 1.0 | |
axial displacement | Under 500N press, axial displacement<0.7mm | Under 500N press, axial displacement<0.5mm | ||||||||
rotation drag | rotation drag factor < 0.022 | rotation drag factor < 0.019 | ||||||||
Dust proof | Roller rotates at 550 r/min, continuous operation after 200h, coal dust cannot into the grease. | Roller rotates at 550r/min, continuous operation after 200h, coal dust cannot into the grease. | ||||||||
Water proof | Roller rotates at 550 r/min, continuous operation after 72h, water should not exceed 150 g. | Roller rotates at 550 r/min, continuous operation after 72h, water should not exceed 50 g | ||||||||
axial load | Roller shaft press on below specified axial load, the roller shaft cannot disengage from roller shell. | Roller shaft press on below specified axial load, the roller shaft cannot disengage from roller shell. | ||||||||
Roller shaft Dia. | specified axial load (N) | Roller shaft Dia | specified axial load (N) | |||||||
≤20 | 10,000 | ≤20 | 10,000 | |||||||
≥25 | 15,000 | ≥25 | 15,000 | |||||||
drop test | Horizontal drop test and vertical drop test 1. Roller parts and welds should not have damage and cracks, without loose on the match place. 2. The axial displacement ≤ 1.5 mm.
| Horizontal drop test and vertical drop test 1. Roller parts and welds should not have damage and cracks, without loose on the match place. 2. The axial displacement ≤ 0.7 mm.
| ||||||||

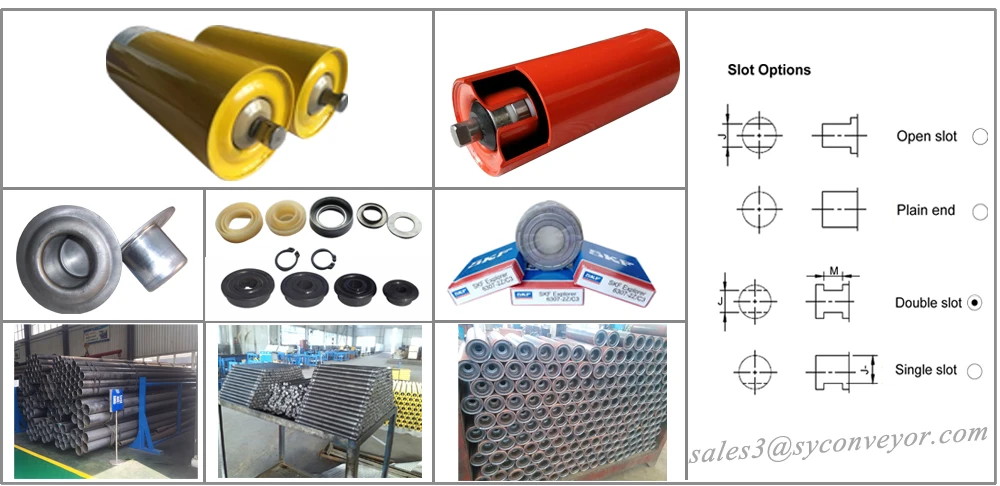

What We Have?
- Conveyor Roller Idler: Composite Conveyor Roller and Steel Conveyor Roller
- Conveyor Roller Type: Return Roller, Carrying Roller, Buffer Roller, Training Roller, Garland Roller, Cleaning Roller, Troughing Roller and Spiral Roller. cte
- Conveyor Roller Frame, conveyor roller brackets
- Conveyor Drum Pulley: Head Pulley, Tail Pulley, Bend Pulley, Take-up Pulley. etc
- Conveyor Belt: Flat Rubber Belt, Steel Cord Rubber Belt, Sidewall Rubber Belt, etc.
- Conveyor Belt Cleaner: Primary Belt Cleaner, Secondary Belt Cleaner, Return Belt Cleaner, ect.
Our Revolution

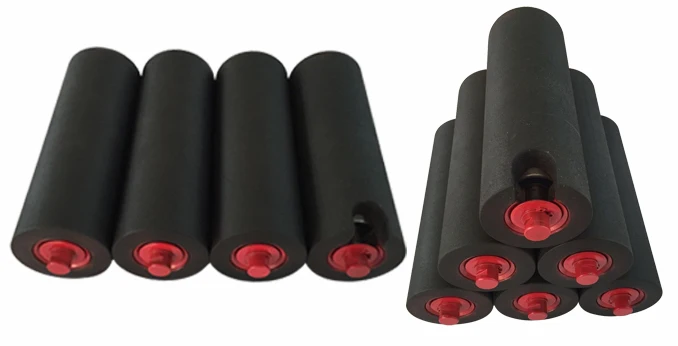

Conveyor Rollers Revolution---------Composite Roller
Composite roller shell and bearing housing is made of polypropylene, Quartz sand, carbon black, graphite etc 16 kinds high hardness powders.It is thermoformed by patented technology.
Advantages:
Working life is 8-10 times longer than steel idler
•Super wear resistant •Anti-static
•Maximize Bearing Life •Anti-material sticky
•Low friction coefficient •Anti-corrosion ,anti-acid, alkali
•Low Noise Factor •T.I.R ≤0.1mm
Packaging & Shipping
We do careful packaging to ensure the good condition and successful delivery of the conveyor roller idlers, conveyor bracket, conveyor belt cleaner and conveyor pulleys. We can do cusotmer request, we can put customer logo, we can offer excellent Packing Safety.
Our Project

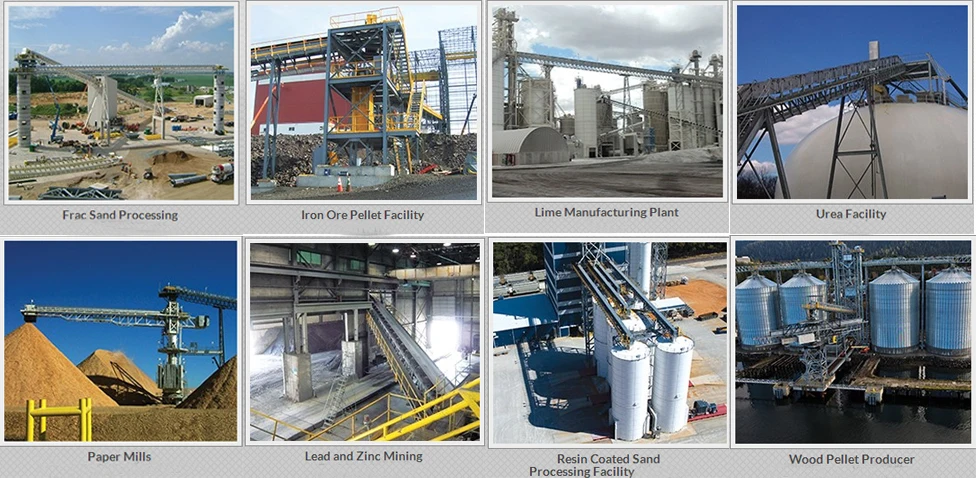

Hebei Shengye Machine Manufacture conveyor idler and pulley are widely used in Mining & Minerals Industry, Cement Industry, Chemical Industry , Coal Industry, Salt Industry, Ceramic Industry, Sugar Industry, Paper and Pulp Industry, Iron and Steel Industry, Pharmaceuticals Industry, Textile Industry, Leather and Plastic Industry and so on.

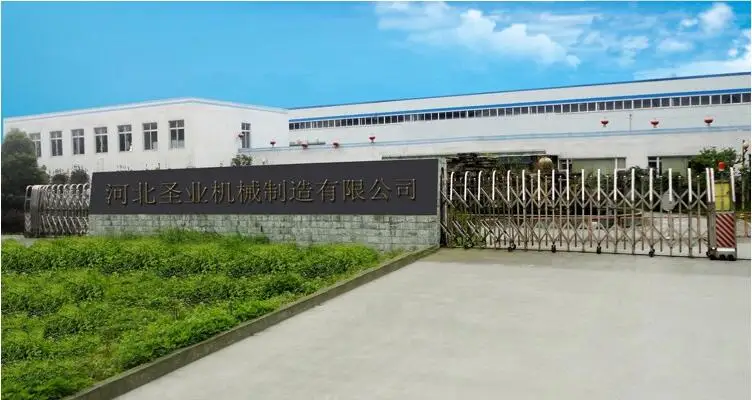

Company Information
Hebei Shengye Machinery Manufacturing Co., Ltd. is a professional manufacturer that engaged in belt conveyor rollers, idler frames/brackets, pulleys, conveyor belts etc components researching and development, designing, production and sales.

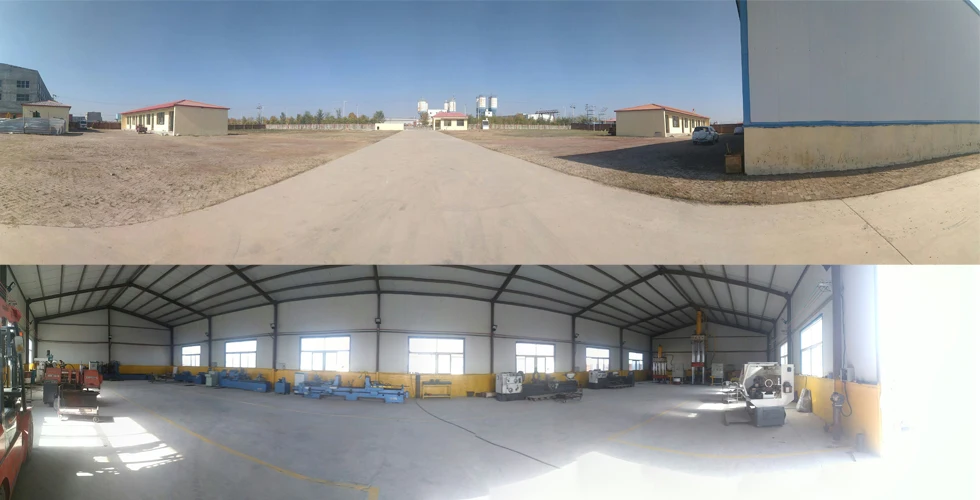

Our company has the modern production bases in Shandong and Hebei.
Our head office is located in Beijing.
Our business philosophy is industry leading, professional pursuit, integrity management and steady development.
Our mission is integrity, quality, safety, service. We provide customers personalized and specialized products and services.
FAQ
Q1. How can I place an order?
You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype, TradeManager or Wechats or WhatsApp or other instant ways, in case of any delays.
Q2. When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
Q3. Can you do the design for us?
Yes. We have a professional team having rich experience in conveyor roller, conveyor pulley and conveyor belt design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect products.
Q4. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in5-7 days. The samples will be sent to you via express and arrive in 3-5 days.
Q5. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Always 15-20 days based on general order .
Q6. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q7. What is the payment way?
1)Paypal, TT ,L/C for the trial order.
2)ODM, OEM order, 30% T/T, 70% balance before delivery or against copy of BL.
Q8. Are you a factory or trading company?
We are factory, and we can guarantee our price is first-hand, High quality and competitive price.
Q9. Where is your factory loaded ? How can I visit there?
Our factory loaded in Shandong,China, you can come here by air, and then call us to pick up.
Q10. How does your factory of regarding quality control?
To make sure customer buy good quality material and service from us. Before customer place order, we will send drawing to customer for approval. Before shipment, our QC staff will check quality 1pc by 1pc.Quality is our culture.
Our Services
1. Provide professional conveyor solutions, especially technical consultation service,
2. Provide Installation, debugs, and provide complete technical training.
3. Guarantee: 12 months in common using condition (except damageable and artificial destruction)
4. Repair:
1) We provide technical guidance all life.
2) Within the guarantee period, we will offer spare parts free of charge.

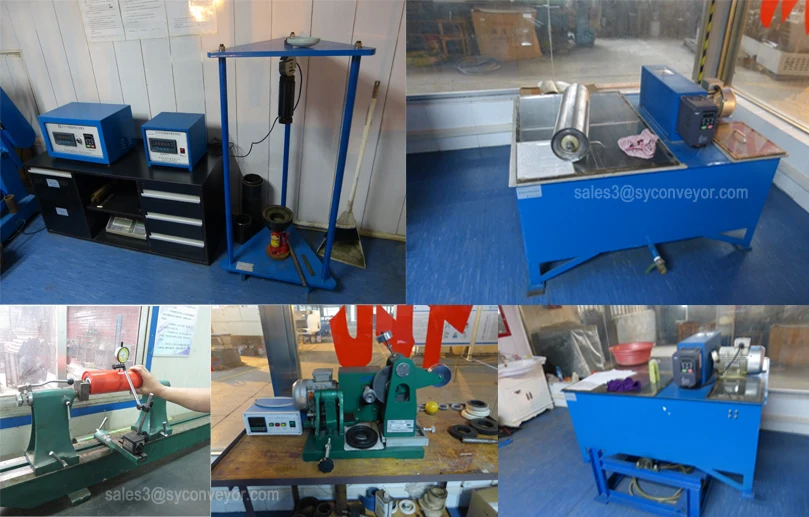

Conveyor Steel Roller Quality Control:
We will in accordance with " reputation first, customer first" principle,
We have always insisted that every product reaches your hands have been tested three times.
