Stair climbing power electric motorized wheelchair brushless gearless hub motor

Product Overview

Description

Product Features:

   This 8-inch scooter motor is featured by high efficiency, being easy to install, low energy consumption,

 low noise, long mileage and superior water-resistant performance. It's light and easy to carry.

 It can be assembled onto wear-resistant tyres which offer strong grip, reduced riding vibration and

 improved riding comfort.It is especially suitable for small scooters and folding bikes.



Item:	WQD-8	Design:	Brushless
Voltage:	12V 24V 36V 48V	Electric motors:	Brushless dc motor
Tire type:	Solid Rubber	Colour:	Silver
Structure:	Permanent Magnet	Torque:	6~15Nm
Rated voltage:	12/24/36/48V	Rated Power (Watts):	65-180/180-250/250-350/250-500
Speed:	20-30km/h	Speed (RPM):	400-700rpm

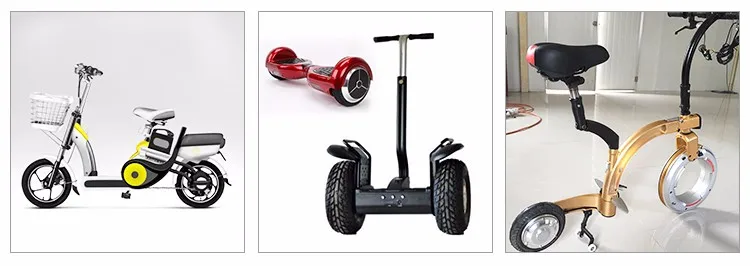

Wheel type:	Aluminium material	Scope of application:	Scooter,Electric bicycle

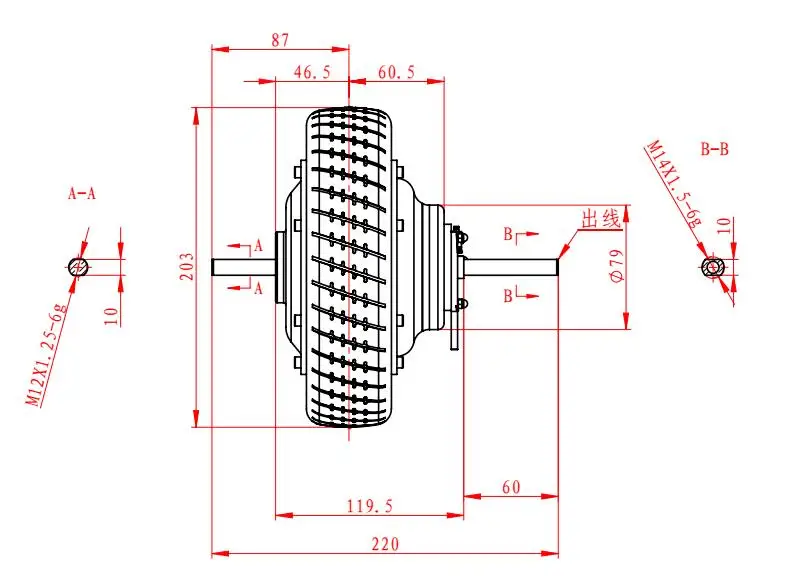

Length:	203mm	Net Weight (Kg):	2.7
Gross Weight (kg):	3.5	Effectiveness:	75-86%
Production:	Jiangsu China	Rim size:	8 inch
Product Features:	Waterproof,Totally Enclosed Small volume, light weight, large torque, high efficiency, stable performance, cost-effective superior
